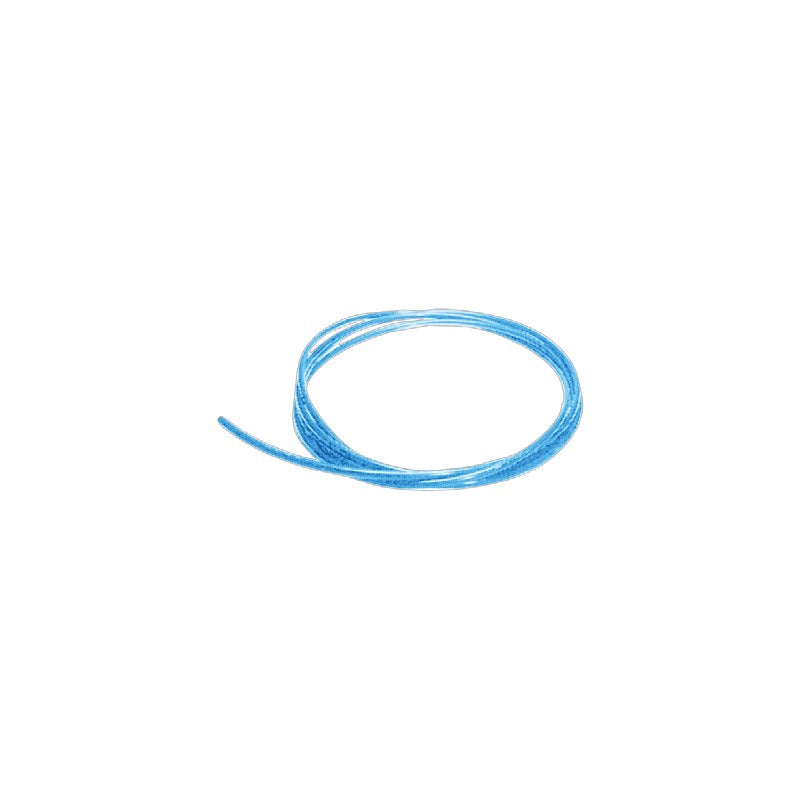

SMC TX/TIX Polyethylene Tubing (Metric and Inch Sizes)

SMC TX/TIX Polyethylene Tubing (Metric and Inch Sizes)

SMC TX series (metric) and TIX series (inch) polyethylene tubing with good chemical and heat resistance, made from materials listed for food contact.

Key features

  • Polyethylene material conforming to Japan Food Sanitation Act, FDA and (EU) No 10/2011 positive lists
  • Wide operating temperature range: air and inert gas -45 to 80C, water 0 to 80C
  • Six colors; black, white and red also supplied on 100 m rolls
  • Used with SUS316 insert fittings KFG2 series
  • Typical applications: food, medical and semiconductor equipment

Specifications

Material Polyethylene
Fluid Air, water, inert gas
Max. operating pressure 1.0 MPa at 20C (0.3 to 0.6 MPa at 80C depending on size)
Max. operating vacuum -101.3 kPa
Operating temperature Air/inert gas -45 to 80C, water 0 to 80C (no freezing)
Applicable fittings SUS316 insert fittings KFG2
Note Avoid contact with mineral oil
Standards RoHS
Source SMC Korea catalog (SMCKR_TX_TIX.pdf), p. CAT.KS50-48A, p. 1-2 (PDF p. 3-4)
TX0425B-20 Tube size: 4 x 2.5 mm | Color: Black (B) | Length: 20 m roll | Min. bending radius: 13 mm
TX0425B-100 Tube size: 4 x 2.5 mm | Color: Black (B) | Length: 100 m roll | Min. bending radius: 13 mm
TX0425W-20 Tube size: 4 x 2.5 mm | Color: White (W) | Length: 20 m roll | Min. bending radius: 13 mm
TX0425W-100 Tube size: 4 x 2.5 mm | Color: White (W) | Length: 100 m roll | Min. bending radius: 13 mm
TX0425R-20 Tube size: 4 x 2.5 mm | Color: Red (R) | Length: 20 m roll | Min. bending radius: 13 mm
TX0425R-100 Tube size: 4 x 2.5 mm | Color: Red (R) | Length: 100 m roll | Min. bending radius: 13 mm
TX0425BU-20 Tube size: 4 x 2.5 mm | Color: Blue (BU) | Length: 20 m roll | Min. bending radius: 13 mm
TX0425Y-20 Tube size: 4 x 2.5 mm | Color: Yellow (Y) | Length: 20 m roll | Min. bending radius: 13 mm
TX0425G-20 Tube size: 4 x 2.5 mm | Color: Green (G) | Length: 20 m roll | Min. bending radius: 13 mm
TX0604B-20 Tube size: 6 x 4 mm | Color: Black (B) | Length: 20 m roll | Min. bending radius: 22 mm
TX0604B-100 Tube size: 6 x 4 mm | Color: Black (B) | Length: 100 m roll | Min. bending radius: 22 mm
TX0604W-20 Tube size: 6 x 4 mm | Color: White (W) | Length: 20 m roll | Min. bending radius: 22 mm
TX0604W-100 Tube size: 6 x 4 mm | Color: White (W) | Length: 100 m roll | Min. bending radius: 22 mm
TX0604R-20 Tube size: 6 x 4 mm | Color: Red (R) | Length: 20 m roll | Min. bending radius: 22 mm
TX0604R-100 Tube size: 6 x 4 mm | Color: Red (R) | Length: 100 m roll | Min. bending radius: 22 mm
TX0604BU-20 Tube size: 6 x 4 mm | Color: Blue (BU) | Length: 20 m roll | Min. bending radius: 22 mm
TX0604Y-20 Tube size: 6 x 4 mm | Color: Yellow (Y) | Length: 20 m roll | Min. bending radius: 22 mm
TX0604G-20 Tube size: 6 x 4 mm | Color: Green (G) | Length: 20 m roll | Min. bending radius: 22 mm
TX0806B-20 Tube size: 8 x 6 mm | Color: Black (B) | Length: 20 m roll | Min. bending radius: 34 mm
TX0806B-100 Tube size: 8 x 6 mm | Color: Black (B) | Length: 100 m roll | Min. bending radius: 34 mm
TX0806W-20 Tube size: 8 x 6 mm | Color: White (W) | Length: 20 m roll | Min. bending radius: 34 mm
TX0806W-100 Tube size: 8 x 6 mm | Color: White (W) | Length: 100 m roll | Min. bending radius: 34 mm
TX0806R-20 Tube size: 8 x 6 mm | Color: Red (R) | Length: 20 m roll | Min. bending radius: 34 mm
TX0806R-100 Tube size: 8 x 6 mm | Color: Red (R) | Length: 100 m roll | Min. bending radius: 34 mm
TX0806BU-20 Tube size: 8 x 6 mm | Color: Blue (BU) | Length: 20 m roll | Min. bending radius: 34 mm
TX0806Y-20 Tube size: 8 x 6 mm | Color: Yellow (Y) | Length: 20 m roll | Min. bending radius: 34 mm
TX0806G-20 Tube size: 8 x 6 mm | Color: Green (G) | Length: 20 m roll | Min. bending radius: 34 mm
TX1008B-20 Tube size: 10 x 8 mm | Color: Black (B) | Length: 20 m roll | Min. bending radius: 59 mm
TX1008B-100 Tube size: 10 x 8 mm | Color: Black (B) | Length: 100 m roll | Min. bending radius: 59 mm
TX1008W-20 Tube size: 10 x 8 mm | Color: White (W) | Length: 20 m roll | Min. bending radius: 59 mm
TX1008W-100 Tube size: 10 x 8 mm | Color: White (W) | Length: 100 m roll | Min. bending radius: 59 mm
TX1008R-20 Tube size: 10 x 8 mm | Color: Red (R) | Length: 20 m roll | Min. bending radius: 59 mm
TX1008R-100 Tube size: 10 x 8 mm | Color: Red (R) | Length: 100 m roll | Min. bending radius: 59 mm
TX1008BU-20 Tube size: 10 x 8 mm | Color: Blue (BU) | Length: 20 m roll | Min. bending radius: 59 mm
TX1008Y-20 Tube size: 10 x 8 mm | Color: Yellow (Y) | Length: 20 m roll | Min. bending radius: 59 mm
TX1008G-20 Tube size: 10 x 8 mm | Color: Green (G) | Length: 20 m roll | Min. bending radius: 59 mm
TX1209B-20 Tube size: 12 x 9 mm | Color: Black (B) | Length: 20 m roll | Min. bending radius: 55 mm
TX1209B-100 Tube size: 12 x 9 mm | Color: Black (B) | Length: 100 m roll | Min. bending radius: 55 mm
TX1209W-20 Tube size: 12 x 9 mm | Color: White (W) | Length: 20 m roll | Min. bending radius: 55 mm
TX1209W-100 Tube size: 12 x 9 mm | Color: White (W) | Length: 100 m roll | Min. bending radius: 55 mm
TX1209R-20 Tube size: 12 x 9 mm | Color: Red (R) | Length: 20 m roll | Min. bending radius: 55 mm
TX1209R-100 Tube size: 12 x 9 mm | Color: Red (R) | Length: 100 m roll | Min. bending radius: 55 mm
TX1209BU-20 Tube size: 12 x 9 mm | Color: Blue (BU) | Length: 20 m roll | Min. bending radius: 55 mm
TX1209Y-20 Tube size: 12 x 9 mm | Color: Yellow (Y) | Length: 20 m roll | Min. bending radius: 55 mm
TX1209G-20 Tube size: 12 x 9 mm | Color: Green (G) | Length: 20 m roll | Min. bending radius: 55 mm
TIX07B-20 Tube size: 1/4 in (6.35 x 3.95 mm) | Color: Black (B) | Length: 20 m roll | Min. bending radius: 28 mm
TIX07B-100 Tube size: 1/4 in (6.35 x 3.95 mm) | Color: Black (B) | Length: 100 m roll | Min. bending radius: 28 mm
TIX07W-20 Tube size: 1/4 in (6.35 x 3.95 mm) | Color: White (W) | Length: 20 m roll | Min. bending radius: 28 mm
TIX07W-100 Tube size: 1/4 in (6.35 x 3.95 mm) | Color: White (W) | Length: 100 m roll | Min. bending radius: 28 mm
TIX07R-20 Tube size: 1/4 in (6.35 x 3.95 mm) | Color: Red (R) | Length: 20 m roll | Min. bending radius: 28 mm
TIX07R-100 Tube size: 1/4 in (6.35 x 3.95 mm) | Color: Red (R) | Length: 100 m roll | Min. bending radius: 28 mm
TIX07BU-20 Tube size: 1/4 in (6.35 x 3.95 mm) | Color: Blue (BU) | Length: 20 m roll | Min. bending radius: 28 mm
TIX07Y-20 Tube size: 1/4 in (6.35 x 3.95 mm) | Color: Yellow (Y) | Length: 20 m roll | Min. bending radius: 28 mm
TIX07G-20 Tube size: 1/4 in (6.35 x 3.95 mm) | Color: Green (G) | Length: 20 m roll | Min. bending radius: 28 mm
TIX11B-20 Tube size: 3/8 in (9.53 x 6.33 mm) | Color: Black (B) | Length: 20 m roll | Min. bending radius: 37 mm
TIX11B-100 Tube size: 3/8 in (9.53 x 6.33 mm) | Color: Black (B) | Length: 100 m roll | Min. bending radius: 37 mm
TIX11W-20 Tube size: 3/8 in (9.53 x 6.33 mm) | Color: White (W) | Length: 20 m roll | Min. bending radius: 37 mm
TIX11W-100 Tube size: 3/8 in (9.53 x 6.33 mm) | Color: White (W) | Length: 100 m roll | Min. bending radius: 37 mm
TIX11R-20 Tube size: 3/8 in (9.53 x 6.33 mm) | Color: Red (R) | Length: 20 m roll | Min. bending radius: 37 mm
TIX11R-100 Tube size: 3/8 in (9.53 x 6.33 mm) | Color: Red (R) | Length: 100 m roll | Min. bending radius: 37 mm
TIX11BU-20 Tube size: 3/8 in (9.53 x 6.33 mm) | Color: Blue (BU) | Length: 20 m roll | Min. bending radius: 37 mm
TIX11Y-20 Tube size: 3/8 in (9.53 x 6.33 mm) | Color: Yellow (Y) | Length: 20 m roll | Min. bending radius: 37 mm
TIX11G-20 Tube size: 3/8 in (9.53 x 6.33 mm) | Color: Green (G) | Length: 20 m roll | Min. bending radius: 37 mm
TIX13B-20 Tube size: 1/2 in (12.7 x 9.5 mm) | Color: Black (B) | Length: 20 m roll | Min. bending radius: 60 mm
TIX13B-100 Tube size: 1/2 in (12.7 x 9.5 mm) | Color: Black (B) | Length: 100 m roll | Min. bending radius: 60 mm
TIX13W-20 Tube size: 1/2 in (12.7 x 9.5 mm) | Color: White (W) | Length: 20 m roll | Min. bending radius: 60 mm
TIX13W-100 Tube size: 1/2 in (12.7 x 9.5 mm) | Color: White (W) | Length: 100 m roll | Min. bending radius: 60 mm
TIX13R-20 Tube size: 1/2 in (12.7 x 9.5 mm) | Color: Red (R) | Length: 20 m roll | Min. bending radius: 60 mm
TIX13R-100 Tube size: 1/2 in (12.7 x 9.5 mm) | Color: Red (R) | Length: 100 m roll | Min. bending radius: 60 mm
TIX13BU-20 Tube size: 1/2 in (12.7 x 9.5 mm) | Color: Blue (BU) | Length: 20 m roll | Min. bending radius: 60 mm
TIX13Y-20 Tube size: 1/2 in (12.7 x 9.5 mm) | Color: Yellow (Y) | Length: 20 m roll | Min. bending radius: 60 mm
TIX13G-20 Tube size: 1/2 in (12.7 x 9.5 mm) | Color: Green (G) | Length: 20 m roll | Min. bending radius: 60 mm
TubingSMC
72 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC TX/TIX Polyethylene Tubing (Metric and Inch Sizes)

Brand SMC·Tubing

Available part numbers (72)

TX0425B-20, TX0425B-100, TX0425W-20, TX0425W-100, TX0425R-20, TX0425R-100, TX0425BU-20, TX0425Y-20, TX0425G-20, TX0604B-20 + 62 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
