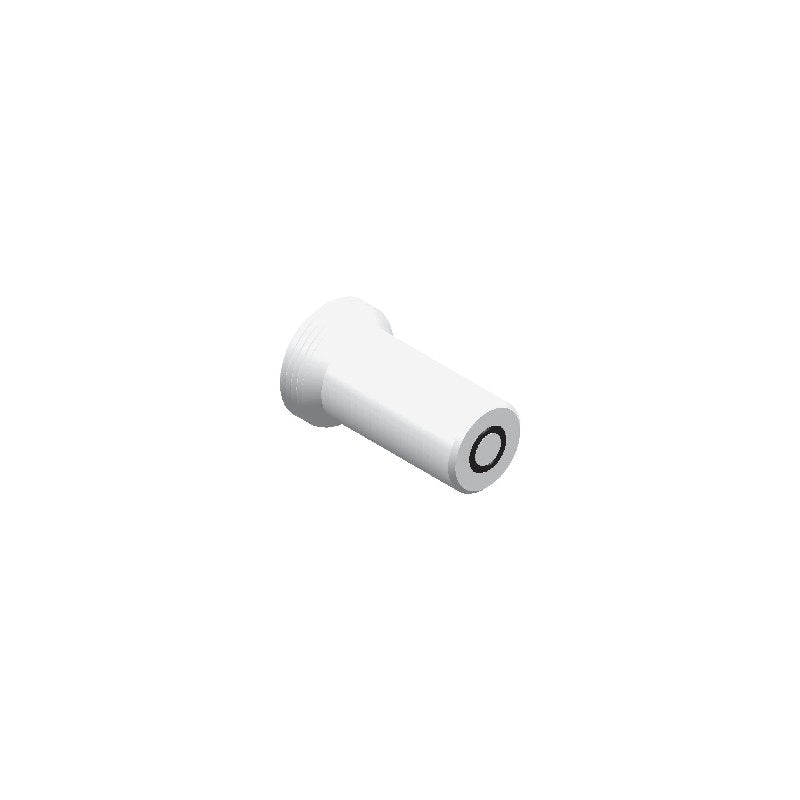

SMC VCK SUS316L Stainless Fitting (for VCC Manifolds, ø6 to ø12)

SMC VCK SUS316L Stainless Fitting (for VCC Manifolds, ø6 to ø12)

SMC VCK series SUS316L stainless steel fitting for VCC paint valve manifolds and sub-bases, half union, 40° or 90° swivel elbow, G1/4 connection for nylon and fluororesin tubing.

Key features

  • SUS316L stainless steel wetted body for paints, inks and cleaning fluids
  • Half union (VCKH), 40° swivel elbow (VCKK) and 90° swivel elbow (VCKL)
  • G1/4 connection with bottom seal; no seal tape needed
  • Tube sizes 6x4, 8x6, 10x7.5, 10x8 and 12x9 mm

Specifications

Applicable tubing Nylon, fluororesin
Fluid Water/solvent-based paint, ink, cleaning fluid, air
Max. operating pressure 1.0 MPa (20°C)
Operating temperature 0 to 60°C
Connection thread G1/4 (02F)
Material SUS316L (nut aluminum + Ni plating on VCKH)
Source SMC Korea catalog VCC (SMCKR_VCC.pdf), p. 647-648, 652-653 (PDF p. 7-8, 12-13)
VCKH0604-02F Shape: Half union | Tube (OD x ID): 6x4 mm
VCKH0806-02F Shape: Half union | Tube (OD x ID): 8x6 mm
VCKH1075-02F Shape: Half union | Tube (OD x ID): 10x7.5 mm
VCKH1008-02F Shape: Half union | Tube (OD x ID): 10x8 mm
VCKH1209-02F Shape: Half union | Tube (OD x ID): 12x9 mm
VCKK0604-02F Shape: 40° swivel elbow | Tube (OD x ID): 6x4 mm
VCKK0806-02F Shape: 40° swivel elbow | Tube (OD x ID): 8x6 mm
VCKK1075-02F Shape: 40° swivel elbow | Tube (OD x ID): 10x7.5 mm
VCKK1008-02F Shape: 40° swivel elbow | Tube (OD x ID): 10x8 mm
VCKK1209-02F Shape: 40° swivel elbow | Tube (OD x ID): 12x9 mm
VCKL0604-02F Shape: 90° swivel elbow | Tube (OD x ID): 6x4 mm
VCKL0806-02F Shape: 90° swivel elbow | Tube (OD x ID): 8x6 mm
VCKL1075-02F Shape: 90° swivel elbow | Tube (OD x ID): 10x7.5 mm
VCKL1008-02F Shape: 90° swivel elbow | Tube (OD x ID): 10x8 mm
VCKL1209-02F Shape: 90° swivel elbow | Tube (OD x ID): 12x9 mm
FittingsSMC
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC VCK SUS316L Stainless Fitting (for VCC Manifolds, ø6 to ø12)

Brand SMC·Fittings

Available part numbers (15)

VCKH0604-02F, VCKH0806-02F, VCKH1075-02F, VCKH1008-02F, VCKH1209-02F, VCKK0604-02F, VCKK0806-02F, VCKK1075-02F, VCKK1008-02F, VCKK1209-02F + 5 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VCKH0604-02FShape: Half union | Tube (OD x ID): 6x4 mm
VCKH0806-02FShape: Half union | Tube (OD x ID): 8x6 mm
VCKH1075-02FShape: Half union | Tube (OD x ID): 10x7.5 mm
VCKH1008-02FShape: Half union | Tube (OD x ID): 10x8 mm
VCKH1209-02FShape: Half union | Tube (OD x ID): 12x9 mm
VCKK0604-02FShape: 40° swivel elbow | Tube (OD x ID): 6x4 mm
VCKK0806-02FShape: 40° swivel elbow | Tube (OD x ID): 8x6 mm
VCKK1075-02FShape: 40° swivel elbow | Tube (OD x ID): 10x7.5 mm
VCKK1008-02FShape: 40° swivel elbow | Tube (OD x ID): 10x8 mm
VCKK1209-02FShape: 40° swivel elbow | Tube (OD x ID): 12x9 mm
VCKL0604-02FShape: 90° swivel elbow | Tube (OD x ID): 6x4 mm
VCKL0806-02FShape: 90° swivel elbow | Tube (OD x ID): 8x6 mm
VCKL1075-02FShape: 90° swivel elbow | Tube (OD x ID): 10x7.5 mm
VCKL1008-02FShape: 90° swivel elbow | Tube (OD x ID): 10x8 mm
VCKL1209-02FShape: 90° swivel elbow | Tube (OD x ID): 12x9 mm
