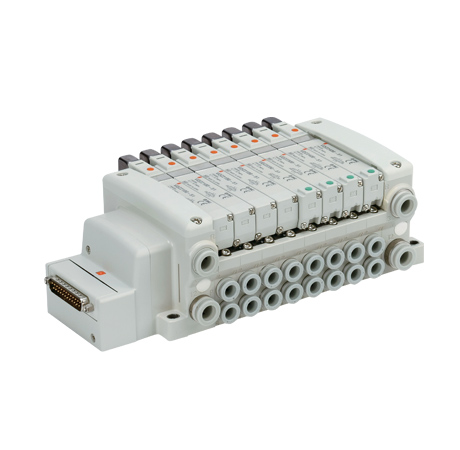

SMC VQC2300 5-Port Solenoid Valve (Plug-in Single Unit)

SMC VQC2300 5-Port Solenoid Valve (Plug-in Single Unit)

SMC 5-port solenoid valve, VQC2000 series (plug-in single unit for manifold).

Key features

  • Switching: 3-position Closed Center
  • Seal type: Metal seal
  • Flow characteristic: b=0.46, Cv=0.60
  • Response time: 44 ms or less
  • Mass: 105 g
  • Max working pressure: 0.7 MPa (1.0 MPa with high-pressure type)

Specifications

Series VQC2000
Body type Plug-in single valve (for manifold base)
Switching 3-position Closed Center
Seal Metal seal
Flow characteristic b 0.46
Flow characteristic Cv 0.60
Response time 44 ms or less
Mass 105 g
Max working pressure 0.7 MPa (high-pressure type 1.0 MPa)
Operating temperature -10 to 50°C
Rated coil voltage DC24V
Coil power 0.4W standard
VQC2300 3-position Closed Center, Metal seal | Series: VQC2000 | Body type: Plug-in single valve (for manifold base) | Switching: 3-position Closed Center | Seal: Metal seal | Flow characteristic b: 0.46 | Flow characteristic Cv: 0.60 | Response time: 44 ms or less | Mass: 105 g | Max working pressure: 0.7 MPa (high-pressure type 1.0 MPa) | Operating temperature: -10 to 50°C | Rated coil voltage: DC24V | Coil power: 0.4W standard | Manual operation: Push / Lock type | Protection class: dust-proof (IP67-compatible) | Manifold base: VV5QC{size}1 series
5-Port Solenoid ValvesSMC
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC VQC2300 5-Port Solenoid Valve (Plug-in Single Unit)

Brand SMC·5-Port Solenoid Valves

Available part numbers (1)

VQC2300

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VQC23003-position Closed Center, Metal seal | Series: VQC2000 | Body type: Plug-in single valve (for manifold base) | Switching: 3-position Closed Center | Seal: Metal seal | Flow characteristic b: 0.46 | Flow characteristic Cv: 0.60 | Response time: 44 ms or less | Mass: 105 g | Max working pressure: 0.7 MPa (high-pressure type 1.0 MPa) | Operating temperature: -10 to 50°C | Rated coil voltage: DC24V | Coil power: 0.4W standard | Manual operation: Push / Lock type | Protection class: dust-proof (IP67-compatible) | Manifold base: VV5QC{size}1 series

Need a different model, or a part not listed here? Send us your parts list →
