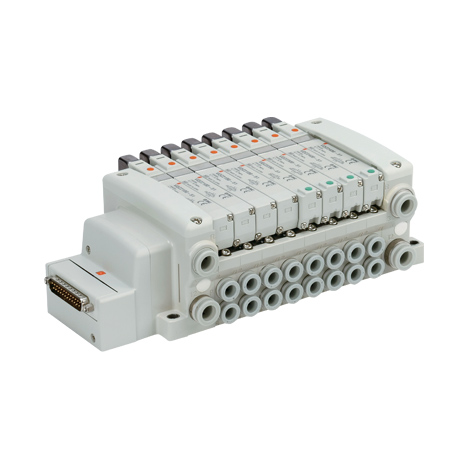

SMC VV5QC21-P VQC2000 Manifold (Flat cable kit (26P))

SMC VV5QC21-P VQC2000 Manifold (Flat cable kit (26P))

SMC manifold base for VQC2000 5-port solenoid valves.

Key features

  • Wiring type: Flat cable kit (26P)
  • Available stations: 2, 4, 5, 6, 8, 10 (1-12 stations available on request)
  • Cylinder port options: C4, C6, C8 (one-touch fittings)
  • Piping: side ported (with options for direct exhaust including silencer)
  • Compatible valves: VQC2000 series solenoid valves (2-position single/double, 3-position closed/exhaust/pressure center)
  • Mass (5-station base): 1076-1119 g

Specifications

Series VQC2000 manifold
Manifold base VV5QC21
Wiring Flat cable kit (26P)
Piping Side ported (horizontal)
Max working pressure 0.7 MPa
Operating temperature -10 to 50°C
Protection class dust-proof (IP67-compatible)
Mass (5-station base) 1076-1119 g
Compatible valves VQC2000 series
VV5QC21-02C4P 2-station, ø4 one-touch fitting, Flat cable kit (26P) | Series: VQC2000 manifold | Manifold base: VV5QC21 | Wiring: Flat cable kit (26P) | Stations: 2 | Cylinder port (A,B): ø4 one-touch fitting | Piping: Side ported (horizontal) | Max working pressure: 0.7 MPa | Operating temperature: -10 to 50°C | Protection class: dust-proof (IP67-compatible) | Mass (5-station base): 1076-1119 g | Compatible valves: VQC2000 series
VV5QC21-02C6P 2-station, ø6 one-touch fitting, Flat cable kit (26P) | Series: VQC2000 manifold | Manifold base: VV5QC21 | Wiring: Flat cable kit (26P) | Stations: 2 | Cylinder port (A,B): ø6 one-touch fitting | Piping: Side ported (horizontal) | Max working pressure: 0.7 MPa | Operating temperature: -10 to 50°C | Protection class: dust-proof (IP67-compatible) | Mass (5-station base): 1076-1119 g | Compatible valves: VQC2000 series
VV5QC21-02C8P 2-station, ø8 one-touch fitting, Flat cable kit (26P) | Series: VQC2000 manifold | Manifold base: VV5QC21 | Wiring: Flat cable kit (26P) | Stations: 2 | Cylinder port (A,B): ø8 one-touch fitting | Piping: Side ported (horizontal) | Max working pressure: 0.7 MPa | Operating temperature: -10 to 50°C | Protection class: dust-proof (IP67-compatible) | Mass (5-station base): 1076-1119 g | Compatible valves: VQC2000 series
VV5QC21-04C4P 4-station, ø4 one-touch fitting, Flat cable kit (26P) | Series: VQC2000 manifold | Manifold base: VV5QC21 | Wiring: Flat cable kit (26P) | Stations: 4 | Cylinder port (A,B): ø4 one-touch fitting | Piping: Side ported (horizontal) | Max working pressure: 0.7 MPa | Operating temperature: -10 to 50°C | Protection class: dust-proof (IP67-compatible) | Mass (5-station base): 1076-1119 g | Compatible valves: VQC2000 series
VV5QC21-04C6P 4-station, ø6 one-touch fitting, Flat cable kit (26P) | Series: VQC2000 manifold | Manifold base: VV5QC21 | Wiring: Flat cable kit (26P) | Stations: 4 | Cylinder port (A,B): ø6 one-touch fitting | Piping: Side ported (horizontal) | Max working pressure: 0.7 MPa | Operating temperature: -10 to 50°C | Protection class: dust-proof (IP67-compatible) | Mass (5-station base): 1076-1119 g | Compatible valves: VQC2000 series
VV5QC21-04C8P 4-station, ø8 one-touch fitting, Flat cable kit (26P) | Series: VQC2000 manifold | Manifold base: VV5QC21 | Wiring: Flat cable kit (26P) | Stations: 4 | Cylinder port (A,B): ø8 one-touch fitting | Piping: Side ported (horizontal) | Max working pressure: 0.7 MPa | Operating temperature: -10 to 50°C | Protection class: dust-proof (IP67-compatible) | Mass (5-station base): 1076-1119 g | Compatible valves: VQC2000 series
VV5QC21-05C4P 5-station, ø4 one-touch fitting, Flat cable kit (26P) | Series: VQC2000 manifold | Manifold base: VV5QC21 | Wiring: Flat cable kit (26P) | Stations: 5 | Cylinder port (A,B): ø4 one-touch fitting | Piping: Side ported (horizontal) | Max working pressure: 0.7 MPa | Operating temperature: -10 to 50°C | Protection class: dust-proof (IP67-compatible) | Mass (5-station base): 1076-1119 g | Compatible valves: VQC2000 series
VV5QC21-05C6P 5-station, ø6 one-touch fitting, Flat cable kit (26P) | Series: VQC2000 manifold | Manifold base: VV5QC21 | Wiring: Flat cable kit (26P) | Stations: 5 | Cylinder port (A,B): ø6 one-touch fitting | Piping: Side ported (horizontal) | Max working pressure: 0.7 MPa | Operating temperature: -10 to 50°C | Protection class: dust-proof (IP67-compatible) | Mass (5-station base): 1076-1119 g | Compatible valves: VQC2000 series
VV5QC21-05C8P 5-station, ø8 one-touch fitting, Flat cable kit (26P) | Series: VQC2000 manifold | Manifold base: VV5QC21 | Wiring: Flat cable kit (26P) | Stations: 5 | Cylinder port (A,B): ø8 one-touch fitting | Piping: Side ported (horizontal) | Max working pressure: 0.7 MPa | Operating temperature: -10 to 50°C | Protection class: dust-proof (IP67-compatible) | Mass (5-station base): 1076-1119 g | Compatible valves: VQC2000 series
VV5QC21-06C4P 6-station, ø4 one-touch fitting, Flat cable kit (26P) | Series: VQC2000 manifold | Manifold base: VV5QC21 | Wiring: Flat cable kit (26P) | Stations: 6 | Cylinder port (A,B): ø4 one-touch fitting | Piping: Side ported (horizontal) | Max working pressure: 0.7 MPa | Operating temperature: -10 to 50°C | Protection class: dust-proof (IP67-compatible) | Mass (5-station base): 1076-1119 g | Compatible valves: VQC2000 series
VV5QC21-06C6P 6-station, ø6 one-touch fitting, Flat cable kit (26P) | Series: VQC2000 manifold | Manifold base: VV5QC21 | Wiring: Flat cable kit (26P) | Stations: 6 | Cylinder port (A,B): ø6 one-touch fitting | Piping: Side ported (horizontal) | Max working pressure: 0.7 MPa | Operating temperature: -10 to 50°C | Protection class: dust-proof (IP67-compatible) | Mass (5-station base): 1076-1119 g | Compatible valves: VQC2000 series
VV5QC21-06C8P 6-station, ø8 one-touch fitting, Flat cable kit (26P) | Series: VQC2000 manifold | Manifold base: VV5QC21 | Wiring: Flat cable kit (26P) | Stations: 6 | Cylinder port (A,B): ø8 one-touch fitting | Piping: Side ported (horizontal) | Max working pressure: 0.7 MPa | Operating temperature: -10 to 50°C | Protection class: dust-proof (IP67-compatible) | Mass (5-station base): 1076-1119 g | Compatible valves: VQC2000 series
VV5QC21-08C4P 8-station, ø4 one-touch fitting, Flat cable kit (26P) | Series: VQC2000 manifold | Manifold base: VV5QC21 | Wiring: Flat cable kit (26P) | Stations: 8 | Cylinder port (A,B): ø4 one-touch fitting | Piping: Side ported (horizontal) | Max working pressure: 0.7 MPa | Operating temperature: -10 to 50°C | Protection class: dust-proof (IP67-compatible) | Mass (5-station base): 1076-1119 g | Compatible valves: VQC2000 series
VV5QC21-08C6P 8-station, ø6 one-touch fitting, Flat cable kit (26P) | Series: VQC2000 manifold | Manifold base: VV5QC21 | Wiring: Flat cable kit (26P) | Stations: 8 | Cylinder port (A,B): ø6 one-touch fitting | Piping: Side ported (horizontal) | Max working pressure: 0.7 MPa | Operating temperature: -10 to 50°C | Protection class: dust-proof (IP67-compatible) | Mass (5-station base): 1076-1119 g | Compatible valves: VQC2000 series
VV5QC21-08C8P 8-station, ø8 one-touch fitting, Flat cable kit (26P) | Series: VQC2000 manifold | Manifold base: VV5QC21 | Wiring: Flat cable kit (26P) | Stations: 8 | Cylinder port (A,B): ø8 one-touch fitting | Piping: Side ported (horizontal) | Max working pressure: 0.7 MPa | Operating temperature: -10 to 50°C | Protection class: dust-proof (IP67-compatible) | Mass (5-station base): 1076-1119 g | Compatible valves: VQC2000 series
VV5QC21-10C4P 10-station, ø4 one-touch fitting, Flat cable kit (26P) | Series: VQC2000 manifold | Manifold base: VV5QC21 | Wiring: Flat cable kit (26P) | Stations: 10 | Cylinder port (A,B): ø4 one-touch fitting | Piping: Side ported (horizontal) | Max working pressure: 0.7 MPa | Operating temperature: -10 to 50°C | Protection class: dust-proof (IP67-compatible) | Mass (5-station base): 1076-1119 g | Compatible valves: VQC2000 series
VV5QC21-10C6P 10-station, ø6 one-touch fitting, Flat cable kit (26P) | Series: VQC2000 manifold | Manifold base: VV5QC21 | Wiring: Flat cable kit (26P) | Stations: 10 | Cylinder port (A,B): ø6 one-touch fitting | Piping: Side ported (horizontal) | Max working pressure: 0.7 MPa | Operating temperature: -10 to 50°C | Protection class: dust-proof (IP67-compatible) | Mass (5-station base): 1076-1119 g | Compatible valves: VQC2000 series
VV5QC21-10C8P 10-station, ø8 one-touch fitting, Flat cable kit (26P) | Series: VQC2000 manifold | Manifold base: VV5QC21 | Wiring: Flat cable kit (26P) | Stations: 10 | Cylinder port (A,B): ø8 one-touch fitting | Piping: Side ported (horizontal) | Max working pressure: 0.7 MPa | Operating temperature: -10 to 50°C | Protection class: dust-proof (IP67-compatible) | Mass (5-station base): 1076-1119 g | Compatible valves: VQC2000 series
5-Port Solenoid ValvesSMC
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC VV5QC21-P VQC2000 Manifold (Flat cable kit (26P))

Brand SMC·5-Port Solenoid Valves

Available part numbers (18)

VV5QC21-02C4P, VV5QC21-02C6P, VV5QC21-02C8P, VV5QC21-04C4P, VV5QC21-04C6P, VV5QC21-04C8P, VV5QC21-05C4P, VV5QC21-05C6P, VV5QC21-05C8P, VV5QC21-06C4P + 8 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VV5QC21-02C4P2-station, ø4 one-touch fitting, Flat cable kit (26P) | Series: VQC2000 manifold | Manifold base: VV5QC21 | Wiring: Flat cable kit (26P) | Stations: 2 | Cylinder port (A,B): ø4 one-touch fitting | Piping: Side ported (horizontal) | Max working pressure: 0.7 MPa | Operating temperature: -10 to 50°C | Protection class: dust-proof (IP67-compatible) | Mass (5-station base): 1076-1119 g | Compatible valves: VQC2000 series
VV5QC21-02C6P2-station, ø6 one-touch fitting, Flat cable kit (26P) | Series: VQC2000 manifold | Manifold base: VV5QC21 | Wiring: Flat cable kit (26P) | Stations: 2 | Cylinder port (A,B): ø6 one-touch fitting | Piping: Side ported (horizontal) | Max working pressure: 0.7 MPa | Operating temperature: -10 to 50°C | Protection class: dust-proof (IP67-compatible) | Mass (5-station base): 1076-1119 g | Compatible valves: VQC2000 series
VV5QC21-02C8P2-station, ø8 one-touch fitting, Flat cable kit (26P) | Series: VQC2000 manifold | Manifold base: VV5QC21 | Wiring: Flat cable kit (26P) | Stations: 2 | Cylinder port (A,B): ø8 one-touch fitting | Piping: Side ported (horizontal) | Max working pressure: 0.7 MPa | Operating temperature: -10 to 50°C | Protection class: dust-proof (IP67-compatible) | Mass (5-station base): 1076-1119 g | Compatible valves: VQC2000 series
VV5QC21-04C4P4-station, ø4 one-touch fitting, Flat cable kit (26P) | Series: VQC2000 manifold | Manifold base: VV5QC21 | Wiring: Flat cable kit (26P) | Stations: 4 | Cylinder port (A,B): ø4 one-touch fitting | Piping: Side ported (horizontal) | Max working pressure: 0.7 MPa | Operating temperature: -10 to 50°C | Protection class: dust-proof (IP67-compatible) | Mass (5-station base): 1076-1119 g | Compatible valves: VQC2000 series
VV5QC21-04C6P4-station, ø6 one-touch fitting, Flat cable kit (26P) | Series: VQC2000 manifold | Manifold base: VV5QC21 | Wiring: Flat cable kit (26P) | Stations: 4 | Cylinder port (A,B): ø6 one-touch fitting | Piping: Side ported (horizontal) | Max working pressure: 0.7 MPa | Operating temperature: -10 to 50°C | Protection class: dust-proof (IP67-compatible) | Mass (5-station base): 1076-1119 g | Compatible valves: VQC2000 series
VV5QC21-04C8P4-station, ø8 one-touch fitting, Flat cable kit (26P) | Series: VQC2000 manifold | Manifold base: VV5QC21 | Wiring: Flat cable kit (26P) | Stations: 4 | Cylinder port (A,B): ø8 one-touch fitting | Piping: Side ported (horizontal) | Max working pressure: 0.7 MPa | Operating temperature: -10 to 50°C | Protection class: dust-proof (IP67-compatible) | Mass (5-station base): 1076-1119 g | Compatible valves: VQC2000 series
VV5QC21-05C4P5-station, ø4 one-touch fitting, Flat cable kit (26P) | Series: VQC2000 manifold | Manifold base: VV5QC21 | Wiring: Flat cable kit (26P) | Stations: 5 | Cylinder port (A,B): ø4 one-touch fitting | Piping: Side ported (horizontal) | Max working pressure: 0.7 MPa | Operating temperature: -10 to 50°C | Protection class: dust-proof (IP67-compatible) | Mass (5-station base): 1076-1119 g | Compatible valves: VQC2000 series
VV5QC21-05C6P5-station, ø6 one-touch fitting, Flat cable kit (26P) | Series: VQC2000 manifold | Manifold base: VV5QC21 | Wiring: Flat cable kit (26P) | Stations: 5 | Cylinder port (A,B): ø6 one-touch fitting | Piping: Side ported (horizontal) | Max working pressure: 0.7 MPa | Operating temperature: -10 to 50°C | Protection class: dust-proof (IP67-compatible) | Mass (5-station base): 1076-1119 g | Compatible valves: VQC2000 series
VV5QC21-05C8P5-station, ø8 one-touch fitting, Flat cable kit (26P) | Series: VQC2000 manifold | Manifold base: VV5QC21 | Wiring: Flat cable kit (26P) | Stations: 5 | Cylinder port (A,B): ø8 one-touch fitting | Piping: Side ported (horizontal) | Max working pressure: 0.7 MPa | Operating temperature: -10 to 50°C | Protection class: dust-proof (IP67-compatible) | Mass (5-station base): 1076-1119 g | Compatible valves: VQC2000 series
VV5QC21-06C4P6-station, ø4 one-touch fitting, Flat cable kit (26P) | Series: VQC2000 manifold | Manifold base: VV5QC21 | Wiring: Flat cable kit (26P) | Stations: 6 | Cylinder port (A,B): ø4 one-touch fitting | Piping: Side ported (horizontal) | Max working pressure: 0.7 MPa | Operating temperature: -10 to 50°C | Protection class: dust-proof (IP67-compatible) | Mass (5-station base): 1076-1119 g | Compatible valves: VQC2000 series
VV5QC21-06C6P6-station, ø6 one-touch fitting, Flat cable kit (26P) | Series: VQC2000 manifold | Manifold base: VV5QC21 | Wiring: Flat cable kit (26P) | Stations: 6 | Cylinder port (A,B): ø6 one-touch fitting | Piping: Side ported (horizontal) | Max working pressure: 0.7 MPa | Operating temperature: -10 to 50°C | Protection class: dust-proof (IP67-compatible) | Mass (5-station base): 1076-1119 g | Compatible valves: VQC2000 series
VV5QC21-06C8P6-station, ø8 one-touch fitting, Flat cable kit (26P) | Series: VQC2000 manifold | Manifold base: VV5QC21 | Wiring: Flat cable kit (26P) | Stations: 6 | Cylinder port (A,B): ø8 one-touch fitting | Piping: Side ported (horizontal) | Max working pressure: 0.7 MPa | Operating temperature: -10 to 50°C | Protection class: dust-proof (IP67-compatible) | Mass (5-station base): 1076-1119 g | Compatible valves: VQC2000 series
VV5QC21-08C4P8-station, ø4 one-touch fitting, Flat cable kit (26P) | Series: VQC2000 manifold | Manifold base: VV5QC21 | Wiring: Flat cable kit (26P) | Stations: 8 | Cylinder port (A,B): ø4 one-touch fitting | Piping: Side ported (horizontal) | Max working pressure: 0.7 MPa | Operating temperature: -10 to 50°C | Protection class: dust-proof (IP67-compatible) | Mass (5-station base): 1076-1119 g | Compatible valves: VQC2000 series
VV5QC21-08C6P8-station, ø6 one-touch fitting, Flat cable kit (26P) | Series: VQC2000 manifold | Manifold base: VV5QC21 | Wiring: Flat cable kit (26P) | Stations: 8 | Cylinder port (A,B): ø6 one-touch fitting | Piping: Side ported (horizontal) | Max working pressure: 0.7 MPa | Operating temperature: -10 to 50°C | Protection class: dust-proof (IP67-compatible) | Mass (5-station base): 1076-1119 g | Compatible valves: VQC2000 series
VV5QC21-08C8P8-station, ø8 one-touch fitting, Flat cable kit (26P) | Series: VQC2000 manifold | Manifold base: VV5QC21 | Wiring: Flat cable kit (26P) | Stations: 8 | Cylinder port (A,B): ø8 one-touch fitting | Piping: Side ported (horizontal) | Max working pressure: 0.7 MPa | Operating temperature: -10 to 50°C | Protection class: dust-proof (IP67-compatible) | Mass (5-station base): 1076-1119 g | Compatible valves: VQC2000 series
VV5QC21-10C4P10-station, ø4 one-touch fitting, Flat cable kit (26P) | Series: VQC2000 manifold | Manifold base: VV5QC21 | Wiring: Flat cable kit (26P) | Stations: 10 | Cylinder port (A,B): ø4 one-touch fitting | Piping: Side ported (horizontal) | Max working pressure: 0.7 MPa | Operating temperature: -10 to 50°C | Protection class: dust-proof (IP67-compatible) | Mass (5-station base): 1076-1119 g | Compatible valves: VQC2000 series
VV5QC21-10C6P10-station, ø6 one-touch fitting, Flat cable kit (26P) | Series: VQC2000 manifold | Manifold base: VV5QC21 | Wiring: Flat cable kit (26P) | Stations: 10 | Cylinder port (A,B): ø6 one-touch fitting | Piping: Side ported (horizontal) | Max working pressure: 0.7 MPa | Operating temperature: -10 to 50°C | Protection class: dust-proof (IP67-compatible) | Mass (5-station base): 1076-1119 g | Compatible valves: VQC2000 series
VV5QC21-10C8P10-station, ø8 one-touch fitting, Flat cable kit (26P) | Series: VQC2000 manifold | Manifold base: VV5QC21 | Wiring: Flat cable kit (26P) | Stations: 10 | Cylinder port (A,B): ø8 one-touch fitting | Piping: Side ported (horizontal) | Max working pressure: 0.7 MPa | Operating temperature: -10 to 50°C | Protection class: dust-proof (IP67-compatible) | Mass (5-station base): 1076-1119 g | Compatible valves: VQC2000 series
