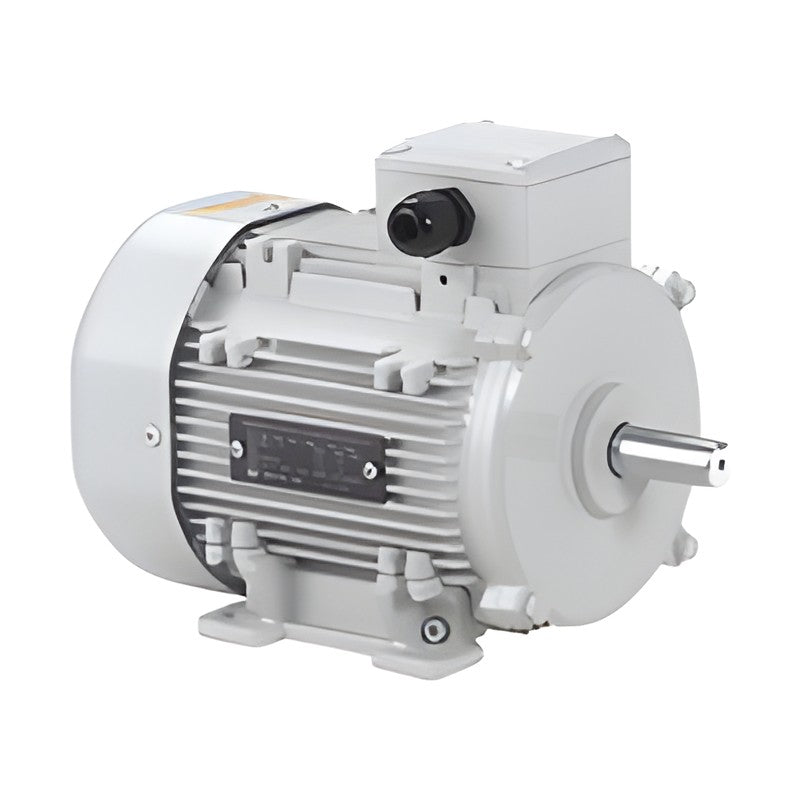

SPG P Series Foot-Mount 3-Phase Induction Motors (0.2-3.7 kW)

SPG P Series Foot-Mount 3-Phase Induction Motors (0.2-3.7 kW)

SPG P Series foot (leg) mounted three-phase induction motors from 0.2 to 3.7 kW in 2, 4 and 6-pole versions. Totally enclosed fan-cooled IP55 construction with class F insulation, with premium-efficiency designs from 0.75 kW.

Key features

  • IP55 totally enclosed fan-cooled aluminium-frame design
  • Class F insulation for continuous S1 duty
  • Premium-efficiency ratings from 0.75 kW upward
  • Dual-voltage R4 (220/380 V 60 Hz) and U6 (230/400 V 50 Hz / 460 V 60 Hz) windings
  • Same electrical performance as the matching P Series flange-mount models

Specifications

Motor type 3-phase squirrel-cage induction motor
Mounting Foot (leg) mounted, IM B3
Output range 0.2-3.7 kW
Poles 2, 4, 6 (by rating)
Voltage codes R4: 220/380 V 60 Hz; U6: 230/400 V 50 Hz, 460 V 60 Hz
Duty Continuous (S1)
Enclosure IP55, totally enclosed fan-cooled
Insulation class F
Efficiency Premium efficiency from 0.75 kW
Model suffix Two trailing option characters per SPG coding
Source SPG Industrial Motor catalogue - P Series 3-Phase Foot Mounted Type
PMAY020-2R4L Output: 0.2 kW | Poles: 2 | Voltage: 220/380 V 60 Hz | Frame: 63M
PMAY020-2U6L Output: 0.2 kW | Poles: 2 | Voltage: 230/400 V 50 Hz; 460 V 60 Hz | Frame: 63M
PMAB020-4R4L Output: 0.2 kW | Poles: 4 | Voltage: 220/380 V 60 Hz | Frame: 63M
PMAB020-4U6L Output: 0.2 kW | Poles: 4 | Voltage: 230/400 V 50 Hz; 460 V 60 Hz | Frame: 63M
PPEF075-2R4L Output: 0.75 kW | Poles: 2 | Voltage: 220/380 V 60 Hz | Frame: 80M
PPEJ075-2U6L Output: 0.75 kW | Poles: 2 | Voltage: 230/400 V 50 Hz; 460 V 60 Hz | Frame: 80M
PPEJ075-4R4L Output: 0.75 kW | Poles: 4 | Voltage: 220/380 V 60 Hz | Frame: 80M
PPEL075-4U6L Output: 0.75 kW | Poles: 4 | Voltage: 230/400 V 50 Hz; 460 V 60 Hz | Frame: 80M
PPGJ075-6R4L Output: 0.75 kW | Poles: 6 | Voltage: 220/380 V 60 Hz | Frame: 90L
PPGJ075-6U6L Output: 0.75 kW | Poles: 6 | Voltage: 230/400 V 50 Hz; 460 V 60 Hz | Frame: 90L
PPGF150-2R4L Output: 1.5 kW | Poles: 2 | Voltage: 220/380 V 60 Hz | Frame: 90L
PPGF150-2U6L Output: 1.5 kW | Poles: 2 | Voltage: 230/400 V 50 Hz; 460 V 60 Hz | Frame: 90L
PPGN150-4R4L Output: 1.5 kW | Poles: 4 | Voltage: 220/380 V 60 Hz | Frame: 90L
PPGN150-4U6L Output: 1.5 kW | Poles: 4 | Voltage: 230/400 V 50 Hz; 460 V 60 Hz | Frame: 90L
PPJL150-6R4L Output: 1.5 kW | Poles: 6 | Voltage: 220/380 V 60 Hz | Frame: 112M
PPJL150-6U6L Output: 1.5 kW | Poles: 6 | Voltage: 230/400 V 50 Hz; 460 V 60 Hz | Frame: 112M
PPGI220-2R4L Output: 2.2 kW | Poles: 2 | Voltage: 220/380 V 60 Hz | Frame: 90L
PPGI220-2U6L Output: 2.2 kW | Poles: 2 | Voltage: 230/400 V 50 Hz; 460 V 60 Hz | Frame: 90L
PPHQ220-4R4L Output: 2.2 kW | Poles: 4 | Voltage: 220/380 V 60 Hz | Frame: 100L
PPHQ220-4U6L Output: 2.2 kW | Poles: 4 | Voltage: 230/400 V 50 Hz; 460 V 60 Hz | Frame: 100L
PPJR220-6R4L Output: 2.2 kW | Poles: 6 | Voltage: 220/380 V 60 Hz | Frame: 112M
PPJR220-6U6L Output: 2.2 kW | Poles: 6 | Voltage: 230/400 V 50 Hz; 460 V 60 Hz | Frame: 112M
PPJT370-4R4L Output: 3.7 kW | Poles: 4 | Voltage: 220/380 V 60 Hz | Frame: 112M
Industrial MotorsSPG
23 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG P Series Foot-Mount 3-Phase Induction Motors (0.2-3.7 kW)

Brand SPG·Industrial Motors

Available part numbers (23)

PMAY020-2R4L, PMAY020-2U6L, PMAB020-4R4L, PMAB020-4U6L, PPEF075-2R4L, PPEJ075-2U6L, PPEJ075-4R4L, PPEL075-4U6L, PPGJ075-6R4L, PPGJ075-6U6L + 13 more — see full table ↓

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PMAY020-2R4LOutput: 0.2 kW | Poles: 2 | Voltage: 220/380 V 60 Hz | Frame: 63M
PMAY020-2U6LOutput: 0.2 kW | Poles: 2 | Voltage: 230/400 V 50 Hz; 460 V 60 Hz | Frame: 63M
PMAB020-4R4LOutput: 0.2 kW | Poles: 4 | Voltage: 220/380 V 60 Hz | Frame: 63M
PMAB020-4U6LOutput: 0.2 kW | Poles: 4 | Voltage: 230/400 V 50 Hz; 460 V 60 Hz | Frame: 63M
PPEF075-2R4LOutput: 0.75 kW | Poles: 2 | Voltage: 220/380 V 60 Hz | Frame: 80M
PPEJ075-2U6LOutput: 0.75 kW | Poles: 2 | Voltage: 230/400 V 50 Hz; 460 V 60 Hz | Frame: 80M
PPEJ075-4R4LOutput: 0.75 kW | Poles: 4 | Voltage: 220/380 V 60 Hz | Frame: 80M
PPEL075-4U6LOutput: 0.75 kW | Poles: 4 | Voltage: 230/400 V 50 Hz; 460 V 60 Hz | Frame: 80M
PPGJ075-6R4LOutput: 0.75 kW | Poles: 6 | Voltage: 220/380 V 60 Hz | Frame: 90L
PPGJ075-6U6LOutput: 0.75 kW | Poles: 6 | Voltage: 230/400 V 50 Hz; 460 V 60 Hz | Frame: 90L
PPGF150-2R4LOutput: 1.5 kW | Poles: 2 | Voltage: 220/380 V 60 Hz | Frame: 90L
PPGF150-2U6LOutput: 1.5 kW | Poles: 2 | Voltage: 230/400 V 50 Hz; 460 V 60 Hz | Frame: 90L
PPGN150-4R4LOutput: 1.5 kW | Poles: 4 | Voltage: 220/380 V 60 Hz | Frame: 90L
PPGN150-4U6LOutput: 1.5 kW | Poles: 4 | Voltage: 230/400 V 50 Hz; 460 V 60 Hz | Frame: 90L
PPJL150-6R4LOutput: 1.5 kW | Poles: 6 | Voltage: 220/380 V 60 Hz | Frame: 112M
PPJL150-6U6LOutput: 1.5 kW | Poles: 6 | Voltage: 230/400 V 50 Hz; 460 V 60 Hz | Frame: 112M
PPGI220-2R4LOutput: 2.2 kW | Poles: 2 | Voltage: 220/380 V 60 Hz | Frame: 90L
PPGI220-2U6LOutput: 2.2 kW | Poles: 2 | Voltage: 230/400 V 50 Hz; 460 V 60 Hz | Frame: 90L
PPHQ220-4R4LOutput: 2.2 kW | Poles: 4 | Voltage: 220/380 V 60 Hz | Frame: 100L
PPHQ220-4U6LOutput: 2.2 kW | Poles: 4 | Voltage: 230/400 V 50 Hz; 460 V 60 Hz | Frame: 100L
PPJR220-6R4LOutput: 2.2 kW | Poles: 6 | Voltage: 220/380 V 60 Hz | Frame: 112M
PPJR220-6U6LOutput: 2.2 kW | Poles: 6 | Voltage: 230/400 V 50 Hz; 460 V 60 Hz | Frame: 112M
PPJT370-4R4LOutput: 3.7 kW | Poles: 4 | Voltage: 220/380 V 60 Hz | Frame: 112M
