• SPG SR Speed Controllers (8/11-Pin Plug-in, incl. SRCE Type)
1 1

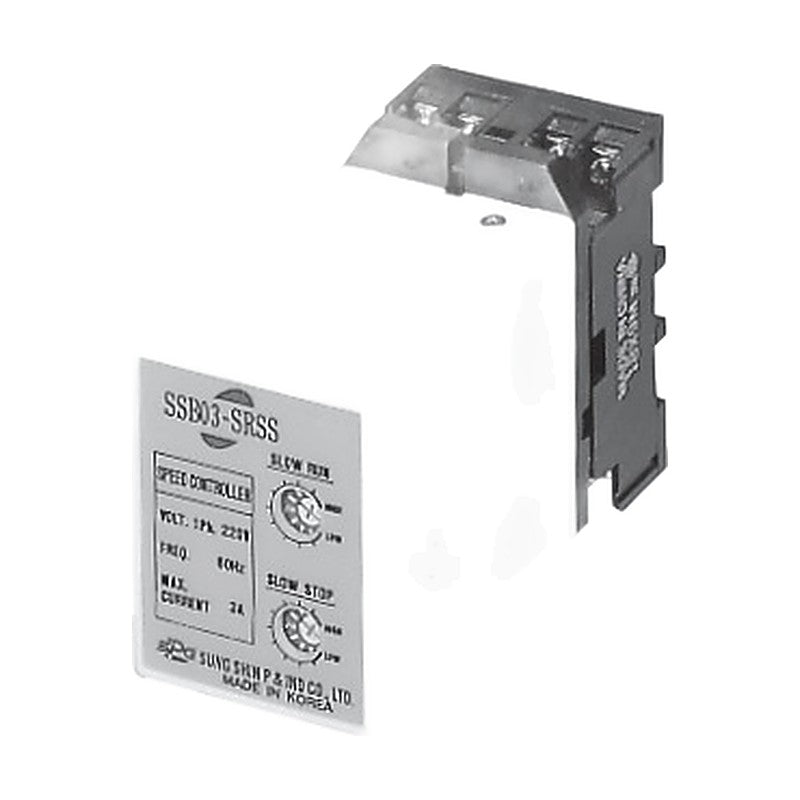

SPG SR Speed Controllers (8/11-Pin Plug-in, incl. SRCE Type)

SPG SR Speed Controllers (8/11-Pin Plug-in, incl. SRCE Type)

SPG SR and CE-certified SRCE plug-in speed controllers for SPG socket-type AC speed control motors with 12 V tacho generator.

Key features

  • IC-based compact controller developed in-house by SPG for small geared motors
  • Speed set by front-panel potentiometer; external speed setter for remote operation
  • Instantaneous stop by electric brake (approx. 0.5 s; no holding torque)
  • SR type uses an 8-pin plug-in socket; SRCE type is CE marked with 11-pin plug
  • 01 models for 6 W motors; 02 models for 15-90 W induction / E.S and 15-40 W reversible motors

Specifications

Applicable motors SPG socket-type speed control motors (T.G 12 V, -S12)
Speed control range 50 Hz: 90-1400 rpm; 60 Hz: 90-1700 rpm
Speed variation 5% (standard)
Voltage tolerance +/-10%
Braking Electric brake, approx. 0.5 s
Parallel operation Not available
Slow run / slow stop Not available
Operating temperature -10 to 50 C, 85% RH max. (non-condensing)
Storage temperature -20 to 60 C
Source SPG Standard AC Geared Motor catalog, p. 196-209
SRA01 Voltage: 1-ph 110 V | Frequency: 60 Hz | Applicable motors: 6 W motors | Certification: Standard (SR type)
SRA02 Voltage: 1-ph 110 V | Frequency: 60 Hz | Applicable motors: 15-90 W motors | Certification: Standard (SR type)
SRB01 Voltage: 1-ph 220 V | Frequency: 60 Hz | Applicable motors: 6 W motors | Certification: Standard (SR type)
SRB02 Voltage: 1-ph 220 V | Frequency: 60 Hz | Applicable motors: 15-90 W motors | Certification: Standard (SR type)
SRC01 Voltage: 1-ph 100 V | Frequency: 50/60 Hz | Applicable motors: 6 W motors | Certification: Standard (SR type)
SRC02 Voltage: 1-ph 100 V | Frequency: 50/60 Hz | Applicable motors: 15-90 W motors | Certification: Standard (SR type)
SRD01 Voltage: 1-ph 200 V | Frequency: 50/60 Hz | Applicable motors: 6 W motors | Certification: Standard (SR type)
SRD02 Voltage: 1-ph 200 V | Frequency: 50/60 Hz | Applicable motors: 15-90 W motors | Certification: Standard (SR type)
SRX01 Voltage: 1-ph 220-240 V | Frequency: 50 Hz | Applicable motors: 6 W motors | Certification: Standard (SR type)
SRX02 Voltage: 1-ph 220-240 V | Frequency: 50 Hz | Applicable motors: 15-90 W motors | Certification: Standard (SR type)
SRA01CE Voltage: 1-ph 110 V | Frequency: 60 Hz | Applicable motors: 6 W motors | Certification: CE marked (SRCE type)
SRA02CE Voltage: 1-ph 110 V | Frequency: 60 Hz | Applicable motors: 15-90 W motors | Certification: CE marked (SRCE type)
SRB01CE Voltage: 1-ph 220 V | Frequency: 60 Hz | Applicable motors: 6 W motors | Certification: CE marked (SRCE type)
SRB02CE Voltage: 1-ph 220 V | Frequency: 60 Hz | Applicable motors: 15-90 W motors | Certification: CE marked (SRCE type)
SRC01CE Voltage: 1-ph 100 V | Frequency: 50/60 Hz | Applicable motors: 6 W motors | Certification: CE marked (SRCE type)
SRC02CE Voltage: 1-ph 100 V | Frequency: 50/60 Hz | Applicable motors: 15-90 W motors | Certification: CE marked (SRCE type)
SRD01CE Voltage: 1-ph 200 V | Frequency: 50/60 Hz | Applicable motors: 6 W motors | Certification: CE marked (SRCE type)
SRD02CE Voltage: 1-ph 200 V | Frequency: 50/60 Hz | Applicable motors: 15-90 W motors | Certification: CE marked (SRCE type)
SRX01CE Voltage: 1-ph 220-240 V | Frequency: 50 Hz | Applicable motors: 6 W motors | Certification: CE marked (SRCE type)
SRX02CE Voltage: 1-ph 220-240 V | Frequency: 50 Hz | Applicable motors: 15-90 W motors | Certification: CE marked (SRCE type)
Speed ControllersSPG
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG SR Speed Controllers (8/11-Pin Plug-in, incl. SRCE Type)

Brand SPG·Speed Controllers

Available part numbers (20)

SRA01, SRA02, SRB01, SRB02, SRC01, SRC02, SRD01, SRD02, SRX01, SRX02 + 10 more — see full table ↓

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SRA01Voltage: 1-ph 110 V | Frequency: 60 Hz | Applicable motors: 6 W motors | Certification: Standard (SR type)
SRA02Voltage: 1-ph 110 V | Frequency: 60 Hz | Applicable motors: 15-90 W motors | Certification: Standard (SR type)
SRB01Voltage: 1-ph 220 V | Frequency: 60 Hz | Applicable motors: 6 W motors | Certification: Standard (SR type)
SRB02Voltage: 1-ph 220 V | Frequency: 60 Hz | Applicable motors: 15-90 W motors | Certification: Standard (SR type)
SRC01Voltage: 1-ph 100 V | Frequency: 50/60 Hz | Applicable motors: 6 W motors | Certification: Standard (SR type)
SRC02Voltage: 1-ph 100 V | Frequency: 50/60 Hz | Applicable motors: 15-90 W motors | Certification: Standard (SR type)
SRD01Voltage: 1-ph 200 V | Frequency: 50/60 Hz | Applicable motors: 6 W motors | Certification: Standard (SR type)
SRD02Voltage: 1-ph 200 V | Frequency: 50/60 Hz | Applicable motors: 15-90 W motors | Certification: Standard (SR type)
SRX01Voltage: 1-ph 220-240 V | Frequency: 50 Hz | Applicable motors: 6 W motors | Certification: Standard (SR type)
SRX02Voltage: 1-ph 220-240 V | Frequency: 50 Hz | Applicable motors: 15-90 W motors | Certification: Standard (SR type)
SRA01CEVoltage: 1-ph 110 V | Frequency: 60 Hz | Applicable motors: 6 W motors | Certification: CE marked (SRCE type)
SRA02CEVoltage: 1-ph 110 V | Frequency: 60 Hz | Applicable motors: 15-90 W motors | Certification: CE marked (SRCE type)
SRB01CEVoltage: 1-ph 220 V | Frequency: 60 Hz | Applicable motors: 6 W motors | Certification: CE marked (SRCE type)
SRB02CEVoltage: 1-ph 220 V | Frequency: 60 Hz | Applicable motors: 15-90 W motors | Certification: CE marked (SRCE type)
SRC01CEVoltage: 1-ph 100 V | Frequency: 50/60 Hz | Applicable motors: 6 W motors | Certification: CE marked (SRCE type)
SRC02CEVoltage: 1-ph 100 V | Frequency: 50/60 Hz | Applicable motors: 15-90 W motors | Certification: CE marked (SRCE type)
SRD01CEVoltage: 1-ph 200 V | Frequency: 50/60 Hz | Applicable motors: 6 W motors | Certification: CE marked (SRCE type)
SRD02CEVoltage: 1-ph 200 V | Frequency: 50/60 Hz | Applicable motors: 15-90 W motors | Certification: CE marked (SRCE type)
SRX01CEVoltage: 1-ph 220-240 V | Frequency: 50 Hz | Applicable motors: 6 W motors | Certification: CE marked (SRCE type)
SRX02CEVoltage: 1-ph 220-240 V | Frequency: 50 Hz | Applicable motors: 15-90 W motors | Certification: CE marked (SRCE type)
