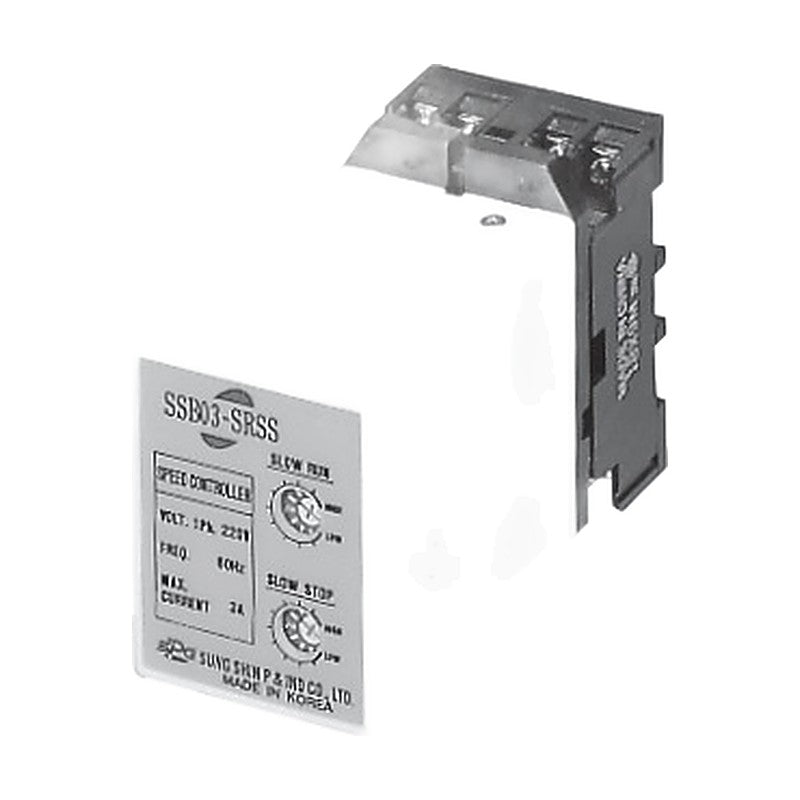

SPG SS Speed Controllers (Standard and High Output, 11-Pin)

SPG SS Speed Controllers (Standard and High Output, 11-Pin)

SPG SS-type 11-pin plug-in speed controllers with adjustable slow run / slow stop for SPG socket-type speed control motors with 24 V tacho generator.

Key features

  • Slow run and slow stop with built-in time setting (0.5-15 s per 1200 rpm)
  • Instantaneous stop by electric brake (0.5 s standard; no holding torque)
  • Standard type (01/02) for 6-40 W induction and reversible motors; not for parallel operation
  • High-output type (03) for 6-90 W induction and 6-40 W reversible / E.S motors, parallel operation possible
  • External speed setting volume included; spare SVR20KH sold separately

Specifications

Applicable motors SPG socket-type speed control motors (T.G 24 V, -S24)
Plug 11-pin plug-in socket
Speed control range 50 Hz: 90-1400 rpm; 60 Hz: 90-1700 rpm
Speed variation 5% (standard)
Voltage tolerance +/-10%
Insulation 100 MOhm min. at DC 500 V; 1500 V AC for 1 min
Operating temperature -10 to 50 C, 85% RH max. (non-condensing)
Storage temperature -20 to 60 C
Source SPG Standard AC Geared Motor catalog, p. 211-235
SSA01-SRSS Version: Standard (no parallel run) | Voltage: 1-ph 110 V | Frequency: 60 Hz | Applicable motors: 6 W IND / REV | Rated current: 1.1 A
SSA02-SRSS Version: Standard (no parallel run) | Voltage: 1-ph 110 V | Frequency: 60 Hz | Applicable motors: 15-40 W IND / REV | Rated current: 1.5 A
SSB01-SRSS Version: Standard (no parallel run) | Voltage: 1-ph 220 V | Frequency: 60 Hz | Applicable motors: 6 W IND / REV | Rated current: 1.1 A
SSB02-SRSS Version: Standard (no parallel run) | Voltage: 1-ph 220 V | Frequency: 60 Hz | Applicable motors: 15-40 W IND / REV | Rated current: 1.1 A
SSC01-SRSS Version: Standard (no parallel run) | Voltage: 1-ph 100 V | Frequency: 50/60 Hz | Applicable motors: 6 W IND / REV | Rated current: 1.0 A
SSC02-SRSS Version: Standard (no parallel run) | Voltage: 1-ph 100 V | Frequency: 50/60 Hz | Applicable motors: 15-40 W IND / REV | Rated current: 1.4 A
SSD01-SRSS Version: Standard (no parallel run) | Voltage: 1-ph 200 V | Frequency: 50/60 Hz | Applicable motors: 6 W IND / REV | Rated current: 1.0 A
SSD02-SRSS Version: Standard (no parallel run) | Voltage: 1-ph 200 V | Frequency: 50/60 Hz | Applicable motors: 15-40 W IND / REV | Rated current: 1.0 A
SSX01-SRSS Version: Standard (no parallel run) | Voltage: 1-ph 220-240 V | Frequency: 50 Hz | Applicable motors: 6 W IND / REV | Rated current: 1.1 A
SSX02-SRSS Version: Standard (no parallel run) | Voltage: 1-ph 220-240 V | Frequency: 50 Hz | Applicable motors: 15-40 W IND / REV | Rated current: 1.1 A
SSA03-SRSS Version: High output (parallel run) | Voltage: 1-ph 110 V | Frequency: 60 Hz | Applicable motors: IND 6-90 W, REV/E.S 6-40 W | Rated current: 3.0 A
SSB03-SRSS Version: High output (parallel run) | Voltage: 1-ph 220 V | Frequency: 60 Hz | Applicable motors: IND 6-90 W, REV/E.S 6-40 W | Rated current: 3.0 A
SSC03-SRSS Version: High output (parallel run) | Voltage: 1-ph 100 V | Frequency: 50/60 Hz | Applicable motors: IND 6-90 W, REV/E.S 6-40 W | Rated current: 3.0 A
SSD03-SRSS Version: High output (parallel run) | Voltage: 1-ph 200 V | Frequency: 50/60 Hz | Applicable motors: IND 6-90 W, REV/E.S 6-40 W | Rated current: 3.0 A
SSX03-SRSS Version: High output (parallel run) | Voltage: 1-ph 220-240 V | Frequency: 50 Hz | Applicable motors: IND 6-90 W, REV/E.S 6-40 W | Rated current: 3.0 A
SVR20KH Version: External speed setting volume | Voltage: n/a | Frequency: n/a | Applicable motors: SS controllers (spare) | Rated current: n/a
