SPG X-TOR BLDC Control Units and Drivers (XGVD, XFD, XVD)

SPG X-TOR BLDC Control Units and Drivers (XGVD, XFD, XVD)

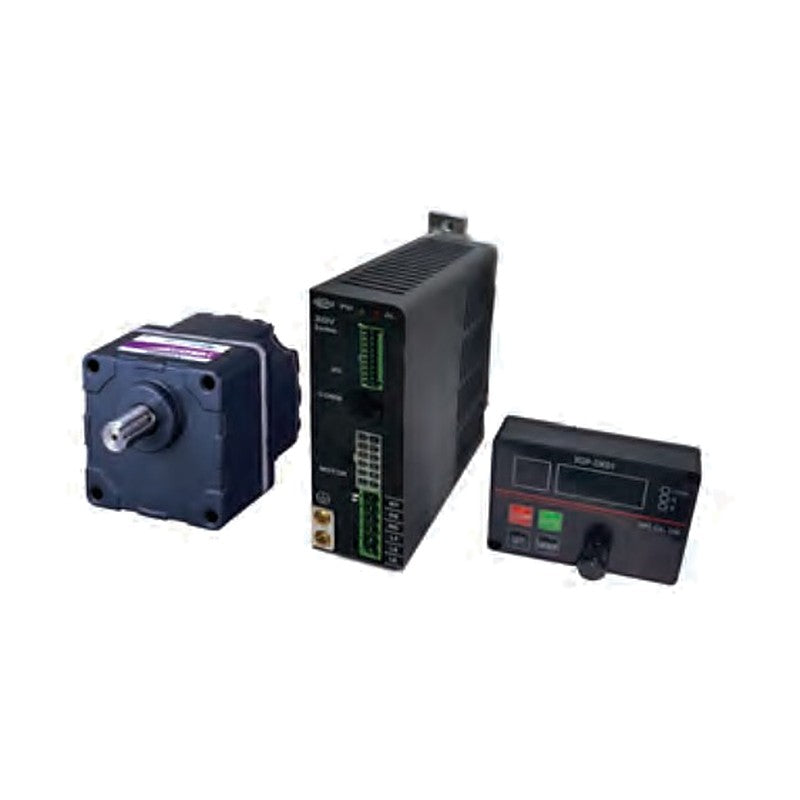

SPG X-TOR control units and drivers for XGVA, XFA and XVA brushless DC motors, sold separately from the motors.

Key features

  • XGVD: control unit for XGVA 50-130 W, single/three phase 200-240 V, RS-485 communication, 0.4 kg
  • XFD: compact DC 24 V driver for XFA 30/50/100 W (XFD30/50 0.1 kg, XFD100 0.3 kg)
  • XVD: DC 24 V (200 W) / DC 48 V (400 W) control unit for XVA, brake control included (0.61 kg)
  • Internal / external potentiometer or DC voltage speed setting; slow run / slow stop
  • Alarm and speed pulse outputs; compatible with SID250 digital speed indicator

Specifications

Family X-TOR BLDC motor drivers
Speed setting Internal pot., external 20 kΩ pot., DC voltage
Outputs Open-collector speed / alarm out
Insulation resistance 100 MΩ min. (DC 500 V megger)
Ambient temperature 0 to +50 °C (non-freezing)
Ambient humidity 85% or less (non-condensing)
Source SPG X-TOR BLDC Geared Motor catalog, p. 65-111
XGVD50U Series: XGVA | Output: 50 W | Power supply: 1/3-ph 200-240 VAC | Type: Box-type control unit, RS-485
XGVD90U Series: XGVA | Output: 90 W | Power supply: 1/3-ph 200-240 VAC | Type: Box-type control unit, RS-485
XGVD130U Series: XGVA | Output: 130 W | Power supply: 1/3-ph 200-240 VAC | Type: Box-type control unit, RS-485
XFD30 Series: XFA | Output: 30 W | Power supply: DC 24 V | Type: Board-type driver
XFD50 Series: XFA | Output: 50 W | Power supply: DC 24 V | Type: Board-type driver
XFD100 Series: XFA | Output: 100 W | Power supply: DC 24 V | Type: Board-type driver
XVD200F Series: XVA | Output: 200 W | Power supply: DC 24 V | Type: Box-type control unit
XVD400R Series: XVA | Output: 400 W | Power supply: DC 48 V | Type: Box-type control unit
BLDC Motor DriversSPG
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG X-TOR BLDC Control Units and Drivers (XGVD, XFD, XVD)

Brand SPG·BLDC Motor Drivers

Available part numbers (8)

XGVD50U, XGVD90U, XGVD130U, XFD30, XFD50, XFD100, XVD200F, XVD400R

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
