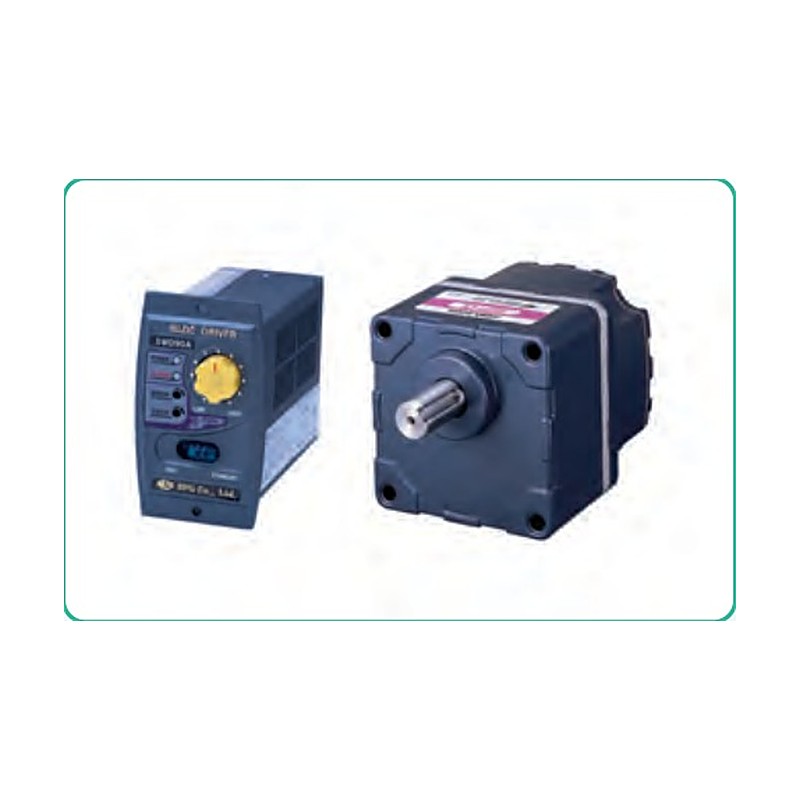

SPG XWD BLDC Panel-Type Drivers (10-90 W, for XWA)

SPG XWD BLDC Panel-Type Drivers (10-90 W, for XWA)

SPG XWD panel-type control units for X-TOR XWA brushless DC motors, 10-90 W, single-phase 100-120 V or 200-230 V.

Key features

  • Panel-type control unit with built-in speed potentiometer and external speed setting input (20 kOhm)
  • Photocoupler inputs (DC 24 V) for EXT, CW, CCW; open-collector speed and alarm outputs
  • Slow run / slow stop adjustable 0.5-15 s
  • Alarm stop on overload, overvoltage, undervoltage, sensor open-phase and overspeed

Specifications

Matching motors XWM / XWA series BLDC motors
Speed control range 100-2,000 r/min (motor)
Speed setting Built-in or external potentiometer
Input signal Photocoupler, DC 24 V +/-10%
Output signal Open collector, max. 26.4 V 10 mA
Degree of protection IP10
Source SPG X-TOR BLDC Geared Motor catalog, p. 9-15
XWD10A Motor output: 10 W | Power supply: 1-ph 100-120 V
XWD10B Motor output: 10 W | Power supply: 1-ph 200-230 V
XWD25A Motor output: 25 W | Power supply: 1-ph 100-120 V
XWD25B Motor output: 25 W | Power supply: 1-ph 200-230 V
XWD40A Motor output: 40 W | Power supply: 1-ph 100-120 V
XWD40B Motor output: 40 W | Power supply: 1-ph 200-230 V
XWD90A Motor output: 90 W | Power supply: 1-ph 100-120 V
XWD90B Motor output: 90 W | Power supply: 1-ph 200-230 V
BLDC Motor DriversSPG
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG XWD BLDC Panel-Type Drivers (10-90 W, for XWA)

Brand SPG·BLDC Motor Drivers

Available part numbers (8)

XWD10A, XWD10B, XWD25A, XWD25B, XWD40A, XWD40B, XWD90A, XWD90B

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
XWD10AMotor output: 10 W | Power supply: 1-ph 100-120 V
XWD10BMotor output: 10 W | Power supply: 1-ph 200-230 V
XWD25AMotor output: 25 W | Power supply: 1-ph 100-120 V
XWD25BMotor output: 25 W | Power supply: 1-ph 200-230 V
XWD40AMotor output: 40 W | Power supply: 1-ph 100-120 V
XWD40BMotor output: 40 W | Power supply: 1-ph 200-230 V
XWD90AMotor output: 90 W | Power supply: 1-ph 100-120 V
XWD90BMotor output: 90 W | Power supply: 1-ph 200-230 V
