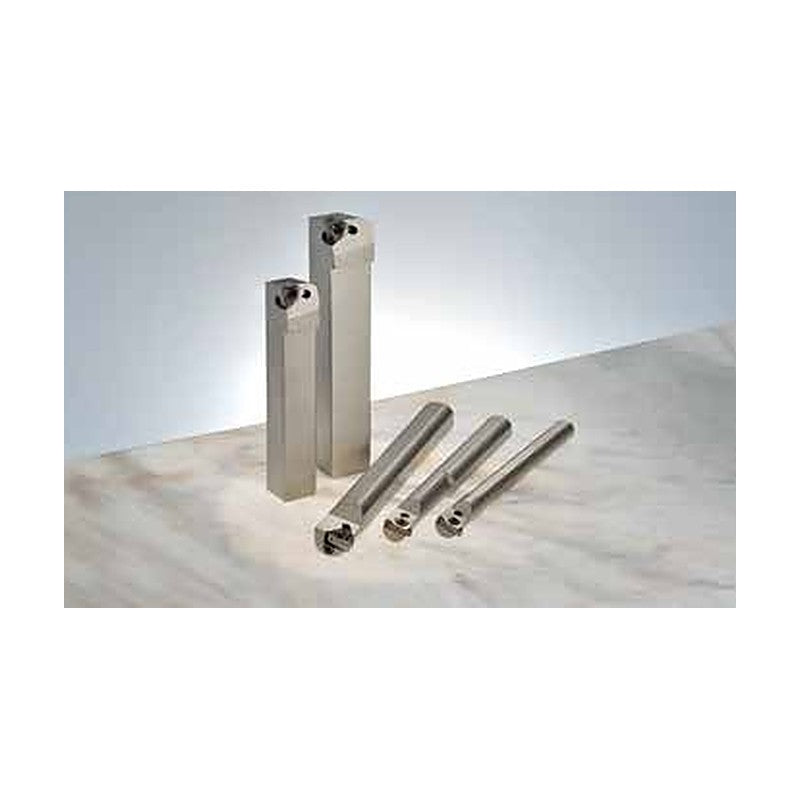

Sumitomo Electric Hardmetal 16ER External Threading Insert

Sumitomo Electric Hardmetal 16ER External Threading Insert

Laydown 16ER external threading insert with chip breaker (CB) for SSTE holders, covering partial and full profiles.

Key features

  • Grade AC530U
  • Partial 60/55 degree, ISO, UN, UNJ, Whitworth, NPT, NPTF and BSPT profiles
16ER A60-CB AC530U Pitch (mm): 0.5-1.5 | Threads per inch: 16 - 48 | PDX (mm): 0.8 | PDY (mm): 0.6 | Corner radius RE (mm): 0.09 | Grade: AC530U | Stock: Yes
16ER AG60-CB AC530U Pitch (mm): 0.5-3.0 | Threads per inch: 8 - 48 | PDX (mm): 1.5 | PDY (mm): 1.1 | Corner radius RE (mm): 0.10 | Grade: AC530U | Stock: Yes
16ER G60-CB AC530U Pitch (mm): 2.0-3.0 | Threads per inch: 8 - 14 | PDX (mm): 1.5 | PDY (mm): 1.1 | Corner radius RE (mm): 0.20 | Grade: AC530U | Stock: Yes
16ER A55-CB AC530U Threads per inch: 16 - 48 | PDX (mm): 0.8 | PDY (mm): 0.5 | Corner radius RE (mm): 0.05 | Grade: AC530U | Stock: Yes
16ER AG55-CB AC530U Threads per inch: 8 - 48 | PDX (mm): 1.5 | PDY (mm): 1.1 | Corner radius RE (mm): 0.08 | Grade: AC530U | Stock: Yes
16ER G55-CB AC530U Threads per inch: 8 - 14 | PDX (mm): 1.5 | PDY (mm): 1.1 | Corner radius RE (mm): 0.22 | Grade: AC530U | Stock: Yes
16ER 27NPT-CB AC530U Threads per inch: 27 | PDX (mm): 0.8 | PDY (mm): 0.6 | Corner radius RE (mm): 0.06 | Grade: AC530U | Stock: Yes
16ER 18NPT-CB AC530U Threads per inch: 18 | PDX (mm): 0.8 | PDY (mm): 0.6 | Corner radius RE (mm): 0.06 | Grade: AC530U | Stock: Yes
16ER 14NPT-CB AC530U Threads per inch: 14 | PDX (mm): 1.5 | PDY (mm): 1.0 | Corner radius RE (mm): 0.08 | Grade: AC530U | Stock: Yes
16ER 115NPT-CB AC530U Threads per inch: 11.5 | PDX (mm): 1.5 | PDY (mm): 1.0 | Corner radius RE (mm): 0.08 | Grade: AC530U | Stock: Yes
16ER 08NPT-CB AC530U Threads per inch: 8 | PDX (mm): 1.5 | PDY (mm): 1.1 | Corner radius RE (mm): 0.13 | Grade: AC530U | Stock: Yes
16ER 28BSPT-CB AC530U Threads per inch: 28 | PDX (mm): 0.8 | PDY (mm): 0.6 | Corner radius RE (mm): 0.13 | Grade: AC530U | Stock: Yes
16ER 19BSPT-CB AC530U Threads per inch: 19 | PDX (mm): 0.8 | PDY (mm): 0.6 | Corner radius RE (mm): 0.18 | Grade: AC530U | Stock: Yes
16ER 14BSPT-CB AC530U Threads per inch: 14 | PDX (mm): 1.5 | PDY (mm): 1.3 | Corner radius RE (mm): 0.25 | Grade: AC530U | Stock: Yes
16ER 11BSPT-CB AC530U Threads per inch: 11 | PDX (mm): 1.5 | PDY (mm): 1.0 | Corner radius RE (mm): 0.31 | Grade: AC530U | Stock: Yes
16ER 075 ISO-CB AC530U Pitch (mm): 0.75 | PDX (mm): 0.5 | PDY (mm): 1.0 | Corner radius RE (mm): 0.09 | Grade: AC530U | Stock: Yes
16ER 100 ISO-CB AC530U Pitch (mm): 1.00 | PDX (mm): 0.8 | PDY (mm): 0.6 | Corner radius RE (mm): 0.14 | Grade: AC530U | Stock: Yes
16ER 125 ISO-CB AC530U Pitch (mm): 1.25 | PDX (mm): 0.8 | PDY (mm): 0.7 | Corner radius RE (mm): 0.15 | Grade: AC530U | Stock: Yes
16ER 150 ISO-CB AC530U Pitch (mm): 1.50 | PDX (mm): 0.8 | PDY (mm): 0.7 | Corner radius RE (mm): 0.20 | Grade: AC530U | Stock: Yes
16ER 175 ISO-CB AC530U Pitch (mm): 1.75 | PDX (mm): 1.5 | PDY (mm): 1.0 | Corner radius RE (mm): 0.23 | Grade: AC530U | Stock: Yes
16ER 200 ISO-CB AC530U Pitch (mm): 2.00 | PDX (mm): 1.5 | PDY (mm): 1.1 | Corner radius RE (mm): 0.26 | Grade: AC530U | Stock: Yes
16ER 250 ISO-CB AC530U Pitch (mm): 2.50 | PDX (mm): 1.5 | PDY (mm): 1.2 | Corner radius RE (mm): 0.33 | Grade: AC530U | Stock: Yes
16ER 300 ISO-CB AC530U Pitch (mm): 3.00 | PDX (mm): 1.5 | PDY (mm): 1.1 | Corner radius RE (mm): 0.41 | Grade: AC530U | Stock: Yes
16ER 27NPTF-CB AC530U Threads per inch: 27 | PDX (mm): 0.8 | PDY (mm): 0.6 | Corner radius RE (mm): 0.06 | Grade: AC530U | Stock: Yes
16ER 18NPTF-CB AC530U Threads per inch: 18 | PDX (mm): 0.8 | PDY (mm): 0.6 | Corner radius RE (mm): 0.06 | Grade: AC530U | Stock: Yes
16ER 14NPTF-CB AC530U Threads per inch: 14 | PDX (mm): 1.5 | PDY (mm): 1.0 | Corner radius RE (mm): 0.13 | Grade: AC530U | Stock: Yes
16ER 115NPTF-CB AC530U Threads per inch: 11.5 | PDX (mm): 1.5 | PDY (mm): 1.0 | Corner radius RE (mm): 0.12 | Grade: AC530U | Stock: Yes
16ER 32UN-CB AC530U Threads per inch: 32 | PDX (mm): 0.5 | PDY (mm): 1.0 | Corner radius RE (mm): 0.10 | Grade: AC530U | Stock: Yes
16ER 28UN-CB AC530U Threads per inch: 28 | PDX (mm): 0.8 | PDY (mm): 0.7 | Corner radius RE (mm): 0.11 | Grade: AC530U | Stock: Yes
16ER 24UN-CB AC530U Threads per inch: 24 | PDX (mm): 0.8 | PDY (mm): 0.7 | Corner radius RE (mm): 0.13 | Grade: AC530U | Stock: Yes
16ER 20UN-CB AC530U Threads per inch: 20 | PDX (mm): 0.8 | PDY (mm): 0.7 | Corner radius RE (mm): 0.16 | Grade: AC530U | Stock: Yes
16ER 18UN-CB AC530U Threads per inch: 18 | PDX (mm): 0.8 | PDY (mm): 0.7 | Corner radius RE (mm): 0.18 | Grade: AC530U | Stock: Yes
16ER 16UN-CB AC530U Threads per inch: 16 | PDX (mm): 0.8 | PDY (mm): 0.8 | Corner radius RE (mm): 0.20 | Grade: AC530U | Stock: Yes
16ER 14UN-CB AC530U Threads per inch: 14 | PDX (mm): 1.5 | PDY (mm): 1.2 | Corner radius RE (mm): 0.23 | Grade: AC530U | Stock: Yes
16ER 13UN-CB AC530U Threads per inch: 13 | PDX (mm): 1.5 | PDY (mm): 1.1 | Corner radius RE (mm): 0.26 | Grade: AC530U | Stock: Yes
16ER 12UN-CB AC530U Threads per inch: 12 | PDX (mm): 1.5 | PDY (mm): 1.0 | Corner radius RE (mm): 0.27 | Grade: AC530U | Stock: Yes
16ER 10UN-CB AC530U Threads per inch: 10 | PDX (mm): 1.5 | PDY (mm): 1.2 | Corner radius RE (mm): 0.33 | Grade: AC530U | Stock: Yes
16ER 08UN-CB AC530U Threads per inch: 8 | PDX (mm): 1.5 | PDY (mm): 1.2 | Corner radius RE (mm): 0.42 | Grade: AC530U | Stock: Yes
16ER 32UNJ-CB AC530U Threads per inch: 32 | PDX (mm): 0.5 | PDY (mm): 1.0 | Corner radius RE (mm): 0.13 | Grade: AC530U | Stock: Yes
16ER 28UNJ-CB AC530U Threads per inch: 28 | PDX (mm): 0.8 | PDY (mm): 0.6 | Corner radius RE (mm): 0.15 | Grade: AC530U | Stock: Yes
16ER 24UNJ-CB AC530U Threads per inch: 24 | PDX (mm): 0.8 | PDY (mm): 0.6 | Corner radius RE (mm): 0.18 | Grade: AC530U | Stock: Yes
16ER 20UNJ-CB AC530U Threads per inch: 20 | PDX (mm): 0.8 | PDY (mm): 0.7 | Corner radius RE (mm): 0.21 | Grade: AC530U | Stock: Yes
16ER 18UNJ-CB AC530U Threads per inch: 18 | PDX (mm): 0.8 | PDY (mm): 0.6 | Corner radius RE (mm): 0.23 | Grade: AC530U | Stock: Yes
16ER 16UNJ-CB AC530U Threads per inch: 16 | PDX (mm): 0.8 | PDY (mm): 0.6 | Corner radius RE (mm): 0.25 | Grade: AC530U | Stock: Yes
16ER 14UNJ-CB AC530U Threads per inch: 14 | PDX (mm): 1.5 | PDY (mm): 1.1 | Corner radius RE (mm): 0.29 | Grade: AC530U | Stock: Yes
16ER 12UNJ-CB AC530U Threads per inch: 12 | PDX (mm): 1.5 | PDY (mm): 1.1 | Corner radius RE (mm): 0.34 | Grade: AC530U | Stock: Yes
16ER 10UNJ-CB AC530U Threads per inch: 10 | PDX (mm): 1.5 | PDY (mm): 1.1 | Corner radius RE (mm): 0.40 | Grade: AC530U | Stock: Yes
16ER 36W-CB AC530U Threads per inch: 36 | PDX (mm): 0.5 | PDY (mm): 1.0 | Corner radius RE (mm): 0.10 | Grade: AC530U | Stock: Yes
16ER 32W-CB AC530U Threads per inch: 32 | PDX (mm): 0.5 | PDY (mm): 1.0 | Corner radius RE (mm): 0.11 | Grade: AC530U | Stock: Yes
16ER 28W-CB AC530U Threads per inch: 28 | PDX (mm): 0.8 | PDY (mm): 0.6 | Corner radius RE (mm): 0.12 | Grade: AC530U | Stock: Yes
16ER 24W-CB AC530U Threads per inch: 24 | PDX (mm): 0.8 | PDY (mm): 0.6 | Corner radius RE (mm): 0.15 | Grade: AC530U | Stock: Yes
16ER 20W-CB AC530U Threads per inch: 20 | PDX (mm): 0.8 | PDY (mm): 0.6 | Corner radius RE (mm): 0.18 | Grade: AC530U | Stock: Yes
16ER 19W-CB AC530U Threads per inch: 19 | PDX (mm): 0.8 | PDY (mm): 0.6 | Corner radius RE (mm): 0.18 | Grade: AC530U | Stock: Yes
16ER 18W-CB AC530U Threads per inch: 18 | PDX (mm): 0.8 | PDY (mm): 0.6 | Corner radius RE (mm): 0.19 | Grade: AC530U | Stock: Yes
16ER 16W-CB AC530U Threads per inch: 16 | PDX (mm): 0.8 | PDY (mm): 0.6 | Corner radius RE (mm): 0.22 | Grade: AC530U | Stock: Yes
16ER 14W-CB AC530U Threads per inch: 14 | PDX (mm): 1.5 | PDY (mm): 1.0 | Corner radius RE (mm): 0.25 | Grade: AC530U | Stock: Yes
16ER 12W-CB AC530U Threads per inch: 12 | PDX (mm): 1.5 | PDY (mm): 1.1 | Corner radius RE (mm): 0.29 | Grade: AC530U | Stock: Yes
16ER 11W-CB AC530U Threads per inch: 11 | PDX (mm): 1.5 | PDY (mm): 1.1 | Corner radius RE (mm): 0.32 | Grade: AC530U | Stock: Yes
16ER 10W-CB AC530U Threads per inch: 10 | PDX (mm): 1.5 | PDY (mm): 1.1 | Corner radius RE (mm): 0.35 | Grade: AC530U | Stock: Yes
16ER 08W-CB AC530U Threads per inch: 8 | PDX (mm): 1.5 | PDY (mm): 1.1 | Corner radius RE (mm): 0.43 | Grade: AC530U | Stock: Yes
Threading InsertsSumitomo Electric Hardmetal
60 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal 16ER External Threading Insert

Brand Sumitomo Electric Hardmetal·Threading Inserts

Available part numbers (60)

16ER A60-CB AC530U, 16ER AG60-CB AC530U, 16ER G60-CB AC530U, 16ER A55-CB AC530U, 16ER AG55-CB AC530U, 16ER G55-CB AC530U, 16ER 27NPT-CB AC530U, 16ER 18NPT-CB AC530U, 16ER 14NPT-CB AC530U, 16ER 115NPT-CB AC530U + 50 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
16ER A60-CB AC530UPitch (mm): 0.5-1.5 | Threads per inch: 16 - 48 | PDX (mm): 0.8 | PDY (mm): 0.6 | Corner radius RE (mm): 0.09 | Grade: AC530U | Stock: Yes
16ER AG60-CB AC530UPitch (mm): 0.5-3.0 | Threads per inch: 8 - 48 | PDX (mm): 1.5 | PDY (mm): 1.1 | Corner radius RE (mm): 0.10 | Grade: AC530U | Stock: Yes
16ER G60-CB AC530UPitch (mm): 2.0-3.0 | Threads per inch: 8 - 14 | PDX (mm): 1.5 | PDY (mm): 1.1 | Corner radius RE (mm): 0.20 | Grade: AC530U | Stock: Yes
16ER A55-CB AC530UThreads per inch: 16 - 48 | PDX (mm): 0.8 | PDY (mm): 0.5 | Corner radius RE (mm): 0.05 | Grade: AC530U | Stock: Yes
16ER AG55-CB AC530UThreads per inch: 8 - 48 | PDX (mm): 1.5 | PDY (mm): 1.1 | Corner radius RE (mm): 0.08 | Grade: AC530U | Stock: Yes
16ER G55-CB AC530UThreads per inch: 8 - 14 | PDX (mm): 1.5 | PDY (mm): 1.1 | Corner radius RE (mm): 0.22 | Grade: AC530U | Stock: Yes
16ER 27NPT-CB AC530UThreads per inch: 27 | PDX (mm): 0.8 | PDY (mm): 0.6 | Corner radius RE (mm): 0.06 | Grade: AC530U | Stock: Yes
16ER 18NPT-CB AC530UThreads per inch: 18 | PDX (mm): 0.8 | PDY (mm): 0.6 | Corner radius RE (mm): 0.06 | Grade: AC530U | Stock: Yes
16ER 14NPT-CB AC530UThreads per inch: 14 | PDX (mm): 1.5 | PDY (mm): 1.0 | Corner radius RE (mm): 0.08 | Grade: AC530U | Stock: Yes
16ER 115NPT-CB AC530UThreads per inch: 11.5 | PDX (mm): 1.5 | PDY (mm): 1.0 | Corner radius RE (mm): 0.08 | Grade: AC530U | Stock: Yes
16ER 08NPT-CB AC530UThreads per inch: 8 | PDX (mm): 1.5 | PDY (mm): 1.1 | Corner radius RE (mm): 0.13 | Grade: AC530U | Stock: Yes
16ER 28BSPT-CB AC530UThreads per inch: 28 | PDX (mm): 0.8 | PDY (mm): 0.6 | Corner radius RE (mm): 0.13 | Grade: AC530U | Stock: Yes
16ER 19BSPT-CB AC530UThreads per inch: 19 | PDX (mm): 0.8 | PDY (mm): 0.6 | Corner radius RE (mm): 0.18 | Grade: AC530U | Stock: Yes
16ER 14BSPT-CB AC530UThreads per inch: 14 | PDX (mm): 1.5 | PDY (mm): 1.3 | Corner radius RE (mm): 0.25 | Grade: AC530U | Stock: Yes
16ER 11BSPT-CB AC530UThreads per inch: 11 | PDX (mm): 1.5 | PDY (mm): 1.0 | Corner radius RE (mm): 0.31 | Grade: AC530U | Stock: Yes
16ER 075 ISO-CB AC530UPitch (mm): 0.75 | PDX (mm): 0.5 | PDY (mm): 1.0 | Corner radius RE (mm): 0.09 | Grade: AC530U | Stock: Yes
16ER 100 ISO-CB AC530UPitch (mm): 1.00 | PDX (mm): 0.8 | PDY (mm): 0.6 | Corner radius RE (mm): 0.14 | Grade: AC530U | Stock: Yes
16ER 125 ISO-CB AC530UPitch (mm): 1.25 | PDX (mm): 0.8 | PDY (mm): 0.7 | Corner radius RE (mm): 0.15 | Grade: AC530U | Stock: Yes
16ER 150 ISO-CB AC530UPitch (mm): 1.50 | PDX (mm): 0.8 | PDY (mm): 0.7 | Corner radius RE (mm): 0.20 | Grade: AC530U | Stock: Yes
16ER 175 ISO-CB AC530UPitch (mm): 1.75 | PDX (mm): 1.5 | PDY (mm): 1.0 | Corner radius RE (mm): 0.23 | Grade: AC530U | Stock: Yes
16ER 200 ISO-CB AC530UPitch (mm): 2.00 | PDX (mm): 1.5 | PDY (mm): 1.1 | Corner radius RE (mm): 0.26 | Grade: AC530U | Stock: Yes
16ER 250 ISO-CB AC530UPitch (mm): 2.50 | PDX (mm): 1.5 | PDY (mm): 1.2 | Corner radius RE (mm): 0.33 | Grade: AC530U | Stock: Yes
16ER 300 ISO-CB AC530UPitch (mm): 3.00 | PDX (mm): 1.5 | PDY (mm): 1.1 | Corner radius RE (mm): 0.41 | Grade: AC530U | Stock: Yes
16ER 27NPTF-CB AC530UThreads per inch: 27 | PDX (mm): 0.8 | PDY (mm): 0.6 | Corner radius RE (mm): 0.06 | Grade: AC530U | Stock: Yes
16ER 18NPTF-CB AC530UThreads per inch: 18 | PDX (mm): 0.8 | PDY (mm): 0.6 | Corner radius RE (mm): 0.06 | Grade: AC530U | Stock: Yes
16ER 14NPTF-CB AC530UThreads per inch: 14 | PDX (mm): 1.5 | PDY (mm): 1.0 | Corner radius RE (mm): 0.13 | Grade: AC530U | Stock: Yes
16ER 115NPTF-CB AC530UThreads per inch: 11.5 | PDX (mm): 1.5 | PDY (mm): 1.0 | Corner radius RE (mm): 0.12 | Grade: AC530U | Stock: Yes
16ER 32UN-CB AC530UThreads per inch: 32 | PDX (mm): 0.5 | PDY (mm): 1.0 | Corner radius RE (mm): 0.10 | Grade: AC530U | Stock: Yes
16ER 28UN-CB AC530UThreads per inch: 28 | PDX (mm): 0.8 | PDY (mm): 0.7 | Corner radius RE (mm): 0.11 | Grade: AC530U | Stock: Yes
16ER 24UN-CB AC530UThreads per inch: 24 | PDX (mm): 0.8 | PDY (mm): 0.7 | Corner radius RE (mm): 0.13 | Grade: AC530U | Stock: Yes
16ER 20UN-CB AC530UThreads per inch: 20 | PDX (mm): 0.8 | PDY (mm): 0.7 | Corner radius RE (mm): 0.16 | Grade: AC530U | Stock: Yes
16ER 18UN-CB AC530UThreads per inch: 18 | PDX (mm): 0.8 | PDY (mm): 0.7 | Corner radius RE (mm): 0.18 | Grade: AC530U | Stock: Yes
16ER 16UN-CB AC530UThreads per inch: 16 | PDX (mm): 0.8 | PDY (mm): 0.8 | Corner radius RE (mm): 0.20 | Grade: AC530U | Stock: Yes
16ER 14UN-CB AC530UThreads per inch: 14 | PDX (mm): 1.5 | PDY (mm): 1.2 | Corner radius RE (mm): 0.23 | Grade: AC530U | Stock: Yes
16ER 13UN-CB AC530UThreads per inch: 13 | PDX (mm): 1.5 | PDY (mm): 1.1 | Corner radius RE (mm): 0.26 | Grade: AC530U | Stock: Yes
16ER 12UN-CB AC530UThreads per inch: 12 | PDX (mm): 1.5 | PDY (mm): 1.0 | Corner radius RE (mm): 0.27 | Grade: AC530U | Stock: Yes
16ER 10UN-CB AC530UThreads per inch: 10 | PDX (mm): 1.5 | PDY (mm): 1.2 | Corner radius RE (mm): 0.33 | Grade: AC530U | Stock: Yes
16ER 08UN-CB AC530UThreads per inch: 8 | PDX (mm): 1.5 | PDY (mm): 1.2 | Corner radius RE (mm): 0.42 | Grade: AC530U | Stock: Yes
16ER 32UNJ-CB AC530UThreads per inch: 32 | PDX (mm): 0.5 | PDY (mm): 1.0 | Corner radius RE (mm): 0.13 | Grade: AC530U | Stock: Yes
16ER 28UNJ-CB AC530UThreads per inch: 28 | PDX (mm): 0.8 | PDY (mm): 0.6 | Corner radius RE (mm): 0.15 | Grade: AC530U | Stock: Yes
16ER 24UNJ-CB AC530UThreads per inch: 24 | PDX (mm): 0.8 | PDY (mm): 0.6 | Corner radius RE (mm): 0.18 | Grade: AC530U | Stock: Yes
16ER 20UNJ-CB AC530UThreads per inch: 20 | PDX (mm): 0.8 | PDY (mm): 0.7 | Corner radius RE (mm): 0.21 | Grade: AC530U | Stock: Yes
16ER 18UNJ-CB AC530UThreads per inch: 18 | PDX (mm): 0.8 | PDY (mm): 0.6 | Corner radius RE (mm): 0.23 | Grade: AC530U | Stock: Yes
16ER 16UNJ-CB AC530UThreads per inch: 16 | PDX (mm): 0.8 | PDY (mm): 0.6 | Corner radius RE (mm): 0.25 | Grade: AC530U | Stock: Yes
16ER 14UNJ-CB AC530UThreads per inch: 14 | PDX (mm): 1.5 | PDY (mm): 1.1 | Corner radius RE (mm): 0.29 | Grade: AC530U | Stock: Yes
16ER 12UNJ-CB AC530UThreads per inch: 12 | PDX (mm): 1.5 | PDY (mm): 1.1 | Corner radius RE (mm): 0.34 | Grade: AC530U | Stock: Yes
16ER 10UNJ-CB AC530UThreads per inch: 10 | PDX (mm): 1.5 | PDY (mm): 1.1 | Corner radius RE (mm): 0.40 | Grade: AC530U | Stock: Yes
16ER 36W-CB AC530UThreads per inch: 36 | PDX (mm): 0.5 | PDY (mm): 1.0 | Corner radius RE (mm): 0.10 | Grade: AC530U | Stock: Yes
16ER 32W-CB AC530UThreads per inch: 32 | PDX (mm): 0.5 | PDY (mm): 1.0 | Corner radius RE (mm): 0.11 | Grade: AC530U | Stock: Yes
16ER 28W-CB AC530UThreads per inch: 28 | PDX (mm): 0.8 | PDY (mm): 0.6 | Corner radius RE (mm): 0.12 | Grade: AC530U | Stock: Yes
16ER 24W-CB AC530UThreads per inch: 24 | PDX (mm): 0.8 | PDY (mm): 0.6 | Corner radius RE (mm): 0.15 | Grade: AC530U | Stock: Yes
16ER 20W-CB AC530UThreads per inch: 20 | PDX (mm): 0.8 | PDY (mm): 0.6 | Corner radius RE (mm): 0.18 | Grade: AC530U | Stock: Yes
16ER 19W-CB AC530UThreads per inch: 19 | PDX (mm): 0.8 | PDY (mm): 0.6 | Corner radius RE (mm): 0.18 | Grade: AC530U | Stock: Yes
16ER 18W-CB AC530UThreads per inch: 18 | PDX (mm): 0.8 | PDY (mm): 0.6 | Corner radius RE (mm): 0.19 | Grade: AC530U | Stock: Yes
16ER 16W-CB AC530UThreads per inch: 16 | PDX (mm): 0.8 | PDY (mm): 0.6 | Corner radius RE (mm): 0.22 | Grade: AC530U | Stock: Yes
16ER 14W-CB AC530UThreads per inch: 14 | PDX (mm): 1.5 | PDY (mm): 1.0 | Corner radius RE (mm): 0.25 | Grade: AC530U | Stock: Yes
16ER 12W-CB AC530UThreads per inch: 12 | PDX (mm): 1.5 | PDY (mm): 1.1 | Corner radius RE (mm): 0.29 | Grade: AC530U | Stock: Yes
16ER 11W-CB AC530UThreads per inch: 11 | PDX (mm): 1.5 | PDY (mm): 1.1 | Corner radius RE (mm): 0.32 | Grade: AC530U | Stock: Yes
16ER 10W-CB AC530UThreads per inch: 10 | PDX (mm): 1.5 | PDY (mm): 1.1 | Corner radius RE (mm): 0.35 | Grade: AC530U | Stock: Yes
16ER 08W-CB AC530UThreads per inch: 8 | PDX (mm): 1.5 | PDY (mm): 1.1 | Corner radius RE (mm): 0.43 | Grade: AC530U | Stock: Yes
