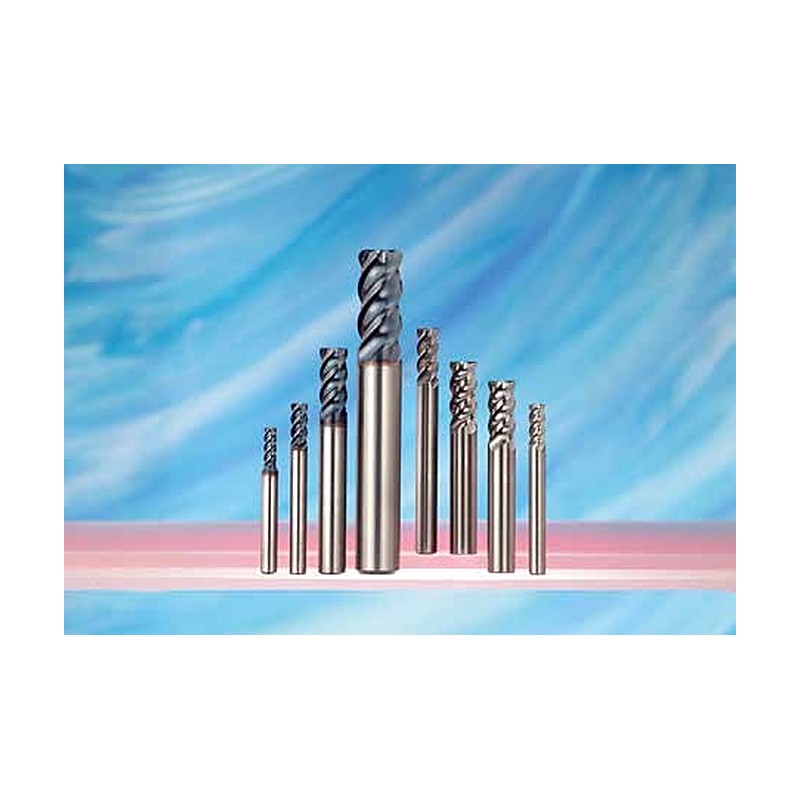

Sumitomo Electric Hardmetal Anti-Vibration Radius End Mill for Difficult-to-Cut Materials SSEHVL4000W-R

Sumitomo Electric Hardmetal Anti-Vibration Radius End Mill for Difficult-to-Cut Materials SSEHVL4000W-R

Coated 4-flute anti-vibration corner radius end mill for difficult-to-cut materials.

Key features

  • Unequal lead for anti-vibration effect
  • For stainless steel, Inconel and titanium
  • 45 deg strong helix for cutting performance
  • Proprietary flute form and near-mirror rake face for chip evacuation and adhesion resistance

Specifications

Flutes 4
Grade ACW52
Workpiece Stainless steel, Ti alloy/heat-resistant alloy
SSEHVL4045W-R05 DC (mm): 4.5 | RE (mm): 0.5 | APMX (mm): 12.0 | LU (mm): 14.5 | LF (mm): 50 | DMM (mm): 6 | Stock: Yes
SSEHVL4045W-R10 DC (mm): 4.5 | RE (mm): 1.0 | APMX (mm): 12.0 | LU (mm): 14.5 | LF (mm): 50 | DMM (mm): 6 | Stock: Yes
SSEHVL4050W-R05 DC (mm): 5.0 | RE (mm): 0.5 | APMX (mm): 13.0 | LU (mm): 15.5 | LF (mm): 60 | DMM (mm): 6 | Stock: Yes
SSEHVL4050W-R10 DC (mm): 5.0 | RE (mm): 1.0 | APMX (mm): 13.0 | LU (mm): 15.5 | LF (mm): 60 | DMM (mm): 6 | Stock: Yes
SSEHVL4060W-R10 DC (mm): 6.0 | RE (mm): 1.0 | APMX (mm): 13.0 | LF (mm): 60 | DMM (mm): 6 | Stock: Yes
SSEHVL4080W-R10 DC (mm): 8.0 | RE (mm): 1.0 | APMX (mm): 19.0 | LF (mm): 80 | DMM (mm): 8 | Stock: Yes
SSEHVL4100W-R10 DC (mm): 10.0 | RE (mm): 1.0 | APMX (mm): 22.0 | LF (mm): 90 | DMM (mm): 10 | Stock: Yes
SSEHVL4100W-R30 DC (mm): 10.0 | RE (mm): 3.0 | APMX (mm): 22.0 | LF (mm): 90 | DMM (mm): 10 | Stock: Yes
SSEHVL4120W-R10 DC (mm): 12.0 | RE (mm): 1.0 | APMX (mm): 26.0 | LF (mm): 90 | DMM (mm): 12 | Stock: Yes
SSEHVL4120W-R30 DC (mm): 12.0 | RE (mm): 3.0 | APMX (mm): 26.0 | LF (mm): 90 | DMM (mm): 12 | Stock: Yes
SSEHVL4160W-R10 DC (mm): 16.0 | RE (mm): 1.0 | APMX (mm): 32.0 | LF (mm): 115 | DMM (mm): 16 | Stock: Yes
SSEHVL4160W-R30 DC (mm): 16.0 | RE (mm): 3.0 | APMX (mm): 32.0 | LF (mm): 115 | DMM (mm): 16 | Stock: Yes
SSEHVL4200W-R10 DC (mm): 20.0 | RE (mm): 1.0 | APMX (mm): 40.0 | LF (mm): 125 | DMM (mm): 20 | Stock: Yes
SSEHVL4200W-R30 DC (mm): 20.0 | RE (mm): 3.0 | APMX (mm): 40.0 | LF (mm): 125 | DMM (mm): 20 | Stock: Yes
SSEHVL4250W-R10 DC (mm): 25.0 | RE (mm): 1.0 | APMX (mm): 50.0 | LF (mm): 140 | DMM (mm): 25 | Stock: Yes
SSEHVL4250W-R30 DC (mm): 25.0 | RE (mm): 3.0 | APMX (mm): 50.0 | LF (mm): 140 | DMM (mm): 25 | Stock: Yes
