• Sumitomo Electric Hardmetal ANX ANXA 16000R(S) Aluminium Alloy Body Cutter
1 1

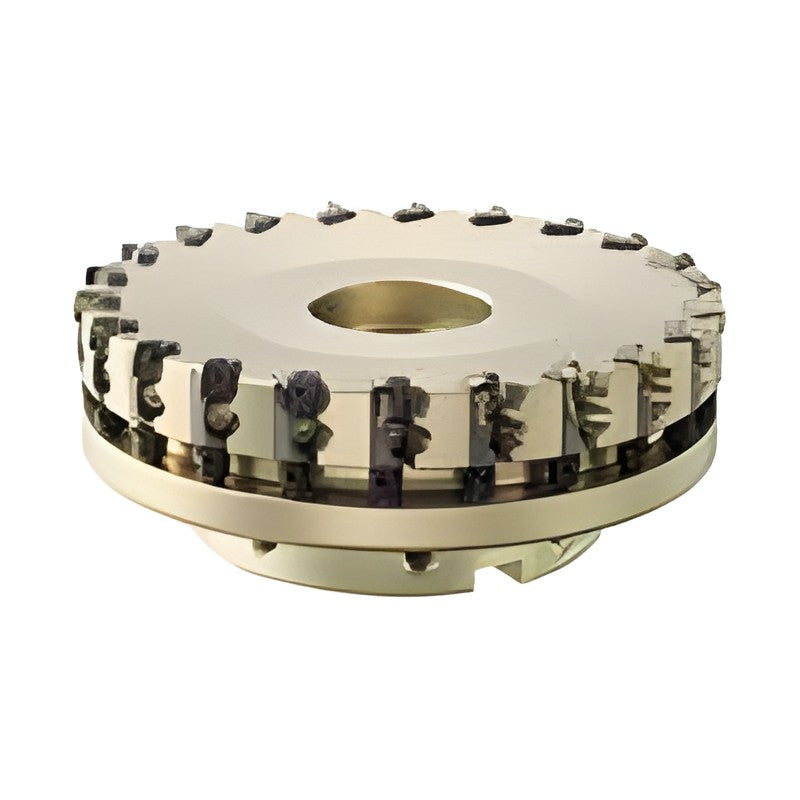

Sumitomo Electric Hardmetal ANX ANXA 16000R(S) Aluminium Alloy Body Cutter

Sumitomo Electric Hardmetal ANX ANXA 16000R(S) Aluminium Alloy Body Cutter

High-efficiency cutter for aluminium alloys with screw-fixed blades, simple runout adjustment and coolant supplied through the blades.

Key features

  • Fast runout adjustment with simple screw-fixed structure
  • Coolant supplied through the blades
  • Diamond blades (SUMIDIA / CVD single crystal)
  • Lightweight aluminium alloy body
ANXA16080RS06 Max cutting dia DCX (mm): 80 | Cutting dia DC (mm): 78 | Boss dia DCSFMS (mm): 50 | Overall length LF (mm): 50 | Bore dia DCB (mm): 27 | Keyway width KWW (mm): 12.4 | Keyway depth KDP (mm): 7 | Counterbore depth CBDP (mm): 22 | Bolt dia D1 (mm): 35 | Bolt dia D2 (mm): 14 | Teeth: 6 | Weight (kg): 0.5 | Stock: Yes
ANXA16080RS10 Max cutting dia DCX (mm): 80 | Cutting dia DC (mm): 78 | Boss dia DCSFMS (mm): 50 | Overall length LF (mm): 50 | Bore dia DCB (mm): 27 | Keyway width KWW (mm): 12.4 | Keyway depth KDP (mm): 7 | Counterbore depth CBDP (mm): 22 | Bolt dia D1 (mm): 35 | Bolt dia D2 (mm): 14 | Teeth: 10 | Weight (kg): 0.5 | Stock: Yes
ANXA16080RS14 Max cutting dia DCX (mm): 80 | Cutting dia DC (mm): 78 | Boss dia DCSFMS (mm): 50 | Overall length LF (mm): 50 | Bore dia DCB (mm): 27 | Keyway width KWW (mm): 12.4 | Keyway depth KDP (mm): 7 | Counterbore depth CBDP (mm): 22 | Bolt dia D1 (mm): 35 | Bolt dia D2 (mm): 14 | Teeth: 14 | Weight (kg): 0.5 | Stock: Yes
ANXA16100RS08 Max cutting dia DCX (mm): 100 | Cutting dia DC (mm): 98 | Boss dia DCSFMS (mm): 50 | Overall length LF (mm): 50 | Bore dia DCB (mm): 27 | Keyway width KWW (mm): 12.4 | Keyway depth KDP (mm): 7 | Counterbore depth CBDP (mm): 22 | Bolt dia D1 (mm): 35 | Bolt dia D2 (mm): 14 | Teeth: 8 | Weight (kg): 0.8 | Stock: Yes
ANXA16100RS12 Max cutting dia DCX (mm): 100 | Cutting dia DC (mm): 98 | Boss dia DCSFMS (mm): 50 | Overall length LF (mm): 50 | Bore dia DCB (mm): 27 | Keyway width KWW (mm): 12.4 | Keyway depth KDP (mm): 7 | Counterbore depth CBDP (mm): 22 | Bolt dia D1 (mm): 35 | Bolt dia D2 (mm): 14 | Teeth: 12 | Weight (kg): 0.8 | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal ANX ANXA 16000R(S) Aluminium Alloy Body Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (5)

ANXA16080RS06, ANXA16080RS10, ANXA16080RS14, ANXA16100RS08, ANXA16100RS12

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ANXA16080RS06Max cutting dia DCX (mm): 80 | Cutting dia DC (mm): 78 | Boss dia DCSFMS (mm): 50 | Overall length LF (mm): 50 | Bore dia DCB (mm): 27 | Keyway width KWW (mm): 12.4 | Keyway depth KDP (mm): 7 | Counterbore depth CBDP (mm): 22 | Bolt dia D1 (mm): 35 | Bolt dia D2 (mm): 14 | Teeth: 6 | Weight (kg): 0.5 | Stock: Yes
ANXA16080RS10Max cutting dia DCX (mm): 80 | Cutting dia DC (mm): 78 | Boss dia DCSFMS (mm): 50 | Overall length LF (mm): 50 | Bore dia DCB (mm): 27 | Keyway width KWW (mm): 12.4 | Keyway depth KDP (mm): 7 | Counterbore depth CBDP (mm): 22 | Bolt dia D1 (mm): 35 | Bolt dia D2 (mm): 14 | Teeth: 10 | Weight (kg): 0.5 | Stock: Yes
ANXA16080RS14Max cutting dia DCX (mm): 80 | Cutting dia DC (mm): 78 | Boss dia DCSFMS (mm): 50 | Overall length LF (mm): 50 | Bore dia DCB (mm): 27 | Keyway width KWW (mm): 12.4 | Keyway depth KDP (mm): 7 | Counterbore depth CBDP (mm): 22 | Bolt dia D1 (mm): 35 | Bolt dia D2 (mm): 14 | Teeth: 14 | Weight (kg): 0.5 | Stock: Yes
ANXA16100RS08Max cutting dia DCX (mm): 100 | Cutting dia DC (mm): 98 | Boss dia DCSFMS (mm): 50 | Overall length LF (mm): 50 | Bore dia DCB (mm): 27 | Keyway width KWW (mm): 12.4 | Keyway depth KDP (mm): 7 | Counterbore depth CBDP (mm): 22 | Bolt dia D1 (mm): 35 | Bolt dia D2 (mm): 14 | Teeth: 8 | Weight (kg): 0.8 | Stock: Yes
ANXA16100RS12Max cutting dia DCX (mm): 100 | Cutting dia DC (mm): 98 | Boss dia DCSFMS (mm): 50 | Overall length LF (mm): 50 | Bore dia DCB (mm): 27 | Keyway width KWW (mm): 12.4 | Keyway depth KDP (mm): 7 | Counterbore depth CBDP (mm): 22 | Bolt dia D1 (mm): 35 | Bolt dia D2 (mm): 14 | Teeth: 12 | Weight (kg): 0.8 | Stock: Yes
