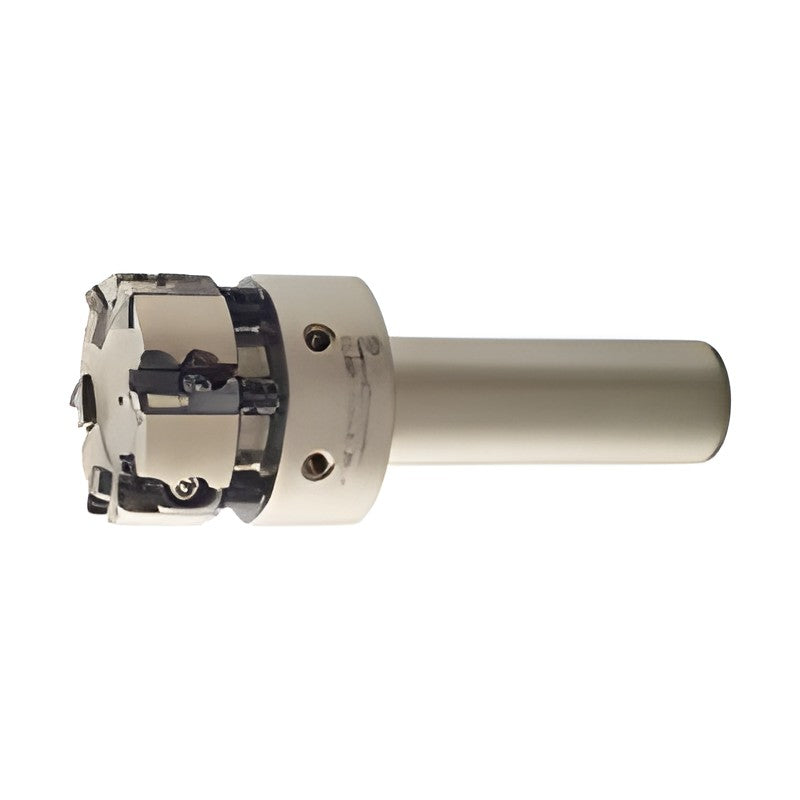

Sumitomo Electric Hardmetal ANX ANXS 16000E Shank Type Cutter

High-efficiency cutter for aluminium alloys with screw-fixed blades, simple runout adjustment and coolant supplied through the blades.

Key features

Fast runout adjustment with simple screw-fixed structure
Coolant supplied through the blades
Diamond blades (SUMIDIA / CVD single crystal)

ANXS16025E02		Max cutting dia DCX (mm): 25 \| Cutting dia DC (mm): 23 \| Shank dia DMM (mm): 20 \| Head length LH (mm): 35 \| Overall length LF (mm): 95 \| Teeth: 2 \| Weight (kg): 0.2 \| Stock: Yes
ANXS16030E03		Max cutting dia DCX (mm): 30 \| Cutting dia DC (mm): 28 \| Shank dia DMM (mm): 20 \| Head length LH (mm): 35 \| Overall length LF (mm): 95 \| Teeth: 3 \| Weight (kg): 0.3 \| Stock: Yes
ANXS16030E04		Max cutting dia DCX (mm): 30 \| Cutting dia DC (mm): 28 \| Shank dia DMM (mm): 20 \| Head length LH (mm): 35 \| Overall length LF (mm): 95 \| Teeth: 4 \| Weight (kg): 0.3 \| Stock: Yes
ANXS16032E03		Max cutting dia DCX (mm): 32 \| Cutting dia DC (mm): 30 \| Shank dia DMM (mm): 20 \| Head length LH (mm): 35 \| Overall length LF (mm): 95 \| Teeth: 3 \| Weight (kg): 0.3 \| Stock: Yes
ANXS16032E04		Max cutting dia DCX (mm): 32 \| Cutting dia DC (mm): 30 \| Shank dia DMM (mm): 20 \| Head length LH (mm): 35 \| Overall length LF (mm): 95 \| Teeth: 4 \| Weight (kg): 0.3 \| Stock: Yes
ANXS16040E04		Max cutting dia DCX (mm): 40 \| Cutting dia DC (mm): 38 \| Shank dia DMM (mm): 20 \| Head length LH (mm): 40 \| Overall length LF (mm): 100 \| Teeth: 4 \| Weight (kg): 0.4 \| Stock: Yes
ANXS16040E06		Max cutting dia DCX (mm): 40 \| Cutting dia DC (mm): 38 \| Shank dia DMM (mm): 20 \| Head length LH (mm): 40 \| Overall length LF (mm): 100 \| Teeth: 6 \| Weight (kg): 0.5 \| Stock: Yes
ANXS16050E04		Max cutting dia DCX (mm): 50 \| Cutting dia DC (mm): 48 \| Shank dia DMM (mm): 32 \| Head length LH (mm): 40 \| Overall length LF (mm): 120 \| Teeth: 4 \| Weight (kg): 1.0 \| Stock: Yes
ANXS16050E06		Max cutting dia DCX (mm): 50 \| Cutting dia DC (mm): 48 \| Shank dia DMM (mm): 32 \| Head length LH (mm): 40 \| Overall length LF (mm): 120 \| Teeth: 6 \| Weight (kg): 1.0 \| Stock: Yes
ANXS16050E09		Max cutting dia DCX (mm): 50 \| Cutting dia DC (mm): 48 \| Shank dia DMM (mm): 32 \| Head length LH (mm): 40 \| Overall length LF (mm): 120 \| Teeth: 9 \| Weight (kg): 1.0 \| Stock: Yes

Milling CuttersSumitomo Electric Hardmetal

10 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal ANX ANXS 16000E Shank Type Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (10)

ANXS16025E02, ANXS16030E03, ANXS16030E04, ANXS16032E03, ANXS16032E04, ANXS16040E04, ANXS16040E06, ANXS16050E04, ANXS16050E06, ANXS16050E09

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

	Product code	Spec
	ANXS16025E02	Max cutting dia DCX (mm): 25 \| Cutting dia DC (mm): 23 \| Shank dia DMM (mm): 20 \| Head length LH (mm): 35 \| Overall length LF (mm): 95 \| Teeth: 2 \| Weight (kg): 0.2 \| Stock: Yes
	ANXS16030E03	Max cutting dia DCX (mm): 30 \| Cutting dia DC (mm): 28 \| Shank dia DMM (mm): 20 \| Head length LH (mm): 35 \| Overall length LF (mm): 95 \| Teeth: 3 \| Weight (kg): 0.3 \| Stock: Yes
	ANXS16030E04	Max cutting dia DCX (mm): 30 \| Cutting dia DC (mm): 28 \| Shank dia DMM (mm): 20 \| Head length LH (mm): 35 \| Overall length LF (mm): 95 \| Teeth: 4 \| Weight (kg): 0.3 \| Stock: Yes
	ANXS16032E03	Max cutting dia DCX (mm): 32 \| Cutting dia DC (mm): 30 \| Shank dia DMM (mm): 20 \| Head length LH (mm): 35 \| Overall length LF (mm): 95 \| Teeth: 3 \| Weight (kg): 0.3 \| Stock: Yes
	ANXS16032E04	Max cutting dia DCX (mm): 32 \| Cutting dia DC (mm): 30 \| Shank dia DMM (mm): 20 \| Head length LH (mm): 35 \| Overall length LF (mm): 95 \| Teeth: 4 \| Weight (kg): 0.3 \| Stock: Yes
	ANXS16040E04	Max cutting dia DCX (mm): 40 \| Cutting dia DC (mm): 38 \| Shank dia DMM (mm): 20 \| Head length LH (mm): 40 \| Overall length LF (mm): 100 \| Teeth: 4 \| Weight (kg): 0.4 \| Stock: Yes
	ANXS16040E06	Max cutting dia DCX (mm): 40 \| Cutting dia DC (mm): 38 \| Shank dia DMM (mm): 20 \| Head length LH (mm): 40 \| Overall length LF (mm): 100 \| Teeth: 6 \| Weight (kg): 0.5 \| Stock: Yes
	ANXS16050E04	Max cutting dia DCX (mm): 50 \| Cutting dia DC (mm): 48 \| Shank dia DMM (mm): 32 \| Head length LH (mm): 40 \| Overall length LF (mm): 120 \| Teeth: 4 \| Weight (kg): 1.0 \| Stock: Yes
	ANXS16050E06	Max cutting dia DCX (mm): 50 \| Cutting dia DC (mm): 48 \| Shank dia DMM (mm): 32 \| Head length LH (mm): 40 \| Overall length LF (mm): 120 \| Teeth: 6 \| Weight (kg): 1.0 \| Stock: Yes
	ANXS16050E09	Max cutting dia DCX (mm): 50 \| Cutting dia DC (mm): 48 \| Shank dia DMM (mm): 32 \| Head length LH (mm): 40 \| Overall length LF (mm): 120 \| Teeth: 9 \| Weight (kg): 1.0 \| Stock: Yes
