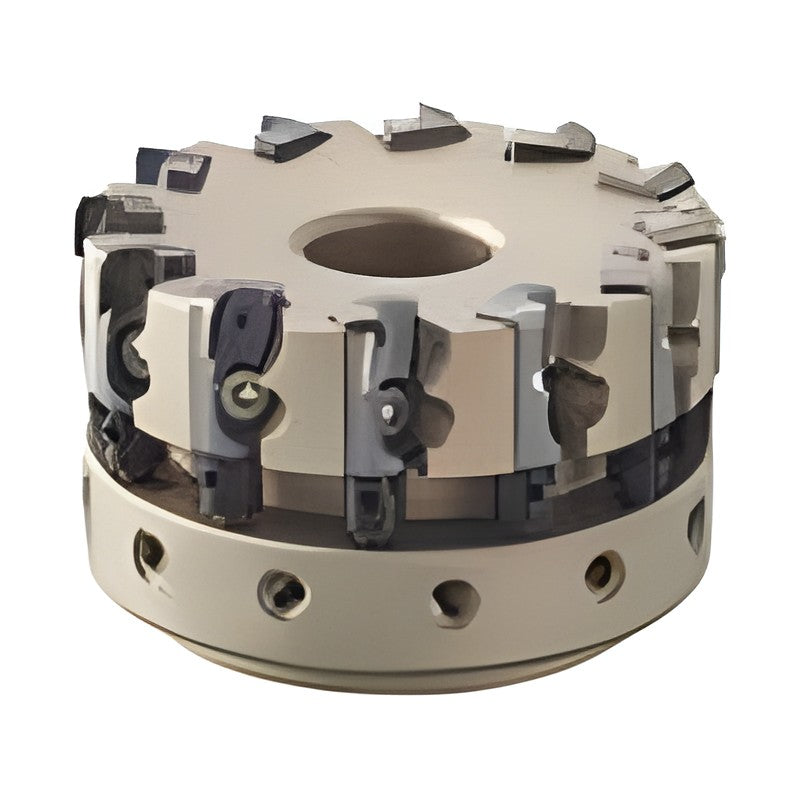

Sumitomo Electric Hardmetal ANX ANXS 16000R(S) Steel Body Cutter

Sumitomo Electric Hardmetal ANX ANXS 16000R(S) Steel Body Cutter

High-efficiency cutter for aluminium alloys with screw-fixed blades, simple runout adjustment and coolant supplied through the blades.

Key features

  • Fast runout adjustment with simple screw-fixed structure
  • Coolant supplied through the blades
  • Diamond blades (SUMIDIA / CVD single crystal)
ANXS16040RS04 Max cutting dia DCX (mm): 40 | Cutting dia DC (mm): 38 | Boss dia DCSFMS (mm): 38.5 | Overall length LF (mm): 40 | Bore dia DCB (mm): 16 | Keyway width KWW (mm): 8.4 | Keyway depth KDP (mm): 5.6 | Counterbore depth CBDP (mm): 18 | Bolt dia D1 (mm): 14 | Bolt dia D2 (mm): 9 | Teeth: 4 | Weight (kg): 0.3 | Stock: Yes
ANXS16040RS06 Max cutting dia DCX (mm): 40 | Cutting dia DC (mm): 38 | Boss dia DCSFMS (mm): 38.5 | Overall length LF (mm): 40 | Bore dia DCB (mm): 16 | Keyway width KWW (mm): 8.4 | Keyway depth KDP (mm): 5.6 | Counterbore depth CBDP (mm): 18 | Bolt dia D1 (mm): 14 | Bolt dia D2 (mm): 9 | Teeth: 6 | Weight (kg): 0.3 | Stock: Yes
ANXS16050RS04 Max cutting dia DCX (mm): 50 | Cutting dia DC (mm): 48 | Boss dia DCSFMS (mm): 48.5 | Overall length LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 4 | Weight (kg): 0.4 | Stock: Yes
ANXS16050RS06 Max cutting dia DCX (mm): 50 | Cutting dia DC (mm): 48 | Boss dia DCSFMS (mm): 48.5 | Overall length LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 6 | Weight (kg): 0.4 | Stock: Yes
ANXS16050RS09 Max cutting dia DCX (mm): 50 | Cutting dia DC (mm): 48 | Boss dia DCSFMS (mm): 48.5 | Overall length LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 9 | Weight (kg): 0.4 | Stock: Yes
ANXS16063RS06 Max cutting dia DCX (mm): 63 | Cutting dia DC (mm): 61 | Boss dia DCSFMS (mm): 50 | Overall length LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 6 | Weight (kg): 0.7 | Stock: Yes
ANXS16063RS08 Max cutting dia DCX (mm): 63 | Cutting dia DC (mm): 61 | Boss dia DCSFMS (mm): 50 | Overall length LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 8 | Weight (kg): 0.7 | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal ANX ANXS 16000R(S) Steel Body Cutter

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (7)

ANXS16040RS04, ANXS16040RS06, ANXS16050RS04, ANXS16050RS06, ANXS16050RS09, ANXS16063RS06, ANXS16063RS08

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ANXS16040RS04Max cutting dia DCX (mm): 40 | Cutting dia DC (mm): 38 | Boss dia DCSFMS (mm): 38.5 | Overall length LF (mm): 40 | Bore dia DCB (mm): 16 | Keyway width KWW (mm): 8.4 | Keyway depth KDP (mm): 5.6 | Counterbore depth CBDP (mm): 18 | Bolt dia D1 (mm): 14 | Bolt dia D2 (mm): 9 | Teeth: 4 | Weight (kg): 0.3 | Stock: Yes
ANXS16040RS06Max cutting dia DCX (mm): 40 | Cutting dia DC (mm): 38 | Boss dia DCSFMS (mm): 38.5 | Overall length LF (mm): 40 | Bore dia DCB (mm): 16 | Keyway width KWW (mm): 8.4 | Keyway depth KDP (mm): 5.6 | Counterbore depth CBDP (mm): 18 | Bolt dia D1 (mm): 14 | Bolt dia D2 (mm): 9 | Teeth: 6 | Weight (kg): 0.3 | Stock: Yes
ANXS16050RS04Max cutting dia DCX (mm): 50 | Cutting dia DC (mm): 48 | Boss dia DCSFMS (mm): 48.5 | Overall length LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 4 | Weight (kg): 0.4 | Stock: Yes
ANXS16050RS06Max cutting dia DCX (mm): 50 | Cutting dia DC (mm): 48 | Boss dia DCSFMS (mm): 48.5 | Overall length LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 6 | Weight (kg): 0.4 | Stock: Yes
ANXS16050RS09Max cutting dia DCX (mm): 50 | Cutting dia DC (mm): 48 | Boss dia DCSFMS (mm): 48.5 | Overall length LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 9 | Weight (kg): 0.4 | Stock: Yes
ANXS16063RS06Max cutting dia DCX (mm): 63 | Cutting dia DC (mm): 61 | Boss dia DCSFMS (mm): 50 | Overall length LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 6 | Weight (kg): 0.7 | Stock: Yes
ANXS16063RS08Max cutting dia DCX (mm): 63 | Cutting dia DC (mm): 61 | Boss dia DCSFMS (mm): 50 | Overall length LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 8 | Weight (kg): 0.7 | Stock: Yes
