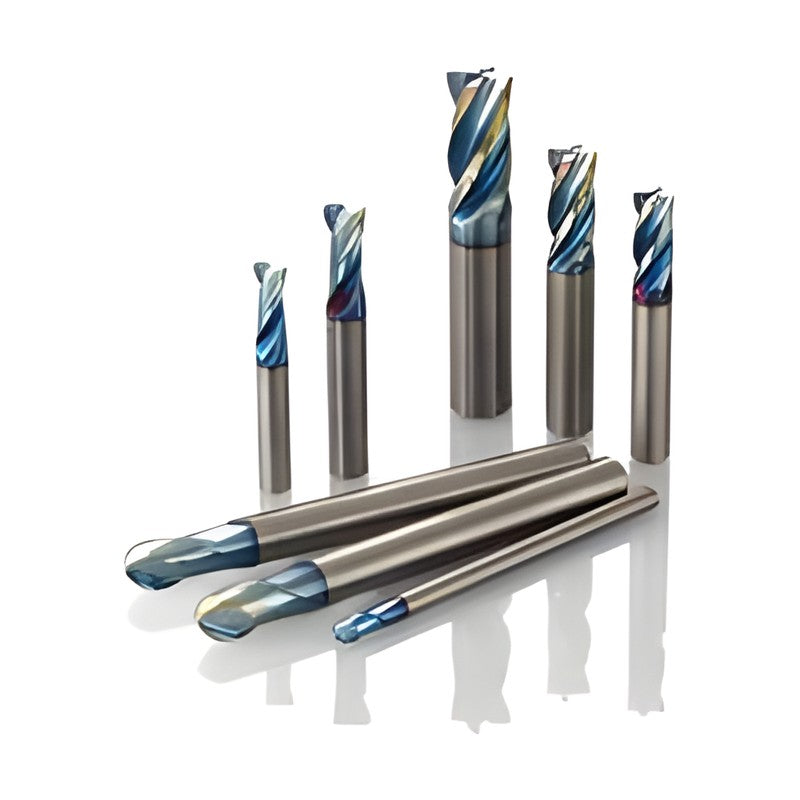

Sumitomo Electric Hardmetal Aurora Coated 2-Flute Ball End Mill SNB2000DL

Sumitomo Electric Hardmetal Aurora Coated 2-Flute Ball End Mill SNB2000DL

Aurora (DLC) coated 2-flute ball end mill for non-ferrous metals.

Key features

  • Very smooth Aurora (DLC) coating with low adhesion and good finished surface
  • Low cutting resistance, suited to high-feed cutting and low-rigidity workpieces

Specifications

Flutes 2
Grade DL1200
Workpiece Aluminium alloy, Copper alloy
SNB2020DL DC (mm): 2.0 | RE (mm): 1.0 | APMX (mm): 3.0 | LU (mm): 5 | LF (mm): 60 | DMM (mm): 6 | Stock: Yes
SNB2030DL DC (mm): 3.0 | RE (mm): 1.5 | APMX (mm): 4.5 | LU (mm): 8 | LF (mm): 80 | DMM (mm): 6 | Stock: Yes
SNB2040DL DC (mm): 4.0 | RE (mm): 2.0 | APMX (mm): 6.0 | LU (mm): 12 | LF (mm): 80 | DMM (mm): 6 | Stock: Yes
SNB2050DL DC (mm): 5.0 | RE (mm): 2.5 | APMX (mm): 7.5 | LU (mm): 14 | LF (mm): 90 | DMM (mm): 6 | Stock: Yes
SNB2060DL DC (mm): 6.0 | RE (mm): 3.0 | APMX (mm): 9.0 | LF (mm): 100 | DMM (mm): 6 | Stock: Yes
SNB2080DL DC (mm): 8.0 | RE (mm): 4.0 | APMX (mm): 12.0 | LF (mm): 100 | DMM (mm): 8 | Stock: Yes
SNB2100DL DC (mm): 10.0 | RE (mm): 5.0 | APMX (mm): 15.0 | LF (mm): 120 | DMM (mm): 10 | Stock: Yes
SNB2120DL DC (mm): 12.0 | RE (mm): 6.0 | APMX (mm): 18.0 | LF (mm): 120 | DMM (mm): 12 | Stock: Yes
SNB2160DL DC (mm): 16.0 | RE (mm): 8.0 | APMX (mm): 24.0 | LF (mm): 160 | DMM (mm): 16 | Stock: Yes
Ball End MillsSumitomo Electric Hardmetal
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal Aurora Coated 2-Flute Ball End Mill SNB2000DL

Brand Sumitomo Electric Hardmetal·Ball End Mills

Available part numbers (9)

SNB2020DL, SNB2030DL, SNB2040DL, SNB2050DL, SNB2060DL, SNB2080DL, SNB2100DL, SNB2120DL, SNB2160DL

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SNB2020DLDC (mm): 2.0 | RE (mm): 1.0 | APMX (mm): 3.0 | LU (mm): 5 | LF (mm): 60 | DMM (mm): 6 | Stock: Yes
SNB2030DLDC (mm): 3.0 | RE (mm): 1.5 | APMX (mm): 4.5 | LU (mm): 8 | LF (mm): 80 | DMM (mm): 6 | Stock: Yes
SNB2040DLDC (mm): 4.0 | RE (mm): 2.0 | APMX (mm): 6.0 | LU (mm): 12 | LF (mm): 80 | DMM (mm): 6 | Stock: Yes
SNB2050DLDC (mm): 5.0 | RE (mm): 2.5 | APMX (mm): 7.5 | LU (mm): 14 | LF (mm): 90 | DMM (mm): 6 | Stock: Yes
SNB2060DLDC (mm): 6.0 | RE (mm): 3.0 | APMX (mm): 9.0 | LF (mm): 100 | DMM (mm): 6 | Stock: Yes
SNB2080DLDC (mm): 8.0 | RE (mm): 4.0 | APMX (mm): 12.0 | LF (mm): 100 | DMM (mm): 8 | Stock: Yes
SNB2100DLDC (mm): 10.0 | RE (mm): 5.0 | APMX (mm): 15.0 | LF (mm): 120 | DMM (mm): 10 | Stock: Yes
SNB2120DLDC (mm): 12.0 | RE (mm): 6.0 | APMX (mm): 18.0 | LF (mm): 120 | DMM (mm): 12 | Stock: Yes
SNB2160DLDC (mm): 16.0 | RE (mm): 8.0 | APMX (mm): 24.0 | LF (mm): 160 | DMM (mm): 16 | Stock: Yes
