• Sumitomo Electric Hardmetal Aurora Coated 2-Flute Square End Mill ASM2000DL
1 1

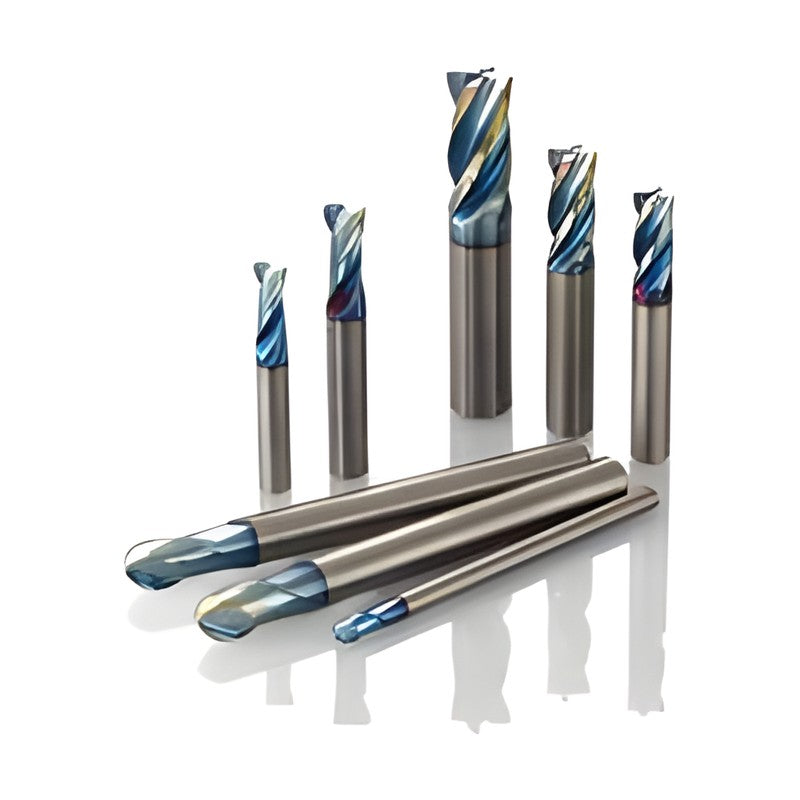

Sumitomo Electric Hardmetal Aurora Coated 2-Flute Square End Mill ASM2000DL

Sumitomo Electric Hardmetal Aurora Coated 2-Flute Square End Mill ASM2000DL

Aurora (DLC) coated 2-flute square end mill for non-ferrous metals.

Key features

  • Very smooth Aurora (DLC) coating with low adhesion and good finished surface
  • Low cutting resistance, suited to high-feed cutting and low-rigidity workpieces

Specifications

Flutes 2
Grade DL1000
Workpiece Aluminium alloy, Copper alloy
ASM2020DL DC (mm): 2.0 | APMX (mm): 6.0 | LU (mm): 6.8 | LF (mm): 40 | DMM (mm): 4 | Stock: Yes
ASM2030DL DC (mm): 3.0 | APMX (mm): 10.0 | LU (mm): 12.9 | LF (mm): 45 | DMM (mm): 6 | Stock: Yes
ASM2040DL DC (mm): 4.0 | APMX (mm): 12.0 | LU (mm): 14.7 | LF (mm): 45 | DMM (mm): 6 | Stock: Yes
ASM2050DL DC (mm): 5.0 | APMX (mm): 15.0 | LU (mm): 18.6 | LF (mm): 50 | DMM (mm): 6 | Stock: Yes
ASM2060DL DC (mm): 6.0 | APMX (mm): 15.0 | LF (mm): 50 | DMM (mm): 6 | Stock: Yes
ASM2080DL DC (mm): 8.0 | APMX (mm): 18.0 | LF (mm): 60 | DMM (mm): 8 | Stock: Yes
ASM2100DL DC (mm): 10.0 | APMX (mm): 22.0 | LF (mm): 71 | DMM (mm): 10 | Stock: Yes
ASM2120DL DC (mm): 12.0 | APMX (mm): 25.0 | LF (mm): 75 | DMM (mm): 12 | Stock: Yes
ASM2160DL DC (mm): 16.0 | APMX (mm): 32.0 | LF (mm): 90 | DMM (mm): 16 | Stock: Yes
End MillsSumitomo Electric Hardmetal
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal Aurora Coated 2-Flute Square End Mill ASM2000DL

Brand Sumitomo Electric Hardmetal·End Mills

Available part numbers (9)

ASM2020DL, ASM2030DL, ASM2040DL, ASM2050DL, ASM2060DL, ASM2080DL, ASM2100DL, ASM2120DL, ASM2160DL

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ASM2020DLDC (mm): 2.0 | APMX (mm): 6.0 | LU (mm): 6.8 | LF (mm): 40 | DMM (mm): 4 | Stock: Yes
ASM2030DLDC (mm): 3.0 | APMX (mm): 10.0 | LU (mm): 12.9 | LF (mm): 45 | DMM (mm): 6 | Stock: Yes
ASM2040DLDC (mm): 4.0 | APMX (mm): 12.0 | LU (mm): 14.7 | LF (mm): 45 | DMM (mm): 6 | Stock: Yes
ASM2050DLDC (mm): 5.0 | APMX (mm): 15.0 | LU (mm): 18.6 | LF (mm): 50 | DMM (mm): 6 | Stock: Yes
ASM2060DLDC (mm): 6.0 | APMX (mm): 15.0 | LF (mm): 50 | DMM (mm): 6 | Stock: Yes
ASM2080DLDC (mm): 8.0 | APMX (mm): 18.0 | LF (mm): 60 | DMM (mm): 8 | Stock: Yes
ASM2100DLDC (mm): 10.0 | APMX (mm): 22.0 | LF (mm): 71 | DMM (mm): 10 | Stock: Yes
ASM2120DLDC (mm): 12.0 | APMX (mm): 25.0 | LF (mm): 75 | DMM (mm): 12 | Stock: Yes
ASM2160DLDC (mm): 16.0 | APMX (mm): 32.0 | LF (mm): 90 | DMM (mm): 16 | Stock: Yes
