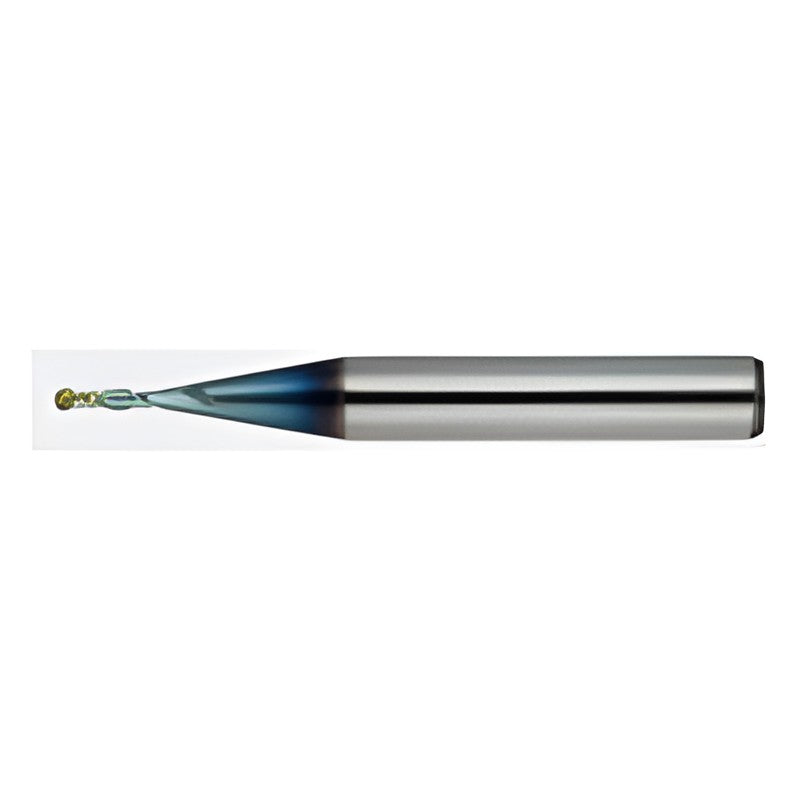

Sumitomo Electric Hardmetal Aurora Coated Long Neck Ball End Mill SNB2

Sumitomo Electric Hardmetal Aurora Coated Long Neck Ball End Mill SNB2

Aurora coated 2-flute long neck ball end mill for copper electrode machining.

Key features

  • Aurora coating with good adhesion resistance on copper alloys
  • Ball radius R0.05-R2.00 mm line-up for copper electrode machining

Specifications

Flutes 2
Grade DL1200
Workpiece Aluminium alloy, Copper alloy
SNB2 0005 0034DL DC (mm): 0.1 | RE (mm): 0.05 | APMX (mm): 0.1 | LU (mm): 0.3 | LF (mm): 45 | DN (mm): 0.09 | DMM (mm): 4 | Stock: Yes
SNB2 0005 0064DL DC (mm): 0.1 | RE (mm): 0.05 | APMX (mm): 0.1 | LU (mm): 0.6 | LF (mm): 45 | DN (mm): 0.09 | DMM (mm): 4 | Stock: Yes
SNB2 0010 0054DL DC (mm): 0.2 | RE (mm): 0.10 | APMX (mm): 0.2 | LU (mm): 0.5 | LF (mm): 45 | DN (mm): 0.18 | DMM (mm): 4 | Stock: Yes
SNB2 0010 0104DL DC (mm): 0.2 | RE (mm): 0.10 | APMX (mm): 0.2 | LU (mm): 1.0 | LF (mm): 45 | DN (mm): 0.18 | DMM (mm): 4 | Stock: Yes
SNB2 0010 0204DL DC (mm): 0.2 | RE (mm): 0.10 | APMX (mm): 0.2 | LU (mm): 2.0 | LF (mm): 45 | DN (mm): 0.18 | DMM (mm): 4 | Stock: Yes
SNB2 0015 0054DL DC (mm): 0.3 | RE (mm): 0.15 | APMX (mm): 0.3 | LU (mm): 0.5 | LF (mm): 45 | DN (mm): 0.27 | DMM (mm): 4 | Stock: Yes
SNB2 0015 0104DL DC (mm): 0.3 | RE (mm): 0.15 | APMX (mm): 0.3 | LU (mm): 1.0 | LF (mm): 45 | DN (mm): 0.27 | DMM (mm): 4 | Stock: Yes
SNB2 0015 0204DL DC (mm): 0.3 | RE (mm): 0.15 | APMX (mm): 0.3 | LU (mm): 2.0 | LF (mm): 45 | DN (mm): 0.27 | DMM (mm): 4 | Stock: Yes
SNB2 0015 0304DL DC (mm): 0.3 | RE (mm): 0.15 | APMX (mm): 0.3 | LU (mm): 3.0 | LF (mm): 45 | DN (mm): 0.27 | DMM (mm): 4 | Stock: Yes
SNB2 0020 0104DL DC (mm): 0.4 | RE (mm): 0.20 | APMX (mm): 0.4 | LU (mm): 1.0 | LF (mm): 45 | DN (mm): 0.36 | DMM (mm): 4 | Stock: Yes
SNB2 0020 0204DL DC (mm): 0.4 | RE (mm): 0.20 | APMX (mm): 0.4 | LU (mm): 2.0 | LF (mm): 45 | DN (mm): 0.36 | DMM (mm): 4 | Stock: Yes
SNB2 0020 0304DL DC (mm): 0.4 | RE (mm): 0.20 | APMX (mm): 0.4 | LU (mm): 3.0 | LF (mm): 45 | DN (mm): 0.36 | DMM (mm): 4 | Stock: Yes
SNB2 0020 0404DL DC (mm): 0.4 | RE (mm): 0.20 | APMX (mm): 0.4 | LU (mm): 4.0 | LF (mm): 45 | DN (mm): 0.36 | DMM (mm): 4 | Stock: Yes
SNB2 0025 0104DL DC (mm): 0.5 | RE (mm): 0.25 | APMX (mm): 0.45 | LU (mm): 1.0 | LF (mm): 45 | DN (mm): 0.45 | DMM (mm): 4 | Stock: Yes
SNB2 0025 0204DL DC (mm): 0.5 | RE (mm): 0.25 | APMX (mm): 0.45 | LU (mm): 2.0 | LF (mm): 45 | DN (mm): 0.45 | DMM (mm): 4 | Stock: Yes
SNB2 0025 0304DL DC (mm): 0.5 | RE (mm): 0.25 | APMX (mm): 0.45 | LU (mm): 3.0 | LF (mm): 45 | DN (mm): 0.45 | DMM (mm): 4 | Stock: Yes
SNB2 0025 0404DL DC (mm): 0.5 | RE (mm): 0.25 | APMX (mm): 0.45 | LU (mm): 4.0 | LF (mm): 45 | DN (mm): 0.45 | DMM (mm): 4 | Stock: Yes
SNB2 0030 0204DL DC (mm): 0.6 | RE (mm): 0.30 | APMX (mm): 0.6 | LU (mm): 2.0 | LF (mm): 45 | DN (mm): 0.54 | DMM (mm): 4 | Stock: Yes
SNB2 0030 0304DL DC (mm): 0.6 | RE (mm): 0.30 | APMX (mm): 0.6 | LU (mm): 3.0 | LF (mm): 45 | DN (mm): 0.54 | DMM (mm): 4 | Stock: Yes
SNB2 0030 0404DL DC (mm): 0.6 | RE (mm): 0.30 | APMX (mm): 0.6 | LU (mm): 4.0 | LF (mm): 45 | DN (mm): 0.54 | DMM (mm): 4 | Stock: Yes
SNB2 0030 0504DL DC (mm): 0.6 | RE (mm): 0.30 | APMX (mm): 0.6 | LU (mm): 5.0 | LF (mm): 45 | DN (mm): 0.54 | DMM (mm): 4 | Stock: Yes
SNB2 0030 0604DL DC (mm): 0.6 | RE (mm): 0.30 | APMX (mm): 0.6 | LU (mm): 6.0 | LF (mm): 45 | DN (mm): 0.54 | DMM (mm): 4 | Stock: Yes
SNB2 0050 0304DL DC (mm): 1.0 | RE (mm): 0.50 | APMX (mm): 1.5 | LU (mm): 3.0 | LF (mm): 45 | DN (mm): 0.90 | DMM (mm): 4 | Stock: Yes
SNB2 0050 0404DL DC (mm): 1.0 | RE (mm): 0.50 | APMX (mm): 1.5 | LU (mm): 4.0 | LF (mm): 45 | DN (mm): 0.90 | DMM (mm): 4 | Stock: Yes
SNB2 0050 0604DL DC (mm): 1.0 | RE (mm): 0.50 | APMX (mm): 1.5 | LU (mm): 6.0 | LF (mm): 45 | DN (mm): 0.90 | DMM (mm): 4 | Stock: Yes
SNB2 0050 0804DL DC (mm): 1.0 | RE (mm): 0.50 | APMX (mm): 1.5 | LU (mm): 8.0 | LF (mm): 50 | DN (mm): 0.90 | DMM (mm): 4 | Stock: Yes
SNB2 0050 1004DL DC (mm): 1.0 | RE (mm): 0.50 | APMX (mm): 1.5 | LU (mm): 10.0 | LF (mm): 50 | DN (mm): 0.90 | DMM (mm): 4 | Stock: Yes
SNB2 0075 0304DL DC (mm): 1.5 | RE (mm): 0.75 | APMX (mm): 2.3 | LU (mm): 3.0 | LF (mm): 45 | DN (mm): 1.35 | DMM (mm): 4 | Stock: Yes
SNB2 0075 0604DL DC (mm): 1.5 | RE (mm): 0.75 | APMX (mm): 2.3 | LU (mm): 6.0 | LF (mm): 45 | DN (mm): 1.35 | DMM (mm): 4 | Stock: Yes
SNB2 0075 1004DL DC (mm): 1.5 | RE (mm): 0.75 | APMX (mm): 2.3 | LU (mm): 10.0 | LF (mm): 50 | DN (mm): 1.35 | DMM (mm): 4 | Stock: Yes
SNB2 0100 0304DL DC (mm): 2.0 | RE (mm): 1.00 | APMX (mm): 3.0 | LU (mm): 3.0 | LF (mm): 50 | DN (mm): 1.80 | DMM (mm): 4 | Stock: Yes
SNB2 0100 0604DL DC (mm): 2.0 | RE (mm): 1.00 | APMX (mm): 3.0 | LU (mm): 6.0 | LF (mm): 50 | DN (mm): 1.80 | DMM (mm): 4 | Stock: Yes
SNB2 0100 1004DL DC (mm): 2.0 | RE (mm): 1.00 | APMX (mm): 3.0 | LU (mm): 10.0 | LF (mm): 50 | DN (mm): 1.80 | DMM (mm): 4 | Stock: Yes
SNB2 0100 1504DL DC (mm): 2.0 | RE (mm): 1.00 | APMX (mm): 3.0 | LU (mm): 15.0 | LF (mm): 60 | DN (mm): 1.80 | DMM (mm): 4 | Stock: Yes
SNB2 0100 2004DL DC (mm): 2.0 | RE (mm): 1.00 | APMX (mm): 3.0 | LU (mm): 20.0 | LF (mm): 60 | DN (mm): 1.80 | DMM (mm): 4 | Stock: Yes
SNB2 0200 1606DL DC (mm): 4.0 | RE (mm): 2.00 | APMX (mm): 6.0 | LU (mm): 16.0 | LF (mm): 80 | DN (mm): 3.60 | DMM (mm): 6 | Stock: Yes
SNB2 0200 2006DL DC (mm): 4.0 | RE (mm): 2.00 | APMX (mm): 6.0 | LU (mm): 20.0 | LF (mm): 80 | DN (mm): 3.60 | DMM (mm): 6 | Stock: Yes
SNB2 0200 3006DL DC (mm): 4.0 | RE (mm): 2.00 | APMX (mm): 6.0 | LU (mm): 30.0 | LF (mm): 80 | DN (mm): 3.60 | DMM (mm): 6 | Stock: Yes
Ball End MillsSumitomo Electric Hardmetal
38 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal Aurora Coated Long Neck Ball End Mill SNB2

Brand Sumitomo Electric Hardmetal·Ball End Mills

Available part numbers (38)

SNB2 0005 0034DL, SNB2 0005 0064DL, SNB2 0010 0054DL, SNB2 0010 0104DL, SNB2 0010 0204DL, SNB2 0015 0054DL, SNB2 0015 0104DL, SNB2 0015 0204DL, SNB2 0015 0304DL, SNB2 0020 0104DL + 28 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SNB2 0005 0034DLDC (mm): 0.1 | RE (mm): 0.05 | APMX (mm): 0.1 | LU (mm): 0.3 | LF (mm): 45 | DN (mm): 0.09 | DMM (mm): 4 | Stock: Yes
SNB2 0005 0064DLDC (mm): 0.1 | RE (mm): 0.05 | APMX (mm): 0.1 | LU (mm): 0.6 | LF (mm): 45 | DN (mm): 0.09 | DMM (mm): 4 | Stock: Yes
SNB2 0010 0054DLDC (mm): 0.2 | RE (mm): 0.10 | APMX (mm): 0.2 | LU (mm): 0.5 | LF (mm): 45 | DN (mm): 0.18 | DMM (mm): 4 | Stock: Yes
SNB2 0010 0104DLDC (mm): 0.2 | RE (mm): 0.10 | APMX (mm): 0.2 | LU (mm): 1.0 | LF (mm): 45 | DN (mm): 0.18 | DMM (mm): 4 | Stock: Yes
SNB2 0010 0204DLDC (mm): 0.2 | RE (mm): 0.10 | APMX (mm): 0.2 | LU (mm): 2.0 | LF (mm): 45 | DN (mm): 0.18 | DMM (mm): 4 | Stock: Yes
SNB2 0015 0054DLDC (mm): 0.3 | RE (mm): 0.15 | APMX (mm): 0.3 | LU (mm): 0.5 | LF (mm): 45 | DN (mm): 0.27 | DMM (mm): 4 | Stock: Yes
SNB2 0015 0104DLDC (mm): 0.3 | RE (mm): 0.15 | APMX (mm): 0.3 | LU (mm): 1.0 | LF (mm): 45 | DN (mm): 0.27 | DMM (mm): 4 | Stock: Yes
SNB2 0015 0204DLDC (mm): 0.3 | RE (mm): 0.15 | APMX (mm): 0.3 | LU (mm): 2.0 | LF (mm): 45 | DN (mm): 0.27 | DMM (mm): 4 | Stock: Yes
SNB2 0015 0304DLDC (mm): 0.3 | RE (mm): 0.15 | APMX (mm): 0.3 | LU (mm): 3.0 | LF (mm): 45 | DN (mm): 0.27 | DMM (mm): 4 | Stock: Yes
SNB2 0020 0104DLDC (mm): 0.4 | RE (mm): 0.20 | APMX (mm): 0.4 | LU (mm): 1.0 | LF (mm): 45 | DN (mm): 0.36 | DMM (mm): 4 | Stock: Yes
SNB2 0020 0204DLDC (mm): 0.4 | RE (mm): 0.20 | APMX (mm): 0.4 | LU (mm): 2.0 | LF (mm): 45 | DN (mm): 0.36 | DMM (mm): 4 | Stock: Yes
SNB2 0020 0304DLDC (mm): 0.4 | RE (mm): 0.20 | APMX (mm): 0.4 | LU (mm): 3.0 | LF (mm): 45 | DN (mm): 0.36 | DMM (mm): 4 | Stock: Yes
SNB2 0020 0404DLDC (mm): 0.4 | RE (mm): 0.20 | APMX (mm): 0.4 | LU (mm): 4.0 | LF (mm): 45 | DN (mm): 0.36 | DMM (mm): 4 | Stock: Yes
SNB2 0025 0104DLDC (mm): 0.5 | RE (mm): 0.25 | APMX (mm): 0.45 | LU (mm): 1.0 | LF (mm): 45 | DN (mm): 0.45 | DMM (mm): 4 | Stock: Yes
SNB2 0025 0204DLDC (mm): 0.5 | RE (mm): 0.25 | APMX (mm): 0.45 | LU (mm): 2.0 | LF (mm): 45 | DN (mm): 0.45 | DMM (mm): 4 | Stock: Yes
SNB2 0025 0304DLDC (mm): 0.5 | RE (mm): 0.25 | APMX (mm): 0.45 | LU (mm): 3.0 | LF (mm): 45 | DN (mm): 0.45 | DMM (mm): 4 | Stock: Yes
SNB2 0025 0404DLDC (mm): 0.5 | RE (mm): 0.25 | APMX (mm): 0.45 | LU (mm): 4.0 | LF (mm): 45 | DN (mm): 0.45 | DMM (mm): 4 | Stock: Yes
SNB2 0030 0204DLDC (mm): 0.6 | RE (mm): 0.30 | APMX (mm): 0.6 | LU (mm): 2.0 | LF (mm): 45 | DN (mm): 0.54 | DMM (mm): 4 | Stock: Yes
SNB2 0030 0304DLDC (mm): 0.6 | RE (mm): 0.30 | APMX (mm): 0.6 | LU (mm): 3.0 | LF (mm): 45 | DN (mm): 0.54 | DMM (mm): 4 | Stock: Yes
SNB2 0030 0404DLDC (mm): 0.6 | RE (mm): 0.30 | APMX (mm): 0.6 | LU (mm): 4.0 | LF (mm): 45 | DN (mm): 0.54 | DMM (mm): 4 | Stock: Yes
SNB2 0030 0504DLDC (mm): 0.6 | RE (mm): 0.30 | APMX (mm): 0.6 | LU (mm): 5.0 | LF (mm): 45 | DN (mm): 0.54 | DMM (mm): 4 | Stock: Yes
SNB2 0030 0604DLDC (mm): 0.6 | RE (mm): 0.30 | APMX (mm): 0.6 | LU (mm): 6.0 | LF (mm): 45 | DN (mm): 0.54 | DMM (mm): 4 | Stock: Yes
SNB2 0050 0304DLDC (mm): 1.0 | RE (mm): 0.50 | APMX (mm): 1.5 | LU (mm): 3.0 | LF (mm): 45 | DN (mm): 0.90 | DMM (mm): 4 | Stock: Yes
SNB2 0050 0404DLDC (mm): 1.0 | RE (mm): 0.50 | APMX (mm): 1.5 | LU (mm): 4.0 | LF (mm): 45 | DN (mm): 0.90 | DMM (mm): 4 | Stock: Yes
SNB2 0050 0604DLDC (mm): 1.0 | RE (mm): 0.50 | APMX (mm): 1.5 | LU (mm): 6.0 | LF (mm): 45 | DN (mm): 0.90 | DMM (mm): 4 | Stock: Yes
SNB2 0050 0804DLDC (mm): 1.0 | RE (mm): 0.50 | APMX (mm): 1.5 | LU (mm): 8.0 | LF (mm): 50 | DN (mm): 0.90 | DMM (mm): 4 | Stock: Yes
SNB2 0050 1004DLDC (mm): 1.0 | RE (mm): 0.50 | APMX (mm): 1.5 | LU (mm): 10.0 | LF (mm): 50 | DN (mm): 0.90 | DMM (mm): 4 | Stock: Yes
SNB2 0075 0304DLDC (mm): 1.5 | RE (mm): 0.75 | APMX (mm): 2.3 | LU (mm): 3.0 | LF (mm): 45 | DN (mm): 1.35 | DMM (mm): 4 | Stock: Yes
SNB2 0075 0604DLDC (mm): 1.5 | RE (mm): 0.75 | APMX (mm): 2.3 | LU (mm): 6.0 | LF (mm): 45 | DN (mm): 1.35 | DMM (mm): 4 | Stock: Yes
SNB2 0075 1004DLDC (mm): 1.5 | RE (mm): 0.75 | APMX (mm): 2.3 | LU (mm): 10.0 | LF (mm): 50 | DN (mm): 1.35 | DMM (mm): 4 | Stock: Yes
SNB2 0100 0304DLDC (mm): 2.0 | RE (mm): 1.00 | APMX (mm): 3.0 | LU (mm): 3.0 | LF (mm): 50 | DN (mm): 1.80 | DMM (mm): 4 | Stock: Yes
SNB2 0100 0604DLDC (mm): 2.0 | RE (mm): 1.00 | APMX (mm): 3.0 | LU (mm): 6.0 | LF (mm): 50 | DN (mm): 1.80 | DMM (mm): 4 | Stock: Yes
SNB2 0100 1004DLDC (mm): 2.0 | RE (mm): 1.00 | APMX (mm): 3.0 | LU (mm): 10.0 | LF (mm): 50 | DN (mm): 1.80 | DMM (mm): 4 | Stock: Yes
SNB2 0100 1504DLDC (mm): 2.0 | RE (mm): 1.00 | APMX (mm): 3.0 | LU (mm): 15.0 | LF (mm): 60 | DN (mm): 1.80 | DMM (mm): 4 | Stock: Yes
SNB2 0100 2004DLDC (mm): 2.0 | RE (mm): 1.00 | APMX (mm): 3.0 | LU (mm): 20.0 | LF (mm): 60 | DN (mm): 1.80 | DMM (mm): 4 | Stock: Yes
SNB2 0200 1606DLDC (mm): 4.0 | RE (mm): 2.00 | APMX (mm): 6.0 | LU (mm): 16.0 | LF (mm): 80 | DN (mm): 3.60 | DMM (mm): 6 | Stock: Yes
SNB2 0200 2006DLDC (mm): 4.0 | RE (mm): 2.00 | APMX (mm): 6.0 | LU (mm): 20.0 | LF (mm): 80 | DN (mm): 3.60 | DMM (mm): 6 | Stock: Yes
SNB2 0200 3006DLDC (mm): 4.0 | RE (mm): 2.00 | APMX (mm): 6.0 | LU (mm): 30.0 | LF (mm): 80 | DN (mm): 3.60 | DMM (mm): 6 | Stock: Yes
