• Sumitomo Electric Hardmetal Carbide Arbor for SEC-Modular Tools
1 1

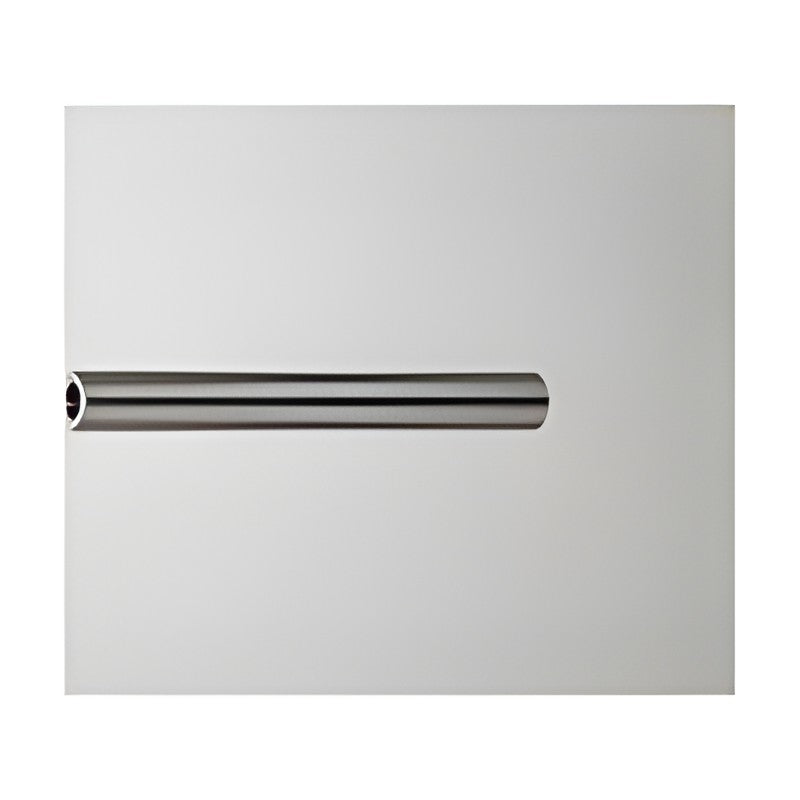

Sumitomo Electric Hardmetal Carbide Arbor for SEC-Modular Tools

Sumitomo Electric Hardmetal Carbide Arbor for SEC-Modular Tools

Carbide shank arbor for SEC-Modular Tool heads, providing higher accuracy and stability than steel arbors for long overhang.

MA15M08L120C Connection thread CRKS: M8 | Bore dia DCB (mm): 8.5 | Shank dia DMM (mm): 15 | Overall length LF2 (mm): 120 | Length L4 (mm): 10 | Screw depth L5 (mm): 18 | Projection LF (mm): 145 | Stock: Yes
MA15M08L160C Connection thread CRKS: M8 | Bore dia DCB (mm): 8.5 | Shank dia DMM (mm): 15 | Overall length LF2 (mm): 160 | Length L4 (mm): 10 | Screw depth L5 (mm): 18 | Projection LF (mm): 185 | Stock: Yes
MA16M08L120C Connection thread CRKS: M8 | Bore dia DCB (mm): 8.5 | Shank dia DMM (mm): 16 | Overall length LF2 (mm): 120 | Length L4 (mm): 10 | Screw depth L5 (mm): 18 | Projection LF (mm): 145 | Stock: Yes
MA16M08L160C Connection thread CRKS: M8 | Bore dia DCB (mm): 8.5 | Shank dia DMM (mm): 16 | Overall length LF2 (mm): 160 | Length L4 (mm): 10 | Screw depth L5 (mm): 18 | Projection LF (mm): 185 | Stock: Yes
MA18M10L150C Connection thread CRKS: M10 | Bore dia DCB (mm): 10.5 | Shank dia DMM (mm): 18 | Overall length LF2 (mm): 150 | Length L4 (mm): 10 | Screw depth L5 (mm): 20 | Projection LF (mm): 180 | Stock: Yes
MA18M10L200C Connection thread CRKS: M10 | Bore dia DCB (mm): 10.5 | Shank dia DMM (mm): 18 | Overall length LF2 (mm): 200 | Length L4 (mm): 10 | Screw depth L5 (mm): 20 | Projection LF (mm): 230 | Stock: Yes
MA20M10L150C Connection thread CRKS: M10 | Bore dia DCB (mm): 10.5 | Shank dia DMM (mm): 20 | Overall length LF2 (mm): 150 | Length L4 (mm): 10 | Screw depth L5 (mm): 20 | Projection LF (mm): 180 | Stock: Yes
MA20M10L200C Connection thread CRKS: M10 | Bore dia DCB (mm): 10.5 | Shank dia DMM (mm): 20 | Overall length LF2 (mm): 200 | Length L4 (mm): 10 | Screw depth L5 (mm): 20 | Projection LF (mm): 230 | Stock: Yes
MA23M12L200C Connection thread CRKS: M12 | Bore dia DCB (mm): 12.5 | Shank dia DMM (mm): 23 | Overall length LF2 (mm): 200 | Length L4 (mm): 10 | Screw depth L5 (mm): 22 | Projection LF (mm): 235 | Stock: Yes
MA23M12L250C Connection thread CRKS: M12 | Bore dia DCB (mm): 12.5 | Shank dia DMM (mm): 23 | Overall length LF2 (mm): 250 | Length L4 (mm): 10 | Screw depth L5 (mm): 22 | Projection LF (mm): 285 | Stock: Yes
MA25M12L200C Connection thread CRKS: M12 | Bore dia DCB (mm): 12.5 | Shank dia DMM (mm): 25 | Overall length LF2 (mm): 200 | Length L4 (mm): 10 | Screw depth L5 (mm): 22 | Projection LF (mm): 235 | Stock: Yes
MA25M12L250C Connection thread CRKS: M12 | Bore dia DCB (mm): 12.5 | Shank dia DMM (mm): 25 | Overall length LF2 (mm): 250 | Length L4 (mm): 10 | Screw depth L5 (mm): 22 | Projection LF (mm): 285 | Stock: Yes
MA28M16L200C Connection thread CRKS: M16 | Bore dia DCB (mm): 17 | Shank dia DMM (mm): 28 | Overall length LF2 (mm): 200 | Length L4 (mm): 10 | Screw depth L5 (mm): 24 | Projection LF (mm): 240 | Stock: Yes
MA28M16L300C Connection thread CRKS: M16 | Bore dia DCB (mm): 17 | Shank dia DMM (mm): 28 | Overall length LF2 (mm): 300 | Length L4 (mm): 10 | Screw depth L5 (mm): 24 | Projection LF (mm): 340 | Stock: Yes
MA32M16L200C Connection thread CRKS: M16 | Bore dia DCB (mm): 17 | Shank dia DMM (mm): 32 | Overall length LF2 (mm): 200 | Length L4 (mm): 10 | Screw depth L5 (mm): 24 | Projection LF (mm): 240 | Stock: Yes
MA32M16L300C Connection thread CRKS: M16 | Bore dia DCB (mm): 17 | Shank dia DMM (mm): 32 | Overall length LF2 (mm): 300 | Length L4 (mm): 10 | Screw depth L5 (mm): 24 | Projection LF (mm): 340 | Stock: Yes
Tool HoldersSumitomo Electric Hardmetal
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal Carbide Arbor for SEC-Modular Tools

Brand Sumitomo Electric Hardmetal·Tool Holders

Available part numbers (16)

MA15M08L120C, MA15M08L160C, MA16M08L120C, MA16M08L160C, MA18M10L150C, MA18M10L200C, MA20M10L150C, MA20M10L200C, MA23M12L200C, MA23M12L250C + 6 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MA15M08L120CConnection thread CRKS: M8 | Bore dia DCB (mm): 8.5 | Shank dia DMM (mm): 15 | Overall length LF2 (mm): 120 | Length L4 (mm): 10 | Screw depth L5 (mm): 18 | Projection LF (mm): 145 | Stock: Yes
MA15M08L160CConnection thread CRKS: M8 | Bore dia DCB (mm): 8.5 | Shank dia DMM (mm): 15 | Overall length LF2 (mm): 160 | Length L4 (mm): 10 | Screw depth L5 (mm): 18 | Projection LF (mm): 185 | Stock: Yes
MA16M08L120CConnection thread CRKS: M8 | Bore dia DCB (mm): 8.5 | Shank dia DMM (mm): 16 | Overall length LF2 (mm): 120 | Length L4 (mm): 10 | Screw depth L5 (mm): 18 | Projection LF (mm): 145 | Stock: Yes
MA16M08L160CConnection thread CRKS: M8 | Bore dia DCB (mm): 8.5 | Shank dia DMM (mm): 16 | Overall length LF2 (mm): 160 | Length L4 (mm): 10 | Screw depth L5 (mm): 18 | Projection LF (mm): 185 | Stock: Yes
MA18M10L150CConnection thread CRKS: M10 | Bore dia DCB (mm): 10.5 | Shank dia DMM (mm): 18 | Overall length LF2 (mm): 150 | Length L4 (mm): 10 | Screw depth L5 (mm): 20 | Projection LF (mm): 180 | Stock: Yes
MA18M10L200CConnection thread CRKS: M10 | Bore dia DCB (mm): 10.5 | Shank dia DMM (mm): 18 | Overall length LF2 (mm): 200 | Length L4 (mm): 10 | Screw depth L5 (mm): 20 | Projection LF (mm): 230 | Stock: Yes
MA20M10L150CConnection thread CRKS: M10 | Bore dia DCB (mm): 10.5 | Shank dia DMM (mm): 20 | Overall length LF2 (mm): 150 | Length L4 (mm): 10 | Screw depth L5 (mm): 20 | Projection LF (mm): 180 | Stock: Yes
MA20M10L200CConnection thread CRKS: M10 | Bore dia DCB (mm): 10.5 | Shank dia DMM (mm): 20 | Overall length LF2 (mm): 200 | Length L4 (mm): 10 | Screw depth L5 (mm): 20 | Projection LF (mm): 230 | Stock: Yes
MA23M12L200CConnection thread CRKS: M12 | Bore dia DCB (mm): 12.5 | Shank dia DMM (mm): 23 | Overall length LF2 (mm): 200 | Length L4 (mm): 10 | Screw depth L5 (mm): 22 | Projection LF (mm): 235 | Stock: Yes
MA23M12L250CConnection thread CRKS: M12 | Bore dia DCB (mm): 12.5 | Shank dia DMM (mm): 23 | Overall length LF2 (mm): 250 | Length L4 (mm): 10 | Screw depth L5 (mm): 22 | Projection LF (mm): 285 | Stock: Yes
MA25M12L200CConnection thread CRKS: M12 | Bore dia DCB (mm): 12.5 | Shank dia DMM (mm): 25 | Overall length LF2 (mm): 200 | Length L4 (mm): 10 | Screw depth L5 (mm): 22 | Projection LF (mm): 235 | Stock: Yes
MA25M12L250CConnection thread CRKS: M12 | Bore dia DCB (mm): 12.5 | Shank dia DMM (mm): 25 | Overall length LF2 (mm): 250 | Length L4 (mm): 10 | Screw depth L5 (mm): 22 | Projection LF (mm): 285 | Stock: Yes
MA28M16L200CConnection thread CRKS: M16 | Bore dia DCB (mm): 17 | Shank dia DMM (mm): 28 | Overall length LF2 (mm): 200 | Length L4 (mm): 10 | Screw depth L5 (mm): 24 | Projection LF (mm): 240 | Stock: Yes
MA28M16L300CConnection thread CRKS: M16 | Bore dia DCB (mm): 17 | Shank dia DMM (mm): 28 | Overall length LF2 (mm): 300 | Length L4 (mm): 10 | Screw depth L5 (mm): 24 | Projection LF (mm): 340 | Stock: Yes
MA32M16L200CConnection thread CRKS: M16 | Bore dia DCB (mm): 17 | Shank dia DMM (mm): 32 | Overall length LF2 (mm): 200 | Length L4 (mm): 10 | Screw depth L5 (mm): 24 | Projection LF (mm): 240 | Stock: Yes
MA32M16L300CConnection thread CRKS: M16 | Bore dia DCB (mm): 17 | Shank dia DMM (mm): 32 | Overall length LF2 (mm): 300 | Length L4 (mm): 10 | Screw depth L5 (mm): 24 | Projection LF (mm): 340 | Stock: Yes

Need a different model, or a part not listed here? Send us your parts list →
