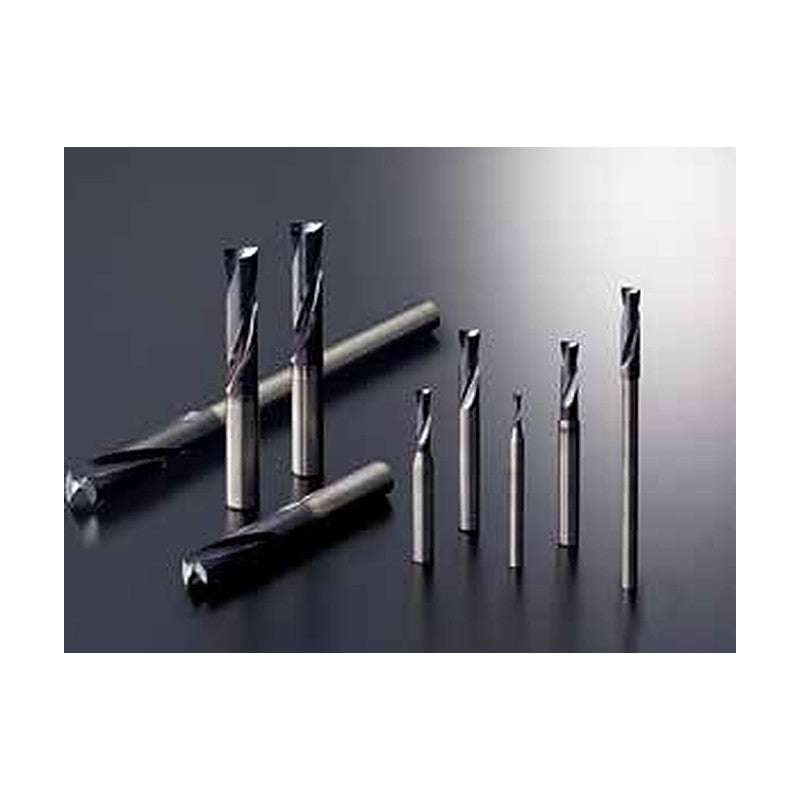

Sumitomo Electric Hardmetal Flat Multi Drill MDF-H Type (Internal Coolant)

Sumitomo Electric Hardmetal Flat Multi Drill MDF-H Type (Internal Coolant)

Flat-bottom solid carbide drill with internal coolant for deeper flat-bottom holes, 3D and 5D.

Key features

  • 180 deg flat point for counterboring, inclined and curved surfaces
  • Effective against exit burrs
  • Thick RS thinning for rigidity
  • Grade ACF75
  • Internal coolant
  • Hole depth 3D and 5D

Specifications

Coolant Internal
Point angle 180 deg
Grade ACF75
MDF0300H3D DC (mm): 3.0 | L/D: 3 | LU (mm): 9.0 | LCF (mm): 13.5 | LUX (mm): 16.5 | OAL (mm): 68 | DCON (mm): 3.0 | Stock: Yes
MDF0300H5D DC (mm): 3.0 | L/D: 5 | LU (mm): 15.6 | LCF (mm): 20.1 | LUX (mm): 23.1 | OAL (mm): 78 | DCON (mm): 3.0 | Stock: Yes
MDF0310H3D DC (mm): 3.1 | L/D: 3 | LU (mm): 9.4 | LCF (mm): 14.0 | LUX (mm): 17.0 | OAL (mm): 72 | DCON (mm): 4.0 | Stock: Yes
MDF0310H5D DC (mm): 3.1 | L/D: 5 | LU (mm): 16.2 | LCF (mm): 20.8 | LUX (mm): 23.8 | OAL (mm): 86 | DCON (mm): 4.0 | Stock: Yes
MDF0320H3D DC (mm): 3.2 | L/D: 3 | LU (mm): 9.6 | LCF (mm): 14.4 | LUX (mm): 17.4 | OAL (mm): 72 | DCON (mm): 4.0 | Stock: Yes
MDF0320H5D DC (mm): 3.2 | L/D: 5 | LU (mm): 16.6 | LCF (mm): 21.4 | LUX (mm): 24.4 | OAL (mm): 86 | DCON (mm): 4.0 | Stock: Yes
MDF0330H3D DC (mm): 3.3 | L/D: 3 | LU (mm): 10.0 | LCF (mm): 14.9 | LUX (mm): 17.9 | OAL (mm): 72 | DCON (mm): 4.0 | Stock: Yes
MDF0330H5D DC (mm): 3.3 | L/D: 5 | LU (mm): 17.2 | LCF (mm): 22.1 | LUX (mm): 25.1 | OAL (mm): 86 | DCON (mm): 4.0 | Stock: Yes
MDF0340H3D DC (mm): 3.4 | L/D: 3 | LU (mm): 10.2 | LCF (mm): 15.3 | LUX (mm): 18.3 | OAL (mm): 72 | DCON (mm): 4.0 | Stock: Yes
MDF0340H5D DC (mm): 3.4 | L/D: 5 | LU (mm): 17.7 | LCF (mm): 22.8 | LUX (mm): 25.8 | OAL (mm): 86 | DCON (mm): 4.0 | Stock: Yes
MDF0350H3D DC (mm): 3.5 | L/D: 3 | LU (mm): 10.6 | LCF (mm): 15.8 | LUX (mm): 18.8 | OAL (mm): 72 | DCON (mm): 4.0 | Stock: Yes
MDF0350H5D DC (mm): 3.5 | L/D: 5 | LU (mm): 18.3 | LCF (mm): 23.5 | LUX (mm): 26.5 | OAL (mm): 86 | DCON (mm): 4.0 | Stock: Yes
MDF0360H3D DC (mm): 3.6 | L/D: 3 | LU (mm): 10.8 | LCF (mm): 16.2 | LUX (mm): 19.2 | OAL (mm): 72 | DCON (mm): 4.0 | Stock: Yes
MDF0360H5D DC (mm): 3.6 | L/D: 5 | LU (mm): 18.7 | LCF (mm): 24.1 | LUX (mm): 27.1 | OAL (mm): 86 | DCON (mm): 4.0 | Stock: Yes
MDF0370H3D DC (mm): 3.7 | L/D: 3 | LU (mm): 11.2 | LCF (mm): 16.7 | LUX (mm): 19.7 | OAL (mm): 72 | DCON (mm): 4.0 | Stock: Yes
MDF0370H5D DC (mm): 3.7 | L/D: 5 | LU (mm): 19.3 | LCF (mm): 24.8 | LUX (mm): 27.8 | OAL (mm): 86 | DCON (mm): 4.0 | Stock: Yes
MDF0380H3D DC (mm): 3.8 | L/D: 3 | LU (mm): 11.4 | LCF (mm): 17.1 | LUX (mm): 20.1 | OAL (mm): 72 | DCON (mm): 4.0 | Stock: Yes
MDF0380H5D DC (mm): 3.8 | L/D: 5 | LU (mm): 19.8 | LCF (mm): 25.5 | LUX (mm): 28.5 | OAL (mm): 86 | DCON (mm): 4.0 | Stock: Yes
MDF0390H3D DC (mm): 3.9 | L/D: 3 | LU (mm): 11.8 | LCF (mm): 17.6 | LUX (mm): 20.6 | OAL (mm): 72 | DCON (mm): 4.0 | Stock: Yes
MDF0390H5D DC (mm): 3.9 | L/D: 5 | LU (mm): 20.3 | LCF (mm): 26.1 | LUX (mm): 29.1 | OAL (mm): 86 | DCON (mm): 4.0 | Stock: Yes
MDF0400H3D DC (mm): 4.0 | L/D: 3 | LU (mm): 12.0 | LCF (mm): 18.0 | LUX (mm): 21.0 | OAL (mm): 72 | DCON (mm): 4.0 | Stock: Yes
MDF0400H5D DC (mm): 4.0 | L/D: 5 | LU (mm): 20.8 | LCF (mm): 26.8 | LUX (mm): 29.8 | OAL (mm): 86 | DCON (mm): 4.0 | Stock: Yes
MDF0410H3D DC (mm): 4.1 | L/D: 3 | LU (mm): 12.4 | LCF (mm): 18.5 | LUX (mm): 21.5 | OAL (mm): 80 | DCON (mm): 5.0 | Stock: Yes
MDF0410H5D DC (mm): 4.1 | L/D: 5 | LU (mm): 21.4 | LCF (mm): 27.5 | LUX (mm): 30.5 | OAL (mm): 98 | DCON (mm): 5.0 | Stock: Yes
MDF0420H3D DC (mm): 4.2 | L/D: 3 | LU (mm): 12.6 | LCF (mm): 18.9 | LUX (mm): 21.9 | OAL (mm): 80 | DCON (mm): 5.0 | Stock: Yes
MDF0420H5D DC (mm): 4.2 | L/D: 5 | LU (mm): 21.8 | LCF (mm): 28.1 | LUX (mm): 31.1 | OAL (mm): 98 | DCON (mm): 5.0 | Stock: Yes
MDF0430H3D DC (mm): 4.3 | L/D: 3 | LU (mm): 13.0 | LCF (mm): 19.4 | LUX (mm): 22.4 | OAL (mm): 80 | DCON (mm): 5.0 | Stock: Yes
MDF0430H5D DC (mm): 4.3 | L/D: 5 | LU (mm): 22.4 | LCF (mm): 28.8 | LUX (mm): 31.8 | OAL (mm): 98 | DCON (mm): 5.0 | Stock: Yes
MDF0440H3D DC (mm): 4.4 | L/D: 3 | LU (mm): 13.2 | LCF (mm): 19.8 | LUX (mm): 22.8 | OAL (mm): 80 | DCON (mm): 5.0 | Stock: Yes
MDF0440H5D DC (mm): 4.4 | L/D: 5 | LU (mm): 22.9 | LCF (mm): 29.5 | LUX (mm): 32.5 | OAL (mm): 98 | DCON (mm): 5.0 | Stock: Yes
MDF0450H3D DC (mm): 4.5 | L/D: 3 | LU (mm): 13.6 | LCF (mm): 20.3 | LUX (mm): 23.3 | OAL (mm): 80 | DCON (mm): 5.0 | Stock: Yes
MDF0450H5D DC (mm): 4.5 | L/D: 5 | LU (mm): 23.5 | LCF (mm): 30.2 | LUX (mm): 33.2 | OAL (mm): 98 | DCON (mm): 5.0 | Stock: Yes
MDF0460H3D DC (mm): 4.6 | L/D: 3 | LU (mm): 13.8 | LCF (mm): 20.7 | LUX (mm): 23.7 | OAL (mm): 80 | DCON (mm): 5.0 | Stock: Yes
MDF0460H5D DC (mm): 4.6 | L/D: 5 | LU (mm): 23.9 | LCF (mm): 30.8 | LUX (mm): 33.8 | OAL (mm): 98 | DCON (mm): 5.0 | Stock: Yes
MDF0470H3D DC (mm): 4.7 | L/D: 3 | LU (mm): 14.2 | LCF (mm): 21.2 | LUX (mm): 24.2 | OAL (mm): 80 | DCON (mm): 5.0 | Stock: Yes
MDF0470H5D DC (mm): 4.7 | L/D: 5 | LU (mm): 24.5 | LCF (mm): 31.5 | LUX (mm): 34.5 | OAL (mm): 98 | DCON (mm): 5.0 | Stock: Yes
MDF0480H3D DC (mm): 4.8 | L/D: 3 | LU (mm): 14.4 | LCF (mm): 21.6 | LUX (mm): 24.6 | OAL (mm): 80 | DCON (mm): 5.0 | Stock: Yes
MDF0480H5D DC (mm): 4.8 | L/D: 5 | LU (mm): 25.0 | LCF (mm): 32.2 | LUX (mm): 35.2 | OAL (mm): 98 | DCON (mm): 5.0 | Stock: Yes
MDF0490H3D DC (mm): 4.9 | L/D: 3 | LU (mm): 14.8 | LCF (mm): 22.1 | LUX (mm): 25.1 | OAL (mm): 80 | DCON (mm): 5.0 | Stock: Yes
MDF0490H5D DC (mm): 4.9 | L/D: 5 | LU (mm): 25.5 | LCF (mm): 32.8 | LUX (mm): 35.8 | OAL (mm): 98 | DCON (mm): 5.0 | Stock: Yes
MDF0500H3D DC (mm): 5.0 | L/D: 3 | LU (mm): 15.0 | LCF (mm): 22.5 | LUX (mm): 25.5 | OAL (mm): 80 | DCON (mm): 5.0 | Stock: Yes
MDF0500H5D DC (mm): 5.0 | L/D: 5 | LU (mm): 26.0 | LCF (mm): 33.5 | LUX (mm): 36.5 | OAL (mm): 98 | DCON (mm): 5.0 | Stock: Yes
MDF0510H3D DC (mm): 5.1 | L/D: 3 | LU (mm): 15.4 | LCF (mm): 23.0 | LUX (mm): 26.0 | OAL (mm): 82 | DCON (mm): 6.0 | Stock: Yes
MDF0510H5D DC (mm): 5.1 | L/D: 5 | LU (mm): 26.6 | LCF (mm): 34.2 | LUX (mm): 37.2 | OAL (mm): 100 | DCON (mm): 6.0 | Stock: Yes
MDF0520H3D DC (mm): 5.2 | L/D: 3 | LU (mm): 15.6 | LCF (mm): 23.4 | LUX (mm): 26.4 | OAL (mm): 82 | DCON (mm): 6.0 | Stock: Yes
MDF0520H5D DC (mm): 5.2 | L/D: 5 | LU (mm): 27.0 | LCF (mm): 34.8 | LUX (mm): 37.8 | OAL (mm): 100 | DCON (mm): 6.0 | Stock: Yes
MDF0530H3D DC (mm): 5.3 | L/D: 3 | LU (mm): 16.0 | LCF (mm): 23.9 | LUX (mm): 26.9 | OAL (mm): 82 | DCON (mm): 6.0 | Stock: Yes
MDF0530H5D DC (mm): 5.3 | L/D: 5 | LU (mm): 27.6 | LCF (mm): 35.5 | LUX (mm): 38.5 | OAL (mm): 100 | DCON (mm): 6.0 | Stock: Yes
MDF0540H3D DC (mm): 5.4 | L/D: 3 | LU (mm): 16.2 | LCF (mm): 24.3 | LUX (mm): 27.3 | OAL (mm): 82 | DCON (mm): 6.0 | Stock: Yes
MDF0540H5D DC (mm): 5.4 | L/D: 5 | LU (mm): 28.1 | LCF (mm): 36.2 | LUX (mm): 39.2 | OAL (mm): 100 | DCON (mm): 6.0 | Stock: Yes
MDF0550H3D DC (mm): 5.5 | L/D: 3 | LU (mm): 16.6 | LCF (mm): 24.8 | LUX (mm): 27.8 | OAL (mm): 82 | DCON (mm): 6.0 | Stock: Yes
MDF0550H5D DC (mm): 5.5 | L/D: 5 | LU (mm): 28.7 | LCF (mm): 36.9 | LUX (mm): 39.9 | OAL (mm): 100 | DCON (mm): 6.0 | Stock: Yes
MDF0560H3D DC (mm): 5.6 | L/D: 3 | LU (mm): 16.8 | LCF (mm): 25.2 | LUX (mm): 28.2 | OAL (mm): 82 | DCON (mm): 6.0 | Stock: Yes
MDF0560H5D DC (mm): 5.6 | L/D: 5 | LU (mm): 29.1 | LCF (mm): 37.5 | LUX (mm): 40.5 | OAL (mm): 100 | DCON (mm): 6.0 | Stock: Yes
MDF0570H3D DC (mm): 5.7 | L/D: 3 | LU (mm): 17.2 | LCF (mm): 25.7 | LUX (mm): 28.7 | OAL (mm): 82 | DCON (mm): 6.0 | Stock: Yes
MDF0570H5D DC (mm): 5.7 | L/D: 5 | LU (mm): 29.7 | LCF (mm): 38.2 | LUX (mm): 41.2 | OAL (mm): 100 | DCON (mm): 6.0 | Stock: Yes
MDF0580H3D DC (mm): 5.8 | L/D: 3 | LU (mm): 17.4 | LCF (mm): 26.1 | LUX (mm): 29.1 | OAL (mm): 82 | DCON (mm): 6.0 | Stock: Yes
MDF0580H5D DC (mm): 5.8 | L/D: 5 | LU (mm): 30.2 | LCF (mm): 38.9 | LUX (mm): 41.9 | OAL (mm): 100 | DCON (mm): 6.0 | Stock: Yes
MDF0590H3D DC (mm): 5.9 | L/D: 3 | LU (mm): 17.8 | LCF (mm): 26.6 | LUX (mm): 29.6 | OAL (mm): 82 | DCON (mm): 6.0 | Stock: Yes
MDF0590H5D DC (mm): 5.9 | L/D: 5 | LU (mm): 30.7 | LCF (mm): 39.5 | LUX (mm): 42.5 | OAL (mm): 100 | DCON (mm): 6.0 | Stock: Yes
MDF0600H3D DC (mm): 6.0 | L/D: 3 | LU (mm): 18.0 | LCF (mm): 27.0 | LUX (mm): 30.0 | OAL (mm): 82 | DCON (mm): 6.0 | Stock: Yes
MDF0600H5D DC (mm): 6.0 | L/D: 5 | LU (mm): 31.2 | LCF (mm): 40.2 | LUX (mm): 43.2 | OAL (mm): 100 | DCON (mm): 6.0 | Stock: Yes
MDF0610H3D DC (mm): 6.1 | L/D: 3 | LU (mm): 18.4 | LCF (mm): 27.5 | LUX (mm): 30.5 | OAL (mm): 88 | DCON (mm): 7.0 | Stock: Yes
MDF0610H5D DC (mm): 6.1 | L/D: 5 | LU (mm): 31.8 | LCF (mm): 40.9 | LUX (mm): 43.9 | OAL (mm): 109 | DCON (mm): 7.0 | Stock: Yes
MDF0620H3D DC (mm): 6.2 | L/D: 3 | LU (mm): 18.6 | LCF (mm): 27.9 | LUX (mm): 30.9 | OAL (mm): 88 | DCON (mm): 7.0 | Stock: Yes
MDF0620H5D DC (mm): 6.2 | L/D: 5 | LU (mm): 32.2 | LCF (mm): 41.5 | LUX (mm): 44.5 | OAL (mm): 109 | DCON (mm): 7.0 | Stock: Yes
MDF0630H3D DC (mm): 6.3 | L/D: 3 | LU (mm): 19.0 | LCF (mm): 28.4 | LUX (mm): 31.4 | OAL (mm): 88 | DCON (mm): 7.0 | Stock: Yes
MDF0630H5D DC (mm): 6.3 | L/D: 5 | LU (mm): 32.8 | LCF (mm): 42.2 | LUX (mm): 45.2 | OAL (mm): 109 | DCON (mm): 7.0 | Stock: Yes
MDF0640H3D DC (mm): 6.4 | L/D: 3 | LU (mm): 19.2 | LCF (mm): 28.8 | LUX (mm): 31.8 | OAL (mm): 88 | DCON (mm): 7.0 | Stock: Yes
MDF0640H5D DC (mm): 6.4 | L/D: 5 | LU (mm): 33.3 | LCF (mm): 42.9 | LUX (mm): 45.9 | OAL (mm): 109 | DCON (mm): 7.0 | Stock: Yes
MDF0650H3D DC (mm): 6.5 | L/D: 3 | LU (mm): 19.6 | LCF (mm): 29.3 | LUX (mm): 32.3 | OAL (mm): 88 | DCON (mm): 7.0 | Stock: Yes
MDF0650H5D DC (mm): 6.5 | L/D: 5 | LU (mm): 33.9 | LCF (mm): 43.6 | LUX (mm): 46.6 | OAL (mm): 109 | DCON (mm): 7.0 | Stock: Yes
MDF0660H3D DC (mm): 6.6 | L/D: 3 | LU (mm): 19.8 | LCF (mm): 29.7 | LUX (mm): 32.7 | OAL (mm): 88 | DCON (mm): 7.0 | Stock: Yes
MDF0660H5D DC (mm): 6.6 | L/D: 5 | LU (mm): 34.3 | LCF (mm): 44.2 | LUX (mm): 47.2 | OAL (mm): 109 | DCON (mm): 7.0 | Stock: Yes
MDF0670H3D DC (mm): 6.7 | L/D: 3 | LU (mm): 20.2 | LCF (mm): 30.2 | LUX (mm): 33.2 | OAL (mm): 88 | DCON (mm): 7.0 | Stock: Yes
MDF0670H5D DC (mm): 6.7 | L/D: 5 | LU (mm): 34.9 | LCF (mm): 44.9 | LUX (mm): 47.9 | OAL (mm): 109 | DCON (mm): 7.0 | Stock: Yes
MDF0680H3D DC (mm): 6.8 | L/D: 3 | LU (mm): 20.4 | LCF (mm): 30.6 | LUX (mm): 33.6 | OAL (mm): 88 | DCON (mm): 7.0 | Stock: Yes
MDF0680H5D DC (mm): 6.8 | L/D: 5 | LU (mm): 35.4 | LCF (mm): 45.6 | LUX (mm): 48.6 | OAL (mm): 109 | DCON (mm): 7.0 | Stock: Yes
MDF0690H3D DC (mm): 6.9 | L/D: 3 | LU (mm): 20.8 | LCF (mm): 31.1 | LUX (mm): 34.1 | OAL (mm): 88 | DCON (mm): 7.0 | Stock: Yes
MDF0690H5D DC (mm): 6.9 | L/D: 5 | LU (mm): 35.9 | LCF (mm): 46.2 | LUX (mm): 49.2 | OAL (mm): 109 | DCON (mm): 7.0 | Stock: Yes
MDF0700H3D DC (mm): 7.0 | L/D: 3 | LU (mm): 21.0 | LCF (mm): 31.5 | LUX (mm): 34.5 | OAL (mm): 88 | DCON (mm): 7.0 | Stock: Yes
MDF0700H5D DC (mm): 7.0 | L/D: 5 | LU (mm): 36.4 | LCF (mm): 46.9 | LUX (mm): 49.9 | OAL (mm): 109 | DCON (mm): 7.0 | Stock: Yes
MDF0710H3D DC (mm): 7.1 | L/D: 3 | LU (mm): 21.4 | LCF (mm): 32.0 | LUX (mm): 35.0 | OAL (mm): 94 | DCON (mm): 8.0 | Stock: Yes
MDF0710H5D DC (mm): 7.1 | L/D: 5 | LU (mm): 37.0 | LCF (mm): 47.6 | LUX (mm): 50.6 | OAL (mm): 118 | DCON (mm): 8.0 | Stock: Yes
MDF0720H3D DC (mm): 7.2 | L/D: 3 | LU (mm): 21.6 | LCF (mm): 32.4 | LUX (mm): 35.4 | OAL (mm): 94 | DCON (mm): 8.0 | Stock: Yes
MDF0720H5D DC (mm): 7.2 | L/D: 5 | LU (mm): 37.4 | LCF (mm): 48.2 | LUX (mm): 51.2 | OAL (mm): 118 | DCON (mm): 8.0 | Stock: Yes
MDF0730H3D DC (mm): 7.3 | L/D: 3 | LU (mm): 22.0 | LCF (mm): 32.9 | LUX (mm): 35.9 | OAL (mm): 94 | DCON (mm): 8.0 | Stock: Yes
MDF0730H5D DC (mm): 7.3 | L/D: 5 | LU (mm): 38.0 | LCF (mm): 48.9 | LUX (mm): 51.9 | OAL (mm): 118 | DCON (mm): 8.0 | Stock: Yes
MDF0740H3D DC (mm): 7.4 | L/D: 3 | LU (mm): 22.2 | LCF (mm): 33.3 | LUX (mm): 36.3 | OAL (mm): 94 | DCON (mm): 8.0 | Stock: Yes
MDF0740H5D DC (mm): 7.4 | L/D: 5 | LU (mm): 38.5 | LCF (mm): 49.6 | LUX (mm): 52.6 | OAL (mm): 118 | DCON (mm): 8.0 | Stock: Yes
MDF0750H3D DC (mm): 7.5 | L/D: 3 | LU (mm): 22.6 | LCF (mm): 33.8 | LUX (mm): 36.8 | OAL (mm): 94 | DCON (mm): 8.0 | Stock: Yes
MDF0750H5D DC (mm): 7.5 | L/D: 5 | LU (mm): 39.1 | LCF (mm): 50.3 | LUX (mm): 53.3 | OAL (mm): 118 | DCON (mm): 8.0 | Stock: Yes
MDF0760H3D DC (mm): 7.6 | L/D: 3 | LU (mm): 22.8 | LCF (mm): 34.2 | LUX (mm): 37.2 | OAL (mm): 94 | DCON (mm): 8.0 | Stock: Yes
MDF0760H5D DC (mm): 7.6 | L/D: 5 | LU (mm): 39.5 | LCF (mm): 50.9 | LUX (mm): 53.9 | OAL (mm): 118 | DCON (mm): 8.0 | Stock: Yes
MDF0770H3D DC (mm): 7.7 | L/D: 3 | LU (mm): 23.2 | LCF (mm): 34.7 | LUX (mm): 37.7 | OAL (mm): 94 | DCON (mm): 8.0 | Stock: Yes
MDF0770H5D DC (mm): 7.7 | L/D: 5 | LU (mm): 40.1 | LCF (mm): 51.6 | LUX (mm): 54.6 | OAL (mm): 118 | DCON (mm): 8.0 | Stock: Yes
MDF0780H3D DC (mm): 7.8 | L/D: 3 | LU (mm): 23.4 | LCF (mm): 35.1 | LUX (mm): 38.1 | OAL (mm): 94 | DCON (mm): 8.0 | Stock: Yes
MDF0780H5D DC (mm): 7.8 | L/D: 5 | LU (mm): 40.6 | LCF (mm): 52.3 | LUX (mm): 55.3 | OAL (mm): 118 | DCON (mm): 8.0 | Stock: Yes
MDF0790H3D DC (mm): 7.9 | L/D: 3 | LU (mm): 23.8 | LCF (mm): 35.6 | LUX (mm): 38.6 | OAL (mm): 94 | DCON (mm): 8.0 | Stock: Yes
MDF0790H5D DC (mm): 7.9 | L/D: 5 | LU (mm): 41.1 | LCF (mm): 52.9 | LUX (mm): 55.9 | OAL (mm): 118 | DCON (mm): 8.0 | Stock: Yes
MDF0800H3D DC (mm): 8.0 | L/D: 3 | LU (mm): 24.0 | LCF (mm): 36.0 | LUX (mm): 39.0 | OAL (mm): 94 | DCON (mm): 8.0 | Stock: Yes
MDF0800H5D DC (mm): 8.0 | L/D: 5 | LU (mm): 41.6 | LCF (mm): 53.6 | LUX (mm): 56.6 | OAL (mm): 118 | DCON (mm): 8.0 | Stock: Yes
MDF0810H3D DC (mm): 8.1 | L/D: 3 | LU (mm): 24.4 | LCF (mm): 36.5 | LUX (mm): 39.5 | OAL (mm): 100 | DCON (mm): 9.0 | Stock: Yes
MDF0810H5D DC (mm): 8.1 | L/D: 5 | LU (mm): 42.2 | LCF (mm): 54.3 | LUX (mm): 57.3 | OAL (mm): 127 | DCON (mm): 9.0 | Stock: Yes
MDF0820H3D DC (mm): 8.2 | L/D: 3 | LU (mm): 24.6 | LCF (mm): 36.9 | LUX (mm): 39.9 | OAL (mm): 100 | DCON (mm): 9.0 | Stock: Yes
MDF0820H5D DC (mm): 8.2 | L/D: 5 | LU (mm): 42.6 | LCF (mm): 54.9 | LUX (mm): 57.9 | OAL (mm): 127 | DCON (mm): 9.0 | Stock: Yes
MDF0830H3D DC (mm): 8.3 | L/D: 3 | LU (mm): 25.0 | LCF (mm): 37.4 | LUX (mm): 40.4 | OAL (mm): 100 | DCON (mm): 9.0 | Stock: Yes
MDF0830H5D DC (mm): 8.3 | L/D: 5 | LU (mm): 43.2 | LCF (mm): 55.6 | LUX (mm): 58.6 | OAL (mm): 127 | DCON (mm): 9.0 | Stock: Yes
MDF0840H3D DC (mm): 8.4 | L/D: 3 | LU (mm): 25.2 | LCF (mm): 37.8 | LUX (mm): 40.8 | OAL (mm): 100 | DCON (mm): 9.0 | Stock: Yes
MDF0840H5D DC (mm): 8.4 | L/D: 5 | LU (mm): 43.7 | LCF (mm): 56.3 | LUX (mm): 59.3 | OAL (mm): 127 | DCON (mm): 9.0 | Stock: Yes
MDF0850H3D DC (mm): 8.5 | L/D: 3 | LU (mm): 25.6 | LCF (mm): 38.3 | LUX (mm): 41.3 | OAL (mm): 100 | DCON (mm): 9.0 | Stock: Yes
MDF0850H5D DC (mm): 8.5 | L/D: 5 | LU (mm): 44.3 | LCF (mm): 57.0 | LUX (mm): 60.0 | OAL (mm): 127 | DCON (mm): 9.0 | Stock: Yes
MDF0860H3D DC (mm): 8.6 | L/D: 3 | LU (mm): 25.8 | LCF (mm): 38.7 | LUX (mm): 41.7 | OAL (mm): 100 | DCON (mm): 9.0 | Stock: Yes
MDF0860H5D DC (mm): 8.6 | L/D: 5 | LU (mm): 44.7 | LCF (mm): 57.6 | LUX (mm): 60.6 | OAL (mm): 127 | DCON (mm): 9.0 | Stock: Yes
MDF0870H3D DC (mm): 8.7 | L/D: 3 | LU (mm): 26.2 | LCF (mm): 39.2 | LUX (mm): 42.2 | OAL (mm): 100 | DCON (mm): 9.0 | Stock: Yes
MDF0870H5D DC (mm): 8.7 | L/D: 5 | LU (mm): 45.3 | LCF (mm): 58.3 | LUX (mm): 61.3 | OAL (mm): 127 | DCON (mm): 9.0 | Stock: Yes
MDF0880H3D DC (mm): 8.8 | L/D: 3 | LU (mm): 26.4 | LCF (mm): 39.6 | LUX (mm): 42.6 | OAL (mm): 100 | DCON (mm): 9.0 | Stock: Yes
MDF0880H5D DC (mm): 8.8 | L/D: 5 | LU (mm): 45.8 | LCF (mm): 59.0 | LUX (mm): 62.0 | OAL (mm): 127 | DCON (mm): 9.0 | Stock: Yes
MDF0890H3D DC (mm): 8.9 | L/D: 3 | LU (mm): 26.8 | LCF (mm): 40.1 | LUX (mm): 43.1 | OAL (mm): 100 | DCON (mm): 9.0 | Stock: Yes
MDF0890H5D DC (mm): 8.9 | L/D: 5 | LU (mm): 46.3 | LCF (mm): 59.6 | LUX (mm): 62.6 | OAL (mm): 127 | DCON (mm): 9.0 | Stock: Yes
MDF0900H3D DC (mm): 9.0 | L/D: 3 | LU (mm): 27.0 | LCF (mm): 40.5 | LUX (mm): 43.5 | OAL (mm): 100 | DCON (mm): 9.0 | Stock: Yes
MDF0900H5D DC (mm): 9.0 | L/D: 5 | LU (mm): 46.8 | LCF (mm): 60.3 | LUX (mm): 63.3 | OAL (mm): 127 | DCON (mm): 9.0 | Stock: Yes
MDF0910H3D DC (mm): 9.1 | L/D: 3 | LU (mm): 27.4 | LCF (mm): 41.0 | LUX (mm): 44.0 | OAL (mm): 106 | DCON (mm): 10.0 | Stock: Yes
MDF0910H5D DC (mm): 9.1 | L/D: 5 | LU (mm): 47.4 | LCF (mm): 61.0 | LUX (mm): 64.0 | OAL (mm): 136 | DCON (mm): 10.0 | Stock: Yes
MDF0920H3D DC (mm): 9.2 | L/D: 3 | LU (mm): 27.6 | LCF (mm): 41.4 | LUX (mm): 44.4 | OAL (mm): 106 | DCON (mm): 10.0 | Stock: Yes
MDF0920H5D DC (mm): 9.2 | L/D: 5 | LU (mm): 47.8 | LCF (mm): 61.6 | LUX (mm): 64.6 | OAL (mm): 136 | DCON (mm): 10.0 | Stock: Yes
MDF0930H3D DC (mm): 9.3 | L/D: 3 | LU (mm): 28.0 | LCF (mm): 41.9 | LUX (mm): 44.9 | OAL (mm): 106 | DCON (mm): 10.0 | Stock: Yes
MDF0930H5D DC (mm): 9.3 | L/D: 5 | LU (mm): 48.4 | LCF (mm): 62.3 | LUX (mm): 65.3 | OAL (mm): 136 | DCON (mm): 10.0 | Stock: Yes
MDF0940H3D DC (mm): 9.4 | L/D: 3 | LU (mm): 28.2 | LCF (mm): 42.3 | LUX (mm): 45.3 | OAL (mm): 106 | DCON (mm): 10.0 | Stock: Yes
MDF0940H5D DC (mm): 9.4 | L/D: 5 | LU (mm): 48.9 | LCF (mm): 63.0 | LUX (mm): 66.0 | OAL (mm): 136 | DCON (mm): 10.0 | Stock: Yes
MDF0950H3D DC (mm): 9.5 | L/D: 3 | LU (mm): 28.6 | LCF (mm): 42.8 | LUX (mm): 45.8 | OAL (mm): 106 | DCON (mm): 10.0 | Stock: Yes
MDF0950H5D DC (mm): 9.5 | L/D: 5 | LU (mm): 49.5 | LCF (mm): 63.7 | LUX (mm): 66.7 | OAL (mm): 136 | DCON (mm): 10.0 | Stock: Yes
MDF0960H3D DC (mm): 9.6 | L/D: 3 | LU (mm): 28.8 | LCF (mm): 43.2 | LUX (mm): 46.2 | OAL (mm): 106 | DCON (mm): 10.0 | Stock: Yes
MDF0960H5D DC (mm): 9.6 | L/D: 5 | LU (mm): 49.9 | LCF (mm): 64.3 | LUX (mm): 67.3 | OAL (mm): 136 | DCON (mm): 10.0 | Stock: Yes
MDF0970H3D DC (mm): 9.7 | L/D: 3 | LU (mm): 29.2 | LCF (mm): 43.7 | LUX (mm): 46.7 | OAL (mm): 106 | DCON (mm): 10.0 | Stock: Yes
MDF0970H5D DC (mm): 9.7 | L/D: 5 | LU (mm): 50.5 | LCF (mm): 65.0 | LUX (mm): 68.0 | OAL (mm): 136 | DCON (mm): 10.0 | Stock: Yes
MDF0980H3D DC (mm): 9.8 | L/D: 3 | LU (mm): 29.4 | LCF (mm): 44.1 | LUX (mm): 47.1 | OAL (mm): 106 | DCON (mm): 10.0 | Stock: Yes
MDF0980H5D DC (mm): 9.8 | L/D: 5 | LU (mm): 51.0 | LCF (mm): 65.7 | LUX (mm): 68.7 | OAL (mm): 136 | DCON (mm): 10.0 | Stock: Yes
MDF0990H3D DC (mm): 9.9 | L/D: 3 | LU (mm): 29.8 | LCF (mm): 44.6 | LUX (mm): 47.6 | OAL (mm): 106 | DCON (mm): 10.0 | Stock: Yes
MDF0990H5D DC (mm): 9.9 | L/D: 5 | LU (mm): 51.5 | LCF (mm): 66.3 | LUX (mm): 69.3 | OAL (mm): 136 | DCON (mm): 10.0 | Stock: Yes
MDF1000H3D DC (mm): 10.0 | L/D: 3 | LU (mm): 30.0 | LCF (mm): 45.0 | LUX (mm): 48.0 | OAL (mm): 106 | DCON (mm): 10.0 | Stock: Yes
MDF1000H5D DC (mm): 10.0 | L/D: 5 | LU (mm): 52.0 | LCF (mm): 67.0 | LUX (mm): 70.0 | OAL (mm): 136 | DCON (mm): 10.0 | Stock: Yes
MDF1010H3D DC (mm): 10.1 | L/D: 3 | LU (mm): 30.4 | LCF (mm): 45.5 | LUX (mm): 48.5 | OAL (mm): 116 | DCON (mm): 11.0 | Stock: Yes
MDF1010H5D DC (mm): 10.1 | L/D: 5 | LU (mm): 52.6 | LCF (mm): 67.7 | LUX (mm): 70.7 | OAL (mm): 149 | DCON (mm): 11.0 | Stock: Yes
MDF1020H3D DC (mm): 10.2 | L/D: 3 | LU (mm): 30.6 | LCF (mm): 45.9 | LUX (mm): 48.9 | OAL (mm): 116 | DCON (mm): 11.0 | Stock: Yes
MDF1020H5D DC (mm): 10.2 | L/D: 5 | LU (mm): 53.0 | LCF (mm): 68.3 | LUX (mm): 71.3 | OAL (mm): 149 | DCON (mm): 11.0 | Stock: Yes
MDF1030H3D DC (mm): 10.3 | L/D: 3 | LU (mm): 31.0 | LCF (mm): 46.4 | LUX (mm): 49.4 | OAL (mm): 116 | DCON (mm): 11.0 | Stock: Yes
MDF1030H5D DC (mm): 10.3 | L/D: 5 | LU (mm): 53.6 | LCF (mm): 69.0 | LUX (mm): 72.0 | OAL (mm): 149 | DCON (mm): 11.0 | Stock: Yes
MDF1040H3D DC (mm): 10.4 | L/D: 3 | LU (mm): 31.2 | LCF (mm): 46.8 | LUX (mm): 49.8 | OAL (mm): 116 | DCON (mm): 11.0 | Stock: Yes
MDF1040H5D DC (mm): 10.4 | L/D: 5 | LU (mm): 54.1 | LCF (mm): 69.7 | LUX (mm): 72.7 | OAL (mm): 149 | DCON (mm): 11.0 | Stock: Yes
MDF1050H3D DC (mm): 10.5 | L/D: 3 | LU (mm): 31.6 | LCF (mm): 47.3 | LUX (mm): 50.3 | OAL (mm): 116 | DCON (mm): 11.0 | Stock: Yes
MDF1050H5D DC (mm): 10.5 | L/D: 5 | LU (mm): 54.7 | LCF (mm): 70.4 | LUX (mm): 73.4 | OAL (mm): 149 | DCON (mm): 11.0 | Stock: Yes
MDF1060H3D DC (mm): 10.6 | L/D: 3 | LU (mm): 31.8 | LCF (mm): 47.7 | LUX (mm): 50.7 | OAL (mm): 116 | DCON (mm): 11.0 | Stock: Yes
MDF1060H5D DC (mm): 10.6 | L/D: 5 | LU (mm): 55.1 | LCF (mm): 71.0 | LUX (mm): 74.0 | OAL (mm): 149 | DCON (mm): 11.0 | Stock: Yes
MDF1070H3D DC (mm): 10.7 | L/D: 3 | LU (mm): 32.2 | LCF (mm): 48.2 | LUX (mm): 51.2 | OAL (mm): 116 | DCON (mm): 11.0 | Stock: Yes
MDF1070H5D DC (mm): 10.7 | L/D: 5 | LU (mm): 55.7 | LCF (mm): 71.7 | LUX (mm): 74.7 | OAL (mm): 149 | DCON (mm): 11.0 | Stock: Yes
MDF1080H3D DC (mm): 10.8 | L/D: 3 | LU (mm): 32.4 | LCF (mm): 48.6 | LUX (mm): 51.6 | OAL (mm): 116 | DCON (mm): 11.0 | Stock: Yes
MDF1080H5D DC (mm): 10.8 | L/D: 5 | LU (mm): 56.2 | LCF (mm): 72.4 | LUX (mm): 75.4 | OAL (mm): 149 | DCON (mm): 11.0 | Stock: Yes
MDF1090H3D DC (mm): 10.9 | L/D: 3 | LU (mm): 32.8 | LCF (mm): 49.1 | LUX (mm): 52.1 | OAL (mm): 116 | DCON (mm): 11.0 | Stock: Yes
MDF1090H5D DC (mm): 10.9 | L/D: 5 | LU (mm): 56.7 | LCF (mm): 73.0 | LUX (mm): 76.0 | OAL (mm): 149 | DCON (mm): 11.0 | Stock: Yes
MDF1100H3D DC (mm): 11.0 | L/D: 3 | LU (mm): 33.0 | LCF (mm): 49.5 | LUX (mm): 52.5 | OAL (mm): 116 | DCON (mm): 11.0 | Stock: Yes
MDF1100H5D DC (mm): 11.0 | L/D: 5 | LU (mm): 57.2 | LCF (mm): 73.7 | LUX (mm): 76.7 | OAL (mm): 149 | DCON (mm): 11.0 | Stock: Yes
MDF1110H3D DC (mm): 11.1 | L/D: 3 | LU (mm): 33.4 | LCF (mm): 50.0 | LUX (mm): 53.0 | OAL (mm): 122 | DCON (mm): 12.0 | Stock: Yes
MDF1110H5D DC (mm): 11.1 | L/D: 5 | LU (mm): 57.8 | LCF (mm): 74.4 | LUX (mm): 77.4 | OAL (mm): 158 | DCON (mm): 12.0 | Stock: Yes
MDF1120H3D DC (mm): 11.2 | L/D: 3 | LU (mm): 33.6 | LCF (mm): 50.4 | LUX (mm): 53.4 | OAL (mm): 122 | DCON (mm): 12.0 | Stock: Yes
MDF1120H5D DC (mm): 11.2 | L/D: 5 | LU (mm): 58.2 | LCF (mm): 75.0 | LUX (mm): 78.0 | OAL (mm): 158 | DCON (mm): 12.0 | Stock: Yes
MDF1130H3D DC (mm): 11.3 | L/D: 3 | LU (mm): 34.0 | LCF (mm): 50.9 | LUX (mm): 53.9 | OAL (mm): 122 | DCON (mm): 12.0 | Stock: Yes
MDF1130H5D DC (mm): 11.3 | L/D: 5 | LU (mm): 58.8 | LCF (mm): 75.7 | LUX (mm): 78.7 | OAL (mm): 158 | DCON (mm): 12.0 | Stock: Yes
MDF1140H3D DC (mm): 11.4 | L/D: 3 | LU (mm): 34.2 | LCF (mm): 51.3 | LUX (mm): 54.3 | OAL (mm): 122 | DCON (mm): 12.0 | Stock: Yes
MDF1140H5D DC (mm): 11.4 | L/D: 5 | LU (mm): 59.3 | LCF (mm): 76.4 | LUX (mm): 79.4 | OAL (mm): 158 | DCON (mm): 12.0 | Stock: Yes
MDF1150H3D DC (mm): 11.5 | L/D: 3 | LU (mm): 34.6 | LCF (mm): 51.8 | LUX (mm): 54.8 | OAL (mm): 122 | DCON (mm): 12.0 | Stock: Yes
MDF1150H5D DC (mm): 11.5 | L/D: 5 | LU (mm): 59.9 | LCF (mm): 77.1 | LUX (mm): 80.1 | OAL (mm): 158 | DCON (mm): 12.0 | Stock: Yes
MDF1160H3D DC (mm): 11.6 | L/D: 3 | LU (mm): 34.8 | LCF (mm): 52.2 | LUX (mm): 55.2 | OAL (mm): 122 | DCON (mm): 12.0 | Stock: Yes
MDF1160H5D DC (mm): 11.6 | L/D: 5 | LU (mm): 60.3 | LCF (mm): 77.7 | LUX (mm): 80.7 | OAL (mm): 158 | DCON (mm): 12.0 | Stock: Yes
MDF1170H3D DC (mm): 11.7 | L/D: 3 | LU (mm): 35.2 | LCF (mm): 52.7 | LUX (mm): 55.7 | OAL (mm): 122 | DCON (mm): 12.0 | Stock: Yes
MDF1170H5D DC (mm): 11.7 | L/D: 5 | LU (mm): 60.9 | LCF (mm): 78.4 | LUX (mm): 81.4 | OAL (mm): 158 | DCON (mm): 12.0 | Stock: Yes
MDF1180H3D DC (mm): 11.8 | L/D: 3 | LU (mm): 35.4 | LCF (mm): 53.1 | LUX (mm): 56.1 | OAL (mm): 122 | DCON (mm): 12.0 | Stock: Yes
MDF1180H5D DC (mm): 11.8 | L/D: 5 | LU (mm): 61.4 | LCF (mm): 79.1 | LUX (mm): 82.1 | OAL (mm): 158 | DCON (mm): 12.0 | Stock: Yes
MDF1190H3D DC (mm): 11.9 | L/D: 3 | LU (mm): 35.8 | LCF (mm): 53.6 | LUX (mm): 56.6 | OAL (mm): 122 | DCON (mm): 12.0 | Stock: Yes
MDF1190H5D DC (mm): 11.9 | L/D: 5 | LU (mm): 61.9 | LCF (mm): 79.7 | LUX (mm): 82.7 | OAL (mm): 158 | DCON (mm): 12.0 | Stock: Yes
MDF1200H3D DC (mm): 12.0 | L/D: 3 | LU (mm): 36.0 | LCF (mm): 54.0 | LUX (mm): 57.0 | OAL (mm): 122 | DCON (mm): 12.0 | Stock: Yes
MDF1200H5D DC (mm): 12.0 | L/D: 5 | LU (mm): 62.4 | LCF (mm): 80.4 | LUX (mm): 83.4 | OAL (mm): 158 | DCON (mm): 12.0 | Stock: Yes
MDF1250H3D DC (mm): 12.5 | L/D: 3 | LU (mm): 37.6 | LCF (mm): 56.3 | LUX (mm): 59.3 | OAL (mm): 128 | DCON (mm): 13.0 | Stock: Yes
MDF1250H5D DC (mm): 12.5 | L/D: 5 | LU (mm): 65.1 | LCF (mm): 83.8 | LUX (mm): 86.8 | OAL (mm): 167 | DCON (mm): 13.0 | Stock: Yes
MDF1300H3D DC (mm): 13.0 | L/D: 3 | LU (mm): 39.0 | LCF (mm): 58.5 | LUX (mm): 61.5 | OAL (mm): 128 | DCON (mm): 13.0 | Stock: Yes
MDF1300H5D DC (mm): 13.0 | L/D: 5 | LU (mm): 67.6 | LCF (mm): 87.1 | LUX (mm): 90.1 | OAL (mm): 167 | DCON (mm): 13.0 | Stock: Yes
MDF1350H3D DC (mm): 13.5 | L/D: 3 | LU (mm): 40.6 | LCF (mm): 60.8 | LUX (mm): 63.8 | OAL (mm): 134 | DCON (mm): 14.0 | Stock: Yes
MDF1350H5D DC (mm): 13.5 | L/D: 5 | LU (mm): 70.3 | LCF (mm): 90.5 | LUX (mm): 93.5 | OAL (mm): 176 | DCON (mm): 14.0 | Stock: Yes
MDF1400H3D DC (mm): 14.0 | L/D: 3 | LU (mm): 42.0 | LCF (mm): 63.0 | LUX (mm): 66.0 | OAL (mm): 134 | DCON (mm): 14.0 | Stock: Yes
MDF1400H5D DC (mm): 14.0 | L/D: 5 | LU (mm): 72.8 | LCF (mm): 93.8 | LUX (mm): 96.8 | OAL (mm): 176 | DCON (mm): 14.0 | Stock: Yes
MDF1450H3D DC (mm): 14.5 | L/D: 3 | LU (mm): 43.6 | LCF (mm): 65.3 | LUX (mm): 68.3 | OAL (mm): 140 | DCON (mm): 15.0 | Stock: Yes
MDF1450H5D DC (mm): 14.5 | L/D: 5 | LU (mm): 75.5 | LCF (mm): 97.2 | LUX (mm): 100.2 | OAL (mm): 185 | DCON (mm): 15.0 | Stock: Yes
MDF1500H3D DC (mm): 15.0 | L/D: 3 | LU (mm): 45.0 | LCF (mm): 67.5 | LUX (mm): 70.5 | OAL (mm): 140 | DCON (mm): 15.0 | Stock: Yes
MDF1500H5D DC (mm): 15.0 | L/D: 5 | LU (mm): 78.0 | LCF (mm): 100.5 | LUX (mm): 103.5 | OAL (mm): 185 | DCON (mm): 15.0 | Stock: Yes
MDF1550H3D DC (mm): 15.5 | L/D: 3 | LU (mm): 46.6 | LCF (mm): 69.8 | LUX (mm): 72.8 | OAL (mm): 146 | DCON (mm): 16.0 | Stock: Yes
MDF1550H5D DC (mm): 15.5 | L/D: 5 | LU (mm): 80.7 | LCF (mm): 103.9 | LUX (mm): 106.9 | OAL (mm): 194 | DCON (mm): 16.0 | Stock: Yes
MDF1600H3D DC (mm): 16.0 | L/D: 3 | LU (mm): 48.0 | LCF (mm): 72.0 | LUX (mm): 75.0 | OAL (mm): 146 | DCON (mm): 16.0 | Stock: Yes
MDF1600H5D DC (mm): 16.0 | L/D: 5 | LU (mm): 83.2 | LCF (mm): 107.2 | LUX (mm): 110.2 | OAL (mm): 194 | DCON (mm): 16.0 | Stock: Yes
DrillsSumitomo Electric Hardmetal
198 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal Flat Multi Drill MDF-H Type (Internal Coolant)

Brand Sumitomo Electric Hardmetal·Drills

Available part numbers (198)

MDF0300H3D, MDF0300H5D, MDF0310H3D, MDF0310H5D, MDF0320H3D, MDF0320H5D, MDF0330H3D, MDF0330H5D, MDF0340H3D, MDF0340H5D + 188 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MDF0300H3DDC (mm): 3.0 | L/D: 3 | LU (mm): 9.0 | LCF (mm): 13.5 | LUX (mm): 16.5 | OAL (mm): 68 | DCON (mm): 3.0 | Stock: Yes
MDF0300H5DDC (mm): 3.0 | L/D: 5 | LU (mm): 15.6 | LCF (mm): 20.1 | LUX (mm): 23.1 | OAL (mm): 78 | DCON (mm): 3.0 | Stock: Yes
MDF0310H3DDC (mm): 3.1 | L/D: 3 | LU (mm): 9.4 | LCF (mm): 14.0 | LUX (mm): 17.0 | OAL (mm): 72 | DCON (mm): 4.0 | Stock: Yes
MDF0310H5DDC (mm): 3.1 | L/D: 5 | LU (mm): 16.2 | LCF (mm): 20.8 | LUX (mm): 23.8 | OAL (mm): 86 | DCON (mm): 4.0 | Stock: Yes
MDF0320H3DDC (mm): 3.2 | L/D: 3 | LU (mm): 9.6 | LCF (mm): 14.4 | LUX (mm): 17.4 | OAL (mm): 72 | DCON (mm): 4.0 | Stock: Yes
MDF0320H5DDC (mm): 3.2 | L/D: 5 | LU (mm): 16.6 | LCF (mm): 21.4 | LUX (mm): 24.4 | OAL (mm): 86 | DCON (mm): 4.0 | Stock: Yes
MDF0330H3DDC (mm): 3.3 | L/D: 3 | LU (mm): 10.0 | LCF (mm): 14.9 | LUX (mm): 17.9 | OAL (mm): 72 | DCON (mm): 4.0 | Stock: Yes
MDF0330H5DDC (mm): 3.3 | L/D: 5 | LU (mm): 17.2 | LCF (mm): 22.1 | LUX (mm): 25.1 | OAL (mm): 86 | DCON (mm): 4.0 | Stock: Yes
MDF0340H3DDC (mm): 3.4 | L/D: 3 | LU (mm): 10.2 | LCF (mm): 15.3 | LUX (mm): 18.3 | OAL (mm): 72 | DCON (mm): 4.0 | Stock: Yes
MDF0340H5DDC (mm): 3.4 | L/D: 5 | LU (mm): 17.7 | LCF (mm): 22.8 | LUX (mm): 25.8 | OAL (mm): 86 | DCON (mm): 4.0 | Stock: Yes
MDF0350H3DDC (mm): 3.5 | L/D: 3 | LU (mm): 10.6 | LCF (mm): 15.8 | LUX (mm): 18.8 | OAL (mm): 72 | DCON (mm): 4.0 | Stock: Yes
MDF0350H5DDC (mm): 3.5 | L/D: 5 | LU (mm): 18.3 | LCF (mm): 23.5 | LUX (mm): 26.5 | OAL (mm): 86 | DCON (mm): 4.0 | Stock: Yes
MDF0360H3DDC (mm): 3.6 | L/D: 3 | LU (mm): 10.8 | LCF (mm): 16.2 | LUX (mm): 19.2 | OAL (mm): 72 | DCON (mm): 4.0 | Stock: Yes
MDF0360H5DDC (mm): 3.6 | L/D: 5 | LU (mm): 18.7 | LCF (mm): 24.1 | LUX (mm): 27.1 | OAL (mm): 86 | DCON (mm): 4.0 | Stock: Yes
MDF0370H3DDC (mm): 3.7 | L/D: 3 | LU (mm): 11.2 | LCF (mm): 16.7 | LUX (mm): 19.7 | OAL (mm): 72 | DCON (mm): 4.0 | Stock: Yes
MDF0370H5DDC (mm): 3.7 | L/D: 5 | LU (mm): 19.3 | LCF (mm): 24.8 | LUX (mm): 27.8 | OAL (mm): 86 | DCON (mm): 4.0 | Stock: Yes
MDF0380H3DDC (mm): 3.8 | L/D: 3 | LU (mm): 11.4 | LCF (mm): 17.1 | LUX (mm): 20.1 | OAL (mm): 72 | DCON (mm): 4.0 | Stock: Yes
MDF0380H5DDC (mm): 3.8 | L/D: 5 | LU (mm): 19.8 | LCF (mm): 25.5 | LUX (mm): 28.5 | OAL (mm): 86 | DCON (mm): 4.0 | Stock: Yes
MDF0390H3DDC (mm): 3.9 | L/D: 3 | LU (mm): 11.8 | LCF (mm): 17.6 | LUX (mm): 20.6 | OAL (mm): 72 | DCON (mm): 4.0 | Stock: Yes
MDF0390H5DDC (mm): 3.9 | L/D: 5 | LU (mm): 20.3 | LCF (mm): 26.1 | LUX (mm): 29.1 | OAL (mm): 86 | DCON (mm): 4.0 | Stock: Yes
MDF0400H3DDC (mm): 4.0 | L/D: 3 | LU (mm): 12.0 | LCF (mm): 18.0 | LUX (mm): 21.0 | OAL (mm): 72 | DCON (mm): 4.0 | Stock: Yes
MDF0400H5DDC (mm): 4.0 | L/D: 5 | LU (mm): 20.8 | LCF (mm): 26.8 | LUX (mm): 29.8 | OAL (mm): 86 | DCON (mm): 4.0 | Stock: Yes
MDF0410H3DDC (mm): 4.1 | L/D: 3 | LU (mm): 12.4 | LCF (mm): 18.5 | LUX (mm): 21.5 | OAL (mm): 80 | DCON (mm): 5.0 | Stock: Yes
MDF0410H5DDC (mm): 4.1 | L/D: 5 | LU (mm): 21.4 | LCF (mm): 27.5 | LUX (mm): 30.5 | OAL (mm): 98 | DCON (mm): 5.0 | Stock: Yes
MDF0420H3DDC (mm): 4.2 | L/D: 3 | LU (mm): 12.6 | LCF (mm): 18.9 | LUX (mm): 21.9 | OAL (mm): 80 | DCON (mm): 5.0 | Stock: Yes
MDF0420H5DDC (mm): 4.2 | L/D: 5 | LU (mm): 21.8 | LCF (mm): 28.1 | LUX (mm): 31.1 | OAL (mm): 98 | DCON (mm): 5.0 | Stock: Yes
MDF0430H3DDC (mm): 4.3 | L/D: 3 | LU (mm): 13.0 | LCF (mm): 19.4 | LUX (mm): 22.4 | OAL (mm): 80 | DCON (mm): 5.0 | Stock: Yes
MDF0430H5DDC (mm): 4.3 | L/D: 5 | LU (mm): 22.4 | LCF (mm): 28.8 | LUX (mm): 31.8 | OAL (mm): 98 | DCON (mm): 5.0 | Stock: Yes
MDF0440H3DDC (mm): 4.4 | L/D: 3 | LU (mm): 13.2 | LCF (mm): 19.8 | LUX (mm): 22.8 | OAL (mm): 80 | DCON (mm): 5.0 | Stock: Yes
MDF0440H5DDC (mm): 4.4 | L/D: 5 | LU (mm): 22.9 | LCF (mm): 29.5 | LUX (mm): 32.5 | OAL (mm): 98 | DCON (mm): 5.0 | Stock: Yes
MDF0450H3DDC (mm): 4.5 | L/D: 3 | LU (mm): 13.6 | LCF (mm): 20.3 | LUX (mm): 23.3 | OAL (mm): 80 | DCON (mm): 5.0 | Stock: Yes
MDF0450H5DDC (mm): 4.5 | L/D: 5 | LU (mm): 23.5 | LCF (mm): 30.2 | LUX (mm): 33.2 | OAL (mm): 98 | DCON (mm): 5.0 | Stock: Yes
MDF0460H3DDC (mm): 4.6 | L/D: 3 | LU (mm): 13.8 | LCF (mm): 20.7 | LUX (mm): 23.7 | OAL (mm): 80 | DCON (mm): 5.0 | Stock: Yes
MDF0460H5DDC (mm): 4.6 | L/D: 5 | LU (mm): 23.9 | LCF (mm): 30.8 | LUX (mm): 33.8 | OAL (mm): 98 | DCON (mm): 5.0 | Stock: Yes
MDF0470H3DDC (mm): 4.7 | L/D: 3 | LU (mm): 14.2 | LCF (mm): 21.2 | LUX (mm): 24.2 | OAL (mm): 80 | DCON (mm): 5.0 | Stock: Yes
MDF0470H5DDC (mm): 4.7 | L/D: 5 | LU (mm): 24.5 | LCF (mm): 31.5 | LUX (mm): 34.5 | OAL (mm): 98 | DCON (mm): 5.0 | Stock: Yes
MDF0480H3DDC (mm): 4.8 | L/D: 3 | LU (mm): 14.4 | LCF (mm): 21.6 | LUX (mm): 24.6 | OAL (mm): 80 | DCON (mm): 5.0 | Stock: Yes
MDF0480H5DDC (mm): 4.8 | L/D: 5 | LU (mm): 25.0 | LCF (mm): 32.2 | LUX (mm): 35.2 | OAL (mm): 98 | DCON (mm): 5.0 | Stock: Yes
MDF0490H3DDC (mm): 4.9 | L/D: 3 | LU (mm): 14.8 | LCF (mm): 22.1 | LUX (mm): 25.1 | OAL (mm): 80 | DCON (mm): 5.0 | Stock: Yes
MDF0490H5DDC (mm): 4.9 | L/D: 5 | LU (mm): 25.5 | LCF (mm): 32.8 | LUX (mm): 35.8 | OAL (mm): 98 | DCON (mm): 5.0 | Stock: Yes
MDF0500H3DDC (mm): 5.0 | L/D: 3 | LU (mm): 15.0 | LCF (mm): 22.5 | LUX (mm): 25.5 | OAL (mm): 80 | DCON (mm): 5.0 | Stock: Yes
MDF0500H5DDC (mm): 5.0 | L/D: 5 | LU (mm): 26.0 | LCF (mm): 33.5 | LUX (mm): 36.5 | OAL (mm): 98 | DCON (mm): 5.0 | Stock: Yes
MDF0510H3DDC (mm): 5.1 | L/D: 3 | LU (mm): 15.4 | LCF (mm): 23.0 | LUX (mm): 26.0 | OAL (mm): 82 | DCON (mm): 6.0 | Stock: Yes
MDF0510H5DDC (mm): 5.1 | L/D: 5 | LU (mm): 26.6 | LCF (mm): 34.2 | LUX (mm): 37.2 | OAL (mm): 100 | DCON (mm): 6.0 | Stock: Yes
MDF0520H3DDC (mm): 5.2 | L/D: 3 | LU (mm): 15.6 | LCF (mm): 23.4 | LUX (mm): 26.4 | OAL (mm): 82 | DCON (mm): 6.0 | Stock: Yes
MDF0520H5DDC (mm): 5.2 | L/D: 5 | LU (mm): 27.0 | LCF (mm): 34.8 | LUX (mm): 37.8 | OAL (mm): 100 | DCON (mm): 6.0 | Stock: Yes
MDF0530H3DDC (mm): 5.3 | L/D: 3 | LU (mm): 16.0 | LCF (mm): 23.9 | LUX (mm): 26.9 | OAL (mm): 82 | DCON (mm): 6.0 | Stock: Yes
MDF0530H5DDC (mm): 5.3 | L/D: 5 | LU (mm): 27.6 | LCF (mm): 35.5 | LUX (mm): 38.5 | OAL (mm): 100 | DCON (mm): 6.0 | Stock: Yes
MDF0540H3DDC (mm): 5.4 | L/D: 3 | LU (mm): 16.2 | LCF (mm): 24.3 | LUX (mm): 27.3 | OAL (mm): 82 | DCON (mm): 6.0 | Stock: Yes
MDF0540H5DDC (mm): 5.4 | L/D: 5 | LU (mm): 28.1 | LCF (mm): 36.2 | LUX (mm): 39.2 | OAL (mm): 100 | DCON (mm): 6.0 | Stock: Yes
MDF0550H3DDC (mm): 5.5 | L/D: 3 | LU (mm): 16.6 | LCF (mm): 24.8 | LUX (mm): 27.8 | OAL (mm): 82 | DCON (mm): 6.0 | Stock: Yes
MDF0550H5DDC (mm): 5.5 | L/D: 5 | LU (mm): 28.7 | LCF (mm): 36.9 | LUX (mm): 39.9 | OAL (mm): 100 | DCON (mm): 6.0 | Stock: Yes
MDF0560H3DDC (mm): 5.6 | L/D: 3 | LU (mm): 16.8 | LCF (mm): 25.2 | LUX (mm): 28.2 | OAL (mm): 82 | DCON (mm): 6.0 | Stock: Yes
MDF0560H5DDC (mm): 5.6 | L/D: 5 | LU (mm): 29.1 | LCF (mm): 37.5 | LUX (mm): 40.5 | OAL (mm): 100 | DCON (mm): 6.0 | Stock: Yes
MDF0570H3DDC (mm): 5.7 | L/D: 3 | LU (mm): 17.2 | LCF (mm): 25.7 | LUX (mm): 28.7 | OAL (mm): 82 | DCON (mm): 6.0 | Stock: Yes
MDF0570H5DDC (mm): 5.7 | L/D: 5 | LU (mm): 29.7 | LCF (mm): 38.2 | LUX (mm): 41.2 | OAL (mm): 100 | DCON (mm): 6.0 | Stock: Yes
MDF0580H3DDC (mm): 5.8 | L/D: 3 | LU (mm): 17.4 | LCF (mm): 26.1 | LUX (mm): 29.1 | OAL (mm): 82 | DCON (mm): 6.0 | Stock: Yes
MDF0580H5DDC (mm): 5.8 | L/D: 5 | LU (mm): 30.2 | LCF (mm): 38.9 | LUX (mm): 41.9 | OAL (mm): 100 | DCON (mm): 6.0 | Stock: Yes
MDF0590H3DDC (mm): 5.9 | L/D: 3 | LU (mm): 17.8 | LCF (mm): 26.6 | LUX (mm): 29.6 | OAL (mm): 82 | DCON (mm): 6.0 | Stock: Yes
MDF0590H5DDC (mm): 5.9 | L/D: 5 | LU (mm): 30.7 | LCF (mm): 39.5 | LUX (mm): 42.5 | OAL (mm): 100 | DCON (mm): 6.0 | Stock: Yes
MDF0600H3DDC (mm): 6.0 | L/D: 3 | LU (mm): 18.0 | LCF (mm): 27.0 | LUX (mm): 30.0 | OAL (mm): 82 | DCON (mm): 6.0 | Stock: Yes
MDF0600H5DDC (mm): 6.0 | L/D: 5 | LU (mm): 31.2 | LCF (mm): 40.2 | LUX (mm): 43.2 | OAL (mm): 100 | DCON (mm): 6.0 | Stock: Yes
MDF0610H3DDC (mm): 6.1 | L/D: 3 | LU (mm): 18.4 | LCF (mm): 27.5 | LUX (mm): 30.5 | OAL (mm): 88 | DCON (mm): 7.0 | Stock: Yes
MDF0610H5DDC (mm): 6.1 | L/D: 5 | LU (mm): 31.8 | LCF (mm): 40.9 | LUX (mm): 43.9 | OAL (mm): 109 | DCON (mm): 7.0 | Stock: Yes
MDF0620H3DDC (mm): 6.2 | L/D: 3 | LU (mm): 18.6 | LCF (mm): 27.9 | LUX (mm): 30.9 | OAL (mm): 88 | DCON (mm): 7.0 | Stock: Yes
MDF0620H5DDC (mm): 6.2 | L/D: 5 | LU (mm): 32.2 | LCF (mm): 41.5 | LUX (mm): 44.5 | OAL (mm): 109 | DCON (mm): 7.0 | Stock: Yes
MDF0630H3DDC (mm): 6.3 | L/D: 3 | LU (mm): 19.0 | LCF (mm): 28.4 | LUX (mm): 31.4 | OAL (mm): 88 | DCON (mm): 7.0 | Stock: Yes
MDF0630H5DDC (mm): 6.3 | L/D: 5 | LU (mm): 32.8 | LCF (mm): 42.2 | LUX (mm): 45.2 | OAL (mm): 109 | DCON (mm): 7.0 | Stock: Yes
MDF0640H3DDC (mm): 6.4 | L/D: 3 | LU (mm): 19.2 | LCF (mm): 28.8 | LUX (mm): 31.8 | OAL (mm): 88 | DCON (mm): 7.0 | Stock: Yes
MDF0640H5DDC (mm): 6.4 | L/D: 5 | LU (mm): 33.3 | LCF (mm): 42.9 | LUX (mm): 45.9 | OAL (mm): 109 | DCON (mm): 7.0 | Stock: Yes
MDF0650H3DDC (mm): 6.5 | L/D: 3 | LU (mm): 19.6 | LCF (mm): 29.3 | LUX (mm): 32.3 | OAL (mm): 88 | DCON (mm): 7.0 | Stock: Yes
MDF0650H5DDC (mm): 6.5 | L/D: 5 | LU (mm): 33.9 | LCF (mm): 43.6 | LUX (mm): 46.6 | OAL (mm): 109 | DCON (mm): 7.0 | Stock: Yes
MDF0660H3DDC (mm): 6.6 | L/D: 3 | LU (mm): 19.8 | LCF (mm): 29.7 | LUX (mm): 32.7 | OAL (mm): 88 | DCON (mm): 7.0 | Stock: Yes
MDF0660H5DDC (mm): 6.6 | L/D: 5 | LU (mm): 34.3 | LCF (mm): 44.2 | LUX (mm): 47.2 | OAL (mm): 109 | DCON (mm): 7.0 | Stock: Yes
MDF0670H3DDC (mm): 6.7 | L/D: 3 | LU (mm): 20.2 | LCF (mm): 30.2 | LUX (mm): 33.2 | OAL (mm): 88 | DCON (mm): 7.0 | Stock: Yes
MDF0670H5DDC (mm): 6.7 | L/D: 5 | LU (mm): 34.9 | LCF (mm): 44.9 | LUX (mm): 47.9 | OAL (mm): 109 | DCON (mm): 7.0 | Stock: Yes
MDF0680H3DDC (mm): 6.8 | L/D: 3 | LU (mm): 20.4 | LCF (mm): 30.6 | LUX (mm): 33.6 | OAL (mm): 88 | DCON (mm): 7.0 | Stock: Yes
MDF0680H5DDC (mm): 6.8 | L/D: 5 | LU (mm): 35.4 | LCF (mm): 45.6 | LUX (mm): 48.6 | OAL (mm): 109 | DCON (mm): 7.0 | Stock: Yes
MDF0690H3DDC (mm): 6.9 | L/D: 3 | LU (mm): 20.8 | LCF (mm): 31.1 | LUX (mm): 34.1 | OAL (mm): 88 | DCON (mm): 7.0 | Stock: Yes
MDF0690H5DDC (mm): 6.9 | L/D: 5 | LU (mm): 35.9 | LCF (mm): 46.2 | LUX (mm): 49.2 | OAL (mm): 109 | DCON (mm): 7.0 | Stock: Yes
MDF0700H3DDC (mm): 7.0 | L/D: 3 | LU (mm): 21.0 | LCF (mm): 31.5 | LUX (mm): 34.5 | OAL (mm): 88 | DCON (mm): 7.0 | Stock: Yes
MDF0700H5DDC (mm): 7.0 | L/D: 5 | LU (mm): 36.4 | LCF (mm): 46.9 | LUX (mm): 49.9 | OAL (mm): 109 | DCON (mm): 7.0 | Stock: Yes
MDF0710H3DDC (mm): 7.1 | L/D: 3 | LU (mm): 21.4 | LCF (mm): 32.0 | LUX (mm): 35.0 | OAL (mm): 94 | DCON (mm): 8.0 | Stock: Yes
MDF0710H5DDC (mm): 7.1 | L/D: 5 | LU (mm): 37.0 | LCF (mm): 47.6 | LUX (mm): 50.6 | OAL (mm): 118 | DCON (mm): 8.0 | Stock: Yes
MDF0720H3DDC (mm): 7.2 | L/D: 3 | LU (mm): 21.6 | LCF (mm): 32.4 | LUX (mm): 35.4 | OAL (mm): 94 | DCON (mm): 8.0 | Stock: Yes
MDF0720H5DDC (mm): 7.2 | L/D: 5 | LU (mm): 37.4 | LCF (mm): 48.2 | LUX (mm): 51.2 | OAL (mm): 118 | DCON (mm): 8.0 | Stock: Yes
MDF0730H3DDC (mm): 7.3 | L/D: 3 | LU (mm): 22.0 | LCF (mm): 32.9 | LUX (mm): 35.9 | OAL (mm): 94 | DCON (mm): 8.0 | Stock: Yes
MDF0730H5DDC (mm): 7.3 | L/D: 5 | LU (mm): 38.0 | LCF (mm): 48.9 | LUX (mm): 51.9 | OAL (mm): 118 | DCON (mm): 8.0 | Stock: Yes
MDF0740H3DDC (mm): 7.4 | L/D: 3 | LU (mm): 22.2 | LCF (mm): 33.3 | LUX (mm): 36.3 | OAL (mm): 94 | DCON (mm): 8.0 | Stock: Yes
MDF0740H5DDC (mm): 7.4 | L/D: 5 | LU (mm): 38.5 | LCF (mm): 49.6 | LUX (mm): 52.6 | OAL (mm): 118 | DCON (mm): 8.0 | Stock: Yes
MDF0750H3DDC (mm): 7.5 | L/D: 3 | LU (mm): 22.6 | LCF (mm): 33.8 | LUX (mm): 36.8 | OAL (mm): 94 | DCON (mm): 8.0 | Stock: Yes
MDF0750H5DDC (mm): 7.5 | L/D: 5 | LU (mm): 39.1 | LCF (mm): 50.3 | LUX (mm): 53.3 | OAL (mm): 118 | DCON (mm): 8.0 | Stock: Yes
MDF0760H3DDC (mm): 7.6 | L/D: 3 | LU (mm): 22.8 | LCF (mm): 34.2 | LUX (mm): 37.2 | OAL (mm): 94 | DCON (mm): 8.0 | Stock: Yes
MDF0760H5DDC (mm): 7.6 | L/D: 5 | LU (mm): 39.5 | LCF (mm): 50.9 | LUX (mm): 53.9 | OAL (mm): 118 | DCON (mm): 8.0 | Stock: Yes
MDF0770H3DDC (mm): 7.7 | L/D: 3 | LU (mm): 23.2 | LCF (mm): 34.7 | LUX (mm): 37.7 | OAL (mm): 94 | DCON (mm): 8.0 | Stock: Yes
MDF0770H5DDC (mm): 7.7 | L/D: 5 | LU (mm): 40.1 | LCF (mm): 51.6 | LUX (mm): 54.6 | OAL (mm): 118 | DCON (mm): 8.0 | Stock: Yes
MDF0780H3DDC (mm): 7.8 | L/D: 3 | LU (mm): 23.4 | LCF (mm): 35.1 | LUX (mm): 38.1 | OAL (mm): 94 | DCON (mm): 8.0 | Stock: Yes
MDF0780H5DDC (mm): 7.8 | L/D: 5 | LU (mm): 40.6 | LCF (mm): 52.3 | LUX (mm): 55.3 | OAL (mm): 118 | DCON (mm): 8.0 | Stock: Yes
MDF0790H3DDC (mm): 7.9 | L/D: 3 | LU (mm): 23.8 | LCF (mm): 35.6 | LUX (mm): 38.6 | OAL (mm): 94 | DCON (mm): 8.0 | Stock: Yes
MDF0790H5DDC (mm): 7.9 | L/D: 5 | LU (mm): 41.1 | LCF (mm): 52.9 | LUX (mm): 55.9 | OAL (mm): 118 | DCON (mm): 8.0 | Stock: Yes
MDF0800H3DDC (mm): 8.0 | L/D: 3 | LU (mm): 24.0 | LCF (mm): 36.0 | LUX (mm): 39.0 | OAL (mm): 94 | DCON (mm): 8.0 | Stock: Yes
MDF0800H5DDC (mm): 8.0 | L/D: 5 | LU (mm): 41.6 | LCF (mm): 53.6 | LUX (mm): 56.6 | OAL (mm): 118 | DCON (mm): 8.0 | Stock: Yes
MDF0810H3DDC (mm): 8.1 | L/D: 3 | LU (mm): 24.4 | LCF (mm): 36.5 | LUX (mm): 39.5 | OAL (mm): 100 | DCON (mm): 9.0 | Stock: Yes
MDF0810H5DDC (mm): 8.1 | L/D: 5 | LU (mm): 42.2 | LCF (mm): 54.3 | LUX (mm): 57.3 | OAL (mm): 127 | DCON (mm): 9.0 | Stock: Yes
MDF0820H3DDC (mm): 8.2 | L/D: 3 | LU (mm): 24.6 | LCF (mm): 36.9 | LUX (mm): 39.9 | OAL (mm): 100 | DCON (mm): 9.0 | Stock: Yes
MDF0820H5DDC (mm): 8.2 | L/D: 5 | LU (mm): 42.6 | LCF (mm): 54.9 | LUX (mm): 57.9 | OAL (mm): 127 | DCON (mm): 9.0 | Stock: Yes
MDF0830H3DDC (mm): 8.3 | L/D: 3 | LU (mm): 25.0 | LCF (mm): 37.4 | LUX (mm): 40.4 | OAL (mm): 100 | DCON (mm): 9.0 | Stock: Yes
MDF0830H5DDC (mm): 8.3 | L/D: 5 | LU (mm): 43.2 | LCF (mm): 55.6 | LUX (mm): 58.6 | OAL (mm): 127 | DCON (mm): 9.0 | Stock: Yes
MDF0840H3DDC (mm): 8.4 | L/D: 3 | LU (mm): 25.2 | LCF (mm): 37.8 | LUX (mm): 40.8 | OAL (mm): 100 | DCON (mm): 9.0 | Stock: Yes
MDF0840H5DDC (mm): 8.4 | L/D: 5 | LU (mm): 43.7 | LCF (mm): 56.3 | LUX (mm): 59.3 | OAL (mm): 127 | DCON (mm): 9.0 | Stock: Yes
MDF0850H3DDC (mm): 8.5 | L/D: 3 | LU (mm): 25.6 | LCF (mm): 38.3 | LUX (mm): 41.3 | OAL (mm): 100 | DCON (mm): 9.0 | Stock: Yes
MDF0850H5DDC (mm): 8.5 | L/D: 5 | LU (mm): 44.3 | LCF (mm): 57.0 | LUX (mm): 60.0 | OAL (mm): 127 | DCON (mm): 9.0 | Stock: Yes
MDF0860H3DDC (mm): 8.6 | L/D: 3 | LU (mm): 25.8 | LCF (mm): 38.7 | LUX (mm): 41.7 | OAL (mm): 100 | DCON (mm): 9.0 | Stock: Yes
MDF0860H5DDC (mm): 8.6 | L/D: 5 | LU (mm): 44.7 | LCF (mm): 57.6 | LUX (mm): 60.6 | OAL (mm): 127 | DCON (mm): 9.0 | Stock: Yes
MDF0870H3DDC (mm): 8.7 | L/D: 3 | LU (mm): 26.2 | LCF (mm): 39.2 | LUX (mm): 42.2 | OAL (mm): 100 | DCON (mm): 9.0 | Stock: Yes
MDF0870H5DDC (mm): 8.7 | L/D: 5 | LU (mm): 45.3 | LCF (mm): 58.3 | LUX (mm): 61.3 | OAL (mm): 127 | DCON (mm): 9.0 | Stock: Yes
MDF0880H3DDC (mm): 8.8 | L/D: 3 | LU (mm): 26.4 | LCF (mm): 39.6 | LUX (mm): 42.6 | OAL (mm): 100 | DCON (mm): 9.0 | Stock: Yes
MDF0880H5DDC (mm): 8.8 | L/D: 5 | LU (mm): 45.8 | LCF (mm): 59.0 | LUX (mm): 62.0 | OAL (mm): 127 | DCON (mm): 9.0 | Stock: Yes
MDF0890H3DDC (mm): 8.9 | L/D: 3 | LU (mm): 26.8 | LCF (mm): 40.1 | LUX (mm): 43.1 | OAL (mm): 100 | DCON (mm): 9.0 | Stock: Yes
MDF0890H5DDC (mm): 8.9 | L/D: 5 | LU (mm): 46.3 | LCF (mm): 59.6 | LUX (mm): 62.6 | OAL (mm): 127 | DCON (mm): 9.0 | Stock: Yes
MDF0900H3DDC (mm): 9.0 | L/D: 3 | LU (mm): 27.0 | LCF (mm): 40.5 | LUX (mm): 43.5 | OAL (mm): 100 | DCON (mm): 9.0 | Stock: Yes
MDF0900H5DDC (mm): 9.0 | L/D: 5 | LU (mm): 46.8 | LCF (mm): 60.3 | LUX (mm): 63.3 | OAL (mm): 127 | DCON (mm): 9.0 | Stock: Yes
MDF0910H3DDC (mm): 9.1 | L/D: 3 | LU (mm): 27.4 | LCF (mm): 41.0 | LUX (mm): 44.0 | OAL (mm): 106 | DCON (mm): 10.0 | Stock: Yes
MDF0910H5DDC (mm): 9.1 | L/D: 5 | LU (mm): 47.4 | LCF (mm): 61.0 | LUX (mm): 64.0 | OAL (mm): 136 | DCON (mm): 10.0 | Stock: Yes
MDF0920H3DDC (mm): 9.2 | L/D: 3 | LU (mm): 27.6 | LCF (mm): 41.4 | LUX (mm): 44.4 | OAL (mm): 106 | DCON (mm): 10.0 | Stock: Yes
MDF0920H5DDC (mm): 9.2 | L/D: 5 | LU (mm): 47.8 | LCF (mm): 61.6 | LUX (mm): 64.6 | OAL (mm): 136 | DCON (mm): 10.0 | Stock: Yes
MDF0930H3DDC (mm): 9.3 | L/D: 3 | LU (mm): 28.0 | LCF (mm): 41.9 | LUX (mm): 44.9 | OAL (mm): 106 | DCON (mm): 10.0 | Stock: Yes
MDF0930H5DDC (mm): 9.3 | L/D: 5 | LU (mm): 48.4 | LCF (mm): 62.3 | LUX (mm): 65.3 | OAL (mm): 136 | DCON (mm): 10.0 | Stock: Yes
MDF0940H3DDC (mm): 9.4 | L/D: 3 | LU (mm): 28.2 | LCF (mm): 42.3 | LUX (mm): 45.3 | OAL (mm): 106 | DCON (mm): 10.0 | Stock: Yes
MDF0940H5DDC (mm): 9.4 | L/D: 5 | LU (mm): 48.9 | LCF (mm): 63.0 | LUX (mm): 66.0 | OAL (mm): 136 | DCON (mm): 10.0 | Stock: Yes
MDF0950H3DDC (mm): 9.5 | L/D: 3 | LU (mm): 28.6 | LCF (mm): 42.8 | LUX (mm): 45.8 | OAL (mm): 106 | DCON (mm): 10.0 | Stock: Yes
MDF0950H5DDC (mm): 9.5 | L/D: 5 | LU (mm): 49.5 | LCF (mm): 63.7 | LUX (mm): 66.7 | OAL (mm): 136 | DCON (mm): 10.0 | Stock: Yes
MDF0960H3DDC (mm): 9.6 | L/D: 3 | LU (mm): 28.8 | LCF (mm): 43.2 | LUX (mm): 46.2 | OAL (mm): 106 | DCON (mm): 10.0 | Stock: Yes
MDF0960H5DDC (mm): 9.6 | L/D: 5 | LU (mm): 49.9 | LCF (mm): 64.3 | LUX (mm): 67.3 | OAL (mm): 136 | DCON (mm): 10.0 | Stock: Yes
MDF0970H3DDC (mm): 9.7 | L/D: 3 | LU (mm): 29.2 | LCF (mm): 43.7 | LUX (mm): 46.7 | OAL (mm): 106 | DCON (mm): 10.0 | Stock: Yes
MDF0970H5DDC (mm): 9.7 | L/D: 5 | LU (mm): 50.5 | LCF (mm): 65.0 | LUX (mm): 68.0 | OAL (mm): 136 | DCON (mm): 10.0 | Stock: Yes
MDF0980H3DDC (mm): 9.8 | L/D: 3 | LU (mm): 29.4 | LCF (mm): 44.1 | LUX (mm): 47.1 | OAL (mm): 106 | DCON (mm): 10.0 | Stock: Yes
MDF0980H5DDC (mm): 9.8 | L/D: 5 | LU (mm): 51.0 | LCF (mm): 65.7 | LUX (mm): 68.7 | OAL (mm): 136 | DCON (mm): 10.0 | Stock: Yes
MDF0990H3DDC (mm): 9.9 | L/D: 3 | LU (mm): 29.8 | LCF (mm): 44.6 | LUX (mm): 47.6 | OAL (mm): 106 | DCON (mm): 10.0 | Stock: Yes
MDF0990H5DDC (mm): 9.9 | L/D: 5 | LU (mm): 51.5 | LCF (mm): 66.3 | LUX (mm): 69.3 | OAL (mm): 136 | DCON (mm): 10.0 | Stock: Yes
MDF1000H3DDC (mm): 10.0 | L/D: 3 | LU (mm): 30.0 | LCF (mm): 45.0 | LUX (mm): 48.0 | OAL (mm): 106 | DCON (mm): 10.0 | Stock: Yes
MDF1000H5DDC (mm): 10.0 | L/D: 5 | LU (mm): 52.0 | LCF (mm): 67.0 | LUX (mm): 70.0 | OAL (mm): 136 | DCON (mm): 10.0 | Stock: Yes
MDF1010H3DDC (mm): 10.1 | L/D: 3 | LU (mm): 30.4 | LCF (mm): 45.5 | LUX (mm): 48.5 | OAL (mm): 116 | DCON (mm): 11.0 | Stock: Yes
MDF1010H5DDC (mm): 10.1 | L/D: 5 | LU (mm): 52.6 | LCF (mm): 67.7 | LUX (mm): 70.7 | OAL (mm): 149 | DCON (mm): 11.0 | Stock: Yes
MDF1020H3DDC (mm): 10.2 | L/D: 3 | LU (mm): 30.6 | LCF (mm): 45.9 | LUX (mm): 48.9 | OAL (mm): 116 | DCON (mm): 11.0 | Stock: Yes
MDF1020H5DDC (mm): 10.2 | L/D: 5 | LU (mm): 53.0 | LCF (mm): 68.3 | LUX (mm): 71.3 | OAL (mm): 149 | DCON (mm): 11.0 | Stock: Yes
MDF1030H3DDC (mm): 10.3 | L/D: 3 | LU (mm): 31.0 | LCF (mm): 46.4 | LUX (mm): 49.4 | OAL (mm): 116 | DCON (mm): 11.0 | Stock: Yes
MDF1030H5DDC (mm): 10.3 | L/D: 5 | LU (mm): 53.6 | LCF (mm): 69.0 | LUX (mm): 72.0 | OAL (mm): 149 | DCON (mm): 11.0 | Stock: Yes
MDF1040H3DDC (mm): 10.4 | L/D: 3 | LU (mm): 31.2 | LCF (mm): 46.8 | LUX (mm): 49.8 | OAL (mm): 116 | DCON (mm): 11.0 | Stock: Yes
MDF1040H5DDC (mm): 10.4 | L/D: 5 | LU (mm): 54.1 | LCF (mm): 69.7 | LUX (mm): 72.7 | OAL (mm): 149 | DCON (mm): 11.0 | Stock: Yes
MDF1050H3DDC (mm): 10.5 | L/D: 3 | LU (mm): 31.6 | LCF (mm): 47.3 | LUX (mm): 50.3 | OAL (mm): 116 | DCON (mm): 11.0 | Stock: Yes
MDF1050H5DDC (mm): 10.5 | L/D: 5 | LU (mm): 54.7 | LCF (mm): 70.4 | LUX (mm): 73.4 | OAL (mm): 149 | DCON (mm): 11.0 | Stock: Yes
MDF1060H3DDC (mm): 10.6 | L/D: 3 | LU (mm): 31.8 | LCF (mm): 47.7 | LUX (mm): 50.7 | OAL (mm): 116 | DCON (mm): 11.0 | Stock: Yes
MDF1060H5DDC (mm): 10.6 | L/D: 5 | LU (mm): 55.1 | LCF (mm): 71.0 | LUX (mm): 74.0 | OAL (mm): 149 | DCON (mm): 11.0 | Stock: Yes
MDF1070H3DDC (mm): 10.7 | L/D: 3 | LU (mm): 32.2 | LCF (mm): 48.2 | LUX (mm): 51.2 | OAL (mm): 116 | DCON (mm): 11.0 | Stock: Yes
MDF1070H5DDC (mm): 10.7 | L/D: 5 | LU (mm): 55.7 | LCF (mm): 71.7 | LUX (mm): 74.7 | OAL (mm): 149 | DCON (mm): 11.0 | Stock: Yes
MDF1080H3DDC (mm): 10.8 | L/D: 3 | LU (mm): 32.4 | LCF (mm): 48.6 | LUX (mm): 51.6 | OAL (mm): 116 | DCON (mm): 11.0 | Stock: Yes
MDF1080H5DDC (mm): 10.8 | L/D: 5 | LU (mm): 56.2 | LCF (mm): 72.4 | LUX (mm): 75.4 | OAL (mm): 149 | DCON (mm): 11.0 | Stock: Yes
MDF1090H3DDC (mm): 10.9 | L/D: 3 | LU (mm): 32.8 | LCF (mm): 49.1 | LUX (mm): 52.1 | OAL (mm): 116 | DCON (mm): 11.0 | Stock: Yes
MDF1090H5DDC (mm): 10.9 | L/D: 5 | LU (mm): 56.7 | LCF (mm): 73.0 | LUX (mm): 76.0 | OAL (mm): 149 | DCON (mm): 11.0 | Stock: Yes
MDF1100H3DDC (mm): 11.0 | L/D: 3 | LU (mm): 33.0 | LCF (mm): 49.5 | LUX (mm): 52.5 | OAL (mm): 116 | DCON (mm): 11.0 | Stock: Yes
MDF1100H5DDC (mm): 11.0 | L/D: 5 | LU (mm): 57.2 | LCF (mm): 73.7 | LUX (mm): 76.7 | OAL (mm): 149 | DCON (mm): 11.0 | Stock: Yes
MDF1110H3DDC (mm): 11.1 | L/D: 3 | LU (mm): 33.4 | LCF (mm): 50.0 | LUX (mm): 53.0 | OAL (mm): 122 | DCON (mm): 12.0 | Stock: Yes
MDF1110H5DDC (mm): 11.1 | L/D: 5 | LU (mm): 57.8 | LCF (mm): 74.4 | LUX (mm): 77.4 | OAL (mm): 158 | DCON (mm): 12.0 | Stock: Yes
MDF1120H3DDC (mm): 11.2 | L/D: 3 | LU (mm): 33.6 | LCF (mm): 50.4 | LUX (mm): 53.4 | OAL (mm): 122 | DCON (mm): 12.0 | Stock: Yes
MDF1120H5DDC (mm): 11.2 | L/D: 5 | LU (mm): 58.2 | LCF (mm): 75.0 | LUX (mm): 78.0 | OAL (mm): 158 | DCON (mm): 12.0 | Stock: Yes
MDF1130H3DDC (mm): 11.3 | L/D: 3 | LU (mm): 34.0 | LCF (mm): 50.9 | LUX (mm): 53.9 | OAL (mm): 122 | DCON (mm): 12.0 | Stock: Yes
MDF1130H5DDC (mm): 11.3 | L/D: 5 | LU (mm): 58.8 | LCF (mm): 75.7 | LUX (mm): 78.7 | OAL (mm): 158 | DCON (mm): 12.0 | Stock: Yes
MDF1140H3DDC (mm): 11.4 | L/D: 3 | LU (mm): 34.2 | LCF (mm): 51.3 | LUX (mm): 54.3 | OAL (mm): 122 | DCON (mm): 12.0 | Stock: Yes
MDF1140H5DDC (mm): 11.4 | L/D: 5 | LU (mm): 59.3 | LCF (mm): 76.4 | LUX (mm): 79.4 | OAL (mm): 158 | DCON (mm): 12.0 | Stock: Yes
MDF1150H3DDC (mm): 11.5 | L/D: 3 | LU (mm): 34.6 | LCF (mm): 51.8 | LUX (mm): 54.8 | OAL (mm): 122 | DCON (mm): 12.0 | Stock: Yes
MDF1150H5DDC (mm): 11.5 | L/D: 5 | LU (mm): 59.9 | LCF (mm): 77.1 | LUX (mm): 80.1 | OAL (mm): 158 | DCON (mm): 12.0 | Stock: Yes
MDF1160H3DDC (mm): 11.6 | L/D: 3 | LU (mm): 34.8 | LCF (mm): 52.2 | LUX (mm): 55.2 | OAL (mm): 122 | DCON (mm): 12.0 | Stock: Yes
MDF1160H5DDC (mm): 11.6 | L/D: 5 | LU (mm): 60.3 | LCF (mm): 77.7 | LUX (mm): 80.7 | OAL (mm): 158 | DCON (mm): 12.0 | Stock: Yes
MDF1170H3DDC (mm): 11.7 | L/D: 3 | LU (mm): 35.2 | LCF (mm): 52.7 | LUX (mm): 55.7 | OAL (mm): 122 | DCON (mm): 12.0 | Stock: Yes
MDF1170H5DDC (mm): 11.7 | L/D: 5 | LU (mm): 60.9 | LCF (mm): 78.4 | LUX (mm): 81.4 | OAL (mm): 158 | DCON (mm): 12.0 | Stock: Yes
MDF1180H3DDC (mm): 11.8 | L/D: 3 | LU (mm): 35.4 | LCF (mm): 53.1 | LUX (mm): 56.1 | OAL (mm): 122 | DCON (mm): 12.0 | Stock: Yes
MDF1180H5DDC (mm): 11.8 | L/D: 5 | LU (mm): 61.4 | LCF (mm): 79.1 | LUX (mm): 82.1 | OAL (mm): 158 | DCON (mm): 12.0 | Stock: Yes
MDF1190H3DDC (mm): 11.9 | L/D: 3 | LU (mm): 35.8 | LCF (mm): 53.6 | LUX (mm): 56.6 | OAL (mm): 122 | DCON (mm): 12.0 | Stock: Yes
MDF1190H5DDC (mm): 11.9 | L/D: 5 | LU (mm): 61.9 | LCF (mm): 79.7 | LUX (mm): 82.7 | OAL (mm): 158 | DCON (mm): 12.0 | Stock: Yes
MDF1200H3DDC (mm): 12.0 | L/D: 3 | LU (mm): 36.0 | LCF (mm): 54.0 | LUX (mm): 57.0 | OAL (mm): 122 | DCON (mm): 12.0 | Stock: Yes
MDF1200H5DDC (mm): 12.0 | L/D: 5 | LU (mm): 62.4 | LCF (mm): 80.4 | LUX (mm): 83.4 | OAL (mm): 158 | DCON (mm): 12.0 | Stock: Yes
MDF1250H3DDC (mm): 12.5 | L/D: 3 | LU (mm): 37.6 | LCF (mm): 56.3 | LUX (mm): 59.3 | OAL (mm): 128 | DCON (mm): 13.0 | Stock: Yes
MDF1250H5DDC (mm): 12.5 | L/D: 5 | LU (mm): 65.1 | LCF (mm): 83.8 | LUX (mm): 86.8 | OAL (mm): 167 | DCON (mm): 13.0 | Stock: Yes
MDF1300H3DDC (mm): 13.0 | L/D: 3 | LU (mm): 39.0 | LCF (mm): 58.5 | LUX (mm): 61.5 | OAL (mm): 128 | DCON (mm): 13.0 | Stock: Yes
MDF1300H5DDC (mm): 13.0 | L/D: 5 | LU (mm): 67.6 | LCF (mm): 87.1 | LUX (mm): 90.1 | OAL (mm): 167 | DCON (mm): 13.0 | Stock: Yes
MDF1350H3DDC (mm): 13.5 | L/D: 3 | LU (mm): 40.6 | LCF (mm): 60.8 | LUX (mm): 63.8 | OAL (mm): 134 | DCON (mm): 14.0 | Stock: Yes
MDF1350H5DDC (mm): 13.5 | L/D: 5 | LU (mm): 70.3 | LCF (mm): 90.5 | LUX (mm): 93.5 | OAL (mm): 176 | DCON (mm): 14.0 | Stock: Yes
MDF1400H3DDC (mm): 14.0 | L/D: 3 | LU (mm): 42.0 | LCF (mm): 63.0 | LUX (mm): 66.0 | OAL (mm): 134 | DCON (mm): 14.0 | Stock: Yes
MDF1400H5DDC (mm): 14.0 | L/D: 5 | LU (mm): 72.8 | LCF (mm): 93.8 | LUX (mm): 96.8 | OAL (mm): 176 | DCON (mm): 14.0 | Stock: Yes
MDF1450H3DDC (mm): 14.5 | L/D: 3 | LU (mm): 43.6 | LCF (mm): 65.3 | LUX (mm): 68.3 | OAL (mm): 140 | DCON (mm): 15.0 | Stock: Yes
MDF1450H5DDC (mm): 14.5 | L/D: 5 | LU (mm): 75.5 | LCF (mm): 97.2 | LUX (mm): 100.2 | OAL (mm): 185 | DCON (mm): 15.0 | Stock: Yes
MDF1500H3DDC (mm): 15.0 | L/D: 3 | LU (mm): 45.0 | LCF (mm): 67.5 | LUX (mm): 70.5 | OAL (mm): 140 | DCON (mm): 15.0 | Stock: Yes
MDF1500H5DDC (mm): 15.0 | L/D: 5 | LU (mm): 78.0 | LCF (mm): 100.5 | LUX (mm): 103.5 | OAL (mm): 185 | DCON (mm): 15.0 | Stock: Yes
MDF1550H3DDC (mm): 15.5 | L/D: 3 | LU (mm): 46.6 | LCF (mm): 69.8 | LUX (mm): 72.8 | OAL (mm): 146 | DCON (mm): 16.0 | Stock: Yes
MDF1550H5DDC (mm): 15.5 | L/D: 5 | LU (mm): 80.7 | LCF (mm): 103.9 | LUX (mm): 106.9 | OAL (mm): 194 | DCON (mm): 16.0 | Stock: Yes
MDF1600H3DDC (mm): 16.0 | L/D: 3 | LU (mm): 48.0 | LCF (mm): 72.0 | LUX (mm): 75.0 | OAL (mm): 146 | DCON (mm): 16.0 | Stock: Yes
MDF1600H5DDC (mm): 16.0 | L/D: 5 | LU (mm): 83.2 | LCF (mm): 107.2 | LUX (mm): 110.2 | OAL (mm): 194 | DCON (mm): 16.0 | Stock: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Cutting Tools →
