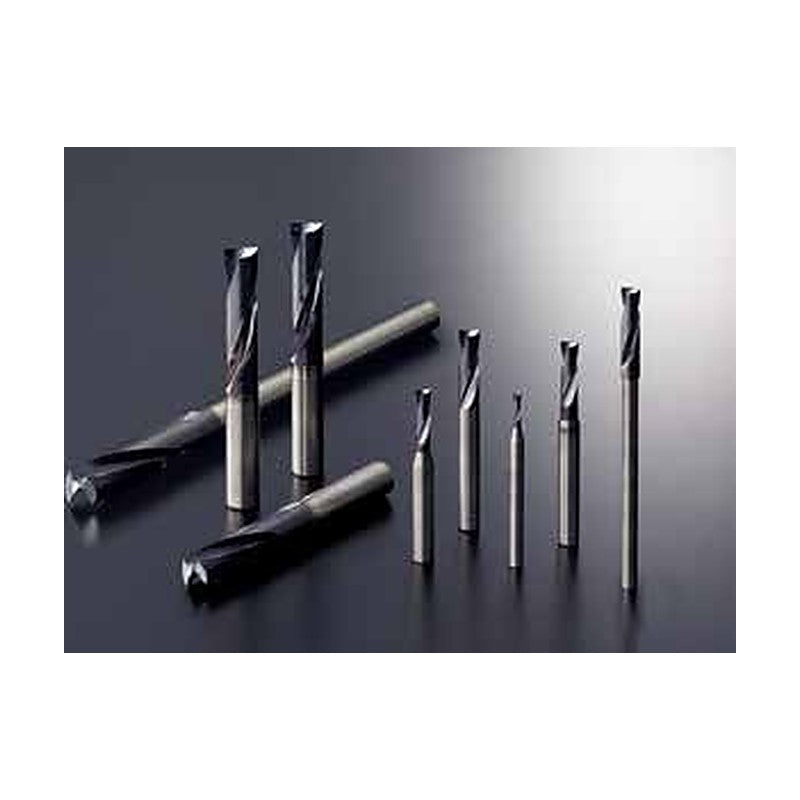

Sumitomo Electric Hardmetal Flat Multi Drill MDF-L Type Long Shank (External Coolant)

Sumitomo Electric Hardmetal Flat Multi Drill MDF-L Type Long Shank (External Coolant)

Long-shank version of the flat multi drill for flat counterboring, hole enlarging and burr control with long overhangs.

Key features

  • 180 deg flat point for counterboring, inclined and curved surfaces
  • Effective against exit burrs
  • Thick RS thinning for rigidity
  • Grade ACF75
  • Long shank

Specifications

Coolant External
Point angle 180 deg
Grade ACF75
MDF0300L2D DC (mm): 3.0 | L/D: 2 | LU (mm): 9.0 | LCF (mm): 13.5 | LUX (mm): 30.0 | OAL (mm): 100 | DCON (mm): 6.0 | Stock: Yes
MDF0310L2D DC (mm): 3.1 | L/D: 2 | LU (mm): 9.4 | LCF (mm): 14.0 | LUX (mm): 31.0 | OAL (mm): 100 | DCON (mm): 6.0 | Stock: Yes
MDF0320L2D DC (mm): 3.2 | L/D: 2 | LU (mm): 9.6 | LCF (mm): 14.4 | LUX (mm): 32.0 | OAL (mm): 100 | DCON (mm): 6.0 | Stock: Yes
MDF0330L2D DC (mm): 3.3 | L/D: 2 | LU (mm): 10.0 | LCF (mm): 14.9 | LUX (mm): 33.0 | OAL (mm): 100 | DCON (mm): 6.0 | Stock: Yes
MDF0340L2D DC (mm): 3.4 | L/D: 2 | LU (mm): 10.2 | LCF (mm): 15.3 | LUX (mm): 34.0 | OAL (mm): 100 | DCON (mm): 6.0 | Stock: Yes
MDF0350L2D DC (mm): 3.5 | L/D: 2 | LU (mm): 10.6 | LCF (mm): 15.8 | LUX (mm): 35.0 | OAL (mm): 100 | DCON (mm): 6.0 | Stock: Yes
MDF0360L2D DC (mm): 3.6 | L/D: 2 | LU (mm): 10.8 | LCF (mm): 16.2 | LUX (mm): 36.0 | OAL (mm): 100 | DCON (mm): 6.0 | Stock: Yes
MDF0370L2D DC (mm): 3.7 | L/D: 2 | LU (mm): 11.2 | LCF (mm): 16.7 | LUX (mm): 37.0 | OAL (mm): 100 | DCON (mm): 6.0 | Stock: Yes
MDF0380L2D DC (mm): 3.8 | L/D: 2 | LU (mm): 11.4 | LCF (mm): 17.1 | LUX (mm): 38.0 | OAL (mm): 100 | DCON (mm): 6.0 | Stock: Yes
MDF0390L2D DC (mm): 3.9 | L/D: 2 | LU (mm): 11.8 | LCF (mm): 17.6 | LUX (mm): 39.0 | OAL (mm): 100 | DCON (mm): 6.0 | Stock: Yes
MDF0400L2D DC (mm): 4.0 | L/D: 2 | LU (mm): 12.0 | LCF (mm): 18.0 | LUX (mm): 40.0 | OAL (mm): 100 | DCON (mm): 6.0 | Stock: Yes
MDF0410L2D DC (mm): 4.1 | L/D: 2 | LU (mm): 12.4 | LCF (mm): 18.5 | LUX (mm): 41.0 | OAL (mm): 100 | DCON (mm): 6.0 | Stock: Yes
MDF0420L2D DC (mm): 4.2 | L/D: 2 | LU (mm): 12.6 | LCF (mm): 18.9 | LUX (mm): 42.0 | OAL (mm): 100 | DCON (mm): 6.0 | Stock: Yes
MDF0430L2D DC (mm): 4.3 | L/D: 2 | LU (mm): 13.0 | LCF (mm): 19.4 | LUX (mm): 43.0 | OAL (mm): 100 | DCON (mm): 6.0 | Stock: Yes
MDF0440L2D DC (mm): 4.4 | L/D: 2 | LU (mm): 13.2 | LCF (mm): 19.8 | LUX (mm): 44.0 | OAL (mm): 100 | DCON (mm): 6.0 | Stock: Yes
MDF0450L2D DC (mm): 4.5 | L/D: 2 | LU (mm): 13.6 | LCF (mm): 20.3 | LUX (mm): 45.0 | OAL (mm): 100 | DCON (mm): 6.0 | Stock: Yes
MDF0460L2D DC (mm): 4.6 | L/D: 2 | LU (mm): 13.8 | LCF (mm): 20.7 | LUX (mm): 46.0 | OAL (mm): 100 | DCON (mm): 6.0 | Stock: Yes
MDF0470L2D DC (mm): 4.7 | L/D: 2 | LU (mm): 14.2 | LCF (mm): 21.2 | LUX (mm): 47.0 | OAL (mm): 100 | DCON (mm): 6.0 | Stock: Yes
MDF0480L2D DC (mm): 4.8 | L/D: 2 | LU (mm): 14.4 | LCF (mm): 21.6 | LUX (mm): 48.0 | OAL (mm): 100 | DCON (mm): 6.0 | Stock: Yes
MDF0490L2D DC (mm): 4.9 | L/D: 2 | LU (mm): 14.8 | LCF (mm): 22.1 | LUX (mm): 49.0 | OAL (mm): 100 | DCON (mm): 6.0 | Stock: Yes
MDF0500L2D DC (mm): 5.0 | L/D: 2 | LU (mm): 15.0 | LCF (mm): 22.5 | LUX (mm): 50.0 | OAL (mm): 100 | DCON (mm): 6.0 | Stock: Yes
MDF0510L2D DC (mm): 5.1 | L/D: 2 | LU (mm): 15.4 | LCF (mm): 23.0 | LUX (mm): 51.0 | OAL (mm): 110 | DCON (mm): 6.0 | Stock: Yes
MDF0520L2D DC (mm): 5.2 | L/D: 2 | LU (mm): 15.6 | LCF (mm): 23.4 | LUX (mm): 52.0 | OAL (mm): 110 | DCON (mm): 6.0 | Stock: Yes
MDF0530L2D DC (mm): 5.3 | L/D: 2 | LU (mm): 16.0 | LCF (mm): 23.9 | LUX (mm): 53.0 | OAL (mm): 110 | DCON (mm): 6.0 | Stock: Yes
MDF0540L2D DC (mm): 5.4 | L/D: 2 | LU (mm): 16.2 | LCF (mm): 24.3 | LUX (mm): 54.0 | OAL (mm): 110 | DCON (mm): 6.0 | Stock: Yes
MDF0550L2D DC (mm): 5.5 | L/D: 2 | LU (mm): 16.6 | LCF (mm): 24.8 | LUX (mm): 55.0 | OAL (mm): 110 | DCON (mm): 6.0 | Stock: Yes
MDF0560L2D DC (mm): 5.6 | L/D: 2 | LU (mm): 16.8 | LCF (mm): 25.2 | LUX (mm): 56.0 | OAL (mm): 110 | DCON (mm): 6.0 | Stock: Yes
MDF0570L2D DC (mm): 5.7 | L/D: 2 | LU (mm): 17.2 | LCF (mm): 25.7 | LUX (mm): 57.0 | OAL (mm): 110 | DCON (mm): 6.0 | Stock: Yes
MDF0580L2D DC (mm): 5.8 | L/D: 2 | LU (mm): 17.4 | LCF (mm): 26.1 | LUX (mm): 58.0 | OAL (mm): 110 | DCON (mm): 6.0 | Stock: Yes
MDF0590L2D DC (mm): 5.9 | L/D: 2 | LU (mm): 17.8 | LCF (mm): 26.6 | LUX (mm): 59.0 | OAL (mm): 110 | DCON (mm): 6.0 | Stock: Yes
MDF0600L2D DC (mm): 6.0 | L/D: 2 | LU (mm): 18.0 | LCF (mm): 27.0 | LUX (mm): 60.0 | OAL (mm): 110 | DCON (mm): 6.0 | Stock: Yes
MDF0610L2D DC (mm): 6.1 | L/D: 2 | LU (mm): 18.4 | LCF (mm): 27.5 | LUX (mm): 30.5 | OAL (mm): 120 | DCON (mm): 6.0 | Stock: Yes
MDF0620L2D DC (mm): 6.2 | L/D: 2 | LU (mm): 18.6 | LCF (mm): 27.9 | LUX (mm): 30.9 | OAL (mm): 120 | DCON (mm): 6.0 | Stock: Yes
MDF0630L2D DC (mm): 6.3 | L/D: 2 | LU (mm): 19.0 | LCF (mm): 28.4 | LUX (mm): 31.4 | OAL (mm): 120 | DCON (mm): 6.0 | Stock: Yes
MDF0640L2D DC (mm): 6.4 | L/D: 2 | LU (mm): 19.2 | LCF (mm): 28.8 | LUX (mm): 31.8 | OAL (mm): 120 | DCON (mm): 6.0 | Stock: Yes
MDF0650L2D DC (mm): 6.5 | L/D: 2 | LU (mm): 19.6 | LCF (mm): 29.3 | LUX (mm): 32.3 | OAL (mm): 120 | DCON (mm): 6.0 | Stock: Yes
MDF0660L2D DC (mm): 6.6 | L/D: 2 | LU (mm): 19.8 | LCF (mm): 29.7 | LUX (mm): 32.7 | OAL (mm): 120 | DCON (mm): 6.0 | Stock: Yes
MDF0670L2D DC (mm): 6.7 | L/D: 2 | LU (mm): 20.2 | LCF (mm): 30.2 | LUX (mm): 33.2 | OAL (mm): 120 | DCON (mm): 6.0 | Stock: Yes
MDF0680L2D DC (mm): 6.8 | L/D: 2 | LU (mm): 20.4 | LCF (mm): 30.6 | LUX (mm): 33.6 | OAL (mm): 120 | DCON (mm): 6.0 | Stock: Yes
MDF0690L2D DC (mm): 6.9 | L/D: 2 | LU (mm): 20.8 | LCF (mm): 31.1 | LUX (mm): 34.1 | OAL (mm): 120 | DCON (mm): 6.0 | Stock: Yes
MDF0700L2D DC (mm): 7.0 | L/D: 2 | LU (mm): 21.0 | LCF (mm): 31.5 | LUX (mm): 34.5 | OAL (mm): 120 | DCON (mm): 6.0 | Stock: Yes
MDF0710L2D DC (mm): 7.1 | L/D: 2 | LU (mm): 21.4 | LCF (mm): 32.0 | LUX (mm): 35.0 | OAL (mm): 130 | DCON (mm): 6.0 | Stock: Yes
MDF0720L2D DC (mm): 7.2 | L/D: 2 | LU (mm): 21.6 | LCF (mm): 32.4 | LUX (mm): 35.4 | OAL (mm): 130 | DCON (mm): 6.0 | Stock: Yes
MDF0730L2D DC (mm): 7.3 | L/D: 2 | LU (mm): 22.0 | LCF (mm): 32.9 | LUX (mm): 35.9 | OAL (mm): 130 | DCON (mm): 6.0 | Stock: Yes
MDF0740L2D DC (mm): 7.4 | L/D: 2 | LU (mm): 22.2 | LCF (mm): 33.3 | LUX (mm): 36.3 | OAL (mm): 130 | DCON (mm): 6.0 | Stock: Yes
MDF0750L2D DC (mm): 7.5 | L/D: 2 | LU (mm): 22.6 | LCF (mm): 33.8 | LUX (mm): 36.8 | OAL (mm): 130 | DCON (mm): 6.0 | Stock: Yes
MDF0760L2D DC (mm): 7.6 | L/D: 2 | LU (mm): 22.8 | LCF (mm): 34.2 | LUX (mm): 37.2 | OAL (mm): 130 | DCON (mm): 6.0 | Stock: Yes
MDF0770L2D DC (mm): 7.7 | L/D: 2 | LU (mm): 23.2 | LCF (mm): 34.7 | LUX (mm): 37.7 | OAL (mm): 130 | DCON (mm): 6.0 | Stock: Yes
MDF0780L2D DC (mm): 7.8 | L/D: 2 | LU (mm): 23.4 | LCF (mm): 35.1 | LUX (mm): 38.1 | OAL (mm): 130 | DCON (mm): 6.0 | Stock: Yes
MDF0790L2D DC (mm): 7.9 | L/D: 2 | LU (mm): 23.8 | LCF (mm): 35.6 | LUX (mm): 38.6 | OAL (mm): 130 | DCON (mm): 6.0 | Stock: Yes
MDF0800L2D DC (mm): 8.0 | L/D: 2 | LU (mm): 24.0 | LCF (mm): 36.0 | LUX (mm): 80.0 | OAL (mm): 130 | DCON (mm): 8.0 | Stock: Yes
MDF0810L2D DC (mm): 8.1 | L/D: 2 | LU (mm): 24.4 | LCF (mm): 36.5 | LUX (mm): 39.5 | OAL (mm): 140 | DCON (mm): 8.0 | Stock: Yes
MDF0820L2D DC (mm): 8.2 | L/D: 2 | LU (mm): 24.6 | LCF (mm): 36.9 | LUX (mm): 39.9 | OAL (mm): 140 | DCON (mm): 8.0 | Stock: Yes
MDF0830L2D DC (mm): 8.3 | L/D: 2 | LU (mm): 25.0 | LCF (mm): 37.4 | LUX (mm): 40.4 | OAL (mm): 140 | DCON (mm): 8.0 | Stock: Yes
MDF0840L2D DC (mm): 8.4 | L/D: 2 | LU (mm): 25.2 | LCF (mm): 37.8 | LUX (mm): 40.8 | OAL (mm): 140 | DCON (mm): 8.0 | Stock: Yes
MDF0850L2D DC (mm): 8.5 | L/D: 2 | LU (mm): 25.6 | LCF (mm): 38.3 | LUX (mm): 41.3 | OAL (mm): 140 | DCON (mm): 8.0 | Stock: Yes
MDF0860L2D DC (mm): 8.6 | L/D: 2 | LU (mm): 25.8 | LCF (mm): 38.7 | LUX (mm): 41.7 | OAL (mm): 140 | DCON (mm): 8.0 | Stock: Yes
MDF0870L2D DC (mm): 8.7 | L/D: 2 | LU (mm): 26.2 | LCF (mm): 39.2 | LUX (mm): 42.2 | OAL (mm): 140 | DCON (mm): 8.0 | Stock: Yes
MDF0880L2D DC (mm): 8.8 | L/D: 2 | LU (mm): 26.4 | LCF (mm): 39.6 | LUX (mm): 42.6 | OAL (mm): 140 | DCON (mm): 8.0 | Stock: Yes
MDF0890L2D DC (mm): 8.9 | L/D: 2 | LU (mm): 26.8 | LCF (mm): 40.1 | LUX (mm): 43.1 | OAL (mm): 140 | DCON (mm): 8.0 | Stock: Yes
MDF0900L2D DC (mm): 9.0 | L/D: 2 | LU (mm): 27.0 | LCF (mm): 40.5 | LUX (mm): 43.5 | OAL (mm): 140 | DCON (mm): 8.0 | Stock: Yes
MDF0910L2D DC (mm): 9.1 | L/D: 2 | LU (mm): 27.4 | LCF (mm): 41.0 | LUX (mm): 44.0 | OAL (mm): 150 | DCON (mm): 8.0 | Stock: Yes
MDF0920L2D DC (mm): 9.2 | L/D: 2 | LU (mm): 27.6 | LCF (mm): 41.4 | LUX (mm): 44.4 | OAL (mm): 150 | DCON (mm): 8.0 | Stock: Yes
MDF0930L2D DC (mm): 9.3 | L/D: 2 | LU (mm): 28.0 | LCF (mm): 41.9 | LUX (mm): 44.9 | OAL (mm): 150 | DCON (mm): 8.0 | Stock: Yes
MDF0940L2D DC (mm): 9.4 | L/D: 2 | LU (mm): 28.2 | LCF (mm): 42.3 | LUX (mm): 45.3 | OAL (mm): 150 | DCON (mm): 8.0 | Stock: Yes
MDF0950L2D DC (mm): 9.5 | L/D: 2 | LU (mm): 28.6 | LCF (mm): 42.8 | LUX (mm): 45.8 | OAL (mm): 150 | DCON (mm): 8.0 | Stock: Yes
MDF0960L2D DC (mm): 9.6 | L/D: 2 | LU (mm): 28.8 | LCF (mm): 43.2 | LUX (mm): 46.2 | OAL (mm): 150 | DCON (mm): 8.0 | Stock: Yes
MDF0970L2D DC (mm): 9.7 | L/D: 2 | LU (mm): 29.2 | LCF (mm): 43.7 | LUX (mm): 46.7 | OAL (mm): 150 | DCON (mm): 8.0 | Stock: Yes
MDF0980L2D DC (mm): 9.8 | L/D: 2 | LU (mm): 29.4 | LCF (mm): 44.1 | LUX (mm): 47.1 | OAL (mm): 150 | DCON (mm): 8.0 | Stock: Yes
MDF0990L2D DC (mm): 9.9 | L/D: 2 | LU (mm): 29.8 | LCF (mm): 44.6 | LUX (mm): 47.6 | OAL (mm): 150 | DCON (mm): 8.0 | Stock: Yes
MDF1000L2D DC (mm): 10.0 | L/D: 2 | LU (mm): 30.0 | LCF (mm): 45.0 | LUX (mm): 100.0 | OAL (mm): 150 | DCON (mm): 10.0 | Stock: Yes
MDF1010L2D DC (mm): 10.1 | L/D: 2 | LU (mm): 30.4 | LCF (mm): 45.5 | LUX (mm): 48.5 | OAL (mm): 160 | DCON (mm): 10.0 | Stock: Yes
MDF1020L2D DC (mm): 10.2 | L/D: 2 | LU (mm): 30.6 | LCF (mm): 45.9 | LUX (mm): 48.9 | OAL (mm): 160 | DCON (mm): 10.0 | Stock: Yes
MDF1030L2D DC (mm): 10.3 | L/D: 2 | LU (mm): 31.0 | LCF (mm): 46.4 | LUX (mm): 49.4 | OAL (mm): 160 | DCON (mm): 10.0 | Stock: Yes
MDF1040L2D DC (mm): 10.4 | L/D: 2 | LU (mm): 31.2 | LCF (mm): 46.8 | LUX (mm): 49.8 | OAL (mm): 160 | DCON (mm): 10.0 | Stock: Yes
MDF1050L2D DC (mm): 10.5 | L/D: 2 | LU (mm): 31.6 | LCF (mm): 47.3 | LUX (mm): 50.3 | OAL (mm): 160 | DCON (mm): 10.0 | Stock: Yes
MDF1060L2D DC (mm): 10.6 | L/D: 2 | LU (mm): 31.8 | LCF (mm): 47.7 | LUX (mm): 50.7 | OAL (mm): 160 | DCON (mm): 10.0 | Stock: Yes
MDF1070L2D DC (mm): 10.7 | L/D: 2 | LU (mm): 32.2 | LCF (mm): 48.2 | LUX (mm): 51.2 | OAL (mm): 160 | DCON (mm): 10.0 | Stock: Yes
MDF1080L2D DC (mm): 10.8 | L/D: 2 | LU (mm): 32.4 | LCF (mm): 48.6 | LUX (mm): 51.6 | OAL (mm): 160 | DCON (mm): 10.0 | Stock: Yes
MDF1090L2D DC (mm): 10.9 | L/D: 2 | LU (mm): 32.8 | LCF (mm): 49.1 | LUX (mm): 52.1 | OAL (mm): 160 | DCON (mm): 10.0 | Stock: Yes
MDF1100L2D DC (mm): 11.0 | L/D: 2 | LU (mm): 33.0 | LCF (mm): 49.5 | LUX (mm): 52.5 | OAL (mm): 160 | DCON (mm): 10.0 | Stock: Yes
MDF1110L2D DC (mm): 11.1 | L/D: 2 | LU (mm): 33.4 | LCF (mm): 50.0 | LUX (mm): 53.0 | OAL (mm): 170 | DCON (mm): 10.0 | Stock: Yes
MDF1120L2D DC (mm): 11.2 | L/D: 2 | LU (mm): 33.6 | LCF (mm): 50.4 | LUX (mm): 53.4 | OAL (mm): 160 | DCON (mm): 10.0 | Stock: Yes
MDF1130L2D DC (mm): 11.3 | L/D: 2 | LU (mm): 34.0 | LCF (mm): 50.9 | LUX (mm): 53.9 | OAL (mm): 160 | DCON (mm): 10.0 | Stock: Yes
MDF1140L2D DC (mm): 11.4 | L/D: 2 | LU (mm): 34.2 | LCF (mm): 51.3 | LUX (mm): 54.3 | OAL (mm): 160 | DCON (mm): 10.0 | Stock: Yes
MDF1150L2D DC (mm): 11.5 | L/D: 2 | LU (mm): 34.6 | LCF (mm): 51.8 | LUX (mm): 54.8 | OAL (mm): 160 | DCON (mm): 10.0 | Stock: Yes
MDF1160L2D DC (mm): 11.6 | L/D: 2 | LU (mm): 34.8 | LCF (mm): 52.2 | LUX (mm): 55.2 | OAL (mm): 160 | DCON (mm): 10.0 | Stock: Yes
MDF1170L2D DC (mm): 11.7 | L/D: 2 | LU (mm): 35.2 | LCF (mm): 52.7 | LUX (mm): 55.7 | OAL (mm): 160 | DCON (mm): 10.0 | Stock: Yes
MDF1180L2D DC (mm): 11.8 | L/D: 2 | LU (mm): 35.4 | LCF (mm): 53.1 | LUX (mm): 56.1 | OAL (mm): 160 | DCON (mm): 10.0 | Stock: Yes
MDF1190L2D DC (mm): 11.9 | L/D: 2 | LU (mm): 35.8 | LCF (mm): 53.6 | LUX (mm): 56.6 | OAL (mm): 160 | DCON (mm): 10.0 | Stock: Yes
MDF1200L2D DC (mm): 12.0 | L/D: 2 | LU (mm): 36.0 | LCF (mm): 54.0 | LUX (mm): 120.0 | OAL (mm): 170 | DCON (mm): 12.0 | Stock: Yes
MDF1250L2D DC (mm): 12.5 | L/D: 2 | LU (mm): 37.6 | LCF (mm): 56.3 | LUX (mm): 59.3 | OAL (mm): 180 | DCON (mm): 12.0 | Stock: Yes
MDF1300L2D DC (mm): 13.0 | L/D: 2 | LU (mm): 39.0 | LCF (mm): 58.5 | LUX (mm): 61.5 | OAL (mm): 180 | DCON (mm): 12.0 | Stock: Yes
MDF1350L2D DC (mm): 13.5 | L/D: 2 | LU (mm): 40.6 | LCF (mm): 60.8 | LUX (mm): 63.8 | OAL (mm): 190 | DCON (mm): 12.0 | Stock: Yes
MDF1400L2D DC (mm): 14.0 | L/D: 2 | LU (mm): 42.0 | LCF (mm): 63.0 | LUX (mm): 140.0 | OAL (mm): 190 | DCON (mm): 14.0 | Stock: Yes
MDF1450L2D DC (mm): 14.5 | L/D: 2 | LU (mm): 43.6 | LCF (mm): 65.3 | LUX (mm): 68.3 | OAL (mm): 200 | DCON (mm): 14.0 | Stock: Yes
MDF1500L2D DC (mm): 15.0 | L/D: 2 | LU (mm): 45.0 | LCF (mm): 67.5 | LUX (mm): 70.5 | OAL (mm): 200 | DCON (mm): 14.0 | Stock: Yes
MDF1550L2D DC (mm): 15.5 | L/D: 2 | LU (mm): 46.6 | LCF (mm): 69.8 | LUX (mm): 72.8 | OAL (mm): 210 | DCON (mm): 14.0 | Stock: Yes
MDF1600L2D DC (mm): 16.0 | L/D: 2 | LU (mm): 48.0 | LCF (mm): 72.0 | LUX (mm): 160.0 | OAL (mm): 210 | DCON (mm): 16.0 | Stock: Yes
MDF1650L2D DC (mm): 16.5 | L/D: 2 | LU (mm): 49.6 | LCF (mm): 74.3 | LUX (mm): 77.3 | OAL (mm): 220 | DCON (mm): 16.0 | Stock: Yes
MDF1700L2D DC (mm): 17.0 | L/D: 2 | LU (mm): 51.0 | LCF (mm): 76.5 | LUX (mm): 79.5 | OAL (mm): 220 | DCON (mm): 16.0 | Stock: Yes
MDF1750L2D DC (mm): 17.5 | L/D: 2 | LU (mm): 52.6 | LCF (mm): 78.8 | LUX (mm): 81.8 | OAL (mm): 230 | DCON (mm): 16.0 | Stock: Yes
MDF1800L2D DC (mm): 18.0 | L/D: 2 | LU (mm): 54.0 | LCF (mm): 81.0 | LUX (mm): 180.0 | OAL (mm): 230 | DCON (mm): 18.0 | Stock: Yes
MDF1850L2D DC (mm): 18.5 | L/D: 2 | LU (mm): 55.6 | LCF (mm): 83.3 | LUX (mm): 86.3 | OAL (mm): 240 | DCON (mm): 18.0 | Stock: Yes
MDF1900L2D DC (mm): 19.0 | L/D: 2 | LU (mm): 57.0 | LCF (mm): 85.5 | LUX (mm): 88.5 | OAL (mm): 240 | DCON (mm): 18.0 | Stock: Yes
MDF1950L2D DC (mm): 19.5 | L/D: 2 | LU (mm): 58.6 | LCF (mm): 87.8 | LUX (mm): 90.8 | OAL (mm): 250 | DCON (mm): 18.0 | Stock: Yes
MDF2000L2D DC (mm): 20.0 | L/D: 2 | LU (mm): 60.0 | LCF (mm): 90.0 | LUX (mm): 200.0 | OAL (mm): 250 | DCON (mm): 20.0 | Stock: Yes
DrillsSumitomo Electric Hardmetal
107 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal Flat Multi Drill MDF-L Type Long Shank (External Coolant)

Brand Sumitomo Electric Hardmetal·Drills

Available part numbers (107)

MDF0300L2D, MDF0310L2D, MDF0320L2D, MDF0330L2D, MDF0340L2D, MDF0350L2D, MDF0360L2D, MDF0370L2D, MDF0380L2D, MDF0390L2D + 97 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
