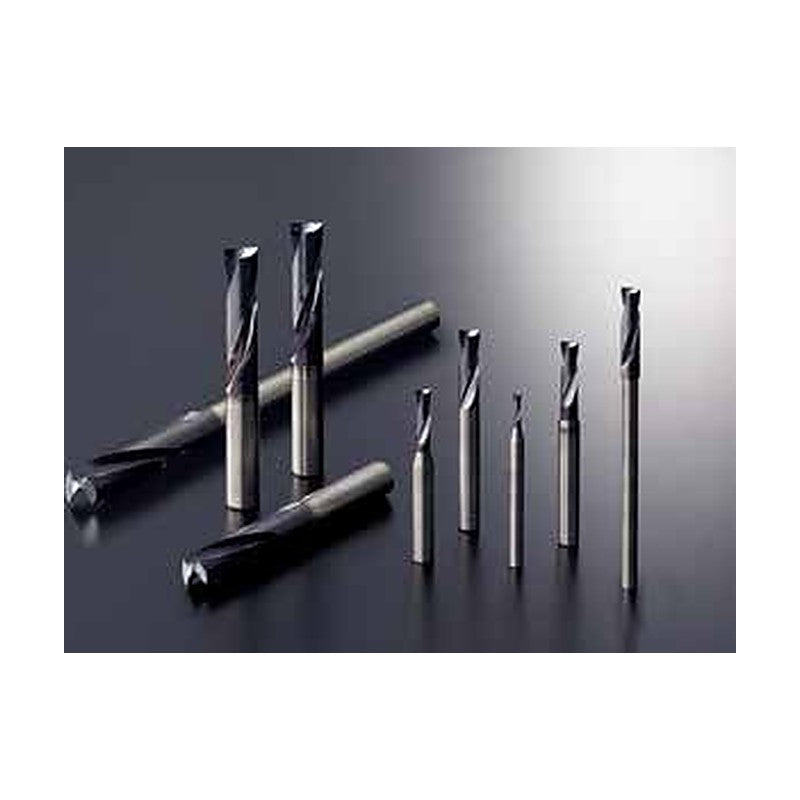

Sumitomo Electric Hardmetal Flat Multi Drill MDF-S Type (External Coolant)

Sumitomo Electric Hardmetal Flat Multi Drill MDF-S Type (External Coolant)

Solid carbide flat-bottom drill with 180 deg point for counterboring, holes on inclined or curved surfaces and interrupted holes.

Key features

  • 180 deg flat point for counterboring, inclined and curved surfaces
  • Effective against exit burrs
  • Thick RS thinning for rigidity
  • Grade ACF75
  • Hole depth 2D

Specifications

Coolant External
Point angle 180 deg
Grade ACF75
MDF0030S2D DC (mm): 0.3 | L/D: 2 | LU (mm): 0.7 | LCF (mm): 1.1 | LUX (mm): 1.4 | OAL (mm): 40 | DCON (mm): 3.0 | Stock: Yes
MDF0040S2D DC (mm): 0.4 | L/D: 2 | LU (mm): 0.8 | LCF (mm): 1.4 | LUX (mm): 1.7 | OAL (mm): 40 | DCON (mm): 3.0 | Stock: Yes
MDF0050S2D DC (mm): 0.5 | L/D: 2 | LU (mm): 1.3 | LCF (mm): 2.0 | LUX (mm): 2.3 | OAL (mm): 40 | DCON (mm): 3.0 | Stock: Yes
MDF0060S2D DC (mm): 0.6 | L/D: 2 | LU (mm): 1.5 | LCF (mm): 2.4 | LUX (mm): 2.7 | OAL (mm): 40 | DCON (mm): 3.0 | Stock: Yes
MDF0070S2D DC (mm): 0.7 | L/D: 2 | LU (mm): 1.8 | LCF (mm): 2.8 | LUX (mm): 3.1 | OAL (mm): 40 | DCON (mm): 3.0 | Stock: Yes
MDF0080S2D DC (mm): 0.8 | L/D: 2 | LU (mm): 2.0 | LCF (mm): 3.2 | LUX (mm): 3.5 | OAL (mm): 40 | DCON (mm): 3.0 | Stock: Yes
MDF0090S2D DC (mm): 0.9 | L/D: 2 | LU (mm): 2.3 | LCF (mm): 3.6 | LUX (mm): 3.9 | OAL (mm): 40 | DCON (mm): 3.0 | Stock: Yes
MDF0100S2D DC (mm): 1.0 | L/D: 2 | LU (mm): 2.5 | LCF (mm): 4.0 | LUX (mm): 4.3 | OAL (mm): 45 | DCON (mm): 3.0 | Stock: Yes
MDF0110S2D DC (mm): 1.1 | L/D: 2 | LU (mm): 2.8 | LCF (mm): 4.4 | LUX (mm): 4.7 | OAL (mm): 45 | DCON (mm): 3.0 | Stock: Yes
MDF0120S2D DC (mm): 1.2 | L/D: 2 | LU (mm): 3.0 | LCF (mm): 4.8 | LUX (mm): 5.1 | OAL (mm): 45 | DCON (mm): 3.0 | Stock: Yes
MDF0130S2D DC (mm): 1.3 | L/D: 2 | LU (mm): 3.3 | LCF (mm): 5.2 | LUX (mm): 5.5 | OAL (mm): 45 | DCON (mm): 3.0 | Stock: Yes
MDF0140S2D DC (mm): 1.4 | L/D: 2 | LU (mm): 3.5 | LCF (mm): 5.6 | LUX (mm): 5.9 | OAL (mm): 45 | DCON (mm): 3.0 | Stock: Yes
MDF0150S2D DC (mm): 1.5 | L/D: 2 | LU (mm): 3.8 | LCF (mm): 6.0 | LUX (mm): 6.3 | OAL (mm): 45 | DCON (mm): 3.0 | Stock: Yes
MDF0160S2D DC (mm): 1.6 | L/D: 2 | LU (mm): 4.0 | LCF (mm): 6.4 | LUX (mm): 6.7 | OAL (mm): 45 | DCON (mm): 3.0 | Stock: Yes
MDF0170S2D DC (mm): 1.7 | L/D: 2 | LU (mm): 4.3 | LCF (mm): 6.8 | LUX (mm): 7.1 | OAL (mm): 45 | DCON (mm): 3.0 | Stock: Yes
MDF0180S2D DC (mm): 1.8 | L/D: 2 | LU (mm): 4.5 | LCF (mm): 7.2 | LUX (mm): 7.5 | OAL (mm): 45 | DCON (mm): 3.0 | Stock: Yes
MDF0190S2D DC (mm): 1.9 | L/D: 2 | LU (mm): 4.8 | LCF (mm): 7.6 | LUX (mm): 7.9 | OAL (mm): 45 | DCON (mm): 3.0 | Stock: Yes
MDF0200S2D DC (mm): 2.0 | L/D: 2 | LU (mm): 5.0 | LCF (mm): 8.0 | LUX (mm): 8.3 | OAL (mm): 50 | DCON (mm): 4.0 | Stock: Yes
MDF0210S2D DC (mm): 2.1 | L/D: 2 | LU (mm): 5.3 | LCF (mm): 8.4 | LUX (mm): 8.7 | OAL (mm): 50 | DCON (mm): 4.0 | Stock: Yes
MDF0220S2D DC (mm): 2.2 | L/D: 2 | LU (mm): 5.5 | LCF (mm): 8.8 | LUX (mm): 9.1 | OAL (mm): 50 | DCON (mm): 4.0 | Stock: Yes
MDF0230S2D DC (mm): 2.3 | L/D: 2 | LU (mm): 5.8 | LCF (mm): 9.2 | LUX (mm): 9.5 | OAL (mm): 50 | DCON (mm): 4.0 | Stock: Yes
MDF0240S2D DC (mm): 2.4 | L/D: 2 | LU (mm): 6.0 | LCF (mm): 9.6 | LUX (mm): 9.9 | OAL (mm): 50 | DCON (mm): 4.0 | Stock: Yes
MDF0250S2D DC (mm): 2.5 | L/D: 2 | LU (mm): 6.3 | LCF (mm): 10.0 | LUX (mm): 10.5 | OAL (mm): 50 | DCON (mm): 4.0 | Stock: Yes
MDF0260S2D DC (mm): 2.6 | L/D: 2 | LU (mm): 6.5 | LCF (mm): 10.4 | LUX (mm): 11.1 | OAL (mm): 50 | DCON (mm): 4.0 | Stock: Yes
MDF0270S2D DC (mm): 2.7 | L/D: 2 | LU (mm): 6.8 | LCF (mm): 10.8 | LUX (mm): 11.7 | OAL (mm): 50 | DCON (mm): 4.0 | Stock: Yes
MDF0276S2D DC (mm): 2.76 | L/D: 2 | LU (mm): 6.9 | LCF (mm): 11.0 | LUX (mm): 12.0 | OAL (mm): 50 | DCON (mm): 4.0 | Stock: Yes
MDF0278S2D DC (mm): 2.78 | L/D: 2 | LU (mm): 6.9 | LCF (mm): 11.1 | LUX (mm): 12.1 | OAL (mm): 50 | DCON (mm): 4.0 | Stock: Yes
MDF0280S2D DC (mm): 2.8 | L/D: 2 | LU (mm): 7.0 | LCF (mm): 11.2 | LUX (mm): 12.2 | OAL (mm): 50 | DCON (mm): 4.0 | Stock: Yes
MDF0290S2D DC (mm): 2.9 | L/D: 2 | LU (mm): 7.3 | LCF (mm): 11.6 | LUX (mm): 12.8 | OAL (mm): 50 | DCON (mm): 4.0 | Stock: Yes
MDF0300S2D DC (mm): 3.0 | L/D: 2 | LU (mm): 7.5 | LCF (mm): 12.0 | LUX (mm): 12.3 | OAL (mm): 50 | DCON (mm): 6.0 | Stock: Yes
MDF0310S2D DC (mm): 3.1 | L/D: 2 | LU (mm): 7.8 | LCF (mm): 12.4 | LUX (mm): 12.7 | OAL (mm): 50 | DCON (mm): 6.0 | Stock: Yes
MDF0320S2D DC (mm): 3.2 | L/D: 2 | LU (mm): 8.0 | LCF (mm): 12.8 | LUX (mm): 13.1 | OAL (mm): 50 | DCON (mm): 6.0 | Stock: Yes
MDF0330S2D DC (mm): 3.3 | L/D: 2 | LU (mm): 8.3 | LCF (mm): 13.2 | LUX (mm): 13.5 | OAL (mm): 50 | DCON (mm): 6.0 | Stock: Yes
MDF0340S2D DC (mm): 3.4 | L/D: 2 | LU (mm): 8.5 | LCF (mm): 13.6 | LUX (mm): 13.9 | OAL (mm): 50 | DCON (mm): 6.0 | Stock: Yes
MDF0350S2D DC (mm): 3.5 | L/D: 2 | LU (mm): 8.8 | LCF (mm): 14.0 | LUX (mm): 14.3 | OAL (mm): 50 | DCON (mm): 6.0 | Stock: Yes
MDF0360S2D DC (mm): 3.6 | L/D: 2 | LU (mm): 9.0 | LCF (mm): 14.4 | LUX (mm): 14.9 | OAL (mm): 50 | DCON (mm): 6.0 | Stock: Yes
MDF0366S2D DC (mm): 3.66 | L/D: 2 | LU (mm): 9.1 | LCF (mm): 14.6 | LUX (mm): 15.3 | OAL (mm): 50 | DCON (mm): 6.0 | Stock: Yes
MDF0368S2D DC (mm): 3.68 | L/D: 2 | LU (mm): 9.2 | LCF (mm): 14.7 | LUX (mm): 15.4 | OAL (mm): 50 | DCON (mm): 6.0 | Stock: Yes
MDF0370S2D DC (mm): 3.7 | L/D: 2 | LU (mm): 9.3 | LCF (mm): 14.8 | LUX (mm): 15.5 | OAL (mm): 50 | DCON (mm): 6.0 | Stock: Yes
MDF0380S2D DC (mm): 3.8 | L/D: 2 | LU (mm): 9.5 | LCF (mm): 15.2 | LUX (mm): 16.0 | OAL (mm): 50 | DCON (mm): 6.0 | Stock: Yes
MDF0390S2D DC (mm): 3.9 | L/D: 2 | LU (mm): 9.8 | LCF (mm): 15.6 | LUX (mm): 16.6 | OAL (mm): 50 | DCON (mm): 6.0 | Stock: Yes
MDF0400S2D DC (mm): 4.0 | L/D: 2 | LU (mm): 10.0 | LCF (mm): 16.0 | LUX (mm): 17.2 | OAL (mm): 50 | DCON (mm): 6.0 | Stock: Yes
MDF0410S2D DC (mm): 4.1 | L/D: 2 | LU (mm): 10.3 | LCF (mm): 16.4 | LUX (mm): 17.8 | OAL (mm): 60 | DCON (mm): 6.0 | Stock: Yes
MDF0420S2D DC (mm): 4.2 | L/D: 2 | LU (mm): 10.5 | LCF (mm): 16.8 | LUX (mm): 18.4 | OAL (mm): 60 | DCON (mm): 6.0 | Stock: Yes
MDF0430S2D DC (mm): 4.3 | L/D: 2 | LU (mm): 10.8 | LCF (mm): 17.2 | LUX (mm): 18.9 | OAL (mm): 60 | DCON (mm): 6.0 | Stock: Yes
MDF0440S2D DC (mm): 4.4 | L/D: 2 | LU (mm): 11.0 | LCF (mm): 17.6 | LUX (mm): 19.5 | OAL (mm): 60 | DCON (mm): 6.0 | Stock: Yes
MDF0450S2D DC (mm): 4.5 | L/D: 2 | LU (mm): 11.3 | LCF (mm): 18.0 | LUX (mm): 20.1 | OAL (mm): 60 | DCON (mm): 6.0 | Stock: Yes
MDF0460S2D DC (mm): 4.6 | L/D: 2 | LU (mm): 11.5 | LCF (mm): 18.4 | LUX (mm): 20.7 | OAL (mm): 60 | DCON (mm): 6.0 | Stock: Yes
MDF0462S2D DC (mm): 4.62 | L/D: 2 | LU (mm): 11.6 | LCF (mm): 18.5 | LUX (mm): 20.9 | OAL (mm): 60 | DCON (mm): 6.0 | Stock: Yes
MDF0464S2D DC (mm): 4.64 | L/D: 2 | LU (mm): 11.6 | LCF (mm): 18.6 | LUX (mm): 21.0 | OAL (mm): 60 | DCON (mm): 6.0 | Stock: Yes
MDF0470S2D DC (mm): 4.7 | L/D: 2 | LU (mm): 11.8 | LCF (mm): 18.8 | LUX (mm): 21.3 | OAL (mm): 60 | DCON (mm): 6.0 | Stock: Yes
MDF0480S2D DC (mm): 4.8 | L/D: 2 | LU (mm): 12.0 | LCF (mm): 19.2 | LUX (mm): 21.8 | OAL (mm): 60 | DCON (mm): 6.0 | Stock: Yes
MDF0490S2D DC (mm): 4.9 | L/D: 2 | LU (mm): 12.3 | LCF (mm): 19.6 | LUX (mm): 22.4 | OAL (mm): 60 | DCON (mm): 6.0 | Stock: Yes
MDF0500S2D DC (mm): 5.0 | L/D: 2 | LU (mm): 12.5 | LCF (mm): 20.0 | LUX (mm): 23.0 | OAL (mm): 60 | DCON (mm): 6.0 | Stock: Yes
MDF0510S2D DC (mm): 5.1 | L/D: 2 | LU (mm): 12.8 | LCF (mm): 20.4 | LUX (mm): 23.6 | OAL (mm): 60 | DCON (mm): 6.0 | Stock: Yes
MDF0520S2D DC (mm): 5.2 | L/D: 2 | LU (mm): 13.0 | LCF (mm): 20.8 | LUX (mm): 24.2 | OAL (mm): 60 | DCON (mm): 6.0 | Stock: Yes
MDF0530S2D DC (mm): 5.3 | L/D: 2 | LU (mm): 13.3 | LCF (mm): 21.2 | LUX (mm): 24.7 | OAL (mm): 60 | DCON (mm): 6.0 | Stock: Yes
MDF0540S2D DC (mm): 5.4 | L/D: 2 | LU (mm): 13.5 | LCF (mm): 21.6 | LUX (mm): 25.3 | OAL (mm): 60 | DCON (mm): 6.0 | Stock: Yes
MDF0550S2D DC (mm): 5.5 | L/D: 2 | LU (mm): 13.8 | LCF (mm): 22.0 | LUX (mm): 25.9 | OAL (mm): 60 | DCON (mm): 6.0 | Stock: Yes
MDF0552S2D DC (mm): 5.52 | L/D: 2 | LU (mm): 13.8 | LCF (mm): 22.1 | LUX (mm): 26.1 | OAL (mm): 60 | DCON (mm): 6.0 | Stock: Yes
MDF0554S2D DC (mm): 5.54 | L/D: 2 | LU (mm): 13.9 | LCF (mm): 22.2 | LUX (mm): 26.2 | OAL (mm): 60 | DCON (mm): 6.0 | Stock: Yes
MDF0560S2D DC (mm): 5.6 | L/D: 2 | LU (mm): 14.0 | LCF (mm): 22.4 | LUX (mm): 26.5 | OAL (mm): 60 | DCON (mm): 6.0 | Stock: Yes
MDF0570S2D DC (mm): 5.7 | L/D: 2 | LU (mm): 14.3 | LCF (mm): 22.8 | LUX (mm): 27.1 | OAL (mm): 60 | DCON (mm): 6.0 | Stock: Yes
MDF0580S2D DC (mm): 5.8 | L/D: 2 | LU (mm): 14.5 | LCF (mm): 23.2 | LUX (mm): 27.6 | OAL (mm): 60 | DCON (mm): 6.0 | Stock: Yes
MDF0590S2D DC (mm): 5.9 | L/D: 2 | LU (mm): 14.8 | LCF (mm): 23.6 | LUX (mm): 28.2 | OAL (mm): 60 | DCON (mm): 6.0 | Stock: Yes
MDF0600S2D DC (mm): 6.0 | L/D: 2 | LU (mm): 15.0 | LCF (mm): 24.0 | LUX (mm): 28.8 | OAL (mm): 60 | DCON (mm): 6.0 | Stock: Yes
MDF0610S2D DC (mm): 6.1 | L/D: 2 | LU (mm): 15.3 | LCF (mm): 24.4 | LUX (mm): 27.4 | OAL (mm): 70 | DCON (mm): 8.0 | Stock: Yes
MDF0620S2D DC (mm): 6.2 | L/D: 2 | LU (mm): 15.5 | LCF (mm): 24.8 | LUX (mm): 28.0 | OAL (mm): 70 | DCON (mm): 8.0 | Stock: Yes
MDF0630S2D DC (mm): 6.3 | L/D: 2 | LU (mm): 15.8 | LCF (mm): 25.2 | LUX (mm): 28.5 | OAL (mm): 70 | DCON (mm): 8.0 | Stock: Yes
MDF0640S2D DC (mm): 6.4 | L/D: 2 | LU (mm): 16.0 | LCF (mm): 25.6 | LUX (mm): 29.1 | OAL (mm): 70 | DCON (mm): 8.0 | Stock: Yes
MDF0650S2D DC (mm): 6.5 | L/D: 2 | LU (mm): 16.3 | LCF (mm): 26.0 | LUX (mm): 29.7 | OAL (mm): 70 | DCON (mm): 8.0 | Stock: Yes
MDF0660S2D DC (mm): 6.6 | L/D: 2 | LU (mm): 16.5 | LCF (mm): 26.4 | LUX (mm): 30.3 | OAL (mm): 70 | DCON (mm): 8.0 | Stock: Yes
MDF0670S2D DC (mm): 6.7 | L/D: 2 | LU (mm): 16.8 | LCF (mm): 26.8 | LUX (mm): 30.9 | OAL (mm): 70 | DCON (mm): 8.0 | Stock: Yes
MDF0680S2D DC (mm): 6.8 | L/D: 2 | LU (mm): 17.0 | LCF (mm): 27.2 | LUX (mm): 31.4 | OAL (mm): 70 | DCON (mm): 8.0 | Stock: Yes
MDF0690S2D DC (mm): 6.9 | L/D: 2 | LU (mm): 17.3 | LCF (mm): 27.6 | LUX (mm): 32.0 | OAL (mm): 70 | DCON (mm): 8.0 | Stock: Yes
MDF0700S2D DC (mm): 7.0 | L/D: 2 | LU (mm): 17.5 | LCF (mm): 28.0 | LUX (mm): 32.6 | OAL (mm): 70 | DCON (mm): 8.0 | Stock: Yes
MDF0710S2D DC (mm): 7.1 | L/D: 2 | LU (mm): 17.8 | LCF (mm): 28.4 | LUX (mm): 33.2 | OAL (mm): 70 | DCON (mm): 8.0 | Stock: Yes
MDF0720S2D DC (mm): 7.2 | L/D: 2 | LU (mm): 18.0 | LCF (mm): 28.8 | LUX (mm): 33.8 | OAL (mm): 70 | DCON (mm): 8.0 | Stock: Yes
MDF0730S2D DC (mm): 7.3 | L/D: 2 | LU (mm): 18.3 | LCF (mm): 29.2 | LUX (mm): 34.3 | OAL (mm): 70 | DCON (mm): 8.0 | Stock: Yes
MDF0736S2D DC (mm): 7.36 | L/D: 2 | LU (mm): 18.4 | LCF (mm): 29.4 | LUX (mm): 34.7 | OAL (mm): 70 | DCON (mm): 8.0 | Stock: Yes
MDF0738S2D DC (mm): 7.38 | L/D: 2 | LU (mm): 18.4 | LCF (mm): 29.5 | LUX (mm): 34.8 | OAL (mm): 70 | DCON (mm): 8.0 | Stock: Yes
MDF0740S2D DC (mm): 7.4 | L/D: 2 | LU (mm): 18.5 | LCF (mm): 29.6 | LUX (mm): 34.9 | OAL (mm): 70 | DCON (mm): 8.0 | Stock: Yes
MDF0750S2D DC (mm): 7.5 | L/D: 2 | LU (mm): 18.8 | LCF (mm): 30.0 | LUX (mm): 35.5 | OAL (mm): 70 | DCON (mm): 8.0 | Stock: Yes
MDF0752S2D DC (mm): 7.52 | L/D: 2 | LU (mm): 18.8 | LCF (mm): 30.1 | LUX (mm): 35.7 | OAL (mm): 70 | DCON (mm): 8.0 | Stock: Yes
MDF0754S2D DC (mm): 7.54 | L/D: 2 | LU (mm): 18.9 | LCF (mm): 30.2 | LUX (mm): 35.8 | OAL (mm): 70 | DCON (mm): 8.0 | Stock: Yes
MDF0760S2D DC (mm): 7.6 | L/D: 2 | LU (mm): 19.0 | LCF (mm): 30.4 | LUX (mm): 36.1 | OAL (mm): 70 | DCON (mm): 8.0 | Stock: Yes
MDF0770S2D DC (mm): 7.7 | L/D: 2 | LU (mm): 19.3 | LCF (mm): 30.8 | LUX (mm): 36.7 | OAL (mm): 70 | DCON (mm): 8.0 | Stock: Yes
MDF0780S2D DC (mm): 7.8 | L/D: 2 | LU (mm): 19.5 | LCF (mm): 31.2 | LUX (mm): 37.2 | OAL (mm): 70 | DCON (mm): 8.0 | Stock: Yes
MDF0790S2D DC (mm): 7.9 | L/D: 2 | LU (mm): 19.8 | LCF (mm): 31.6 | LUX (mm): 37.8 | OAL (mm): 70 | DCON (mm): 8.0 | Stock: Yes
MDF0800S2D DC (mm): 8.0 | L/D: 2 | LU (mm): 20.0 | LCF (mm): 32.0 | LUX (mm): 38.4 | OAL (mm): 70 | DCON (mm): 8.0 | Stock: Yes
MDF0810S2D DC (mm): 8.1 | L/D: 2 | LU (mm): 20.3 | LCF (mm): 32.4 | LUX (mm): 37.0 | OAL (mm): 80 | DCON (mm): 10.0 | Stock: Yes
MDF0820S2D DC (mm): 8.2 | L/D: 2 | LU (mm): 20.5 | LCF (mm): 32.8 | LUX (mm): 37.6 | OAL (mm): 80 | DCON (mm): 10.0 | Stock: Yes
MDF0830S2D DC (mm): 8.3 | L/D: 2 | LU (mm): 20.8 | LCF (mm): 33.2 | LUX (mm): 38.1 | OAL (mm): 80 | DCON (mm): 10.0 | Stock: Yes
MDF0840S2D DC (mm): 8.4 | L/D: 2 | LU (mm): 21.0 | LCF (mm): 33.6 | LUX (mm): 38.7 | OAL (mm): 80 | DCON (mm): 10.0 | Stock: Yes
MDF0850S2D DC (mm): 8.5 | L/D: 2 | LU (mm): 21.3 | LCF (mm): 34.0 | LUX (mm): 39.3 | OAL (mm): 80 | DCON (mm): 10.0 | Stock: Yes
MDF0860S2D DC (mm): 8.6 | L/D: 2 | LU (mm): 21.5 | LCF (mm): 34.4 | LUX (mm): 39.9 | OAL (mm): 80 | DCON (mm): 10.0 | Stock: Yes
MDF0870S2D DC (mm): 8.7 | L/D: 2 | LU (mm): 21.8 | LCF (mm): 34.8 | LUX (mm): 40.5 | OAL (mm): 80 | DCON (mm): 10.0 | Stock: Yes
MDF0880S2D DC (mm): 8.8 | L/D: 2 | LU (mm): 22.0 | LCF (mm): 35.2 | LUX (mm): 41.0 | OAL (mm): 80 | DCON (mm): 10.0 | Stock: Yes
MDF0890S2D DC (mm): 8.9 | L/D: 2 | LU (mm): 22.3 | LCF (mm): 35.6 | LUX (mm): 41.6 | OAL (mm): 80 | DCON (mm): 10.0 | Stock: Yes
MDF0900S2D DC (mm): 9.0 | L/D: 2 | LU (mm): 22.5 | LCF (mm): 36.0 | LUX (mm): 42.2 | OAL (mm): 80 | DCON (mm): 10.0 | Stock: Yes
MDF0910S2D DC (mm): 9.1 | L/D: 2 | LU (mm): 22.8 | LCF (mm): 36.4 | LUX (mm): 42.8 | OAL (mm): 80 | DCON (mm): 10.0 | Stock: Yes
MDF0920S2D DC (mm): 9.2 | L/D: 2 | LU (mm): 23.0 | LCF (mm): 36.8 | LUX (mm): 43.4 | OAL (mm): 80 | DCON (mm): 10.0 | Stock: Yes
MDF0924S2D DC (mm): 9.24 | L/D: 2 | LU (mm): 23.1 | LCF (mm): 37.0 | LUX (mm): 43.6 | OAL (mm): 80 | DCON (mm): 10.0 | Stock: Yes
MDF0926S2D DC (mm): 9.26 | L/D: 2 | LU (mm): 23.1 | LCF (mm): 37.0 | LUX (mm): 43.7 | OAL (mm): 80 | DCON (mm): 10.0 | Stock: Yes
MDF0930S2D DC (mm): 9.3 | L/D: 2 | LU (mm): 23.3 | LCF (mm): 37.2 | LUX (mm): 43.9 | OAL (mm): 80 | DCON (mm): 10.0 | Stock: Yes
MDF0936S2D DC (mm): 9.36 | L/D: 2 | LU (mm): 23.4 | LCF (mm): 37.4 | LUX (mm): 44.3 | OAL (mm): 80 | DCON (mm): 10.0 | Stock: Yes
MDF0938S2D DC (mm): 9.38 | L/D: 2 | LU (mm): 23.4 | LCF (mm): 37.5 | LUX (mm): 44.4 | OAL (mm): 80 | DCON (mm): 10.0 | Stock: Yes
MDF0940S2D DC (mm): 9.4 | L/D: 2 | LU (mm): 23.5 | LCF (mm): 37.6 | LUX (mm): 44.5 | OAL (mm): 80 | DCON (mm): 10.0 | Stock: Yes
MDF0950S2D DC (mm): 9.5 | L/D: 2 | LU (mm): 23.8 | LCF (mm): 38.0 | LUX (mm): 45.1 | OAL (mm): 80 | DCON (mm): 10.0 | Stock: Yes
MDF0952S2D DC (mm): 9.52 | L/D: 2 | LU (mm): 23.8 | LCF (mm): 38.1 | LUX (mm): 45.3 | OAL (mm): 80 | DCON (mm): 10.0 | Stock: Yes
MDF0954S2D DC (mm): 9.54 | L/D: 2 | LU (mm): 23.9 | LCF (mm): 38.2 | LUX (mm): 45.4 | OAL (mm): 80 | DCON (mm): 10.0 | Stock: Yes
MDF0960S2D DC (mm): 9.6 | L/D: 2 | LU (mm): 24.0 | LCF (mm): 38.4 | LUX (mm): 45.7 | OAL (mm): 80 | DCON (mm): 10.0 | Stock: Yes
MDF0970S2D DC (mm): 9.7 | L/D: 2 | LU (mm): 24.3 | LCF (mm): 38.8 | LUX (mm): 46.3 | OAL (mm): 80 | DCON (mm): 10.0 | Stock: Yes
MDF0980S2D DC (mm): 9.8 | L/D: 2 | LU (mm): 24.5 | LCF (mm): 39.2 | LUX (mm): 46.8 | OAL (mm): 80 | DCON (mm): 10.0 | Stock: Yes
MDF0990S2D DC (mm): 9.9 | L/D: 2 | LU (mm): 24.8 | LCF (mm): 39.6 | LUX (mm): 47.4 | OAL (mm): 80 | DCON (mm): 10.0 | Stock: Yes
MDF1000S2D DC (mm): 10.0 | L/D: 2 | LU (mm): 25.0 | LCF (mm): 40.0 | LUX (mm): 48.0 | OAL (mm): 80 | DCON (mm): 10.0 | Stock: Yes
MDF1010S2D DC (mm): 10.1 | L/D: 2 | LU (mm): 25.3 | LCF (mm): 40.4 | LUX (mm): 46.6 | OAL (mm): 90 | DCON (mm): 12.0 | Stock: Yes
MDF1020S2D DC (mm): 10.2 | L/D: 2 | LU (mm): 25.5 | LCF (mm): 40.8 | LUX (mm): 47.2 | OAL (mm): 90 | DCON (mm): 12.0 | Stock: Yes
MDF1030S2D DC (mm): 10.3 | L/D: 2 | LU (mm): 25.8 | LCF (mm): 41.2 | LUX (mm): 47.7 | OAL (mm): 90 | DCON (mm): 12.0 | Stock: Yes
MDF1040S2D DC (mm): 10.4 | L/D: 2 | LU (mm): 26.0 | LCF (mm): 41.6 | LUX (mm): 48.3 | OAL (mm): 90 | DCON (mm): 12.0 | Stock: Yes
MDF1050S2D DC (mm): 10.5 | L/D: 2 | LU (mm): 26.3 | LCF (mm): 42.0 | LUX (mm): 48.9 | OAL (mm): 90 | DCON (mm): 12.0 | Stock: Yes
MDF1060S2D DC (mm): 10.6 | L/D: 2 | LU (mm): 26.5 | LCF (mm): 42.4 | LUX (mm): 49.5 | OAL (mm): 90 | DCON (mm): 12.0 | Stock: Yes
MDF1070S2D DC (mm): 10.7 | L/D: 2 | LU (mm): 26.8 | LCF (mm): 42.8 | LUX (mm): 50.1 | OAL (mm): 90 | DCON (mm): 12.0 | Stock: Yes
MDF1080S2D DC (mm): 10.8 | L/D: 2 | LU (mm): 27.0 | LCF (mm): 43.2 | LUX (mm): 50.6 | OAL (mm): 90 | DCON (mm): 12.0 | Stock: Yes
MDF1090S2D DC (mm): 10.9 | L/D: 2 | LU (mm): 27.3 | LCF (mm): 43.6 | LUX (mm): 51.2 | OAL (mm): 90 | DCON (mm): 12.0 | Stock: Yes
MDF1100S2D DC (mm): 11.0 | L/D: 2 | LU (mm): 27.5 | LCF (mm): 44.0 | LUX (mm): 51.8 | OAL (mm): 90 | DCON (mm): 12.0 | Stock: Yes
MDF1110S2D DC (mm): 11.1 | L/D: 2 | LU (mm): 27.8 | LCF (mm): 44.4 | LUX (mm): 52.4 | OAL (mm): 90 | DCON (mm): 12.0 | Stock: Yes
MDF1120S2D DC (mm): 11.2 | L/D: 2 | LU (mm): 28.0 | LCF (mm): 44.8 | LUX (mm): 53.0 | OAL (mm): 90 | DCON (mm): 12.0 | Stock: Yes
MDF1122S2D DC (mm): 11.22 | L/D: 2 | LU (mm): 28.1 | LCF (mm): 44.9 | LUX (mm): 53.1 | OAL (mm): 90 | DCON (mm): 12.0 | Stock: Yes
MDF1124S2D DC (mm): 11.24 | L/D: 2 | LU (mm): 28.1 | LCF (mm): 45.0 | LUX (mm): 53.2 | OAL (mm): 90 | DCON (mm): 12.0 | Stock: Yes
MDF1130S2D DC (mm): 11.3 | L/D: 2 | LU (mm): 28.3 | LCF (mm): 45.2 | LUX (mm): 53.5 | OAL (mm): 90 | DCON (mm): 12.0 | Stock: Yes
MDF1136S2D DC (mm): 11.36 | L/D: 2 | LU (mm): 28.4 | LCF (mm): 45.4 | LUX (mm): 53.9 | OAL (mm): 90 | DCON (mm): 12.0 | Stock: Yes
MDF1138S2D DC (mm): 11.38 | L/D: 2 | LU (mm): 28.4 | LCF (mm): 45.5 | LUX (mm): 54.0 | OAL (mm): 90 | DCON (mm): 12.0 | Stock: Yes
MDF1140S2D DC (mm): 11.4 | L/D: 2 | LU (mm): 28.5 | LCF (mm): 45.6 | LUX (mm): 54.1 | OAL (mm): 90 | DCON (mm): 12.0 | Stock: Yes
MDF1150S2D DC (mm): 11.5 | L/D: 2 | LU (mm): 28.8 | LCF (mm): 46.0 | LUX (mm): 54.7 | OAL (mm): 90 | DCON (mm): 12.0 | Stock: Yes
MDF1160S2D DC (mm): 11.6 | L/D: 2 | LU (mm): 29.0 | LCF (mm): 46.4 | LUX (mm): 55.3 | OAL (mm): 90 | DCON (mm): 12.0 | Stock: Yes
MDF1170S2D DC (mm): 11.7 | L/D: 2 | LU (mm): 29.3 | LCF (mm): 46.8 | LUX (mm): 55.9 | OAL (mm): 90 | DCON (mm): 12.0 | Stock: Yes
MDF1180S2D DC (mm): 11.8 | L/D: 2 | LU (mm): 29.5 | LCF (mm): 47.2 | LUX (mm): 56.4 | OAL (mm): 90 | DCON (mm): 12.0 | Stock: Yes
MDF1190S2D DC (mm): 11.9 | L/D: 2 | LU (mm): 29.8 | LCF (mm): 47.6 | LUX (mm): 57.0 | OAL (mm): 90 | DCON (mm): 12.0 | Stock: Yes
MDF1200S2D DC (mm): 12.0 | L/D: 2 | LU (mm): 30.0 | LCF (mm): 48.0 | LUX (mm): 57.6 | OAL (mm): 90 | DCON (mm): 12.0 | Stock: Yes
MDF1210S2D DC (mm): 12.1 | L/D: 2 | LU (mm): 30.3 | LCF (mm): 48.4 | LUX (mm): 52.3 | OAL (mm): 100 | DCON (mm): 14.0 | Stock: Yes
MDF1220S2D DC (mm): 12.2 | L/D: 2 | LU (mm): 30.5 | LCF (mm): 48.8 | LUX (mm): 52.7 | OAL (mm): 100 | DCON (mm): 14.0 | Stock: Yes
MDF1230S2D DC (mm): 12.3 | L/D: 2 | LU (mm): 30.8 | LCF (mm): 49.2 | LUX (mm): 53.1 | OAL (mm): 100 | DCON (mm): 14.0 | Stock: Yes
MDF1240S2D DC (mm): 12.4 | L/D: 2 | LU (mm): 31.0 | LCF (mm): 49.6 | LUX (mm): 53.6 | OAL (mm): 100 | DCON (mm): 14.0 | Stock: Yes
MDF1250S2D DC (mm): 12.5 | L/D: 2 | LU (mm): 31.3 | LCF (mm): 50.0 | LUX (mm): 54.0 | OAL (mm): 100 | DCON (mm): 14.0 | Stock: Yes
MDF1260S2D DC (mm): 12.6 | L/D: 2 | LU (mm): 31.5 | LCF (mm): 50.4 | LUX (mm): 55.1 | OAL (mm): 100 | DCON (mm): 14.0 | Stock: Yes
MDF1270S2D DC (mm): 12.7 | L/D: 2 | LU (mm): 31.8 | LCF (mm): 50.8 | LUX (mm): 55.5 | OAL (mm): 100 | DCON (mm): 14.0 | Stock: Yes
MDF1280S2D DC (mm): 12.8 | L/D: 2 | LU (mm): 32.0 | LCF (mm): 51.2 | LUX (mm): 55.9 | OAL (mm): 100 | DCON (mm): 14.0 | Stock: Yes
MDF1290S2D DC (mm): 12.9 | L/D: 2 | LU (mm): 32.3 | LCF (mm): 51.6 | LUX (mm): 56.4 | OAL (mm): 100 | DCON (mm): 14.0 | Stock: Yes
MDF1300S2D DC (mm): 13.0 | L/D: 2 | LU (mm): 32.5 | LCF (mm): 52.0 | LUX (mm): 56.8 | OAL (mm): 100 | DCON (mm): 14.0 | Stock: Yes
MDF1310S2D DC (mm): 13.1 | L/D: 2 | LU (mm): 32.8 | LCF (mm): 52.4 | LUX (mm): 57.8 | OAL (mm): 110 | DCON (mm): 14.0 | Stock: Yes
MDF1320S2D DC (mm): 13.2 | L/D: 2 | LU (mm): 33.0 | LCF (mm): 52.8 | LUX (mm): 58.3 | OAL (mm): 110 | DCON (mm): 14.0 | Stock: Yes
MDF1330S2D DC (mm): 13.3 | L/D: 2 | LU (mm): 33.3 | LCF (mm): 53.2 | LUX (mm): 58.7 | OAL (mm): 110 | DCON (mm): 14.0 | Stock: Yes
MDF1340S2D DC (mm): 13.4 | L/D: 2 | LU (mm): 33.5 | LCF (mm): 53.6 | LUX (mm): 59.2 | OAL (mm): 110 | DCON (mm): 14.0 | Stock: Yes
MDF1350S2D DC (mm): 13.5 | L/D: 2 | LU (mm): 33.8 | LCF (mm): 54.0 | LUX (mm): 59.6 | OAL (mm): 110 | DCON (mm): 14.0 | Stock: Yes
MDF1360S2D DC (mm): 13.6 | L/D: 2 | LU (mm): 34.0 | LCF (mm): 54.4 | LUX (mm): 60.6 | OAL (mm): 110 | DCON (mm): 14.0 | Stock: Yes
MDF1370S2D DC (mm): 13.7 | L/D: 2 | LU (mm): 34.3 | LCF (mm): 54.8 | LUX (mm): 61.1 | OAL (mm): 110 | DCON (mm): 14.0 | Stock: Yes
MDF1380S2D DC (mm): 13.8 | L/D: 2 | LU (mm): 34.5 | LCF (mm): 55.2 | LUX (mm): 61.5 | OAL (mm): 110 | DCON (mm): 14.0 | Stock: Yes
MDF1390S2D DC (mm): 13.9 | L/D: 2 | LU (mm): 34.8 | LCF (mm): 55.6 | LUX (mm): 62.0 | OAL (mm): 110 | DCON (mm): 14.0 | Stock: Yes
MDF1400S2D DC (mm): 14.0 | L/D: 2 | LU (mm): 35.0 | LCF (mm): 56.0 | LUX (mm): 62.4 | OAL (mm): 110 | DCON (mm): 14.0 | Stock: Yes
MDF1410S2D DC (mm): 14.1 | L/D: 2 | LU (mm): 35.3 | LCF (mm): 56.4 | LUX (mm): 63.4 | OAL (mm): 110 | DCON (mm): 16.0 | Stock: Yes
MDF1420S2D DC (mm): 14.2 | L/D: 2 | LU (mm): 35.5 | LCF (mm): 56.8 | LUX (mm): 63.9 | OAL (mm): 110 | DCON (mm): 16.0 | Stock: Yes
MDF1430S2D DC (mm): 14.3 | L/D: 2 | LU (mm): 35.8 | LCF (mm): 57.2 | LUX (mm): 64.3 | OAL (mm): 110 | DCON (mm): 16.0 | Stock: Yes
MDF1440S2D DC (mm): 14.4 | L/D: 2 | LU (mm): 36.0 | LCF (mm): 57.6 | LUX (mm): 64.8 | OAL (mm): 110 | DCON (mm): 16.0 | Stock: Yes
MDF1450S2D DC (mm): 14.5 | L/D: 2 | LU (mm): 36.3 | LCF (mm): 58.0 | LUX (mm): 65.2 | OAL (mm): 110 | DCON (mm): 16.0 | Stock: Yes
MDF1460S2D DC (mm): 14.6 | L/D: 2 | LU (mm): 36.5 | LCF (mm): 58.4 | LUX (mm): 66.2 | OAL (mm): 110 | DCON (mm): 16.0 | Stock: Yes
MDF1470S2D DC (mm): 14.7 | L/D: 2 | LU (mm): 36.8 | LCF (mm): 58.8 | LUX (mm): 66.6 | OAL (mm): 110 | DCON (mm): 16.0 | Stock: Yes
MDF1480S2D DC (mm): 14.8 | L/D: 2 | LU (mm): 37.0 | LCF (mm): 59.2 | LUX (mm): 67.1 | OAL (mm): 110 | DCON (mm): 16.0 | Stock: Yes
MDF1490S2D DC (mm): 14.9 | L/D: 2 | LU (mm): 37.3 | LCF (mm): 59.6 | LUX (mm): 67.5 | OAL (mm): 110 | DCON (mm): 16.0 | Stock: Yes
MDF1500S2D DC (mm): 15.0 | L/D: 2 | LU (mm): 37.5 | LCF (mm): 60.0 | LUX (mm): 68.0 | OAL (mm): 110 | DCON (mm): 16.0 | Stock: Yes
MDF1510S2D DC (mm): 15.1 | L/D: 2 | LU (mm): 37.8 | LCF (mm): 60.4 | LUX (mm): 69.0 | OAL (mm): 115 | DCON (mm): 16.0 | Stock: Yes
MDF1520S2D DC (mm): 15.2 | L/D: 2 | LU (mm): 38.0 | LCF (mm): 60.8 | LUX (mm): 69.4 | OAL (mm): 115 | DCON (mm): 16.0 | Stock: Yes
MDF1530S2D DC (mm): 15.3 | L/D: 2 | LU (mm): 38.3 | LCF (mm): 61.2 | LUX (mm): 69.9 | OAL (mm): 115 | DCON (mm): 16.0 | Stock: Yes
MDF1540S2D DC (mm): 15.4 | L/D: 2 | LU (mm): 38.5 | LCF (mm): 61.6 | LUX (mm): 70.3 | OAL (mm): 115 | DCON (mm): 16.0 | Stock: Yes
MDF1550S2D DC (mm): 15.5 | L/D: 2 | LU (mm): 38.8 | LCF (mm): 62.0 | LUX (mm): 70.8 | OAL (mm): 115 | DCON (mm): 16.0 | Stock: Yes
MDF1560S2D DC (mm): 15.6 | L/D: 2 | LU (mm): 39.0 | LCF (mm): 62.4 | LUX (mm): 71.8 | OAL (mm): 115 | DCON (mm): 16.0 | Stock: Yes
MDF1570S2D DC (mm): 15.7 | L/D: 2 | LU (mm): 39.3 | LCF (mm): 62.8 | LUX (mm): 72.2 | OAL (mm): 115 | DCON (mm): 16.0 | Stock: Yes
MDF1580S2D DC (mm): 15.8 | L/D: 2 | LU (mm): 39.5 | LCF (mm): 63.2 | LUX (mm): 72.7 | OAL (mm): 115 | DCON (mm): 16.0 | Stock: Yes
MDF1590S2D DC (mm): 15.9 | L/D: 2 | LU (mm): 39.8 | LCF (mm): 63.6 | LUX (mm): 73.1 | OAL (mm): 115 | DCON (mm): 16.0 | Stock: Yes
MDF1600S2D DC (mm): 16.0 | L/D: 2 | LU (mm): 40.0 | LCF (mm): 64.0 | LUX (mm): 73.6 | OAL (mm): 115 | DCON (mm): 16.0 | Stock: Yes
MDF1650S2D DC (mm): 16.5 | L/D: 2 | LU (mm): 41.3 | LCF (mm): 66.0 | LUX (mm): 72.4 | OAL (mm): 125 | DCON (mm): 18.0 | Stock: Yes
MDF1700S2D DC (mm): 17.0 | L/D: 2 | LU (mm): 42.5 | LCF (mm): 68.0 | LUX (mm): 75.2 | OAL (mm): 125 | DCON (mm): 18.0 | Stock: Yes
MDF1750S2D DC (mm): 17.5 | L/D: 2 | LU (mm): 43.8 | LCF (mm): 70.0 | LUX (mm): 78.0 | OAL (mm): 130 | DCON (mm): 18.0 | Stock: Yes
MDF1800S2D DC (mm): 18.0 | L/D: 2 | LU (mm): 45.0 | LCF (mm): 72.0 | LUX (mm): 80.8 | OAL (mm): 130 | DCON (mm): 18.0 | Stock: Yes
MDF1850S2D DC (mm): 18.5 | L/D: 2 | LU (mm): 46.3 | LCF (mm): 74.0 | LUX (mm): 83.6 | OAL (mm): 140 | DCON (mm): 20.0 | Stock: Yes
MDF1900S2D DC (mm): 19.0 | L/D: 2 | LU (mm): 47.5 | LCF (mm): 76.0 | LUX (mm): 86.4 | OAL (mm): 140 | DCON (mm): 20.0 | Stock: Yes
MDF1950S2D DC (mm): 19.5 | L/D: 2 | LU (mm): 48.8 | LCF (mm): 78.0 | LUX (mm): 89.2 | OAL (mm): 140 | DCON (mm): 20.0 | Stock: Yes
MDF2000S2D DC (mm): 20.0 | L/D: 2 | LU (mm): 50.0 | LCF (mm): 80.0 | LUX (mm): 92.0 | OAL (mm): 140 | DCON (mm): 20.0 | Stock: Yes
DrillsSumitomo Electric Hardmetal
188 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal Flat Multi Drill MDF-S Type (External Coolant)

Brand Sumitomo Electric Hardmetal·Drills

Available part numbers (188)

MDF0030S2D, MDF0040S2D, MDF0050S2D, MDF0060S2D, MDF0070S2D, MDF0080S2D, MDF0090S2D, MDF0100S2D, MDF0110S2D, MDF0120S2D + 178 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MDF0030S2DDC (mm): 0.3 | L/D: 2 | LU (mm): 0.7 | LCF (mm): 1.1 | LUX (mm): 1.4 | OAL (mm): 40 | DCON (mm): 3.0 | Stock: Yes
MDF0040S2DDC (mm): 0.4 | L/D: 2 | LU (mm): 0.8 | LCF (mm): 1.4 | LUX (mm): 1.7 | OAL (mm): 40 | DCON (mm): 3.0 | Stock: Yes
MDF0050S2DDC (mm): 0.5 | L/D: 2 | LU (mm): 1.3 | LCF (mm): 2.0 | LUX (mm): 2.3 | OAL (mm): 40 | DCON (mm): 3.0 | Stock: Yes
MDF0060S2DDC (mm): 0.6 | L/D: 2 | LU (mm): 1.5 | LCF (mm): 2.4 | LUX (mm): 2.7 | OAL (mm): 40 | DCON (mm): 3.0 | Stock: Yes
MDF0070S2DDC (mm): 0.7 | L/D: 2 | LU (mm): 1.8 | LCF (mm): 2.8 | LUX (mm): 3.1 | OAL (mm): 40 | DCON (mm): 3.0 | Stock: Yes
MDF0080S2DDC (mm): 0.8 | L/D: 2 | LU (mm): 2.0 | LCF (mm): 3.2 | LUX (mm): 3.5 | OAL (mm): 40 | DCON (mm): 3.0 | Stock: Yes
MDF0090S2DDC (mm): 0.9 | L/D: 2 | LU (mm): 2.3 | LCF (mm): 3.6 | LUX (mm): 3.9 | OAL (mm): 40 | DCON (mm): 3.0 | Stock: Yes
MDF0100S2DDC (mm): 1.0 | L/D: 2 | LU (mm): 2.5 | LCF (mm): 4.0 | LUX (mm): 4.3 | OAL (mm): 45 | DCON (mm): 3.0 | Stock: Yes
MDF0110S2DDC (mm): 1.1 | L/D: 2 | LU (mm): 2.8 | LCF (mm): 4.4 | LUX (mm): 4.7 | OAL (mm): 45 | DCON (mm): 3.0 | Stock: Yes
MDF0120S2DDC (mm): 1.2 | L/D: 2 | LU (mm): 3.0 | LCF (mm): 4.8 | LUX (mm): 5.1 | OAL (mm): 45 | DCON (mm): 3.0 | Stock: Yes
MDF0130S2DDC (mm): 1.3 | L/D: 2 | LU (mm): 3.3 | LCF (mm): 5.2 | LUX (mm): 5.5 | OAL (mm): 45 | DCON (mm): 3.0 | Stock: Yes
MDF0140S2DDC (mm): 1.4 | L/D: 2 | LU (mm): 3.5 | LCF (mm): 5.6 | LUX (mm): 5.9 | OAL (mm): 45 | DCON (mm): 3.0 | Stock: Yes
MDF0150S2DDC (mm): 1.5 | L/D: 2 | LU (mm): 3.8 | LCF (mm): 6.0 | LUX (mm): 6.3 | OAL (mm): 45 | DCON (mm): 3.0 | Stock: Yes
MDF0160S2DDC (mm): 1.6 | L/D: 2 | LU (mm): 4.0 | LCF (mm): 6.4 | LUX (mm): 6.7 | OAL (mm): 45 | DCON (mm): 3.0 | Stock: Yes
MDF0170S2DDC (mm): 1.7 | L/D: 2 | LU (mm): 4.3 | LCF (mm): 6.8 | LUX (mm): 7.1 | OAL (mm): 45 | DCON (mm): 3.0 | Stock: Yes
MDF0180S2DDC (mm): 1.8 | L/D: 2 | LU (mm): 4.5 | LCF (mm): 7.2 | LUX (mm): 7.5 | OAL (mm): 45 | DCON (mm): 3.0 | Stock: Yes
MDF0190S2DDC (mm): 1.9 | L/D: 2 | LU (mm): 4.8 | LCF (mm): 7.6 | LUX (mm): 7.9 | OAL (mm): 45 | DCON (mm): 3.0 | Stock: Yes
MDF0200S2DDC (mm): 2.0 | L/D: 2 | LU (mm): 5.0 | LCF (mm): 8.0 | LUX (mm): 8.3 | OAL (mm): 50 | DCON (mm): 4.0 | Stock: Yes
MDF0210S2DDC (mm): 2.1 | L/D: 2 | LU (mm): 5.3 | LCF (mm): 8.4 | LUX (mm): 8.7 | OAL (mm): 50 | DCON (mm): 4.0 | Stock: Yes
MDF0220S2DDC (mm): 2.2 | L/D: 2 | LU (mm): 5.5 | LCF (mm): 8.8 | LUX (mm): 9.1 | OAL (mm): 50 | DCON (mm): 4.0 | Stock: Yes
MDF0230S2DDC (mm): 2.3 | L/D: 2 | LU (mm): 5.8 | LCF (mm): 9.2 | LUX (mm): 9.5 | OAL (mm): 50 | DCON (mm): 4.0 | Stock: Yes
MDF0240S2DDC (mm): 2.4 | L/D: 2 | LU (mm): 6.0 | LCF (mm): 9.6 | LUX (mm): 9.9 | OAL (mm): 50 | DCON (mm): 4.0 | Stock: Yes
MDF0250S2DDC (mm): 2.5 | L/D: 2 | LU (mm): 6.3 | LCF (mm): 10.0 | LUX (mm): 10.5 | OAL (mm): 50 | DCON (mm): 4.0 | Stock: Yes
MDF0260S2DDC (mm): 2.6 | L/D: 2 | LU (mm): 6.5 | LCF (mm): 10.4 | LUX (mm): 11.1 | OAL (mm): 50 | DCON (mm): 4.0 | Stock: Yes
MDF0270S2DDC (mm): 2.7 | L/D: 2 | LU (mm): 6.8 | LCF (mm): 10.8 | LUX (mm): 11.7 | OAL (mm): 50 | DCON (mm): 4.0 | Stock: Yes
MDF0276S2DDC (mm): 2.76 | L/D: 2 | LU (mm): 6.9 | LCF (mm): 11.0 | LUX (mm): 12.0 | OAL (mm): 50 | DCON (mm): 4.0 | Stock: Yes
MDF0278S2DDC (mm): 2.78 | L/D: 2 | LU (mm): 6.9 | LCF (mm): 11.1 | LUX (mm): 12.1 | OAL (mm): 50 | DCON (mm): 4.0 | Stock: Yes
MDF0280S2DDC (mm): 2.8 | L/D: 2 | LU (mm): 7.0 | LCF (mm): 11.2 | LUX (mm): 12.2 | OAL (mm): 50 | DCON (mm): 4.0 | Stock: Yes
MDF0290S2DDC (mm): 2.9 | L/D: 2 | LU (mm): 7.3 | LCF (mm): 11.6 | LUX (mm): 12.8 | OAL (mm): 50 | DCON (mm): 4.0 | Stock: Yes
MDF0300S2DDC (mm): 3.0 | L/D: 2 | LU (mm): 7.5 | LCF (mm): 12.0 | LUX (mm): 12.3 | OAL (mm): 50 | DCON (mm): 6.0 | Stock: Yes
MDF0310S2DDC (mm): 3.1 | L/D: 2 | LU (mm): 7.8 | LCF (mm): 12.4 | LUX (mm): 12.7 | OAL (mm): 50 | DCON (mm): 6.0 | Stock: Yes
MDF0320S2DDC (mm): 3.2 | L/D: 2 | LU (mm): 8.0 | LCF (mm): 12.8 | LUX (mm): 13.1 | OAL (mm): 50 | DCON (mm): 6.0 | Stock: Yes
MDF0330S2DDC (mm): 3.3 | L/D: 2 | LU (mm): 8.3 | LCF (mm): 13.2 | LUX (mm): 13.5 | OAL (mm): 50 | DCON (mm): 6.0 | Stock: Yes
MDF0340S2DDC (mm): 3.4 | L/D: 2 | LU (mm): 8.5 | LCF (mm): 13.6 | LUX (mm): 13.9 | OAL (mm): 50 | DCON (mm): 6.0 | Stock: Yes
MDF0350S2DDC (mm): 3.5 | L/D: 2 | LU (mm): 8.8 | LCF (mm): 14.0 | LUX (mm): 14.3 | OAL (mm): 50 | DCON (mm): 6.0 | Stock: Yes
MDF0360S2DDC (mm): 3.6 | L/D: 2 | LU (mm): 9.0 | LCF (mm): 14.4 | LUX (mm): 14.9 | OAL (mm): 50 | DCON (mm): 6.0 | Stock: Yes
MDF0366S2DDC (mm): 3.66 | L/D: 2 | LU (mm): 9.1 | LCF (mm): 14.6 | LUX (mm): 15.3 | OAL (mm): 50 | DCON (mm): 6.0 | Stock: Yes
MDF0368S2DDC (mm): 3.68 | L/D: 2 | LU (mm): 9.2 | LCF (mm): 14.7 | LUX (mm): 15.4 | OAL (mm): 50 | DCON (mm): 6.0 | Stock: Yes
MDF0370S2DDC (mm): 3.7 | L/D: 2 | LU (mm): 9.3 | LCF (mm): 14.8 | LUX (mm): 15.5 | OAL (mm): 50 | DCON (mm): 6.0 | Stock: Yes
MDF0380S2DDC (mm): 3.8 | L/D: 2 | LU (mm): 9.5 | LCF (mm): 15.2 | LUX (mm): 16.0 | OAL (mm): 50 | DCON (mm): 6.0 | Stock: Yes
MDF0390S2DDC (mm): 3.9 | L/D: 2 | LU (mm): 9.8 | LCF (mm): 15.6 | LUX (mm): 16.6 | OAL (mm): 50 | DCON (mm): 6.0 | Stock: Yes
MDF0400S2DDC (mm): 4.0 | L/D: 2 | LU (mm): 10.0 | LCF (mm): 16.0 | LUX (mm): 17.2 | OAL (mm): 50 | DCON (mm): 6.0 | Stock: Yes
MDF0410S2DDC (mm): 4.1 | L/D: 2 | LU (mm): 10.3 | LCF (mm): 16.4 | LUX (mm): 17.8 | OAL (mm): 60 | DCON (mm): 6.0 | Stock: Yes
MDF0420S2DDC (mm): 4.2 | L/D: 2 | LU (mm): 10.5 | LCF (mm): 16.8 | LUX (mm): 18.4 | OAL (mm): 60 | DCON (mm): 6.0 | Stock: Yes
MDF0430S2DDC (mm): 4.3 | L/D: 2 | LU (mm): 10.8 | LCF (mm): 17.2 | LUX (mm): 18.9 | OAL (mm): 60 | DCON (mm): 6.0 | Stock: Yes
MDF0440S2DDC (mm): 4.4 | L/D: 2 | LU (mm): 11.0 | LCF (mm): 17.6 | LUX (mm): 19.5 | OAL (mm): 60 | DCON (mm): 6.0 | Stock: Yes
MDF0450S2DDC (mm): 4.5 | L/D: 2 | LU (mm): 11.3 | LCF (mm): 18.0 | LUX (mm): 20.1 | OAL (mm): 60 | DCON (mm): 6.0 | Stock: Yes
MDF0460S2DDC (mm): 4.6 | L/D: 2 | LU (mm): 11.5 | LCF (mm): 18.4 | LUX (mm): 20.7 | OAL (mm): 60 | DCON (mm): 6.0 | Stock: Yes
MDF0462S2DDC (mm): 4.62 | L/D: 2 | LU (mm): 11.6 | LCF (mm): 18.5 | LUX (mm): 20.9 | OAL (mm): 60 | DCON (mm): 6.0 | Stock: Yes
MDF0464S2DDC (mm): 4.64 | L/D: 2 | LU (mm): 11.6 | LCF (mm): 18.6 | LUX (mm): 21.0 | OAL (mm): 60 | DCON (mm): 6.0 | Stock: Yes
MDF0470S2DDC (mm): 4.7 | L/D: 2 | LU (mm): 11.8 | LCF (mm): 18.8 | LUX (mm): 21.3 | OAL (mm): 60 | DCON (mm): 6.0 | Stock: Yes
MDF0480S2DDC (mm): 4.8 | L/D: 2 | LU (mm): 12.0 | LCF (mm): 19.2 | LUX (mm): 21.8 | OAL (mm): 60 | DCON (mm): 6.0 | Stock: Yes
MDF0490S2DDC (mm): 4.9 | L/D: 2 | LU (mm): 12.3 | LCF (mm): 19.6 | LUX (mm): 22.4 | OAL (mm): 60 | DCON (mm): 6.0 | Stock: Yes
MDF0500S2DDC (mm): 5.0 | L/D: 2 | LU (mm): 12.5 | LCF (mm): 20.0 | LUX (mm): 23.0 | OAL (mm): 60 | DCON (mm): 6.0 | Stock: Yes
MDF0510S2DDC (mm): 5.1 | L/D: 2 | LU (mm): 12.8 | LCF (mm): 20.4 | LUX (mm): 23.6 | OAL (mm): 60 | DCON (mm): 6.0 | Stock: Yes
MDF0520S2DDC (mm): 5.2 | L/D: 2 | LU (mm): 13.0 | LCF (mm): 20.8 | LUX (mm): 24.2 | OAL (mm): 60 | DCON (mm): 6.0 | Stock: Yes
MDF0530S2DDC (mm): 5.3 | L/D: 2 | LU (mm): 13.3 | LCF (mm): 21.2 | LUX (mm): 24.7 | OAL (mm): 60 | DCON (mm): 6.0 | Stock: Yes
MDF0540S2DDC (mm): 5.4 | L/D: 2 | LU (mm): 13.5 | LCF (mm): 21.6 | LUX (mm): 25.3 | OAL (mm): 60 | DCON (mm): 6.0 | Stock: Yes
MDF0550S2DDC (mm): 5.5 | L/D: 2 | LU (mm): 13.8 | LCF (mm): 22.0 | LUX (mm): 25.9 | OAL (mm): 60 | DCON (mm): 6.0 | Stock: Yes
MDF0552S2DDC (mm): 5.52 | L/D: 2 | LU (mm): 13.8 | LCF (mm): 22.1 | LUX (mm): 26.1 | OAL (mm): 60 | DCON (mm): 6.0 | Stock: Yes
MDF0554S2DDC (mm): 5.54 | L/D: 2 | LU (mm): 13.9 | LCF (mm): 22.2 | LUX (mm): 26.2 | OAL (mm): 60 | DCON (mm): 6.0 | Stock: Yes
MDF0560S2DDC (mm): 5.6 | L/D: 2 | LU (mm): 14.0 | LCF (mm): 22.4 | LUX (mm): 26.5 | OAL (mm): 60 | DCON (mm): 6.0 | Stock: Yes
MDF0570S2DDC (mm): 5.7 | L/D: 2 | LU (mm): 14.3 | LCF (mm): 22.8 | LUX (mm): 27.1 | OAL (mm): 60 | DCON (mm): 6.0 | Stock: Yes
MDF0580S2DDC (mm): 5.8 | L/D: 2 | LU (mm): 14.5 | LCF (mm): 23.2 | LUX (mm): 27.6 | OAL (mm): 60 | DCON (mm): 6.0 | Stock: Yes
MDF0590S2DDC (mm): 5.9 | L/D: 2 | LU (mm): 14.8 | LCF (mm): 23.6 | LUX (mm): 28.2 | OAL (mm): 60 | DCON (mm): 6.0 | Stock: Yes
MDF0600S2DDC (mm): 6.0 | L/D: 2 | LU (mm): 15.0 | LCF (mm): 24.0 | LUX (mm): 28.8 | OAL (mm): 60 | DCON (mm): 6.0 | Stock: Yes
MDF0610S2DDC (mm): 6.1 | L/D: 2 | LU (mm): 15.3 | LCF (mm): 24.4 | LUX (mm): 27.4 | OAL (mm): 70 | DCON (mm): 8.0 | Stock: Yes
MDF0620S2DDC (mm): 6.2 | L/D: 2 | LU (mm): 15.5 | LCF (mm): 24.8 | LUX (mm): 28.0 | OAL (mm): 70 | DCON (mm): 8.0 | Stock: Yes
MDF0630S2DDC (mm): 6.3 | L/D: 2 | LU (mm): 15.8 | LCF (mm): 25.2 | LUX (mm): 28.5 | OAL (mm): 70 | DCON (mm): 8.0 | Stock: Yes
MDF0640S2DDC (mm): 6.4 | L/D: 2 | LU (mm): 16.0 | LCF (mm): 25.6 | LUX (mm): 29.1 | OAL (mm): 70 | DCON (mm): 8.0 | Stock: Yes
MDF0650S2DDC (mm): 6.5 | L/D: 2 | LU (mm): 16.3 | LCF (mm): 26.0 | LUX (mm): 29.7 | OAL (mm): 70 | DCON (mm): 8.0 | Stock: Yes
MDF0660S2DDC (mm): 6.6 | L/D: 2 | LU (mm): 16.5 | LCF (mm): 26.4 | LUX (mm): 30.3 | OAL (mm): 70 | DCON (mm): 8.0 | Stock: Yes
MDF0670S2DDC (mm): 6.7 | L/D: 2 | LU (mm): 16.8 | LCF (mm): 26.8 | LUX (mm): 30.9 | OAL (mm): 70 | DCON (mm): 8.0 | Stock: Yes
MDF0680S2DDC (mm): 6.8 | L/D: 2 | LU (mm): 17.0 | LCF (mm): 27.2 | LUX (mm): 31.4 | OAL (mm): 70 | DCON (mm): 8.0 | Stock: Yes
MDF0690S2DDC (mm): 6.9 | L/D: 2 | LU (mm): 17.3 | LCF (mm): 27.6 | LUX (mm): 32.0 | OAL (mm): 70 | DCON (mm): 8.0 | Stock: Yes
MDF0700S2DDC (mm): 7.0 | L/D: 2 | LU (mm): 17.5 | LCF (mm): 28.0 | LUX (mm): 32.6 | OAL (mm): 70 | DCON (mm): 8.0 | Stock: Yes
MDF0710S2DDC (mm): 7.1 | L/D: 2 | LU (mm): 17.8 | LCF (mm): 28.4 | LUX (mm): 33.2 | OAL (mm): 70 | DCON (mm): 8.0 | Stock: Yes
MDF0720S2DDC (mm): 7.2 | L/D: 2 | LU (mm): 18.0 | LCF (mm): 28.8 | LUX (mm): 33.8 | OAL (mm): 70 | DCON (mm): 8.0 | Stock: Yes
MDF0730S2DDC (mm): 7.3 | L/D: 2 | LU (mm): 18.3 | LCF (mm): 29.2 | LUX (mm): 34.3 | OAL (mm): 70 | DCON (mm): 8.0 | Stock: Yes
MDF0736S2DDC (mm): 7.36 | L/D: 2 | LU (mm): 18.4 | LCF (mm): 29.4 | LUX (mm): 34.7 | OAL (mm): 70 | DCON (mm): 8.0 | Stock: Yes
MDF0738S2DDC (mm): 7.38 | L/D: 2 | LU (mm): 18.4 | LCF (mm): 29.5 | LUX (mm): 34.8 | OAL (mm): 70 | DCON (mm): 8.0 | Stock: Yes
MDF0740S2DDC (mm): 7.4 | L/D: 2 | LU (mm): 18.5 | LCF (mm): 29.6 | LUX (mm): 34.9 | OAL (mm): 70 | DCON (mm): 8.0 | Stock: Yes
MDF0750S2DDC (mm): 7.5 | L/D: 2 | LU (mm): 18.8 | LCF (mm): 30.0 | LUX (mm): 35.5 | OAL (mm): 70 | DCON (mm): 8.0 | Stock: Yes
MDF0752S2DDC (mm): 7.52 | L/D: 2 | LU (mm): 18.8 | LCF (mm): 30.1 | LUX (mm): 35.7 | OAL (mm): 70 | DCON (mm): 8.0 | Stock: Yes
MDF0754S2DDC (mm): 7.54 | L/D: 2 | LU (mm): 18.9 | LCF (mm): 30.2 | LUX (mm): 35.8 | OAL (mm): 70 | DCON (mm): 8.0 | Stock: Yes
MDF0760S2DDC (mm): 7.6 | L/D: 2 | LU (mm): 19.0 | LCF (mm): 30.4 | LUX (mm): 36.1 | OAL (mm): 70 | DCON (mm): 8.0 | Stock: Yes
MDF0770S2DDC (mm): 7.7 | L/D: 2 | LU (mm): 19.3 | LCF (mm): 30.8 | LUX (mm): 36.7 | OAL (mm): 70 | DCON (mm): 8.0 | Stock: Yes
MDF0780S2DDC (mm): 7.8 | L/D: 2 | LU (mm): 19.5 | LCF (mm): 31.2 | LUX (mm): 37.2 | OAL (mm): 70 | DCON (mm): 8.0 | Stock: Yes
MDF0790S2DDC (mm): 7.9 | L/D: 2 | LU (mm): 19.8 | LCF (mm): 31.6 | LUX (mm): 37.8 | OAL (mm): 70 | DCON (mm): 8.0 | Stock: Yes
MDF0800S2DDC (mm): 8.0 | L/D: 2 | LU (mm): 20.0 | LCF (mm): 32.0 | LUX (mm): 38.4 | OAL (mm): 70 | DCON (mm): 8.0 | Stock: Yes
MDF0810S2DDC (mm): 8.1 | L/D: 2 | LU (mm): 20.3 | LCF (mm): 32.4 | LUX (mm): 37.0 | OAL (mm): 80 | DCON (mm): 10.0 | Stock: Yes
MDF0820S2DDC (mm): 8.2 | L/D: 2 | LU (mm): 20.5 | LCF (mm): 32.8 | LUX (mm): 37.6 | OAL (mm): 80 | DCON (mm): 10.0 | Stock: Yes
MDF0830S2DDC (mm): 8.3 | L/D: 2 | LU (mm): 20.8 | LCF (mm): 33.2 | LUX (mm): 38.1 | OAL (mm): 80 | DCON (mm): 10.0 | Stock: Yes
MDF0840S2DDC (mm): 8.4 | L/D: 2 | LU (mm): 21.0 | LCF (mm): 33.6 | LUX (mm): 38.7 | OAL (mm): 80 | DCON (mm): 10.0 | Stock: Yes
MDF0850S2DDC (mm): 8.5 | L/D: 2 | LU (mm): 21.3 | LCF (mm): 34.0 | LUX (mm): 39.3 | OAL (mm): 80 | DCON (mm): 10.0 | Stock: Yes
MDF0860S2DDC (mm): 8.6 | L/D: 2 | LU (mm): 21.5 | LCF (mm): 34.4 | LUX (mm): 39.9 | OAL (mm): 80 | DCON (mm): 10.0 | Stock: Yes
MDF0870S2DDC (mm): 8.7 | L/D: 2 | LU (mm): 21.8 | LCF (mm): 34.8 | LUX (mm): 40.5 | OAL (mm): 80 | DCON (mm): 10.0 | Stock: Yes
MDF0880S2DDC (mm): 8.8 | L/D: 2 | LU (mm): 22.0 | LCF (mm): 35.2 | LUX (mm): 41.0 | OAL (mm): 80 | DCON (mm): 10.0 | Stock: Yes
MDF0890S2DDC (mm): 8.9 | L/D: 2 | LU (mm): 22.3 | LCF (mm): 35.6 | LUX (mm): 41.6 | OAL (mm): 80 | DCON (mm): 10.0 | Stock: Yes
MDF0900S2DDC (mm): 9.0 | L/D: 2 | LU (mm): 22.5 | LCF (mm): 36.0 | LUX (mm): 42.2 | OAL (mm): 80 | DCON (mm): 10.0 | Stock: Yes
MDF0910S2DDC (mm): 9.1 | L/D: 2 | LU (mm): 22.8 | LCF (mm): 36.4 | LUX (mm): 42.8 | OAL (mm): 80 | DCON (mm): 10.0 | Stock: Yes
MDF0920S2DDC (mm): 9.2 | L/D: 2 | LU (mm): 23.0 | LCF (mm): 36.8 | LUX (mm): 43.4 | OAL (mm): 80 | DCON (mm): 10.0 | Stock: Yes
MDF0924S2DDC (mm): 9.24 | L/D: 2 | LU (mm): 23.1 | LCF (mm): 37.0 | LUX (mm): 43.6 | OAL (mm): 80 | DCON (mm): 10.0 | Stock: Yes
MDF0926S2DDC (mm): 9.26 | L/D: 2 | LU (mm): 23.1 | LCF (mm): 37.0 | LUX (mm): 43.7 | OAL (mm): 80 | DCON (mm): 10.0 | Stock: Yes
MDF0930S2DDC (mm): 9.3 | L/D: 2 | LU (mm): 23.3 | LCF (mm): 37.2 | LUX (mm): 43.9 | OAL (mm): 80 | DCON (mm): 10.0 | Stock: Yes
MDF0936S2DDC (mm): 9.36 | L/D: 2 | LU (mm): 23.4 | LCF (mm): 37.4 | LUX (mm): 44.3 | OAL (mm): 80 | DCON (mm): 10.0 | Stock: Yes
MDF0938S2DDC (mm): 9.38 | L/D: 2 | LU (mm): 23.4 | LCF (mm): 37.5 | LUX (mm): 44.4 | OAL (mm): 80 | DCON (mm): 10.0 | Stock: Yes
MDF0940S2DDC (mm): 9.4 | L/D: 2 | LU (mm): 23.5 | LCF (mm): 37.6 | LUX (mm): 44.5 | OAL (mm): 80 | DCON (mm): 10.0 | Stock: Yes
MDF0950S2DDC (mm): 9.5 | L/D: 2 | LU (mm): 23.8 | LCF (mm): 38.0 | LUX (mm): 45.1 | OAL (mm): 80 | DCON (mm): 10.0 | Stock: Yes
MDF0952S2DDC (mm): 9.52 | L/D: 2 | LU (mm): 23.8 | LCF (mm): 38.1 | LUX (mm): 45.3 | OAL (mm): 80 | DCON (mm): 10.0 | Stock: Yes
MDF0954S2DDC (mm): 9.54 | L/D: 2 | LU (mm): 23.9 | LCF (mm): 38.2 | LUX (mm): 45.4 | OAL (mm): 80 | DCON (mm): 10.0 | Stock: Yes
MDF0960S2DDC (mm): 9.6 | L/D: 2 | LU (mm): 24.0 | LCF (mm): 38.4 | LUX (mm): 45.7 | OAL (mm): 80 | DCON (mm): 10.0 | Stock: Yes
MDF0970S2DDC (mm): 9.7 | L/D: 2 | LU (mm): 24.3 | LCF (mm): 38.8 | LUX (mm): 46.3 | OAL (mm): 80 | DCON (mm): 10.0 | Stock: Yes
MDF0980S2DDC (mm): 9.8 | L/D: 2 | LU (mm): 24.5 | LCF (mm): 39.2 | LUX (mm): 46.8 | OAL (mm): 80 | DCON (mm): 10.0 | Stock: Yes
MDF0990S2DDC (mm): 9.9 | L/D: 2 | LU (mm): 24.8 | LCF (mm): 39.6 | LUX (mm): 47.4 | OAL (mm): 80 | DCON (mm): 10.0 | Stock: Yes
MDF1000S2DDC (mm): 10.0 | L/D: 2 | LU (mm): 25.0 | LCF (mm): 40.0 | LUX (mm): 48.0 | OAL (mm): 80 | DCON (mm): 10.0 | Stock: Yes
MDF1010S2DDC (mm): 10.1 | L/D: 2 | LU (mm): 25.3 | LCF (mm): 40.4 | LUX (mm): 46.6 | OAL (mm): 90 | DCON (mm): 12.0 | Stock: Yes
MDF1020S2DDC (mm): 10.2 | L/D: 2 | LU (mm): 25.5 | LCF (mm): 40.8 | LUX (mm): 47.2 | OAL (mm): 90 | DCON (mm): 12.0 | Stock: Yes
MDF1030S2DDC (mm): 10.3 | L/D: 2 | LU (mm): 25.8 | LCF (mm): 41.2 | LUX (mm): 47.7 | OAL (mm): 90 | DCON (mm): 12.0 | Stock: Yes
MDF1040S2DDC (mm): 10.4 | L/D: 2 | LU (mm): 26.0 | LCF (mm): 41.6 | LUX (mm): 48.3 | OAL (mm): 90 | DCON (mm): 12.0 | Stock: Yes
MDF1050S2DDC (mm): 10.5 | L/D: 2 | LU (mm): 26.3 | LCF (mm): 42.0 | LUX (mm): 48.9 | OAL (mm): 90 | DCON (mm): 12.0 | Stock: Yes
MDF1060S2DDC (mm): 10.6 | L/D: 2 | LU (mm): 26.5 | LCF (mm): 42.4 | LUX (mm): 49.5 | OAL (mm): 90 | DCON (mm): 12.0 | Stock: Yes
MDF1070S2DDC (mm): 10.7 | L/D: 2 | LU (mm): 26.8 | LCF (mm): 42.8 | LUX (mm): 50.1 | OAL (mm): 90 | DCON (mm): 12.0 | Stock: Yes
MDF1080S2DDC (mm): 10.8 | L/D: 2 | LU (mm): 27.0 | LCF (mm): 43.2 | LUX (mm): 50.6 | OAL (mm): 90 | DCON (mm): 12.0 | Stock: Yes
MDF1090S2DDC (mm): 10.9 | L/D: 2 | LU (mm): 27.3 | LCF (mm): 43.6 | LUX (mm): 51.2 | OAL (mm): 90 | DCON (mm): 12.0 | Stock: Yes
MDF1100S2DDC (mm): 11.0 | L/D: 2 | LU (mm): 27.5 | LCF (mm): 44.0 | LUX (mm): 51.8 | OAL (mm): 90 | DCON (mm): 12.0 | Stock: Yes
MDF1110S2DDC (mm): 11.1 | L/D: 2 | LU (mm): 27.8 | LCF (mm): 44.4 | LUX (mm): 52.4 | OAL (mm): 90 | DCON (mm): 12.0 | Stock: Yes
MDF1120S2DDC (mm): 11.2 | L/D: 2 | LU (mm): 28.0 | LCF (mm): 44.8 | LUX (mm): 53.0 | OAL (mm): 90 | DCON (mm): 12.0 | Stock: Yes
MDF1122S2DDC (mm): 11.22 | L/D: 2 | LU (mm): 28.1 | LCF (mm): 44.9 | LUX (mm): 53.1 | OAL (mm): 90 | DCON (mm): 12.0 | Stock: Yes
MDF1124S2DDC (mm): 11.24 | L/D: 2 | LU (mm): 28.1 | LCF (mm): 45.0 | LUX (mm): 53.2 | OAL (mm): 90 | DCON (mm): 12.0 | Stock: Yes
MDF1130S2DDC (mm): 11.3 | L/D: 2 | LU (mm): 28.3 | LCF (mm): 45.2 | LUX (mm): 53.5 | OAL (mm): 90 | DCON (mm): 12.0 | Stock: Yes
MDF1136S2DDC (mm): 11.36 | L/D: 2 | LU (mm): 28.4 | LCF (mm): 45.4 | LUX (mm): 53.9 | OAL (mm): 90 | DCON (mm): 12.0 | Stock: Yes
MDF1138S2DDC (mm): 11.38 | L/D: 2 | LU (mm): 28.4 | LCF (mm): 45.5 | LUX (mm): 54.0 | OAL (mm): 90 | DCON (mm): 12.0 | Stock: Yes
MDF1140S2DDC (mm): 11.4 | L/D: 2 | LU (mm): 28.5 | LCF (mm): 45.6 | LUX (mm): 54.1 | OAL (mm): 90 | DCON (mm): 12.0 | Stock: Yes
MDF1150S2DDC (mm): 11.5 | L/D: 2 | LU (mm): 28.8 | LCF (mm): 46.0 | LUX (mm): 54.7 | OAL (mm): 90 | DCON (mm): 12.0 | Stock: Yes
MDF1160S2DDC (mm): 11.6 | L/D: 2 | LU (mm): 29.0 | LCF (mm): 46.4 | LUX (mm): 55.3 | OAL (mm): 90 | DCON (mm): 12.0 | Stock: Yes
MDF1170S2DDC (mm): 11.7 | L/D: 2 | LU (mm): 29.3 | LCF (mm): 46.8 | LUX (mm): 55.9 | OAL (mm): 90 | DCON (mm): 12.0 | Stock: Yes
MDF1180S2DDC (mm): 11.8 | L/D: 2 | LU (mm): 29.5 | LCF (mm): 47.2 | LUX (mm): 56.4 | OAL (mm): 90 | DCON (mm): 12.0 | Stock: Yes
MDF1190S2DDC (mm): 11.9 | L/D: 2 | LU (mm): 29.8 | LCF (mm): 47.6 | LUX (mm): 57.0 | OAL (mm): 90 | DCON (mm): 12.0 | Stock: Yes
MDF1200S2DDC (mm): 12.0 | L/D: 2 | LU (mm): 30.0 | LCF (mm): 48.0 | LUX (mm): 57.6 | OAL (mm): 90 | DCON (mm): 12.0 | Stock: Yes
MDF1210S2DDC (mm): 12.1 | L/D: 2 | LU (mm): 30.3 | LCF (mm): 48.4 | LUX (mm): 52.3 | OAL (mm): 100 | DCON (mm): 14.0 | Stock: Yes
MDF1220S2DDC (mm): 12.2 | L/D: 2 | LU (mm): 30.5 | LCF (mm): 48.8 | LUX (mm): 52.7 | OAL (mm): 100 | DCON (mm): 14.0 | Stock: Yes
MDF1230S2DDC (mm): 12.3 | L/D: 2 | LU (mm): 30.8 | LCF (mm): 49.2 | LUX (mm): 53.1 | OAL (mm): 100 | DCON (mm): 14.0 | Stock: Yes
MDF1240S2DDC (mm): 12.4 | L/D: 2 | LU (mm): 31.0 | LCF (mm): 49.6 | LUX (mm): 53.6 | OAL (mm): 100 | DCON (mm): 14.0 | Stock: Yes
MDF1250S2DDC (mm): 12.5 | L/D: 2 | LU (mm): 31.3 | LCF (mm): 50.0 | LUX (mm): 54.0 | OAL (mm): 100 | DCON (mm): 14.0 | Stock: Yes
MDF1260S2DDC (mm): 12.6 | L/D: 2 | LU (mm): 31.5 | LCF (mm): 50.4 | LUX (mm): 55.1 | OAL (mm): 100 | DCON (mm): 14.0 | Stock: Yes
MDF1270S2DDC (mm): 12.7 | L/D: 2 | LU (mm): 31.8 | LCF (mm): 50.8 | LUX (mm): 55.5 | OAL (mm): 100 | DCON (mm): 14.0 | Stock: Yes
MDF1280S2DDC (mm): 12.8 | L/D: 2 | LU (mm): 32.0 | LCF (mm): 51.2 | LUX (mm): 55.9 | OAL (mm): 100 | DCON (mm): 14.0 | Stock: Yes
MDF1290S2DDC (mm): 12.9 | L/D: 2 | LU (mm): 32.3 | LCF (mm): 51.6 | LUX (mm): 56.4 | OAL (mm): 100 | DCON (mm): 14.0 | Stock: Yes
MDF1300S2DDC (mm): 13.0 | L/D: 2 | LU (mm): 32.5 | LCF (mm): 52.0 | LUX (mm): 56.8 | OAL (mm): 100 | DCON (mm): 14.0 | Stock: Yes
MDF1310S2DDC (mm): 13.1 | L/D: 2 | LU (mm): 32.8 | LCF (mm): 52.4 | LUX (mm): 57.8 | OAL (mm): 110 | DCON (mm): 14.0 | Stock: Yes
MDF1320S2DDC (mm): 13.2 | L/D: 2 | LU (mm): 33.0 | LCF (mm): 52.8 | LUX (mm): 58.3 | OAL (mm): 110 | DCON (mm): 14.0 | Stock: Yes
MDF1330S2DDC (mm): 13.3 | L/D: 2 | LU (mm): 33.3 | LCF (mm): 53.2 | LUX (mm): 58.7 | OAL (mm): 110 | DCON (mm): 14.0 | Stock: Yes
MDF1340S2DDC (mm): 13.4 | L/D: 2 | LU (mm): 33.5 | LCF (mm): 53.6 | LUX (mm): 59.2 | OAL (mm): 110 | DCON (mm): 14.0 | Stock: Yes
MDF1350S2DDC (mm): 13.5 | L/D: 2 | LU (mm): 33.8 | LCF (mm): 54.0 | LUX (mm): 59.6 | OAL (mm): 110 | DCON (mm): 14.0 | Stock: Yes
MDF1360S2DDC (mm): 13.6 | L/D: 2 | LU (mm): 34.0 | LCF (mm): 54.4 | LUX (mm): 60.6 | OAL (mm): 110 | DCON (mm): 14.0 | Stock: Yes
MDF1370S2DDC (mm): 13.7 | L/D: 2 | LU (mm): 34.3 | LCF (mm): 54.8 | LUX (mm): 61.1 | OAL (mm): 110 | DCON (mm): 14.0 | Stock: Yes
MDF1380S2DDC (mm): 13.8 | L/D: 2 | LU (mm): 34.5 | LCF (mm): 55.2 | LUX (mm): 61.5 | OAL (mm): 110 | DCON (mm): 14.0 | Stock: Yes
MDF1390S2DDC (mm): 13.9 | L/D: 2 | LU (mm): 34.8 | LCF (mm): 55.6 | LUX (mm): 62.0 | OAL (mm): 110 | DCON (mm): 14.0 | Stock: Yes
MDF1400S2DDC (mm): 14.0 | L/D: 2 | LU (mm): 35.0 | LCF (mm): 56.0 | LUX (mm): 62.4 | OAL (mm): 110 | DCON (mm): 14.0 | Stock: Yes
MDF1410S2DDC (mm): 14.1 | L/D: 2 | LU (mm): 35.3 | LCF (mm): 56.4 | LUX (mm): 63.4 | OAL (mm): 110 | DCON (mm): 16.0 | Stock: Yes
MDF1420S2DDC (mm): 14.2 | L/D: 2 | LU (mm): 35.5 | LCF (mm): 56.8 | LUX (mm): 63.9 | OAL (mm): 110 | DCON (mm): 16.0 | Stock: Yes
MDF1430S2DDC (mm): 14.3 | L/D: 2 | LU (mm): 35.8 | LCF (mm): 57.2 | LUX (mm): 64.3 | OAL (mm): 110 | DCON (mm): 16.0 | Stock: Yes
MDF1440S2DDC (mm): 14.4 | L/D: 2 | LU (mm): 36.0 | LCF (mm): 57.6 | LUX (mm): 64.8 | OAL (mm): 110 | DCON (mm): 16.0 | Stock: Yes
MDF1450S2DDC (mm): 14.5 | L/D: 2 | LU (mm): 36.3 | LCF (mm): 58.0 | LUX (mm): 65.2 | OAL (mm): 110 | DCON (mm): 16.0 | Stock: Yes
MDF1460S2DDC (mm): 14.6 | L/D: 2 | LU (mm): 36.5 | LCF (mm): 58.4 | LUX (mm): 66.2 | OAL (mm): 110 | DCON (mm): 16.0 | Stock: Yes
MDF1470S2DDC (mm): 14.7 | L/D: 2 | LU (mm): 36.8 | LCF (mm): 58.8 | LUX (mm): 66.6 | OAL (mm): 110 | DCON (mm): 16.0 | Stock: Yes
MDF1480S2DDC (mm): 14.8 | L/D: 2 | LU (mm): 37.0 | LCF (mm): 59.2 | LUX (mm): 67.1 | OAL (mm): 110 | DCON (mm): 16.0 | Stock: Yes
MDF1490S2DDC (mm): 14.9 | L/D: 2 | LU (mm): 37.3 | LCF (mm): 59.6 | LUX (mm): 67.5 | OAL (mm): 110 | DCON (mm): 16.0 | Stock: Yes
MDF1500S2DDC (mm): 15.0 | L/D: 2 | LU (mm): 37.5 | LCF (mm): 60.0 | LUX (mm): 68.0 | OAL (mm): 110 | DCON (mm): 16.0 | Stock: Yes
MDF1510S2DDC (mm): 15.1 | L/D: 2 | LU (mm): 37.8 | LCF (mm): 60.4 | LUX (mm): 69.0 | OAL (mm): 115 | DCON (mm): 16.0 | Stock: Yes
MDF1520S2DDC (mm): 15.2 | L/D: 2 | LU (mm): 38.0 | LCF (mm): 60.8 | LUX (mm): 69.4 | OAL (mm): 115 | DCON (mm): 16.0 | Stock: Yes
MDF1530S2DDC (mm): 15.3 | L/D: 2 | LU (mm): 38.3 | LCF (mm): 61.2 | LUX (mm): 69.9 | OAL (mm): 115 | DCON (mm): 16.0 | Stock: Yes
MDF1540S2DDC (mm): 15.4 | L/D: 2 | LU (mm): 38.5 | LCF (mm): 61.6 | LUX (mm): 70.3 | OAL (mm): 115 | DCON (mm): 16.0 | Stock: Yes
MDF1550S2DDC (mm): 15.5 | L/D: 2 | LU (mm): 38.8 | LCF (mm): 62.0 | LUX (mm): 70.8 | OAL (mm): 115 | DCON (mm): 16.0 | Stock: Yes
MDF1560S2DDC (mm): 15.6 | L/D: 2 | LU (mm): 39.0 | LCF (mm): 62.4 | LUX (mm): 71.8 | OAL (mm): 115 | DCON (mm): 16.0 | Stock: Yes
MDF1570S2DDC (mm): 15.7 | L/D: 2 | LU (mm): 39.3 | LCF (mm): 62.8 | LUX (mm): 72.2 | OAL (mm): 115 | DCON (mm): 16.0 | Stock: Yes
MDF1580S2DDC (mm): 15.8 | L/D: 2 | LU (mm): 39.5 | LCF (mm): 63.2 | LUX (mm): 72.7 | OAL (mm): 115 | DCON (mm): 16.0 | Stock: Yes
MDF1590S2DDC (mm): 15.9 | L/D: 2 | LU (mm): 39.8 | LCF (mm): 63.6 | LUX (mm): 73.1 | OAL (mm): 115 | DCON (mm): 16.0 | Stock: Yes
MDF1600S2DDC (mm): 16.0 | L/D: 2 | LU (mm): 40.0 | LCF (mm): 64.0 | LUX (mm): 73.6 | OAL (mm): 115 | DCON (mm): 16.0 | Stock: Yes
MDF1650S2DDC (mm): 16.5 | L/D: 2 | LU (mm): 41.3 | LCF (mm): 66.0 | LUX (mm): 72.4 | OAL (mm): 125 | DCON (mm): 18.0 | Stock: Yes
MDF1700S2DDC (mm): 17.0 | L/D: 2 | LU (mm): 42.5 | LCF (mm): 68.0 | LUX (mm): 75.2 | OAL (mm): 125 | DCON (mm): 18.0 | Stock: Yes
MDF1750S2DDC (mm): 17.5 | L/D: 2 | LU (mm): 43.8 | LCF (mm): 70.0 | LUX (mm): 78.0 | OAL (mm): 130 | DCON (mm): 18.0 | Stock: Yes
MDF1800S2DDC (mm): 18.0 | L/D: 2 | LU (mm): 45.0 | LCF (mm): 72.0 | LUX (mm): 80.8 | OAL (mm): 130 | DCON (mm): 18.0 | Stock: Yes
MDF1850S2DDC (mm): 18.5 | L/D: 2 | LU (mm): 46.3 | LCF (mm): 74.0 | LUX (mm): 83.6 | OAL (mm): 140 | DCON (mm): 20.0 | Stock: Yes
MDF1900S2DDC (mm): 19.0 | L/D: 2 | LU (mm): 47.5 | LCF (mm): 76.0 | LUX (mm): 86.4 | OAL (mm): 140 | DCON (mm): 20.0 | Stock: Yes
MDF1950S2DDC (mm): 19.5 | L/D: 2 | LU (mm): 48.8 | LCF (mm): 78.0 | LUX (mm): 89.2 | OAL (mm): 140 | DCON (mm): 20.0 | Stock: Yes
MDF2000S2DDC (mm): 20.0 | L/D: 2 | LU (mm): 50.0 | LCF (mm): 80.0 | LUX (mm): 92.0 | OAL (mm): 140 | DCON (mm): 20.0 | Stock: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Cutting Tools →
