Sumitomo Electric Hardmetal GCG Grooving Insert GA for Non-Ferrous Metals

Sumitomo Electric Hardmetal GCG Grooving Insert GA for Non-Ferrous Metals

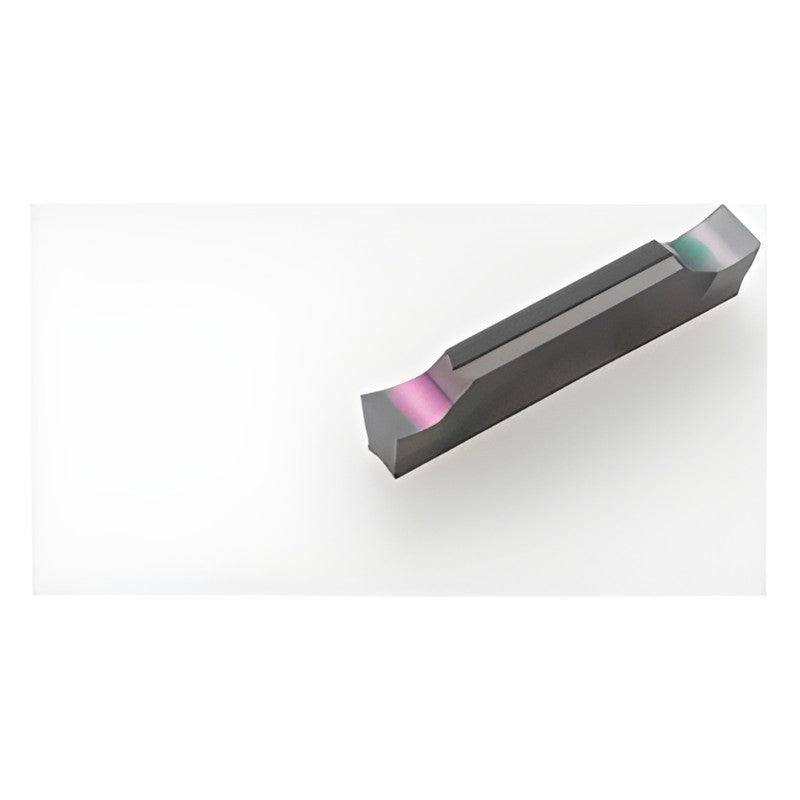

Ground GCG grooving insert with GA chip breaker for non-ferrous metals on GND holders.

Key features

  • Ground cutting edge, width tolerance +/-0.025 mm
  • Carbide H10 and DLC-coated DL1500
GCG N2002-GA H10 Cutting width CW (mm): 2.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.6 | Grade: H10 | Stock: Yes
GCG N2002-GA DL1500 Cutting width CW (mm): 2.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.6 | Grade: DL1500 | Stock: Yes
GCG N3002-GA H10 Cutting width CW (mm): 3.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: H10 | Stock: Yes
GCG N3002-GA DL1500 Cutting width CW (mm): 3.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: DL1500 | Stock: Yes
GCG N4004-GA H10 Cutting width CW (mm): 4.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: H10 | Stock: Yes
GCG N4004-GA DL1500 Cutting width CW (mm): 4.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: DL1500 | Stock: Yes
GCG N5004-GA H10 Cutting width CW (mm): 5.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: H10 | Stock: Yes
GCG N5004-GA DL1500 Cutting width CW (mm): 5.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: DL1500 | Stock: Yes
GCG N6004-GA H10 Cutting width CW (mm): 6.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: H10 | Stock: Yes
GCG N6004-GA DL1500 Cutting width CW (mm): 6.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: DL1500 | Stock: Yes
Grooving InsertsSumitomo Electric Hardmetal
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal GCG Grooving Insert GA for Non-Ferrous Metals

Brand Sumitomo Electric Hardmetal·Grooving Inserts

Available part numbers (10)

GCG N2002-GA H10, GCG N2002-GA DL1500, GCG N3002-GA H10, GCG N3002-GA DL1500, GCG N4004-GA H10, GCG N4004-GA DL1500, GCG N5004-GA H10, GCG N5004-GA DL1500, GCG N6004-GA H10, GCG N6004-GA DL1500

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GCG N2002-GA H10Cutting width CW (mm): 2.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.6 | Grade: H10 | Stock: Yes
GCG N2002-GA DL1500Cutting width CW (mm): 2.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.6 | Grade: DL1500 | Stock: Yes
GCG N3002-GA H10Cutting width CW (mm): 3.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: H10 | Stock: Yes
GCG N3002-GA DL1500Cutting width CW (mm): 3.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: DL1500 | Stock: Yes
GCG N4004-GA H10Cutting width CW (mm): 4.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: H10 | Stock: Yes
GCG N4004-GA DL1500Cutting width CW (mm): 4.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: DL1500 | Stock: Yes
GCG N5004-GA H10Cutting width CW (mm): 5.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: H10 | Stock: Yes
GCG N5004-GA DL1500Cutting width CW (mm): 5.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: DL1500 | Stock: Yes
GCG N6004-GA H10Cutting width CW (mm): 6.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: H10 | Stock: Yes
GCG N6004-GA DL1500Cutting width CW (mm): 6.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: DL1500 | Stock: Yes

Need a different model, or a part not listed here? Send us your parts list →
