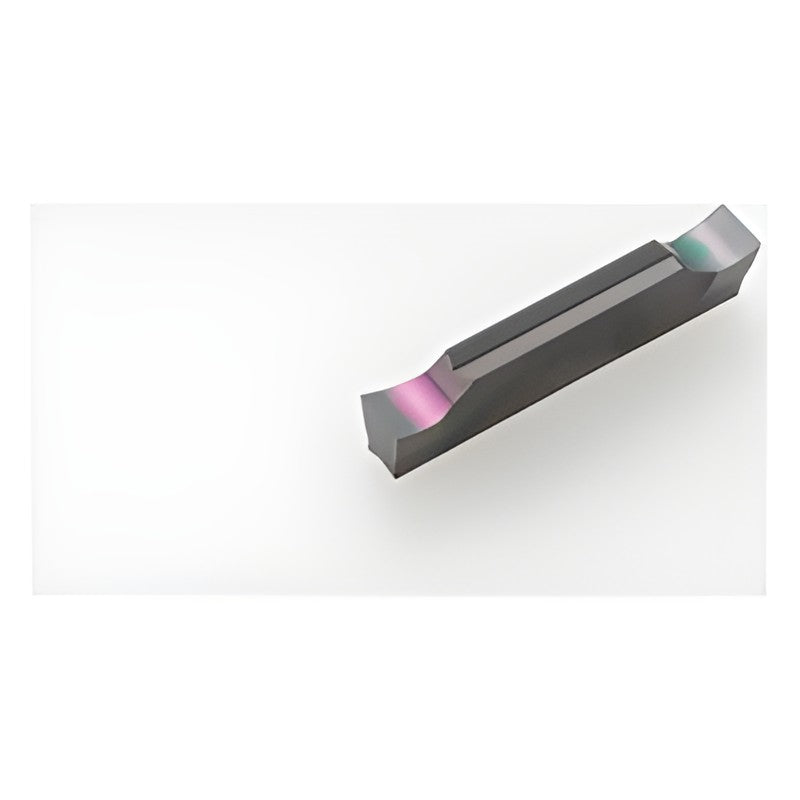

Sumitomo Electric Hardmetal GCM Grooving Insert for GNDXL Holders

Sumitomo Electric Hardmetal GCM Grooving Insert for GNDXL Holders

Dedicated GCM grooving insert (suffix 1) for GNDXL extra-deep grooving holders.

Key features

  • For GNDXL holders only
  • ML, RN and GF chip breakers

Specifications

Width tolerance (mm) ±0.03
GCM N3002-ML1 AC5015S Cutting width CW (mm): 3.0 | Width tolerance (mm): ±0.03 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC5015S | Stock: Yes
GCM N3002-ML1 AC5025S Cutting width CW (mm): 3.0 | Width tolerance (mm): ±0.03 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC5025S | Stock: Yes
GCM N3002-ML1 AC530U Cutting width CW (mm): 3.0 | Width tolerance (mm): ±0.03 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC530U | Stock: Yes
GCM N4004-ML1 AC5015S Cutting width CW (mm): 4.0 | Width tolerance (mm): ±0.03 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC5015S | Stock: Yes
GCM N4004-ML1 AC5025S Cutting width CW (mm): 4.0 | Width tolerance (mm): ±0.03 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC5025S | Stock: Yes
GCM N4004-ML1 AC530U Cutting width CW (mm): 4.0 | Width tolerance (mm): ±0.03 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC530U | Stock: Yes
GCM N5004-ML1 AC5015S Cutting width CW (mm): 5.0 | Width tolerance (mm): ±0.03 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC5015S | Stock: Yes
GCM N5004-ML1 AC5025S Cutting width CW (mm): 5.0 | Width tolerance (mm): ±0.03 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC5025S | Stock: Yes
GCM N5004-ML1 AC530U Cutting width CW (mm): 5.0 | Width tolerance (mm): ±0.03 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC530U | Stock: Yes
GCM N6004-ML1 AC5015S Cutting width CW (mm): 6.0 | Width tolerance (mm): ±0.03 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC5015S | Stock: Yes
GCM N6004-ML1 AC5025S Cutting width CW (mm): 6.0 | Width tolerance (mm): ±0.03 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC5025S | Stock: Yes
GCM N6004-ML1 AC530U Cutting width CW (mm): 6.0 | Width tolerance (mm): ±0.03 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC530U | Stock: Yes
GCM N3015-RN1 AC5015S Cutting width CW (mm): 3.0 | Width tolerance (mm): ±0.03 | Corner radius RE (mm): 1.5 | Length L (mm): 22.6 | Thickness S (mm): 3.8 | Grade: AC5015S | Stock: Yes
GCM N3015-RN1 AC5025S Cutting width CW (mm): 3.0 | Width tolerance (mm): ±0.03 | Corner radius RE (mm): 1.5 | Length L (mm): 22.6 | Thickness S (mm): 3.8 | Grade: AC5025S | Stock: Yes
GCM N3015-RN1 AC530U Cutting width CW (mm): 3.0 | Width tolerance (mm): ±0.03 | Corner radius RE (mm): 1.5 | Length L (mm): 22.6 | Thickness S (mm): 3.8 | Grade: AC530U | Stock: Yes
GCM N6030-RN1 AC5015S Cutting width CW (mm): 6.0 | Width tolerance (mm): ±0.03 | Corner radius RE (mm): 3.0 | Length L (mm): 28.3 | Thickness S (mm): 4.5 | Grade: AC5015S | Stock: Yes
GCM N6030-RN1 AC5025S Cutting width CW (mm): 6.0 | Width tolerance (mm): ±0.03 | Corner radius RE (mm): 3.0 | Length L (mm): 28.3 | Thickness S (mm): 4.5 | Grade: AC5025S | Stock: Yes
GCM N6030-RN1 AC530U Cutting width CW (mm): 6.0 | Width tolerance (mm): ±0.03 | Corner radius RE (mm): 3.0 | Length L (mm): 28.3 | Thickness S (mm): 4.5 | Grade: AC530U | Stock: Yes
GCM N3002-GF1 AC5015S Cutting width CW (mm): 3.0 | Width tolerance (mm): ±0.03 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC5015S | Stock: Yes
GCM N3002-GF1 AC5025S Cutting width CW (mm): 3.0 | Width tolerance (mm): ±0.03 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC5025S | Stock: Yes
GCM N3002-GF1 AC530U Cutting width CW (mm): 3.0 | Width tolerance (mm): ±0.03 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC530U | Stock: Yes
GCM N4002-GF1 AC5015S Cutting width CW (mm): 4.0 | Width tolerance (mm): ±0.03 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC5015S | Stock: Yes
GCM N4002-GF1 AC5025S Cutting width CW (mm): 4.0 | Width tolerance (mm): ±0.03 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC5025S | Stock: Yes
GCM N4002-GF1 AC530U Cutting width CW (mm): 4.0 | Width tolerance (mm): ±0.03 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC530U | Stock: Yes
GCM N5002-GF1 AC5015S Cutting width CW (mm): 5.0 | Width tolerance (mm): ±0.03 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC5015S | Stock: Yes
GCM N5002-GF1 AC5025S Cutting width CW (mm): 5.0 | Width tolerance (mm): ±0.03 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC5025S | Stock: Yes
GCM N5002-GF1 AC530U Cutting width CW (mm): 5.0 | Width tolerance (mm): ±0.03 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC530U | Stock: Yes
GCM N6002-GF1 AC5015S Cutting width CW (mm): 6.0 | Width tolerance (mm): ±0.03 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC5015S | Stock: Yes
GCM N6002-GF1 AC5025S Cutting width CW (mm): 6.0 | Width tolerance (mm): ±0.03 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC5025S | Stock: Yes
GCM N6002-GF1 AC530U Cutting width CW (mm): 6.0 | Width tolerance (mm): ±0.03 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC530U | Stock: Yes
Grooving InsertsSumitomo Electric Hardmetal
30 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal GCM Grooving Insert for GNDXL Holders

Brand Sumitomo Electric Hardmetal·Grooving Inserts

Available part numbers (30)

GCM N3002-ML1 AC5015S, GCM N3002-ML1 AC5025S, GCM N3002-ML1 AC530U, GCM N4004-ML1 AC5015S, GCM N4004-ML1 AC5025S, GCM N4004-ML1 AC530U, GCM N5004-ML1 AC5015S, GCM N5004-ML1 AC5025S, GCM N5004-ML1 AC530U, GCM N6004-ML1 AC5015S + 20 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GCM N3002-ML1 AC5015SCutting width CW (mm): 3.0 | Width tolerance (mm): ±0.03 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC5015S | Stock: Yes
GCM N3002-ML1 AC5025SCutting width CW (mm): 3.0 | Width tolerance (mm): ±0.03 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC5025S | Stock: Yes
GCM N3002-ML1 AC530UCutting width CW (mm): 3.0 | Width tolerance (mm): ±0.03 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC530U | Stock: Yes
GCM N4004-ML1 AC5015SCutting width CW (mm): 4.0 | Width tolerance (mm): ±0.03 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC5015S | Stock: Yes
GCM N4004-ML1 AC5025SCutting width CW (mm): 4.0 | Width tolerance (mm): ±0.03 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC5025S | Stock: Yes
GCM N4004-ML1 AC530UCutting width CW (mm): 4.0 | Width tolerance (mm): ±0.03 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC530U | Stock: Yes
GCM N5004-ML1 AC5015SCutting width CW (mm): 5.0 | Width tolerance (mm): ±0.03 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC5015S | Stock: Yes
GCM N5004-ML1 AC5025SCutting width CW (mm): 5.0 | Width tolerance (mm): ±0.03 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC5025S | Stock: Yes
GCM N5004-ML1 AC530UCutting width CW (mm): 5.0 | Width tolerance (mm): ±0.03 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC530U | Stock: Yes
GCM N6004-ML1 AC5015SCutting width CW (mm): 6.0 | Width tolerance (mm): ±0.03 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC5015S | Stock: Yes
GCM N6004-ML1 AC5025SCutting width CW (mm): 6.0 | Width tolerance (mm): ±0.03 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC5025S | Stock: Yes
GCM N6004-ML1 AC530UCutting width CW (mm): 6.0 | Width tolerance (mm): ±0.03 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC530U | Stock: Yes
GCM N3015-RN1 AC5015SCutting width CW (mm): 3.0 | Width tolerance (mm): ±0.03 | Corner radius RE (mm): 1.5 | Length L (mm): 22.6 | Thickness S (mm): 3.8 | Grade: AC5015S | Stock: Yes
GCM N3015-RN1 AC5025SCutting width CW (mm): 3.0 | Width tolerance (mm): ±0.03 | Corner radius RE (mm): 1.5 | Length L (mm): 22.6 | Thickness S (mm): 3.8 | Grade: AC5025S | Stock: Yes
GCM N3015-RN1 AC530UCutting width CW (mm): 3.0 | Width tolerance (mm): ±0.03 | Corner radius RE (mm): 1.5 | Length L (mm): 22.6 | Thickness S (mm): 3.8 | Grade: AC530U | Stock: Yes
GCM N6030-RN1 AC5015SCutting width CW (mm): 6.0 | Width tolerance (mm): ±0.03 | Corner radius RE (mm): 3.0 | Length L (mm): 28.3 | Thickness S (mm): 4.5 | Grade: AC5015S | Stock: Yes
GCM N6030-RN1 AC5025SCutting width CW (mm): 6.0 | Width tolerance (mm): ±0.03 | Corner radius RE (mm): 3.0 | Length L (mm): 28.3 | Thickness S (mm): 4.5 | Grade: AC5025S | Stock: Yes
GCM N6030-RN1 AC530UCutting width CW (mm): 6.0 | Width tolerance (mm): ±0.03 | Corner radius RE (mm): 3.0 | Length L (mm): 28.3 | Thickness S (mm): 4.5 | Grade: AC530U | Stock: Yes
GCM N3002-GF1 AC5015SCutting width CW (mm): 3.0 | Width tolerance (mm): ±0.03 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC5015S | Stock: Yes
GCM N3002-GF1 AC5025SCutting width CW (mm): 3.0 | Width tolerance (mm): ±0.03 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC5025S | Stock: Yes
GCM N3002-GF1 AC530UCutting width CW (mm): 3.0 | Width tolerance (mm): ±0.03 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC530U | Stock: Yes
GCM N4002-GF1 AC5015SCutting width CW (mm): 4.0 | Width tolerance (mm): ±0.03 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC5015S | Stock: Yes
GCM N4002-GF1 AC5025SCutting width CW (mm): 4.0 | Width tolerance (mm): ±0.03 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC5025S | Stock: Yes
GCM N4002-GF1 AC530UCutting width CW (mm): 4.0 | Width tolerance (mm): ±0.03 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC530U | Stock: Yes
GCM N5002-GF1 AC5015SCutting width CW (mm): 5.0 | Width tolerance (mm): ±0.03 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC5015S | Stock: Yes
GCM N5002-GF1 AC5025SCutting width CW (mm): 5.0 | Width tolerance (mm): ±0.03 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC5025S | Stock: Yes
GCM N5002-GF1 AC530UCutting width CW (mm): 5.0 | Width tolerance (mm): ±0.03 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC530U | Stock: Yes
GCM N6002-GF1 AC5015SCutting width CW (mm): 6.0 | Width tolerance (mm): ±0.03 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC5015S | Stock: Yes
GCM N6002-GF1 AC5025SCutting width CW (mm): 6.0 | Width tolerance (mm): ±0.03 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC5025S | Stock: Yes
GCM N6002-GF1 AC530UCutting width CW (mm): 6.0 | Width tolerance (mm): ±0.03 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC530U | Stock: Yes
