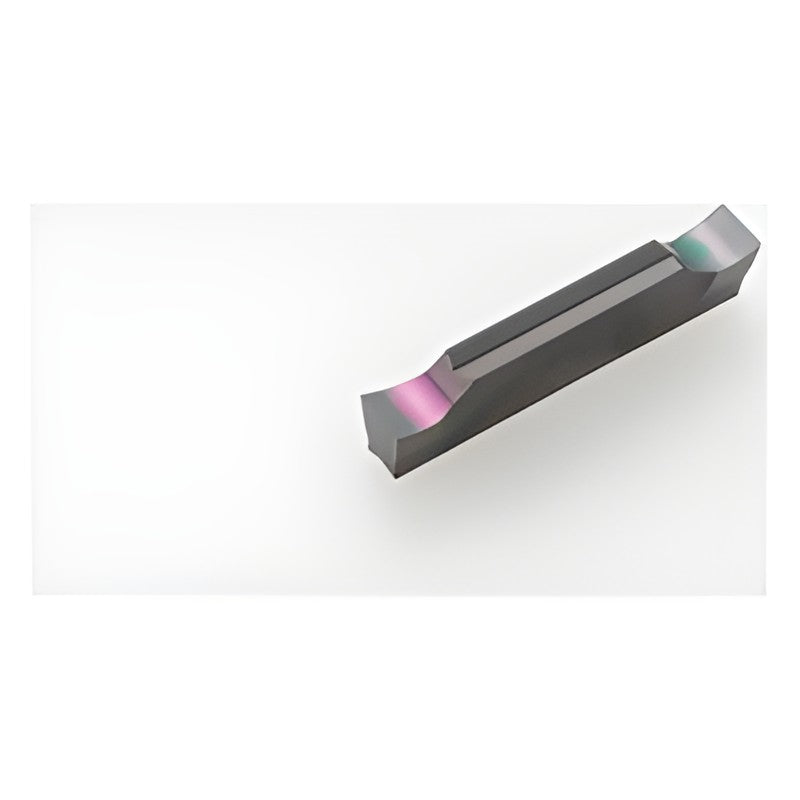

Sumitomo Electric Hardmetal GCM Grooving Insert GG/GL/GF (Grooving and Cut-off)

Sumitomo Electric Hardmetal GCM Grooving Insert GG/GL/GF (Grooving and Cut-off)

GCM grooving and cut-off insert with GG (general), GL (low feed) and GF (low cutting force) chip breakers for GND holders.

Key features

  • Precision-sintered edge, width accuracy +/-0.03 mm
  • For GND type grooving and cut-off holders
  • Multiple chip breakers for stable chip control
GCM N2002-GG AC8035P Cutting width CW (mm): 2.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.6 | Grade: AC8035P | Stock: Yes
GCM N2002-GG AC5015S Cutting width CW (mm): 2.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.6 | Grade: AC5015S | Stock: Yes
GCM N2002-GG AC5025S Cutting width CW (mm): 2.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.6 | Grade: AC5025S | Stock: Yes
GCM N2002-GG AC520U Cutting width CW (mm): 2.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.6 | Grade: AC520U | Stock: Yes
GCM N2002-GG AC530U Cutting width CW (mm): 2.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.6 | Grade: AC530U | Stock: Yes
GCM N3002-GG AC8035P Cutting width CW (mm): 3.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC8035P | Stock: Yes
GCM N3002-GG AC5015S Cutting width CW (mm): 3.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC5015S | Stock: Yes
GCM N3002-GG AC5025S Cutting width CW (mm): 3.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC5025S | Stock: Yes
GCM N3002-GG AC520U Cutting width CW (mm): 3.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC520U | Stock: Yes
GCM N3002-GG AC530U Cutting width CW (mm): 3.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC530U | Stock: Yes
GCM N3004-GG AC8035P Cutting width CW (mm): 3.0 | Corner radius RE (mm): 0.4 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC8035P | Stock: Yes
GCM N3004-GG AC5015S Cutting width CW (mm): 3.0 | Corner radius RE (mm): 0.4 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC5015S | Stock: Yes
GCM N3004-GG AC5025S Cutting width CW (mm): 3.0 | Corner radius RE (mm): 0.4 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC5025S | Stock: Yes
GCM N3004-GG AC520U Cutting width CW (mm): 3.0 | Corner radius RE (mm): 0.4 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC520U | Stock: Yes
GCM N3004-GG AC530U Cutting width CW (mm): 3.0 | Corner radius RE (mm): 0.4 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC530U | Stock: Yes
GCM N2002-GL AC8035P Cutting width CW (mm): 2.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.6 | Grade: AC8035P | Stock: Yes
GCM N2002-GL AC5015S Cutting width CW (mm): 2.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.6 | Grade: AC5015S | Stock: Yes
GCM N2002-GL AC5025S Cutting width CW (mm): 2.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.6 | Grade: AC5025S | Stock: Yes
GCM N2002-GL AC520U Cutting width CW (mm): 2.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.6 | Grade: AC520U | Stock: Yes
GCM N2002-GL AC530U Cutting width CW (mm): 2.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.6 | Grade: AC530U | Stock: Yes
GCM N2004-GL AC8035P Cutting width CW (mm): 2.0 | Corner radius RE (mm): 0.4 | Length L (mm): 21.1 | Thickness S (mm): 3.6 | Grade: AC8035P | Stock: Yes
GCM N2004-GL AC5015S Cutting width CW (mm): 2.0 | Corner radius RE (mm): 0.4 | Length L (mm): 21.1 | Thickness S (mm): 3.6 | Grade: AC5015S | Stock: Yes
GCM N2004-GL AC5025S Cutting width CW (mm): 2.0 | Corner radius RE (mm): 0.4 | Length L (mm): 21.1 | Thickness S (mm): 3.6 | Grade: AC5025S | Stock: Yes
GCM N2004-GL AC530U Cutting width CW (mm): 2.0 | Corner radius RE (mm): 0.4 | Length L (mm): 21.1 | Thickness S (mm): 3.6 | Grade: AC530U | Stock: Yes
GCM N3002-GL AC8035P Cutting width CW (mm): 3.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC8035P | Stock: Yes
GCM N3002-GL AC5015S Cutting width CW (mm): 3.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC5015S | Stock: Yes
GCM N3002-GL AC5025S Cutting width CW (mm): 3.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC5025S | Stock: Yes
GCM N3002-GL AC520U Cutting width CW (mm): 3.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC520U | Stock: Yes
GCM N3002-GL AC530U Cutting width CW (mm): 3.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC530U | Stock: Yes
GCM N3004-GL AC8035P Cutting width CW (mm): 3.0 | Corner radius RE (mm): 0.4 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC8035P | Stock: Yes
GCM N3004-GL AC5015S Cutting width CW (mm): 3.0 | Corner radius RE (mm): 0.4 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC5015S | Stock: Yes
GCM N3004-GL AC5025S Cutting width CW (mm): 3.0 | Corner radius RE (mm): 0.4 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC5025S | Stock: Yes
GCM N3004-GL AC530U Cutting width CW (mm): 3.0 | Corner radius RE (mm): 0.4 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC530U | Stock: Yes
GCM N125005-GF AC530U Cutting width CW (mm): 1.25 | Corner radius RE (mm): 0.05 | Length L (mm): 17.4 | Thickness S (mm): 3.2 | Grade: AC530U | Stock: Yes
GCM N150005-GF AC530U Corner radius RE (mm): 0.05 | Length L (mm): 17.8 | Thickness S (mm): 3.7 | Grade: AC530U | Stock: Yes
GCM N2002-GF AC5015S Cutting width CW (mm): 2.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.6 | Grade: AC5015S | Stock: Yes
GCM N2002-GF AC5025S Cutting width CW (mm): 2.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.6 | Grade: AC5025S | Stock: Yes
GCM N2002-GF AC530U Cutting width CW (mm): 2.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.6 | Grade: AC530U | Stock: Yes
GCM N2002-GF T2500A Cutting width CW (mm): 2.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.6 | Grade: T2500A | Stock: Yes
GCM N2004-GF AC5015S Cutting width CW (mm): 2.0 | Corner radius RE (mm): 0.4 | Length L (mm): 21.1 | Thickness S (mm): 3.6 | Grade: AC5015S | Stock: Yes
GCM N2004-GF AC5025S Cutting width CW (mm): 2.0 | Corner radius RE (mm): 0.4 | Length L (mm): 21.1 | Thickness S (mm): 3.6 | Grade: AC5025S | Stock: Yes
GCM N2004-GF AC530U Cutting width CW (mm): 2.0 | Corner radius RE (mm): 0.4 | Length L (mm): 21.1 | Thickness S (mm): 3.6 | Grade: AC530U | Stock: Yes
GCM N2004-GF T2500A Cutting width CW (mm): 2.0 | Corner radius RE (mm): 0.4 | Length L (mm): 21.1 | Thickness S (mm): 3.6 | Grade: T2500A | Stock: Yes
GCM N3002-GF AC8035P Cutting width CW (mm): 3.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC8035P | Stock: Yes
GCM N3002-GF AC5015S Cutting width CW (mm): 3.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC5015S | Stock: Yes
GCM N3002-GF AC5025S Cutting width CW (mm): 3.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC5025S | Stock: Yes
GCM N3002-GF AC520U Cutting width CW (mm): 3.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC520U | Stock: Yes
GCM N3002-GF AC530U Cutting width CW (mm): 3.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC530U | Stock: Yes
GCM N3002-GF T2500A Cutting width CW (mm): 3.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: T2500A | Stock: Yes
GCM N3004-GF AC8035P Cutting width CW (mm): 3.0 | Corner radius RE (mm): 0.4 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC8035P | Stock: Yes
GCM N3004-GF AC5015S Cutting width CW (mm): 3.0 | Corner radius RE (mm): 0.4 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC5015S | Stock: Yes
GCM N3004-GF AC5025S Cutting width CW (mm): 3.0 | Corner radius RE (mm): 0.4 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC5025S | Stock: Yes
GCM N3004-GF AC530U Cutting width CW (mm): 3.0 | Corner radius RE (mm): 0.4 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC530U | Stock: Yes
GCM N3004-GF T2500A Cutting width CW (mm): 3.0 | Corner radius RE (mm): 0.4 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: T2500A | Stock: Yes
GCM N4002-GG AC8035P Cutting width CW (mm): 4.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC8035P | Stock: Yes
GCM N4002-GG AC5015S Cutting width CW (mm): 4.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC5015S | Stock: Yes
GCM N4002-GG AC5025S Cutting width CW (mm): 4.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC5025S | Stock: Yes
GCM N4002-GG AC520U Cutting width CW (mm): 4.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC520U | Stock: Yes
GCM N4002-GG AC530U Cutting width CW (mm): 4.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC530U | Stock: Yes
GCM N4004-GG AC8035P Cutting width CW (mm): 4.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC8035P | Stock: Yes
GCM N4004-GG AC5015S Cutting width CW (mm): 4.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC5015S | Stock: Yes
GCM N4004-GG AC5025S Cutting width CW (mm): 4.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC5025S | Stock: Yes
GCM N4004-GG AC520U Cutting width CW (mm): 4.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC520U | Stock: Yes
GCM N4004-GG AC530U Cutting width CW (mm): 4.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC530U | Stock: Yes
GCM N5002-GG AC8035P Cutting width CW (mm): 5.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC8035P | Stock: Yes
GCM N5002-GG AC5015S Cutting width CW (mm): 5.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC5015S | Stock: Yes
GCM N5002-GG AC5025S Cutting width CW (mm): 5.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC5025S | Stock: Yes
GCM N5002-GG AC520U Cutting width CW (mm): 5.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC520U | Stock: Yes
GCM N5002-GG AC530U Cutting width CW (mm): 5.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC530U | Stock: Yes
GCM N5004-GG AC8035P Cutting width CW (mm): 5.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC8035P | Stock: Yes
GCM N5004-GG AC5015S Cutting width CW (mm): 5.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC5015S | Stock: Yes
GCM N5004-GG AC5025S Cutting width CW (mm): 5.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC5025S | Stock: Yes
GCM N5004-GG AC520U Cutting width CW (mm): 5.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC520U | Stock: Yes
GCM N5004-GG AC530U Cutting width CW (mm): 5.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC530U | Stock: Yes
GCM N6002-GG AC8035P Cutting width CW (mm): 6.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC8035P | Stock: Yes
GCM N6002-GG AC5015S Cutting width CW (mm): 6.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC5015S | Stock: Yes
GCM N6002-GG AC5025S Cutting width CW (mm): 6.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC5025S | Stock: Yes
GCM N6002-GG AC520U Cutting width CW (mm): 6.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC520U | Stock: Yes
GCM N6002-GG AC530U Cutting width CW (mm): 6.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC530U | Stock: Yes
GCM N6004-GG AC8035P Cutting width CW (mm): 6.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC8035P | Stock: Yes
GCM N6004-GG AC5015S Cutting width CW (mm): 6.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC5015S | Stock: Yes
GCM N6004-GG AC5025S Cutting width CW (mm): 6.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC5025S | Stock: Yes
GCM N6004-GG AC520U Cutting width CW (mm): 6.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC520U | Stock: Yes
GCM N6004-GG AC530U Cutting width CW (mm): 6.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC530U | Stock: Yes
GCM N4002-GL AC8035P Cutting width CW (mm): 4.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC8035P | Stock: Yes
GCM N4002-GL AC5015S Cutting width CW (mm): 4.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC5015S | Stock: Yes
GCM N4002-GL AC5025S Cutting width CW (mm): 4.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC5025S | Stock: Yes
GCM N4002-GL AC520U Cutting width CW (mm): 4.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC520U | Stock: Yes
GCM N4002-GL AC530U Cutting width CW (mm): 4.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC530U | Stock: Yes
GCM N4004-GL AC8035P Cutting width CW (mm): 4.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC8035P | Stock: Yes
GCM N4004-GL AC5015S Cutting width CW (mm): 4.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC5015S | Stock: Yes
GCM N4004-GL AC5025S Cutting width CW (mm): 4.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC5025S | Stock: Yes
GCM N4004-GL AC530U Cutting width CW (mm): 4.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC530U | Stock: Yes
GCM N5002-GL AC8035P Cutting width CW (mm): 5.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC8035P | Stock: Yes
GCM N5002-GL AC5015S Cutting width CW (mm): 5.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC5015S | Stock: Yes
GCM N5002-GL AC5025S Cutting width CW (mm): 5.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC5025S | Stock: Yes
GCM N5002-GL AC520U Cutting width CW (mm): 5.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC520U | Stock: Yes
GCM N5002-GL AC530U Cutting width CW (mm): 5.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC530U | Stock: Yes
GCM N5004-GL AC8035P Cutting width CW (mm): 5.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC8035P | Stock: Yes
GCM N5004-GL AC5015S Cutting width CW (mm): 5.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC5015S | Stock: Yes
GCM N5004-GL AC5025S Cutting width CW (mm): 5.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC5025S | Stock: Yes
GCM N5004-GL AC530U Cutting width CW (mm): 5.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC530U | Stock: Yes
GCM N6002-GL AC8035P Cutting width CW (mm): 6.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC8035P | Stock: Yes
GCM N6002-GL AC5015S Cutting width CW (mm): 6.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC5015S | Stock: Yes
GCM N6002-GL AC5025S Cutting width CW (mm): 6.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC5025S | Stock: Yes
GCM N6002-GL AC520U Cutting width CW (mm): 6.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC520U | Stock: Yes
GCM N6002-GL AC530U Cutting width CW (mm): 6.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC530U | Stock: Yes
GCM N6004-GL AC8035P Cutting width CW (mm): 6.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC8035P | Stock: Yes
GCM N6004-GL AC5015S Cutting width CW (mm): 6.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC5015S | Stock: Yes
GCM N6004-GL AC5025S Cutting width CW (mm): 6.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC5025S | Stock: Yes
GCM N6004-GL AC530U Cutting width CW (mm): 6.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC530U | Stock: Yes
GCM N4002-GF AC8035P Cutting width CW (mm): 4.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC8035P | Stock: Yes
GCM N4002-GF AC5015S Cutting width CW (mm): 4.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC5015S | Stock: Yes
GCM N4002-GF AC5025S Cutting width CW (mm): 4.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC5025S | Stock: Yes
GCM N4002-GF AC520U Cutting width CW (mm): 4.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC520U | Stock: Yes
GCM N4002-GF AC530U Cutting width CW (mm): 4.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC530U | Stock: Yes
GCM N4002-GF T2500A Cutting width CW (mm): 4.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: T2500A | Stock: Yes
GCM N4004-GF AC8035P Cutting width CW (mm): 4.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC8035P | Stock: Yes
GCM N4004-GF AC5015S Cutting width CW (mm): 4.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC5015S | Stock: Yes
GCM N4004-GF AC5025S Cutting width CW (mm): 4.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC5025S | Stock: Yes
GCM N4004-GF AC530U Cutting width CW (mm): 4.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC530U | Stock: Yes
GCM N4004-GF T2500A Cutting width CW (mm): 4.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: T2500A | Stock: Yes
GCM N5002-GF AC8035P Cutting width CW (mm): 5.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC8035P | Stock: Yes
GCM N5002-GF AC5015S Cutting width CW (mm): 5.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC5015S | Stock: Yes
GCM N5002-GF AC5025S Cutting width CW (mm): 5.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC5025S | Stock: Yes
GCM N5002-GF AC520U Cutting width CW (mm): 5.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC520U | Stock: Yes
GCM N5002-GF AC530U Cutting width CW (mm): 5.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC530U | Stock: Yes
GCM N5004-GF AC8035P Cutting width CW (mm): 5.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC8035P | Stock: Yes
GCM N5004-GF AC5015S Cutting width CW (mm): 5.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC5015S | Stock: Yes
GCM N5004-GF AC5025S Cutting width CW (mm): 5.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC5025S | Stock: Yes
GCM N5004-GF AC530U Cutting width CW (mm): 5.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC530U | Stock: Yes
GCM N6002-GF AC8035P Cutting width CW (mm): 6.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC8035P | Stock: Yes
GCM N6002-GF AC5015S Cutting width CW (mm): 6.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC5015S | Stock: Yes
GCM N6002-GF AC5025S Cutting width CW (mm): 6.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC5025S | Stock: Yes
GCM N6002-GF AC520U Cutting width CW (mm): 6.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC520U | Stock: Yes
GCM N6002-GF AC530U Cutting width CW (mm): 6.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC530U | Stock: Yes
GCM N6004-GF AC8035P Cutting width CW (mm): 6.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC8035P | Stock: Yes
GCM N6004-GF AC5015S Cutting width CW (mm): 6.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC5015S | Stock: Yes
GCM N6004-GF AC5025S Cutting width CW (mm): 6.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC5025S | Stock: Yes
GCM N6004-GF AC530U Cutting width CW (mm): 6.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC530U | Stock: Yes
GCM N7004-GG AC8035P Width tolerance (mm): ±0.04 | Grade: AC8035P | Stock: Yes
GCM N7004-GG AC5015S Width tolerance (mm): ±0.04 | Grade: AC5015S | Stock: Yes
GCM N7004-GG AC5025S Width tolerance (mm): ±0.04 | Grade: AC5025S | Stock: Yes
GCM N7004-GG AC520U Width tolerance (mm): ±0.04 | Grade: AC520U | Stock: Yes
GCM N7004-GG AC530U Width tolerance (mm): ±0.04 | Grade: AC530U | Stock: Yes
GCM N8004-GG AC8035P Cutting width CW (mm): 8.0 | Corner radius RE (mm): 0.4 | Length L (mm): 28.8 | Thickness S (mm): 6.0 | Grade: AC8035P | Stock: Yes
GCM N8004-GG AC5015S Cutting width CW (mm): 8.0 | Corner radius RE (mm): 0.4 | Length L (mm): 28.8 | Thickness S (mm): 6.0 | Grade: AC5015S | Stock: Yes
GCM N8004-GG AC5025S Cutting width CW (mm): 8.0 | Corner radius RE (mm): 0.4 | Length L (mm): 28.8 | Thickness S (mm): 6.0 | Grade: AC5025S | Stock: Yes
GCM N8004-GG AC520U Cutting width CW (mm): 8.0 | Corner radius RE (mm): 0.4 | Length L (mm): 28.8 | Thickness S (mm): 6.0 | Grade: AC520U | Stock: Yes
GCM N8004-GG AC530U Cutting width CW (mm): 8.0 | Corner radius RE (mm): 0.4 | Length L (mm): 28.8 | Thickness S (mm): 6.0 | Grade: AC530U | Stock: Yes
GCM N7004-GL AC8035P Width tolerance (mm): ±0.04 | Grade: AC8035P | Stock: Yes
GCM N7004-GL AC5015S Width tolerance (mm): ±0.04 | Grade: AC5015S | Stock: Yes
GCM N7004-GL AC5025S Width tolerance (mm): ±0.04 | Grade: AC5025S | Stock: Yes
GCM N7004-GL AC520U Width tolerance (mm): ±0.04 | Grade: AC520U | Stock: Yes
GCM N7004-GL AC530U Width tolerance (mm): ±0.04 | Grade: AC530U | Stock: Yes
GCM N8004-GL AC8035P Cutting width CW (mm): 8.0 | Corner radius RE (mm): 0.4 | Length L (mm): 28.8 | Thickness S (mm): 6.0 | Grade: AC8035P | Stock: Yes
GCM N8004-GL AC5015S Cutting width CW (mm): 8.0 | Corner radius RE (mm): 0.4 | Length L (mm): 28.8 | Thickness S (mm): 6.0 | Grade: AC5015S | Stock: Yes
GCM N8004-GL AC5025S Cutting width CW (mm): 8.0 | Corner radius RE (mm): 0.4 | Length L (mm): 28.8 | Thickness S (mm): 6.0 | Grade: AC5025S | Stock: Yes
GCM N8004-GL AC520U Cutting width CW (mm): 8.0 | Corner radius RE (mm): 0.4 | Length L (mm): 28.8 | Thickness S (mm): 6.0 | Grade: AC520U | Stock: Yes
GCM N8004-GL AC530U Cutting width CW (mm): 8.0 | Corner radius RE (mm): 0.4 | Length L (mm): 28.8 | Thickness S (mm): 6.0 | Grade: AC530U | Stock: Yes
GCM N7002-GF AC8035P Width tolerance (mm): ±0.04 | Grade: AC8035P | Stock: Yes
GCM N7002-GF AC5015S Width tolerance (mm): ±0.04 | Grade: AC5015S | Stock: Yes
GCM N7002-GF AC5025S Width tolerance (mm): ±0.04 | Grade: AC5025S | Stock: Yes
GCM N7002-GF AC520U Width tolerance (mm): ±0.04 | Grade: AC520U | Stock: Yes
GCM N7002-GF AC530U Width tolerance (mm): ±0.04 | Grade: AC530U | Stock: Yes
GCM N7004-GF AC8035P Width tolerance (mm): ±0.04 | Grade: AC8035P | Stock: Yes
GCM N7004-GF AC5015S Width tolerance (mm): ±0.04 | Grade: AC5015S | Stock: Yes
GCM N7004-GF AC5025S Width tolerance (mm): ±0.04 | Grade: AC5025S | Stock: Yes
GCM N7004-GF AC520U Width tolerance (mm): ±0.04 | Grade: AC520U | Stock: Yes
GCM N7004-GF AC530U Width tolerance (mm): ±0.04 | Grade: AC530U | Stock: Yes
GCM N8002-GF AC8035P Cutting width CW (mm): 8.0 | Corner radius RE (mm): 0.2 | Length L (mm): 28.8 | Thickness S (mm): 6.0 | Grade: AC8035P | Stock: Yes
GCM N8002-GF AC5015S Cutting width CW (mm): 8.0 | Corner radius RE (mm): 0.2 | Length L (mm): 28.8 | Thickness S (mm): 6.0 | Grade: AC5015S | Stock: Yes
GCM N8002-GF AC5025S Cutting width CW (mm): 8.0 | Corner radius RE (mm): 0.2 | Length L (mm): 28.8 | Thickness S (mm): 6.0 | Grade: AC5025S | Stock: Yes
GCM N8002-GF AC520U Cutting width CW (mm): 8.0 | Corner radius RE (mm): 0.2 | Length L (mm): 28.8 | Thickness S (mm): 6.0 | Grade: AC520U | Stock: Yes
GCM N8002-GF AC530U Cutting width CW (mm): 8.0 | Corner radius RE (mm): 0.2 | Length L (mm): 28.8 | Thickness S (mm): 6.0 | Grade: AC530U | Stock: Yes
GCM N8004-GF AC8035P Cutting width CW (mm): 8.0 | Corner radius RE (mm): 0.4 | Length L (mm): 28.8 | Thickness S (mm): 6.0 | Grade: AC8035P | Stock: Yes
GCM N8004-GF AC5015S Cutting width CW (mm): 8.0 | Corner radius RE (mm): 0.4 | Length L (mm): 28.8 | Thickness S (mm): 6.0 | Grade: AC5015S | Stock: Yes
GCM N8004-GF AC5025S Cutting width CW (mm): 8.0 | Corner radius RE (mm): 0.4 | Length L (mm): 28.8 | Thickness S (mm): 6.0 | Grade: AC5025S | Stock: Yes
GCM N8004-GF AC520U Cutting width CW (mm): 8.0 | Corner radius RE (mm): 0.4 | Length L (mm): 28.8 | Thickness S (mm): 6.0 | Grade: AC520U | Stock: Yes
GCM N8004-GF AC530U Cutting width CW (mm): 8.0 | Corner radius RE (mm): 0.4 | Length L (mm): 28.8 | Thickness S (mm): 6.0 | Grade: AC530U | Stock: Yes
Grooving InsertsSumitomo Electric Hardmetal
180 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal GCM Grooving Insert GG/GL/GF (Grooving and Cut-off)

Brand Sumitomo Electric Hardmetal·Grooving Inserts

Available part numbers (180)

GCM N2002-GG AC8035P, GCM N2002-GG AC5015S, GCM N2002-GG AC5025S, GCM N2002-GG AC520U, GCM N2002-GG AC530U, GCM N3002-GG AC8035P, GCM N3002-GG AC5015S, GCM N3002-GG AC5025S, GCM N3002-GG AC520U, GCM N3002-GG AC530U + 170 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GCM N2002-GG AC8035PCutting width CW (mm): 2.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.6 | Grade: AC8035P | Stock: Yes
GCM N2002-GG AC5015SCutting width CW (mm): 2.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.6 | Grade: AC5015S | Stock: Yes
GCM N2002-GG AC5025SCutting width CW (mm): 2.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.6 | Grade: AC5025S | Stock: Yes
GCM N2002-GG AC520UCutting width CW (mm): 2.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.6 | Grade: AC520U | Stock: Yes
GCM N2002-GG AC530UCutting width CW (mm): 2.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.6 | Grade: AC530U | Stock: Yes
GCM N3002-GG AC8035PCutting width CW (mm): 3.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC8035P | Stock: Yes
GCM N3002-GG AC5015SCutting width CW (mm): 3.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC5015S | Stock: Yes
GCM N3002-GG AC5025SCutting width CW (mm): 3.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC5025S | Stock: Yes
GCM N3002-GG AC520UCutting width CW (mm): 3.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC520U | Stock: Yes
GCM N3002-GG AC530UCutting width CW (mm): 3.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC530U | Stock: Yes
GCM N3004-GG AC8035PCutting width CW (mm): 3.0 | Corner radius RE (mm): 0.4 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC8035P | Stock: Yes
GCM N3004-GG AC5015SCutting width CW (mm): 3.0 | Corner radius RE (mm): 0.4 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC5015S | Stock: Yes
GCM N3004-GG AC5025SCutting width CW (mm): 3.0 | Corner radius RE (mm): 0.4 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC5025S | Stock: Yes
GCM N3004-GG AC520UCutting width CW (mm): 3.0 | Corner radius RE (mm): 0.4 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC520U | Stock: Yes
GCM N3004-GG AC530UCutting width CW (mm): 3.0 | Corner radius RE (mm): 0.4 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC530U | Stock: Yes
GCM N2002-GL AC8035PCutting width CW (mm): 2.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.6 | Grade: AC8035P | Stock: Yes
GCM N2002-GL AC5015SCutting width CW (mm): 2.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.6 | Grade: AC5015S | Stock: Yes
GCM N2002-GL AC5025SCutting width CW (mm): 2.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.6 | Grade: AC5025S | Stock: Yes
GCM N2002-GL AC520UCutting width CW (mm): 2.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.6 | Grade: AC520U | Stock: Yes
GCM N2002-GL AC530UCutting width CW (mm): 2.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.6 | Grade: AC530U | Stock: Yes
GCM N2004-GL AC8035PCutting width CW (mm): 2.0 | Corner radius RE (mm): 0.4 | Length L (mm): 21.1 | Thickness S (mm): 3.6 | Grade: AC8035P | Stock: Yes
GCM N2004-GL AC5015SCutting width CW (mm): 2.0 | Corner radius RE (mm): 0.4 | Length L (mm): 21.1 | Thickness S (mm): 3.6 | Grade: AC5015S | Stock: Yes
GCM N2004-GL AC5025SCutting width CW (mm): 2.0 | Corner radius RE (mm): 0.4 | Length L (mm): 21.1 | Thickness S (mm): 3.6 | Grade: AC5025S | Stock: Yes
GCM N2004-GL AC530UCutting width CW (mm): 2.0 | Corner radius RE (mm): 0.4 | Length L (mm): 21.1 | Thickness S (mm): 3.6 | Grade: AC530U | Stock: Yes
GCM N3002-GL AC8035PCutting width CW (mm): 3.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC8035P | Stock: Yes
GCM N3002-GL AC5015SCutting width CW (mm): 3.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC5015S | Stock: Yes
GCM N3002-GL AC5025SCutting width CW (mm): 3.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC5025S | Stock: Yes
GCM N3002-GL AC520UCutting width CW (mm): 3.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC520U | Stock: Yes
GCM N3002-GL AC530UCutting width CW (mm): 3.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC530U | Stock: Yes
GCM N3004-GL AC8035PCutting width CW (mm): 3.0 | Corner radius RE (mm): 0.4 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC8035P | Stock: Yes
GCM N3004-GL AC5015SCutting width CW (mm): 3.0 | Corner radius RE (mm): 0.4 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC5015S | Stock: Yes
GCM N3004-GL AC5025SCutting width CW (mm): 3.0 | Corner radius RE (mm): 0.4 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC5025S | Stock: Yes
GCM N3004-GL AC530UCutting width CW (mm): 3.0 | Corner radius RE (mm): 0.4 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC530U | Stock: Yes
GCM N125005-GF AC530UCutting width CW (mm): 1.25 | Corner radius RE (mm): 0.05 | Length L (mm): 17.4 | Thickness S (mm): 3.2 | Grade: AC530U | Stock: Yes
GCM N150005-GF AC530UCorner radius RE (mm): 0.05 | Length L (mm): 17.8 | Thickness S (mm): 3.7 | Grade: AC530U | Stock: Yes
GCM N2002-GF AC5015SCutting width CW (mm): 2.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.6 | Grade: AC5015S | Stock: Yes
GCM N2002-GF AC5025SCutting width CW (mm): 2.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.6 | Grade: AC5025S | Stock: Yes
GCM N2002-GF AC530UCutting width CW (mm): 2.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.6 | Grade: AC530U | Stock: Yes
GCM N2002-GF T2500ACutting width CW (mm): 2.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.6 | Grade: T2500A | Stock: Yes
GCM N2004-GF AC5015SCutting width CW (mm): 2.0 | Corner radius RE (mm): 0.4 | Length L (mm): 21.1 | Thickness S (mm): 3.6 | Grade: AC5015S | Stock: Yes
GCM N2004-GF AC5025SCutting width CW (mm): 2.0 | Corner radius RE (mm): 0.4 | Length L (mm): 21.1 | Thickness S (mm): 3.6 | Grade: AC5025S | Stock: Yes
GCM N2004-GF AC530UCutting width CW (mm): 2.0 | Corner radius RE (mm): 0.4 | Length L (mm): 21.1 | Thickness S (mm): 3.6 | Grade: AC530U | Stock: Yes
GCM N2004-GF T2500ACutting width CW (mm): 2.0 | Corner radius RE (mm): 0.4 | Length L (mm): 21.1 | Thickness S (mm): 3.6 | Grade: T2500A | Stock: Yes
GCM N3002-GF AC8035PCutting width CW (mm): 3.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC8035P | Stock: Yes
GCM N3002-GF AC5015SCutting width CW (mm): 3.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC5015S | Stock: Yes
GCM N3002-GF AC5025SCutting width CW (mm): 3.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC5025S | Stock: Yes
GCM N3002-GF AC520UCutting width CW (mm): 3.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC520U | Stock: Yes
GCM N3002-GF AC530UCutting width CW (mm): 3.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC530U | Stock: Yes
GCM N3002-GF T2500ACutting width CW (mm): 3.0 | Corner radius RE (mm): 0.2 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: T2500A | Stock: Yes
GCM N3004-GF AC8035PCutting width CW (mm): 3.0 | Corner radius RE (mm): 0.4 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC8035P | Stock: Yes
GCM N3004-GF AC5015SCutting width CW (mm): 3.0 | Corner radius RE (mm): 0.4 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC5015S | Stock: Yes
GCM N3004-GF AC5025SCutting width CW (mm): 3.0 | Corner radius RE (mm): 0.4 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC5025S | Stock: Yes
GCM N3004-GF AC530UCutting width CW (mm): 3.0 | Corner radius RE (mm): 0.4 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: AC530U | Stock: Yes
GCM N3004-GF T2500ACutting width CW (mm): 3.0 | Corner radius RE (mm): 0.4 | Length L (mm): 21.1 | Thickness S (mm): 3.8 | Grade: T2500A | Stock: Yes
GCM N4002-GG AC8035PCutting width CW (mm): 4.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC8035P | Stock: Yes
GCM N4002-GG AC5015SCutting width CW (mm): 4.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC5015S | Stock: Yes
GCM N4002-GG AC5025SCutting width CW (mm): 4.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC5025S | Stock: Yes
GCM N4002-GG AC520UCutting width CW (mm): 4.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC520U | Stock: Yes
GCM N4002-GG AC530UCutting width CW (mm): 4.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC530U | Stock: Yes
GCM N4004-GG AC8035PCutting width CW (mm): 4.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC8035P | Stock: Yes
GCM N4004-GG AC5015SCutting width CW (mm): 4.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC5015S | Stock: Yes
GCM N4004-GG AC5025SCutting width CW (mm): 4.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC5025S | Stock: Yes
GCM N4004-GG AC520UCutting width CW (mm): 4.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC520U | Stock: Yes
GCM N4004-GG AC530UCutting width CW (mm): 4.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC530U | Stock: Yes
GCM N5002-GG AC8035PCutting width CW (mm): 5.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC8035P | Stock: Yes
GCM N5002-GG AC5015SCutting width CW (mm): 5.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC5015S | Stock: Yes
GCM N5002-GG AC5025SCutting width CW (mm): 5.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC5025S | Stock: Yes
GCM N5002-GG AC520UCutting width CW (mm): 5.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC520U | Stock: Yes
GCM N5002-GG AC530UCutting width CW (mm): 5.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC530U | Stock: Yes
GCM N5004-GG AC8035PCutting width CW (mm): 5.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC8035P | Stock: Yes
GCM N5004-GG AC5015SCutting width CW (mm): 5.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC5015S | Stock: Yes
GCM N5004-GG AC5025SCutting width CW (mm): 5.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC5025S | Stock: Yes
GCM N5004-GG AC520UCutting width CW (mm): 5.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC520U | Stock: Yes
GCM N5004-GG AC530UCutting width CW (mm): 5.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC530U | Stock: Yes
GCM N6002-GG AC8035PCutting width CW (mm): 6.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC8035P | Stock: Yes
GCM N6002-GG AC5015SCutting width CW (mm): 6.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC5015S | Stock: Yes
GCM N6002-GG AC5025SCutting width CW (mm): 6.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC5025S | Stock: Yes
GCM N6002-GG AC520UCutting width CW (mm): 6.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC520U | Stock: Yes
GCM N6002-GG AC530UCutting width CW (mm): 6.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC530U | Stock: Yes
GCM N6004-GG AC8035PCutting width CW (mm): 6.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC8035P | Stock: Yes
GCM N6004-GG AC5015SCutting width CW (mm): 6.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC5015S | Stock: Yes
GCM N6004-GG AC5025SCutting width CW (mm): 6.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC5025S | Stock: Yes
GCM N6004-GG AC520UCutting width CW (mm): 6.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC520U | Stock: Yes
GCM N6004-GG AC530UCutting width CW (mm): 6.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC530U | Stock: Yes
GCM N4002-GL AC8035PCutting width CW (mm): 4.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC8035P | Stock: Yes
GCM N4002-GL AC5015SCutting width CW (mm): 4.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC5015S | Stock: Yes
GCM N4002-GL AC5025SCutting width CW (mm): 4.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC5025S | Stock: Yes
GCM N4002-GL AC520UCutting width CW (mm): 4.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC520U | Stock: Yes
GCM N4002-GL AC530UCutting width CW (mm): 4.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC530U | Stock: Yes
GCM N4004-GL AC8035PCutting width CW (mm): 4.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC8035P | Stock: Yes
GCM N4004-GL AC5015SCutting width CW (mm): 4.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC5015S | Stock: Yes
GCM N4004-GL AC5025SCutting width CW (mm): 4.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC5025S | Stock: Yes
GCM N4004-GL AC530UCutting width CW (mm): 4.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC530U | Stock: Yes
GCM N5002-GL AC8035PCutting width CW (mm): 5.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC8035P | Stock: Yes
GCM N5002-GL AC5015SCutting width CW (mm): 5.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC5015S | Stock: Yes
GCM N5002-GL AC5025SCutting width CW (mm): 5.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC5025S | Stock: Yes
GCM N5002-GL AC520UCutting width CW (mm): 5.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC520U | Stock: Yes
GCM N5002-GL AC530UCutting width CW (mm): 5.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC530U | Stock: Yes
GCM N5004-GL AC8035PCutting width CW (mm): 5.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC8035P | Stock: Yes
GCM N5004-GL AC5015SCutting width CW (mm): 5.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC5015S | Stock: Yes
GCM N5004-GL AC5025SCutting width CW (mm): 5.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC5025S | Stock: Yes
GCM N5004-GL AC530UCutting width CW (mm): 5.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC530U | Stock: Yes
GCM N6002-GL AC8035PCutting width CW (mm): 6.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC8035P | Stock: Yes
GCM N6002-GL AC5015SCutting width CW (mm): 6.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC5015S | Stock: Yes
GCM N6002-GL AC5025SCutting width CW (mm): 6.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC5025S | Stock: Yes
GCM N6002-GL AC520UCutting width CW (mm): 6.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC520U | Stock: Yes
GCM N6002-GL AC530UCutting width CW (mm): 6.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC530U | Stock: Yes
GCM N6004-GL AC8035PCutting width CW (mm): 6.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC8035P | Stock: Yes
GCM N6004-GL AC5015SCutting width CW (mm): 6.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC5015S | Stock: Yes
GCM N6004-GL AC5025SCutting width CW (mm): 6.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC5025S | Stock: Yes
GCM N6004-GL AC530UCutting width CW (mm): 6.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC530U | Stock: Yes
GCM N4002-GF AC8035PCutting width CW (mm): 4.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC8035P | Stock: Yes
GCM N4002-GF AC5015SCutting width CW (mm): 4.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC5015S | Stock: Yes
GCM N4002-GF AC5025SCutting width CW (mm): 4.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC5025S | Stock: Yes
GCM N4002-GF AC520UCutting width CW (mm): 4.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC520U | Stock: Yes
GCM N4002-GF AC530UCutting width CW (mm): 4.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC530U | Stock: Yes
GCM N4002-GF T2500ACutting width CW (mm): 4.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: T2500A | Stock: Yes
GCM N4004-GF AC8035PCutting width CW (mm): 4.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC8035P | Stock: Yes
GCM N4004-GF AC5015SCutting width CW (mm): 4.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC5015S | Stock: Yes
GCM N4004-GF AC5025SCutting width CW (mm): 4.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC5025S | Stock: Yes
GCM N4004-GF AC530UCutting width CW (mm): 4.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: AC530U | Stock: Yes
GCM N4004-GF T2500ACutting width CW (mm): 4.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.0 | Grade: T2500A | Stock: Yes
GCM N5002-GF AC8035PCutting width CW (mm): 5.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC8035P | Stock: Yes
GCM N5002-GF AC5015SCutting width CW (mm): 5.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC5015S | Stock: Yes
GCM N5002-GF AC5025SCutting width CW (mm): 5.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC5025S | Stock: Yes
GCM N5002-GF AC520UCutting width CW (mm): 5.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC520U | Stock: Yes
GCM N5002-GF AC530UCutting width CW (mm): 5.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC530U | Stock: Yes
GCM N5004-GF AC8035PCutting width CW (mm): 5.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC8035P | Stock: Yes
GCM N5004-GF AC5015SCutting width CW (mm): 5.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC5015S | Stock: Yes
GCM N5004-GF AC5025SCutting width CW (mm): 5.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC5025S | Stock: Yes
GCM N5004-GF AC530UCutting width CW (mm): 5.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.1 | Grade: AC530U | Stock: Yes
GCM N6002-GF AC8035PCutting width CW (mm): 6.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC8035P | Stock: Yes
GCM N6002-GF AC5015SCutting width CW (mm): 6.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC5015S | Stock: Yes
GCM N6002-GF AC5025SCutting width CW (mm): 6.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC5025S | Stock: Yes
GCM N6002-GF AC520UCutting width CW (mm): 6.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC520U | Stock: Yes
GCM N6002-GF AC530UCutting width CW (mm): 6.0 | Corner radius RE (mm): 0.2 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC530U | Stock: Yes
GCM N6004-GF AC8035PCutting width CW (mm): 6.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC8035P | Stock: Yes
GCM N6004-GF AC5015SCutting width CW (mm): 6.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC5015S | Stock: Yes
GCM N6004-GF AC5025SCutting width CW (mm): 6.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC5025S | Stock: Yes
GCM N6004-GF AC530UCutting width CW (mm): 6.0 | Corner radius RE (mm): 0.4 | Length L (mm): 26.4 | Thickness S (mm): 4.5 | Grade: AC530U | Stock: Yes
GCM N7004-GG AC8035PWidth tolerance (mm): ±0.04 | Grade: AC8035P | Stock: Yes
GCM N7004-GG AC5015SWidth tolerance (mm): ±0.04 | Grade: AC5015S | Stock: Yes
GCM N7004-GG AC5025SWidth tolerance (mm): ±0.04 | Grade: AC5025S | Stock: Yes
GCM N7004-GG AC520UWidth tolerance (mm): ±0.04 | Grade: AC520U | Stock: Yes
GCM N7004-GG AC530UWidth tolerance (mm): ±0.04 | Grade: AC530U | Stock: Yes
GCM N8004-GG AC8035PCutting width CW (mm): 8.0 | Corner radius RE (mm): 0.4 | Length L (mm): 28.8 | Thickness S (mm): 6.0 | Grade: AC8035P | Stock: Yes
GCM N8004-GG AC5015SCutting width CW (mm): 8.0 | Corner radius RE (mm): 0.4 | Length L (mm): 28.8 | Thickness S (mm): 6.0 | Grade: AC5015S | Stock: Yes
GCM N8004-GG AC5025SCutting width CW (mm): 8.0 | Corner radius RE (mm): 0.4 | Length L (mm): 28.8 | Thickness S (mm): 6.0 | Grade: AC5025S | Stock: Yes
GCM N8004-GG AC520UCutting width CW (mm): 8.0 | Corner radius RE (mm): 0.4 | Length L (mm): 28.8 | Thickness S (mm): 6.0 | Grade: AC520U | Stock: Yes
GCM N8004-GG AC530UCutting width CW (mm): 8.0 | Corner radius RE (mm): 0.4 | Length L (mm): 28.8 | Thickness S (mm): 6.0 | Grade: AC530U | Stock: Yes
GCM N7004-GL AC8035PWidth tolerance (mm): ±0.04 | Grade: AC8035P | Stock: Yes
GCM N7004-GL AC5015SWidth tolerance (mm): ±0.04 | Grade: AC5015S | Stock: Yes
GCM N7004-GL AC5025SWidth tolerance (mm): ±0.04 | Grade: AC5025S | Stock: Yes
GCM N7004-GL AC520UWidth tolerance (mm): ±0.04 | Grade: AC520U | Stock: Yes
GCM N7004-GL AC530UWidth tolerance (mm): ±0.04 | Grade: AC530U | Stock: Yes
GCM N8004-GL AC8035PCutting width CW (mm): 8.0 | Corner radius RE (mm): 0.4 | Length L (mm): 28.8 | Thickness S (mm): 6.0 | Grade: AC8035P | Stock: Yes
GCM N8004-GL AC5015SCutting width CW (mm): 8.0 | Corner radius RE (mm): 0.4 | Length L (mm): 28.8 | Thickness S (mm): 6.0 | Grade: AC5015S | Stock: Yes
GCM N8004-GL AC5025SCutting width CW (mm): 8.0 | Corner radius RE (mm): 0.4 | Length L (mm): 28.8 | Thickness S (mm): 6.0 | Grade: AC5025S | Stock: Yes
GCM N8004-GL AC520UCutting width CW (mm): 8.0 | Corner radius RE (mm): 0.4 | Length L (mm): 28.8 | Thickness S (mm): 6.0 | Grade: AC520U | Stock: Yes
GCM N8004-GL AC530UCutting width CW (mm): 8.0 | Corner radius RE (mm): 0.4 | Length L (mm): 28.8 | Thickness S (mm): 6.0 | Grade: AC530U | Stock: Yes
GCM N7002-GF AC8035PWidth tolerance (mm): ±0.04 | Grade: AC8035P | Stock: Yes
GCM N7002-GF AC5015SWidth tolerance (mm): ±0.04 | Grade: AC5015S | Stock: Yes
GCM N7002-GF AC5025SWidth tolerance (mm): ±0.04 | Grade: AC5025S | Stock: Yes
GCM N7002-GF AC520UWidth tolerance (mm): ±0.04 | Grade: AC520U | Stock: Yes
GCM N7002-GF AC530UWidth tolerance (mm): ±0.04 | Grade: AC530U | Stock: Yes
GCM N7004-GF AC8035PWidth tolerance (mm): ±0.04 | Grade: AC8035P | Stock: Yes
GCM N7004-GF AC5015SWidth tolerance (mm): ±0.04 | Grade: AC5015S | Stock: Yes
GCM N7004-GF AC5025SWidth tolerance (mm): ±0.04 | Grade: AC5025S | Stock: Yes
GCM N7004-GF AC520UWidth tolerance (mm): ±0.04 | Grade: AC520U | Stock: Yes
GCM N7004-GF AC530UWidth tolerance (mm): ±0.04 | Grade: AC530U | Stock: Yes
GCM N8002-GF AC8035PCutting width CW (mm): 8.0 | Corner radius RE (mm): 0.2 | Length L (mm): 28.8 | Thickness S (mm): 6.0 | Grade: AC8035P | Stock: Yes
GCM N8002-GF AC5015SCutting width CW (mm): 8.0 | Corner radius RE (mm): 0.2 | Length L (mm): 28.8 | Thickness S (mm): 6.0 | Grade: AC5015S | Stock: Yes
GCM N8002-GF AC5025SCutting width CW (mm): 8.0 | Corner radius RE (mm): 0.2 | Length L (mm): 28.8 | Thickness S (mm): 6.0 | Grade: AC5025S | Stock: Yes
GCM N8002-GF AC520UCutting width CW (mm): 8.0 | Corner radius RE (mm): 0.2 | Length L (mm): 28.8 | Thickness S (mm): 6.0 | Grade: AC520U | Stock: Yes
GCM N8002-GF AC530UCutting width CW (mm): 8.0 | Corner radius RE (mm): 0.2 | Length L (mm): 28.8 | Thickness S (mm): 6.0 | Grade: AC530U | Stock: Yes
GCM N8004-GF AC8035PCutting width CW (mm): 8.0 | Corner radius RE (mm): 0.4 | Length L (mm): 28.8 | Thickness S (mm): 6.0 | Grade: AC8035P | Stock: Yes
GCM N8004-GF AC5015SCutting width CW (mm): 8.0 | Corner radius RE (mm): 0.4 | Length L (mm): 28.8 | Thickness S (mm): 6.0 | Grade: AC5015S | Stock: Yes
GCM N8004-GF AC5025SCutting width CW (mm): 8.0 | Corner radius RE (mm): 0.4 | Length L (mm): 28.8 | Thickness S (mm): 6.0 | Grade: AC5025S | Stock: Yes
GCM N8004-GF AC520UCutting width CW (mm): 8.0 | Corner radius RE (mm): 0.4 | Length L (mm): 28.8 | Thickness S (mm): 6.0 | Grade: AC520U | Stock: Yes
GCM N8004-GF AC530UCutting width CW (mm): 8.0 | Corner radius RE (mm): 0.4 | Length L (mm): 28.8 | Thickness S (mm): 6.0 | Grade: AC530U | Stock: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Cutting Tools →
