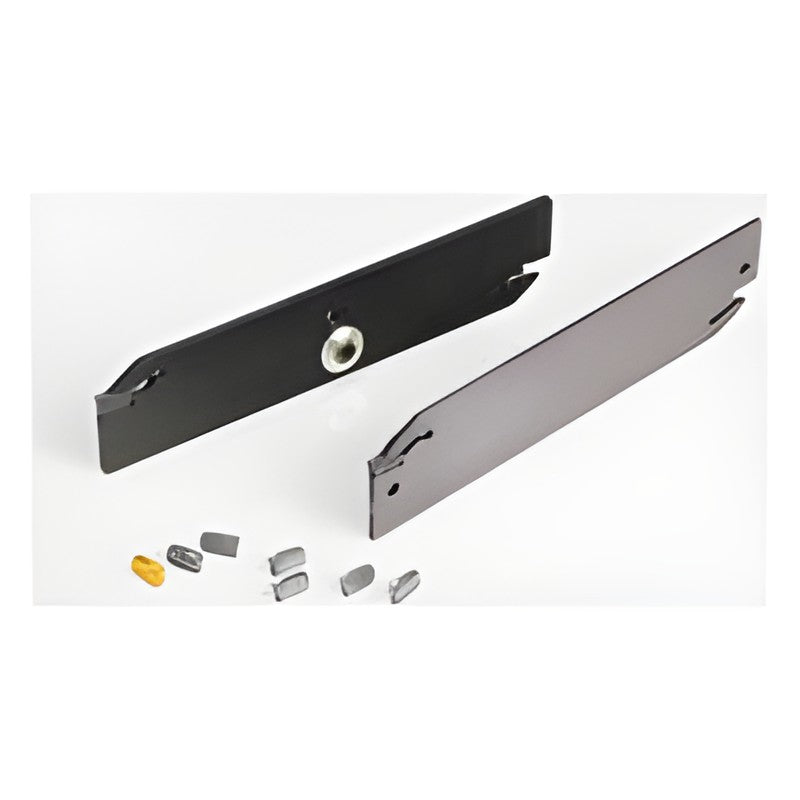

• Sumitomo Electric Hardmetal GLC-C Carbide Cut-off Blade
1 1

Sumitomo Electric Hardmetal GLC-C Carbide Cut-off Blade

Sumitomo Electric Hardmetal GLC-C Carbide Cut-off Blade

SEC cut-off tool GLC-C type, a carbide blade for tool blocks.

Key features

  • Carbide blade for rigidity
  • Uses WCF inserts
GLCB N26-2C Height H (mm): 26 | Width B (mm): 2.6 | Width B2 (mm): 1.7 | Length LF (mm): 120.0 | Cutting height HF (mm): 21.4 | Cutting width CW (mm): 2 | Max cut-off dia (mm): 60 | Stock: Yes
GLCB N26-3C Height H (mm): 26 | Width B (mm): 2.6 | Length LF (mm): 120.0 | Cutting height HF (mm): 21.4 | Cutting width CW (mm): 3 | Max cut-off dia (mm): 80 | Stock: Yes
GLCB N26-4C Height H (mm): 26 | Width B (mm): 3.6 | Length LF (mm): 120.0 | Cutting height HF (mm): 21.4 | Cutting width CW (mm): 4 | Max cut-off dia (mm): 80 | Stock: Yes
GLCB N26-5C Height H (mm): 26 | Width B (mm): 4.6 | Length LF (mm): 120.0 | Cutting height HF (mm): 21.4 | Cutting width CW (mm): 5 | Max cut-off dia (mm): 80 | Stock: Yes
GLCB N32-2C Height H (mm): 32 | Width B (mm): 2.6 | Width B2 (mm): 1.7 | Length LF (mm): 148.8 | Cutting height HF (mm): 25.0 | Cutting width CW (mm): 2 | Max cut-off dia (mm): 68 | Stock: Yes
GLCB N32-3C Height H (mm): 32 | Width B (mm): 2.6 | Length LF (mm): 148.8 | Cutting height HF (mm): 25.0 | Cutting width CW (mm): 3 | Max cut-off dia (mm): 140 | Stock: Yes
GLCB N32-4C Height H (mm): 32 | Width B (mm): 3.6 | Length LF (mm): 148.8 | Cutting height HF (mm): 25.0 | Cutting width CW (mm): 4 | Max cut-off dia (mm): 140 | Stock: Yes
GLCB N32-5C Height H (mm): 32 | Width B (mm): 4.6 | Length LF (mm): 148.8 | Cutting height HF (mm): 25.0 | Cutting width CW (mm): 5 | Max cut-off dia (mm): 140 | Stock: Yes
Grooving HoldersSumitomo Electric Hardmetal
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal GLC-C Carbide Cut-off Blade

Brand Sumitomo Electric Hardmetal·Grooving Holders

Available part numbers (8)

GLCB N26-2C, GLCB N26-3C, GLCB N26-4C, GLCB N26-5C, GLCB N32-2C, GLCB N32-3C, GLCB N32-4C, GLCB N32-5C

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GLCB N26-2CHeight H (mm): 26 | Width B (mm): 2.6 | Width B2 (mm): 1.7 | Length LF (mm): 120.0 | Cutting height HF (mm): 21.4 | Cutting width CW (mm): 2 | Max cut-off dia (mm): 60 | Stock: Yes
GLCB N26-3CHeight H (mm): 26 | Width B (mm): 2.6 | Length LF (mm): 120.0 | Cutting height HF (mm): 21.4 | Cutting width CW (mm): 3 | Max cut-off dia (mm): 80 | Stock: Yes
GLCB N26-4CHeight H (mm): 26 | Width B (mm): 3.6 | Length LF (mm): 120.0 | Cutting height HF (mm): 21.4 | Cutting width CW (mm): 4 | Max cut-off dia (mm): 80 | Stock: Yes
GLCB N26-5CHeight H (mm): 26 | Width B (mm): 4.6 | Length LF (mm): 120.0 | Cutting height HF (mm): 21.4 | Cutting width CW (mm): 5 | Max cut-off dia (mm): 80 | Stock: Yes
GLCB N32-2CHeight H (mm): 32 | Width B (mm): 2.6 | Width B2 (mm): 1.7 | Length LF (mm): 148.8 | Cutting height HF (mm): 25.0 | Cutting width CW (mm): 2 | Max cut-off dia (mm): 68 | Stock: Yes
GLCB N32-3CHeight H (mm): 32 | Width B (mm): 2.6 | Length LF (mm): 148.8 | Cutting height HF (mm): 25.0 | Cutting width CW (mm): 3 | Max cut-off dia (mm): 140 | Stock: Yes
GLCB N32-4CHeight H (mm): 32 | Width B (mm): 3.6 | Length LF (mm): 148.8 | Cutting height HF (mm): 25.0 | Cutting width CW (mm): 4 | Max cut-off dia (mm): 140 | Stock: Yes
GLCB N32-5CHeight H (mm): 32 | Width B (mm): 4.6 | Length LF (mm): 148.8 | Cutting height HF (mm): 25.0 | Cutting width CW (mm): 5 | Max cut-off dia (mm): 140 | Stock: Yes
