Sumitomo Electric Hardmetal GLC-S Cut-off Blade (Steel, Tool Block Type)

Sumitomo Electric Hardmetal GLC-S Cut-off Blade (Steel, Tool Block Type)

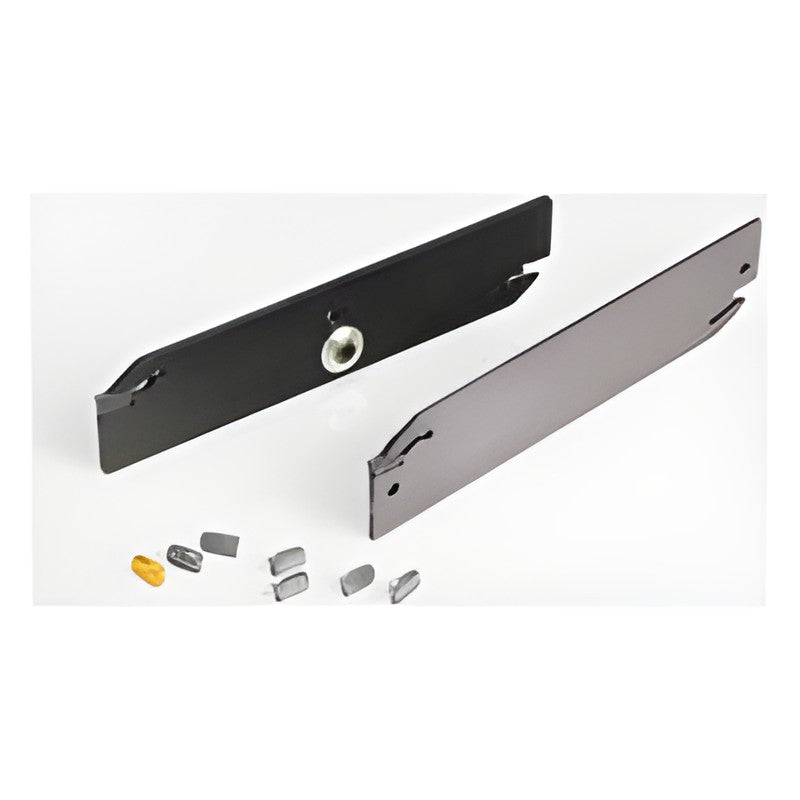

SEC cut-off tool GLC-S type, a steel blade for tool blocks using WCF inserts.

Key features

  • Steel blade
  • For SB tool blocks
  • Uses WCF inserts
GLCB N26-2S Height H (mm): 26 | Width B (mm): 2.6 | Width B2 (mm): 1.7 | Length LF (mm): 120.0 | Cutting height HF (mm): 21.4 | Cutting width CW (mm): 2 | Max cut-off dia (mm): 50 | Stock: Planned stock (check stock)
GLCB N26-3S Height H (mm): 26 | Width B (mm): 2.6 | Length LF (mm): 120.0 | Cutting height HF (mm): 21.4 | Cutting width CW (mm): 3 | Max cut-off dia (mm): 70 | Stock: Planned stock (check stock)
GLCB N26-4S Height H (mm): 26 | Width B (mm): 3.6 | Length LF (mm): 120.0 | Cutting height HF (mm): 21.4 | Cutting width CW (mm): 4 | Max cut-off dia (mm): 70 | Stock: Planned stock (check stock)
GLCB N26-5S Height H (mm): 26 | Width B (mm): 4.6 | Length LF (mm): 120.0 | Cutting height HF (mm): 21.4 | Cutting width CW (mm): 5 | Max cut-off dia (mm): 70 | Stock: Planned stock (check stock)
GLCB N32-2S Height H (mm): 32 | Width B (mm): 2.6 | Width B2 (mm): 1.7 | Length LF (mm): 148.8 | Cutting height HF (mm): 25.0 | Cutting width CW (mm): 2 | Max cut-off dia (mm): 50 | Stock: Planned stock (check stock)
GLCB N32-3S Height H (mm): 32 | Width B (mm): 2.6 | Length LF (mm): 148.8 | Cutting height HF (mm): 25.0 | Cutting width CW (mm): 3 | Max cut-off dia (mm): 100 | Stock: Planned stock (check stock)
GLCB N32-4S Height H (mm): 32 | Width B (mm): 3.6 | Length LF (mm): 148.8 | Cutting height HF (mm): 25.0 | Cutting width CW (mm): 4 | Max cut-off dia (mm): 100 | Stock: Planned stock (check stock)
GLCB N32-5S Height H (mm): 32 | Width B (mm): 4.6 | Length LF (mm): 148.8 | Cutting height HF (mm): 25.0 | Cutting width CW (mm): 5 | Max cut-off dia (mm): 100 | Stock: Planned stock (check stock)
Grooving HoldersSumitomo Electric Hardmetal
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal GLC-S Cut-off Blade (Steel, Tool Block Type)

Brand Sumitomo Electric Hardmetal·Grooving Holders

Available part numbers (8)

GLCB N26-2S, GLCB N26-3S, GLCB N26-4S, GLCB N26-5S, GLCB N32-2S, GLCB N32-3S, GLCB N32-4S, GLCB N32-5S

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GLCB N26-2SHeight H (mm): 26 | Width B (mm): 2.6 | Width B2 (mm): 1.7 | Length LF (mm): 120.0 | Cutting height HF (mm): 21.4 | Cutting width CW (mm): 2 | Max cut-off dia (mm): 50 | Stock: Planned stock (check stock)
GLCB N26-3SHeight H (mm): 26 | Width B (mm): 2.6 | Length LF (mm): 120.0 | Cutting height HF (mm): 21.4 | Cutting width CW (mm): 3 | Max cut-off dia (mm): 70 | Stock: Planned stock (check stock)
GLCB N26-4SHeight H (mm): 26 | Width B (mm): 3.6 | Length LF (mm): 120.0 | Cutting height HF (mm): 21.4 | Cutting width CW (mm): 4 | Max cut-off dia (mm): 70 | Stock: Planned stock (check stock)
GLCB N26-5SHeight H (mm): 26 | Width B (mm): 4.6 | Length LF (mm): 120.0 | Cutting height HF (mm): 21.4 | Cutting width CW (mm): 5 | Max cut-off dia (mm): 70 | Stock: Planned stock (check stock)
GLCB N32-2SHeight H (mm): 32 | Width B (mm): 2.6 | Width B2 (mm): 1.7 | Length LF (mm): 148.8 | Cutting height HF (mm): 25.0 | Cutting width CW (mm): 2 | Max cut-off dia (mm): 50 | Stock: Planned stock (check stock)
GLCB N32-3SHeight H (mm): 32 | Width B (mm): 2.6 | Length LF (mm): 148.8 | Cutting height HF (mm): 25.0 | Cutting width CW (mm): 3 | Max cut-off dia (mm): 100 | Stock: Planned stock (check stock)
GLCB N32-4SHeight H (mm): 32 | Width B (mm): 3.6 | Length LF (mm): 148.8 | Cutting height HF (mm): 25.0 | Cutting width CW (mm): 4 | Max cut-off dia (mm): 100 | Stock: Planned stock (check stock)
GLCB N32-5SHeight H (mm): 32 | Width B (mm): 4.6 | Length LF (mm): 148.8 | Cutting height HF (mm): 25.0 | Cutting width CW (mm): 5 | Max cut-off dia (mm): 100 | Stock: Planned stock (check stock)
