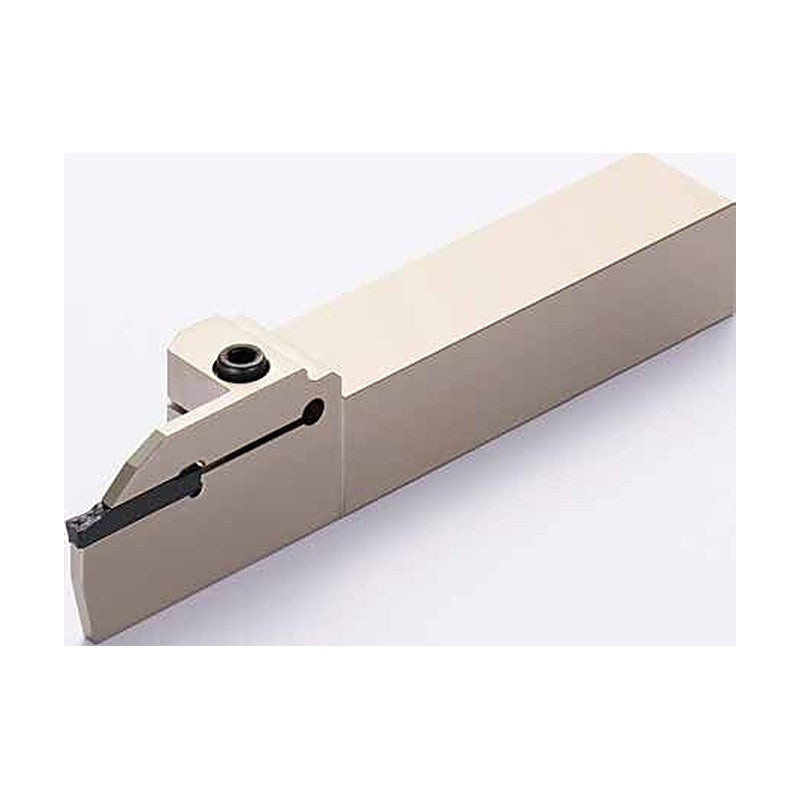

Sumitomo Electric Hardmetal GNDF Face Grooving Holder

Sumitomo Electric Hardmetal GNDF Face Grooving Holder

SEC grooving holder GNDF type for face grooving with clamp-on insert, straight shank.

Key features

  • Face grooving from small diameters
  • Uses GCM grooving inserts
GNDF R2020K-312-035 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 35.6 | Machining dia DC (mm): 35~45 | Min machining dia (mm): 29 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 12 | Stock: Yes
GNDF L2020K-312-035 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 35.6 | Machining dia DC (mm): 35~45 | Min machining dia (mm): 29 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 12 | Stock: Yes
GNDF R2020K-312-040 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 35.6 | Machining dia DC (mm): 40~55 | Min machining dia (mm): 34 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 12 | Stock: Yes
GNDF L2020K-312-040 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 35.6 | Machining dia DC (mm): 40~55 | Min machining dia (mm): 34 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 12 | Stock: Yes
GNDF R2020K-318-050 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 41.6 | Machining dia DC (mm): 50~70 | Min machining dia (mm): 44 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 18 | Stock: Yes
GNDF L2020K-318-050 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 41.6 | Machining dia DC (mm): 50~70 | Min machining dia (mm): 44 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 18 | Stock: Yes
GNDF R2020K-318-065 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 41.6 | Machining dia DC (mm): 65~100 | Min machining dia (mm): 59 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 18 | Stock: Yes
GNDF L2020K-318-065 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 41.6 | Machining dia DC (mm): 65~100 | Min machining dia (mm): 59 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 18 | Stock: Yes
GNDF R2020K-318-090 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 41.6 | Machining dia DC (mm): 90~150 | Min machining dia (mm): 84 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 18 | Stock: Yes
GNDF L2020K-318-090 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 41.6 | Machining dia DC (mm): 90~150 | Min machining dia (mm): 84 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 18 | Stock: Yes
GNDF R2020K-318-140 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 41.6 | Machining dia DC (mm): 140~200 | Min machining dia (mm): 134 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 18 | Stock: Yes
GNDF L2020K-318-140 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 41.6 | Machining dia DC (mm): 140~200 | Min machining dia (mm): 134 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 18 | Stock: Yes
GNDF R2020K-318-180 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 41.6 | Machining dia DC (mm): 180~300 | Min machining dia (mm): 174 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 18 | Stock: Yes
GNDF L2020K-318-180 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 41.6 | Machining dia DC (mm): 180~300 | Min machining dia (mm): 174 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 18 | Stock: Yes
GNDF R2020K-418-040 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 41.6 | Machining dia DC (mm): 40~55 | Min machining dia (mm): 32 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 18 | Stock: Yes
GNDF L2020K-418-040 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 41.6 | Machining dia DC (mm): 40~55 | Min machining dia (mm): 32 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 18 | Stock: Yes
GNDF R2020K-423-050 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 50~70 | Min machining dia (mm): 42 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2020K-423-050 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 50~70 | Min machining dia (mm): 42 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2020K-423-065 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 65~90 | Min machining dia (mm): 57 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2020K-423-065 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 65~90 | Min machining dia (mm): 57 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2020K-423-085 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 85~130 | Min machining dia (mm): 77 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2020K-423-085 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 85~130 | Min machining dia (mm): 77 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2020K-423-125 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 125~200 | Min machining dia (mm): 117 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2020K-423-125 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 125~200 | Min machining dia (mm): 117 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2020K-423-180 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 180~300 | Min machining dia (mm): 172 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2020K-423-180 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 180~300 | Min machining dia (mm): 172 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2020K-423-280 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 280~1000 | Min machining dia (mm): 272 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2020K-423-280 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 280~1000 | Min machining dia (mm): 272 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2020K-523-050 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 50~70 | Min machining dia (mm): 40 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2020K-523-050 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 50~70 | Min machining dia (mm): 40 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2020K-523-065 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 65~90 | Min machining dia (mm): 55 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2020K-523-065 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 65~90 | Min machining dia (mm): 55 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2020K-523-085 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 85~130 | Min machining dia (mm): 75 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2020K-523-085 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 85~130 | Min machining dia (mm): 75 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2020K-523-125 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 125~200 | Min machining dia (mm): 115 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2020K-523-125 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 125~200 | Min machining dia (mm): 115 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2020K-523-180 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 180~300 | Min machining dia (mm): 170 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2020K-523-180 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 180~300 | Min machining dia (mm): 170 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2020K-523-280 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 280~1000 | Min machining dia (mm): 270 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2020K-523-280 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 280~1000 | Min machining dia (mm): 270 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2020K-623-050 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 50~75 | Min machining dia (mm): 38 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2020K-623-050 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 50~75 | Min machining dia (mm): 38 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2020K-623-070 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 70~110 | Min machining dia (mm): 58 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2020K-623-070 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 70~110 | Min machining dia (mm): 58 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2020K-623-100 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 100~200 | Min machining dia (mm): 88 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2020K-623-100 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 100~200 | Min machining dia (mm): 88 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2020K-623-180 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 180~300 | Min machining dia (mm): 168 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2020K-623-180 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 180~300 | Min machining dia (mm): 168 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2020K-623-280 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 280~1000 | Min machining dia (mm): 268 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2020K-623-280 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 280~1000 | Min machining dia (mm): 268 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2525M-312-035 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 35.6 | Machining dia DC (mm): 35~45 | Min machining dia (mm): 29 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 12 | Stock: Yes
GNDF L2525M-312-035 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 35.6 | Machining dia DC (mm): 35~45 | Min machining dia (mm): 29 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 12 | Stock: Yes
GNDF R2525M-312-040 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 35.6 | Machining dia DC (mm): 40~55 | Min machining dia (mm): 34 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 12 | Stock: Yes
GNDF L2525M-312-040 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 35.6 | Machining dia DC (mm): 40~55 | Min machining dia (mm): 34 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 12 | Stock: Yes
GNDF R2525M-318-050 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 41.6 | Machining dia DC (mm): 50~70 | Min machining dia (mm): 44 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 18 | Stock: Yes
GNDF L2525M-318-050 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 41.6 | Machining dia DC (mm): 50~70 | Min machining dia (mm): 44 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 18 | Stock: Yes
GNDF R2525M-318-065 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 41.6 | Machining dia DC (mm): 65~100 | Min machining dia (mm): 59 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 18 | Stock: Yes
GNDF L2525M-318-065 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 41.6 | Machining dia DC (mm): 65~100 | Min machining dia (mm): 59 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 18 | Stock: Yes
GNDF R2525M-318-090 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 41.6 | Machining dia DC (mm): 90~150 | Min machining dia (mm): 84 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 18 | Stock: Yes
GNDF L2525M-318-090 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 41.6 | Machining dia DC (mm): 90~150 | Min machining dia (mm): 84 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 18 | Stock: Yes
GNDF R2525M-318-140 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 41.6 | Machining dia DC (mm): 140~200 | Min machining dia (mm): 134 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 18 | Stock: Yes
GNDF L2525M-318-140 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 41.6 | Machining dia DC (mm): 140~200 | Min machining dia (mm): 134 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 18 | Stock: Yes
GNDF R2525M-318-180 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 41.6 | Machining dia DC (mm): 180~300 | Min machining dia (mm): 174 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 18 | Stock: Yes
GNDF L2525M-318-180 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 41.6 | Machining dia DC (mm): 180~300 | Min machining dia (mm): 174 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 18 | Stock: Yes
GNDF R2525M-418-040 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 41.6 | Machining dia DC (mm): 40~55 | Min machining dia (mm): 32 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 18 | Stock: Yes
GNDF L2525M-418-040 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 41.6 | Machining dia DC (mm): 40~55 | Min machining dia (mm): 32 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 18 | Stock: Yes
GNDF R2525M-423-050 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 50~70 | Min machining dia (mm): 42 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2525M-423-050 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 50~70 | Min machining dia (mm): 42 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2525M-423-065 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 65~90 | Min machining dia (mm): 57 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2525M-423-065 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 65~90 | Min machining dia (mm): 57 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2525M-423-085 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 85~130 | Min machining dia (mm): 77 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2525M-423-085 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 85~130 | Min machining dia (mm): 77 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2525M-423-125 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 125~200 | Min machining dia (mm): 117 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2525M-423-125 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 125~200 | Min machining dia (mm): 117 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2525M-423-180 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 180~300 | Min machining dia (mm): 172 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2525M-423-180 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 180~300 | Min machining dia (mm): 172 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2525M-423-280 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 280~1000 | Min machining dia (mm): 272 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2525M-423-280 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 280~1000 | Min machining dia (mm): 272 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2525M-523-050 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 50~70 | Min machining dia (mm): 40 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2525M-523-050 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 50~70 | Min machining dia (mm): 40 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2525M-523-065 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 65~90 | Min machining dia (mm): 55 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2525M-523-065 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 65~90 | Min machining dia (mm): 55 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2525M-523-085 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 85~130 | Min machining dia (mm): 75 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2525M-523-085 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 85~130 | Min machining dia (mm): 75 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2525M-523-125 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 125~200 | Min machining dia (mm): 115 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2525M-523-125 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 125~200 | Min machining dia (mm): 115 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2525M-523-180 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 180~300 | Min machining dia (mm): 170 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2525M-523-180 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 180~300 | Min machining dia (mm): 170 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2525M-523-280 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 280~1000 | Min machining dia (mm): 270 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2525M-523-280 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 280~1000 | Min machining dia (mm): 270 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2525M-623-050 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 50~75 | Min machining dia (mm): 38 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2525M-623-050 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 50~75 | Min machining dia (mm): 38 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2525M-623-070 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 70~110 | Min machining dia (mm): 58 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2525M-623-070 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 70~110 | Min machining dia (mm): 58 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2525M-623-100 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 100~200 | Min machining dia (mm): 88 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2525M-623-100 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 100~200 | Min machining dia (mm): 88 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2525M-623-180 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 180~300 | Min machining dia (mm): 168 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2525M-623-180 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 180~300 | Min machining dia (mm): 168 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2525M-623-280 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 280~1000 | Min machining dia (mm): 268 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2525M-623-280 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 280~1000 | Min machining dia (mm): 268 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
Grooving HoldersSumitomo Electric Hardmetal
100 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal GNDF Face Grooving Holder

Brand Sumitomo Electric Hardmetal·Grooving Holders

Available part numbers (100)

GNDF R2020K-312-035, GNDF L2020K-312-035, GNDF R2020K-312-040, GNDF L2020K-312-040, GNDF R2020K-318-050, GNDF L2020K-318-050, GNDF R2020K-318-065, GNDF L2020K-318-065, GNDF R2020K-318-090, GNDF L2020K-318-090 + 90 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GNDF R2020K-312-035Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 35.6 | Machining dia DC (mm): 35~45 | Min machining dia (mm): 29 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 12 | Stock: Yes
GNDF L2020K-312-035Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 35.6 | Machining dia DC (mm): 35~45 | Min machining dia (mm): 29 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 12 | Stock: Yes
GNDF R2020K-312-040Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 35.6 | Machining dia DC (mm): 40~55 | Min machining dia (mm): 34 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 12 | Stock: Yes
GNDF L2020K-312-040Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 35.6 | Machining dia DC (mm): 40~55 | Min machining dia (mm): 34 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 12 | Stock: Yes
GNDF R2020K-318-050Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 41.6 | Machining dia DC (mm): 50~70 | Min machining dia (mm): 44 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 18 | Stock: Yes
GNDF L2020K-318-050Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 41.6 | Machining dia DC (mm): 50~70 | Min machining dia (mm): 44 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 18 | Stock: Yes
GNDF R2020K-318-065Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 41.6 | Machining dia DC (mm): 65~100 | Min machining dia (mm): 59 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 18 | Stock: Yes
GNDF L2020K-318-065Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 41.6 | Machining dia DC (mm): 65~100 | Min machining dia (mm): 59 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 18 | Stock: Yes
GNDF R2020K-318-090Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 41.6 | Machining dia DC (mm): 90~150 | Min machining dia (mm): 84 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 18 | Stock: Yes
GNDF L2020K-318-090Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 41.6 | Machining dia DC (mm): 90~150 | Min machining dia (mm): 84 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 18 | Stock: Yes
GNDF R2020K-318-140Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 41.6 | Machining dia DC (mm): 140~200 | Min machining dia (mm): 134 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 18 | Stock: Yes
GNDF L2020K-318-140Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 41.6 | Machining dia DC (mm): 140~200 | Min machining dia (mm): 134 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 18 | Stock: Yes
GNDF R2020K-318-180Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 41.6 | Machining dia DC (mm): 180~300 | Min machining dia (mm): 174 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 18 | Stock: Yes
GNDF L2020K-318-180Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 41.6 | Machining dia DC (mm): 180~300 | Min machining dia (mm): 174 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 18 | Stock: Yes
GNDF R2020K-418-040Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 41.6 | Machining dia DC (mm): 40~55 | Min machining dia (mm): 32 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 18 | Stock: Yes
GNDF L2020K-418-040Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 41.6 | Machining dia DC (mm): 40~55 | Min machining dia (mm): 32 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 18 | Stock: Yes
GNDF R2020K-423-050Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 50~70 | Min machining dia (mm): 42 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2020K-423-050Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 50~70 | Min machining dia (mm): 42 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2020K-423-065Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 65~90 | Min machining dia (mm): 57 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2020K-423-065Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 65~90 | Min machining dia (mm): 57 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2020K-423-085Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 85~130 | Min machining dia (mm): 77 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2020K-423-085Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 85~130 | Min machining dia (mm): 77 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2020K-423-125Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 125~200 | Min machining dia (mm): 117 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2020K-423-125Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 125~200 | Min machining dia (mm): 117 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2020K-423-180Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 180~300 | Min machining dia (mm): 172 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2020K-423-180Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 180~300 | Min machining dia (mm): 172 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2020K-423-280Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 280~1000 | Min machining dia (mm): 272 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2020K-423-280Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 280~1000 | Min machining dia (mm): 272 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2020K-523-050Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 50~70 | Min machining dia (mm): 40 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2020K-523-050Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 50~70 | Min machining dia (mm): 40 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2020K-523-065Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 65~90 | Min machining dia (mm): 55 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2020K-523-065Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 65~90 | Min machining dia (mm): 55 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2020K-523-085Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 85~130 | Min machining dia (mm): 75 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2020K-523-085Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 85~130 | Min machining dia (mm): 75 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2020K-523-125Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 125~200 | Min machining dia (mm): 115 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2020K-523-125Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 125~200 | Min machining dia (mm): 115 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2020K-523-180Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 180~300 | Min machining dia (mm): 170 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2020K-523-180Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 180~300 | Min machining dia (mm): 170 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2020K-523-280Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 280~1000 | Min machining dia (mm): 270 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2020K-523-280Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 280~1000 | Min machining dia (mm): 270 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2020K-623-050Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 50~75 | Min machining dia (mm): 38 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2020K-623-050Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 50~75 | Min machining dia (mm): 38 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2020K-623-070Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 70~110 | Min machining dia (mm): 58 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2020K-623-070Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 70~110 | Min machining dia (mm): 58 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2020K-623-100Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 100~200 | Min machining dia (mm): 88 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2020K-623-100Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 100~200 | Min machining dia (mm): 88 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2020K-623-180Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 180~300 | Min machining dia (mm): 168 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2020K-623-180Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 180~300 | Min machining dia (mm): 168 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2020K-623-280Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 280~1000 | Min machining dia (mm): 268 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2020K-623-280Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 46.6 | Machining dia DC (mm): 280~1000 | Min machining dia (mm): 268 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2525M-312-035Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 35.6 | Machining dia DC (mm): 35~45 | Min machining dia (mm): 29 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 12 | Stock: Yes
GNDF L2525M-312-035Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 35.6 | Machining dia DC (mm): 35~45 | Min machining dia (mm): 29 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 12 | Stock: Yes
GNDF R2525M-312-040Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 35.6 | Machining dia DC (mm): 40~55 | Min machining dia (mm): 34 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 12 | Stock: Yes
GNDF L2525M-312-040Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 35.6 | Machining dia DC (mm): 40~55 | Min machining dia (mm): 34 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 12 | Stock: Yes
GNDF R2525M-318-050Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 41.6 | Machining dia DC (mm): 50~70 | Min machining dia (mm): 44 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 18 | Stock: Yes
GNDF L2525M-318-050Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 41.6 | Machining dia DC (mm): 50~70 | Min machining dia (mm): 44 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 18 | Stock: Yes
GNDF R2525M-318-065Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 41.6 | Machining dia DC (mm): 65~100 | Min machining dia (mm): 59 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 18 | Stock: Yes
GNDF L2525M-318-065Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 41.6 | Machining dia DC (mm): 65~100 | Min machining dia (mm): 59 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 18 | Stock: Yes
GNDF R2525M-318-090Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 41.6 | Machining dia DC (mm): 90~150 | Min machining dia (mm): 84 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 18 | Stock: Yes
GNDF L2525M-318-090Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 41.6 | Machining dia DC (mm): 90~150 | Min machining dia (mm): 84 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 18 | Stock: Yes
GNDF R2525M-318-140Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 41.6 | Machining dia DC (mm): 140~200 | Min machining dia (mm): 134 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 18 | Stock: Yes
GNDF L2525M-318-140Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 41.6 | Machining dia DC (mm): 140~200 | Min machining dia (mm): 134 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 18 | Stock: Yes
GNDF R2525M-318-180Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 41.6 | Machining dia DC (mm): 180~300 | Min machining dia (mm): 174 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 18 | Stock: Yes
GNDF L2525M-318-180Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 41.6 | Machining dia DC (mm): 180~300 | Min machining dia (mm): 174 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 18 | Stock: Yes
GNDF R2525M-418-040Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 41.6 | Machining dia DC (mm): 40~55 | Min machining dia (mm): 32 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 18 | Stock: Yes
GNDF L2525M-418-040Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 41.6 | Machining dia DC (mm): 40~55 | Min machining dia (mm): 32 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 18 | Stock: Yes
GNDF R2525M-423-050Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 50~70 | Min machining dia (mm): 42 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2525M-423-050Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 50~70 | Min machining dia (mm): 42 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2525M-423-065Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 65~90 | Min machining dia (mm): 57 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2525M-423-065Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 65~90 | Min machining dia (mm): 57 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2525M-423-085Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 85~130 | Min machining dia (mm): 77 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2525M-423-085Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 85~130 | Min machining dia (mm): 77 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2525M-423-125Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 125~200 | Min machining dia (mm): 117 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2525M-423-125Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 125~200 | Min machining dia (mm): 117 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2525M-423-180Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 180~300 | Min machining dia (mm): 172 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2525M-423-180Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 180~300 | Min machining dia (mm): 172 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2525M-423-280Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 280~1000 | Min machining dia (mm): 272 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2525M-423-280Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 280~1000 | Min machining dia (mm): 272 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2525M-523-050Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 50~70 | Min machining dia (mm): 40 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2525M-523-050Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 50~70 | Min machining dia (mm): 40 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2525M-523-065Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 65~90 | Min machining dia (mm): 55 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2525M-523-065Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 65~90 | Min machining dia (mm): 55 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2525M-523-085Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 85~130 | Min machining dia (mm): 75 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2525M-523-085Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 85~130 | Min machining dia (mm): 75 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2525M-523-125Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 125~200 | Min machining dia (mm): 115 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2525M-523-125Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 125~200 | Min machining dia (mm): 115 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2525M-523-180Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 180~300 | Min machining dia (mm): 170 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2525M-523-180Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 180~300 | Min machining dia (mm): 170 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2525M-523-280Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 280~1000 | Min machining dia (mm): 270 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2525M-523-280Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 280~1000 | Min machining dia (mm): 270 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2525M-623-050Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 50~75 | Min machining dia (mm): 38 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2525M-623-050Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 50~75 | Min machining dia (mm): 38 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2525M-623-070Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 70~110 | Min machining dia (mm): 58 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2525M-623-070Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 70~110 | Min machining dia (mm): 58 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2525M-623-100Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 100~200 | Min machining dia (mm): 88 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2525M-623-100Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 100~200 | Min machining dia (mm): 88 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2525M-623-180Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 180~300 | Min machining dia (mm): 168 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2525M-623-180Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 180~300 | Min machining dia (mm): 168 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF R2525M-623-280Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 280~1000 | Min machining dia (mm): 268 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDF L2525M-623-280Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 46.6 | Machining dia DC (mm): 280~1000 | Min machining dia (mm): 268 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 23 | Stock: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Cutting Tools →
