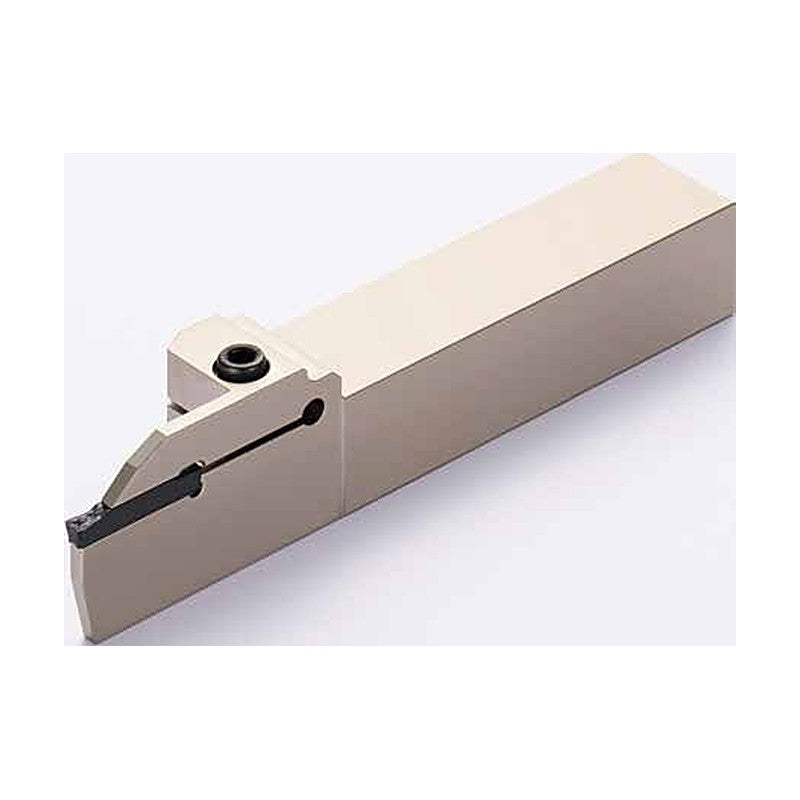

Sumitomo Electric Hardmetal GNDFS L-Type Deep Face Grooving Holder

Sumitomo Electric Hardmetal GNDFS L-Type Deep Face Grooving Holder

SEC grooving holder GNDFS type, an L-type holder for deep face grooving with clamp-on insert.

Key features

  • L-type (horizontal) deep face grooving
  • Groove widths 6 and 8 mm
  • Made to order

Specifications

Max cutting depth CDX (mm) 20
GNDFS R2525M-620-070 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 47 | Cutting height HF (mm): 25 | Head length LH (mm): 25 | Machining dia DC (mm): 70~100 | Min machining dia (mm): 58 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS L2525M-620-070 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 47 | Cutting height HF (mm): 25 | Head length LH (mm): 25 | Machining dia DC (mm): 70~100 | Min machining dia (mm): 58 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS R2525M-620-100 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 47 | Cutting height HF (mm): 25 | Head length LH (mm): 25 | Machining dia DC (mm): 100~200 | Min machining dia (mm): 88 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS L2525M-620-100 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 47 | Cutting height HF (mm): 25 | Head length LH (mm): 25 | Machining dia DC (mm): 100~200 | Min machining dia (mm): 88 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS R2525M-620-180 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 47 | Cutting height HF (mm): 25 | Head length LH (mm): 25 | Machining dia DC (mm): 180~300 | Min machining dia (mm): 168 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS L2525M-620-180 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 47 | Cutting height HF (mm): 25 | Head length LH (mm): 25 | Machining dia DC (mm): 180~300 | Min machining dia (mm): 168 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS R2525M-620-280 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 47 | Cutting height HF (mm): 25 | Head length LH (mm): 25 | Machining dia DC (mm): 280~1000 | Min machining dia (mm): 268 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS L2525M-620-280 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 47 | Cutting height HF (mm): 25 | Head length LH (mm): 25 | Machining dia DC (mm): 280~1000 | Min machining dia (mm): 268 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS R2525M-620-450 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 47 | Cutting height HF (mm): 25 | Head length LH (mm): 25 | Machining dia DC (mm): 450~ | Min machining dia (mm): 438 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS L2525M-620-450 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 47 | Cutting height HF (mm): 25 | Head length LH (mm): 25 | Machining dia DC (mm): 450~ | Min machining dia (mm): 438 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS R3232P-620-070 Height H (mm): 32 | Width B (mm): 32 | Length LF (mm): 170 | WF (mm): 54 | Cutting height HF (mm): 32 | Head length LH (mm): 25 | Machining dia DC (mm): 70~100 | Min machining dia (mm): 58 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS L3232P-620-070 Height H (mm): 32 | Width B (mm): 32 | Length LF (mm): 170 | WF (mm): 54 | Cutting height HF (mm): 32 | Head length LH (mm): 25 | Machining dia DC (mm): 70~100 | Min machining dia (mm): 58 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS R3232P-620-100 Height H (mm): 32 | Width B (mm): 32 | Length LF (mm): 170 | WF (mm): 54 | Cutting height HF (mm): 32 | Head length LH (mm): 25 | Machining dia DC (mm): 100~200 | Min machining dia (mm): 88 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS L3232P-620-100 Height H (mm): 32 | Width B (mm): 32 | Length LF (mm): 170 | WF (mm): 54 | Cutting height HF (mm): 32 | Head length LH (mm): 25 | Machining dia DC (mm): 100~200 | Min machining dia (mm): 88 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS R3232P-620-180 Height H (mm): 32 | Width B (mm): 32 | Length LF (mm): 170 | WF (mm): 54 | Cutting height HF (mm): 32 | Head length LH (mm): 25 | Machining dia DC (mm): 180~300 | Min machining dia (mm): 168 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS L3232P-620-180 Height H (mm): 32 | Width B (mm): 32 | Length LF (mm): 170 | WF (mm): 54 | Cutting height HF (mm): 32 | Head length LH (mm): 25 | Machining dia DC (mm): 180~300 | Min machining dia (mm): 168 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS R3232P-620-280 Height H (mm): 32 | Width B (mm): 32 | Length LF (mm): 170 | WF (mm): 54 | Cutting height HF (mm): 32 | Head length LH (mm): 25 | Machining dia DC (mm): 280~1000 | Min machining dia (mm): 268 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS L3232P-620-280 Height H (mm): 32 | Width B (mm): 32 | Length LF (mm): 170 | WF (mm): 54 | Cutting height HF (mm): 32 | Head length LH (mm): 25 | Machining dia DC (mm): 280~1000 | Min machining dia (mm): 268 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS R3232P-620-450 Height H (mm): 32 | Width B (mm): 32 | Length LF (mm): 170 | WF (mm): 54 | Cutting height HF (mm): 32 | Head length LH (mm): 25 | Machining dia DC (mm): 450~ | Min machining dia (mm): 438 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS L3232P-620-450 Height H (mm): 32 | Width B (mm): 32 | Length LF (mm): 170 | WF (mm): 54 | Cutting height HF (mm): 32 | Head length LH (mm): 25 | Machining dia DC (mm): 450~ | Min machining dia (mm): 438 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS R2525M-820-070 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 47 | Cutting height HF (mm): 25 | Head length LH (mm): 30 | Machining dia DC (mm): 70~100 | Min machining dia (mm): 54 | Cutting width CW (mm): 8.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS L2525M-820-070 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 47 | Cutting height HF (mm): 25 | Head length LH (mm): 30 | Machining dia DC (mm): 70~100 | Min machining dia (mm): 54 | Cutting width CW (mm): 8.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS R2525M-820-100 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 47 | Cutting height HF (mm): 25 | Head length LH (mm): 30 | Machining dia DC (mm): 100~200 | Min machining dia (mm): 84 | Cutting width CW (mm): 8.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS L2525M-820-100 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 47 | Cutting height HF (mm): 25 | Head length LH (mm): 30 | Machining dia DC (mm): 100~200 | Min machining dia (mm): 84 | Cutting width CW (mm): 8.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS R2525M-820-180 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 47 | Cutting height HF (mm): 25 | Head length LH (mm): 30 | Machining dia DC (mm): 180~300 | Min machining dia (mm): 164 | Cutting width CW (mm): 8.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS L2525M-820-180 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 47 | Cutting height HF (mm): 25 | Head length LH (mm): 30 | Machining dia DC (mm): 180~300 | Min machining dia (mm): 164 | Cutting width CW (mm): 8.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS R2525M-820-280 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 47 | Cutting height HF (mm): 25 | Head length LH (mm): 30 | Machining dia DC (mm): 280~1000 | Min machining dia (mm): 264 | Cutting width CW (mm): 8.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS L2525M-820-280 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 47 | Cutting height HF (mm): 25 | Head length LH (mm): 30 | Machining dia DC (mm): 280~1000 | Min machining dia (mm): 264 | Cutting width CW (mm): 8.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS R2525M-820-450 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 47 | Cutting height HF (mm): 25 | Head length LH (mm): 30 | Machining dia DC (mm): 450~ | Min machining dia (mm): 434 | Cutting width CW (mm): 8.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS L2525M-820-450 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 47 | Cutting height HF (mm): 25 | Head length LH (mm): 30 | Machining dia DC (mm): 450~ | Min machining dia (mm): 434 | Cutting width CW (mm): 8.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS R3232P-820-070 Height H (mm): 32 | Width B (mm): 32 | Length LF (mm): 170 | WF (mm): 54 | Cutting height HF (mm): 32 | Head length LH (mm): 30 | Machining dia DC (mm): 70~100 | Min machining dia (mm): 54 | Cutting width CW (mm): 8.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS L3232P-820-070 Height H (mm): 32 | Width B (mm): 32 | Length LF (mm): 170 | WF (mm): 54 | Cutting height HF (mm): 32 | Head length LH (mm): 30 | Machining dia DC (mm): 70~100 | Min machining dia (mm): 54 | Cutting width CW (mm): 8.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS R3232P-820-100 Height H (mm): 32 | Width B (mm): 32 | Length LF (mm): 170 | WF (mm): 54 | Cutting height HF (mm): 32 | Head length LH (mm): 30 | Machining dia DC (mm): 100~200 | Min machining dia (mm): 84 | Cutting width CW (mm): 8.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS L3232P-820-100 Height H (mm): 32 | Width B (mm): 32 | Length LF (mm): 170 | WF (mm): 54 | Cutting height HF (mm): 32 | Head length LH (mm): 30 | Machining dia DC (mm): 100~200 | Min machining dia (mm): 84 | Cutting width CW (mm): 8.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS R3232P-820-180 Height H (mm): 32 | Width B (mm): 32 | Length LF (mm): 170 | WF (mm): 54 | Cutting height HF (mm): 32 | Head length LH (mm): 30 | Machining dia DC (mm): 180~300 | Min machining dia (mm): 164 | Cutting width CW (mm): 8.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS L3232P-820-180 Height H (mm): 32 | Width B (mm): 32 | Length LF (mm): 170 | WF (mm): 54 | Cutting height HF (mm): 32 | Head length LH (mm): 30 | Machining dia DC (mm): 180~300 | Min machining dia (mm): 164 | Cutting width CW (mm): 8.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS R3232P-820-280 Height H (mm): 32 | Width B (mm): 32 | Length LF (mm): 170 | WF (mm): 54 | Cutting height HF (mm): 32 | Head length LH (mm): 30 | Machining dia DC (mm): 280~1000 | Min machining dia (mm): 264 | Cutting width CW (mm): 8.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS L3232P-820-280 Height H (mm): 32 | Width B (mm): 32 | Length LF (mm): 170 | WF (mm): 54 | Cutting height HF (mm): 32 | Head length LH (mm): 30 | Machining dia DC (mm): 280~1000 | Min machining dia (mm): 264 | Cutting width CW (mm): 8.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS R3232P-820-450 Height H (mm): 32 | Width B (mm): 32 | Length LF (mm): 170 | WF (mm): 54 | Cutting height HF (mm): 32 | Head length LH (mm): 30 | Machining dia DC (mm): 450~ | Min machining dia (mm): 434 | Cutting width CW (mm): 8.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS L3232P-820-450 Height H (mm): 32 | Width B (mm): 32 | Length LF (mm): 170 | WF (mm): 54 | Cutting height HF (mm): 32 | Head length LH (mm): 30 | Machining dia DC (mm): 450~ | Min machining dia (mm): 434 | Cutting width CW (mm): 8.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
Grooving HoldersSumitomo Electric Hardmetal
40 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal GNDFS L-Type Deep Face Grooving Holder

Brand Sumitomo Electric Hardmetal·Grooving Holders

Available part numbers (40)

GNDFS R2525M-620-070, GNDFS L2525M-620-070, GNDFS R2525M-620-100, GNDFS L2525M-620-100, GNDFS R2525M-620-180, GNDFS L2525M-620-180, GNDFS R2525M-620-280, GNDFS L2525M-620-280, GNDFS R2525M-620-450, GNDFS L2525M-620-450 + 30 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GNDFS R2525M-620-070Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 47 | Cutting height HF (mm): 25 | Head length LH (mm): 25 | Machining dia DC (mm): 70~100 | Min machining dia (mm): 58 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS L2525M-620-070Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 47 | Cutting height HF (mm): 25 | Head length LH (mm): 25 | Machining dia DC (mm): 70~100 | Min machining dia (mm): 58 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS R2525M-620-100Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 47 | Cutting height HF (mm): 25 | Head length LH (mm): 25 | Machining dia DC (mm): 100~200 | Min machining dia (mm): 88 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS L2525M-620-100Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 47 | Cutting height HF (mm): 25 | Head length LH (mm): 25 | Machining dia DC (mm): 100~200 | Min machining dia (mm): 88 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS R2525M-620-180Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 47 | Cutting height HF (mm): 25 | Head length LH (mm): 25 | Machining dia DC (mm): 180~300 | Min machining dia (mm): 168 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS L2525M-620-180Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 47 | Cutting height HF (mm): 25 | Head length LH (mm): 25 | Machining dia DC (mm): 180~300 | Min machining dia (mm): 168 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS R2525M-620-280Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 47 | Cutting height HF (mm): 25 | Head length LH (mm): 25 | Machining dia DC (mm): 280~1000 | Min machining dia (mm): 268 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS L2525M-620-280Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 47 | Cutting height HF (mm): 25 | Head length LH (mm): 25 | Machining dia DC (mm): 280~1000 | Min machining dia (mm): 268 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS R2525M-620-450Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 47 | Cutting height HF (mm): 25 | Head length LH (mm): 25 | Machining dia DC (mm): 450~ | Min machining dia (mm): 438 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS L2525M-620-450Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 47 | Cutting height HF (mm): 25 | Head length LH (mm): 25 | Machining dia DC (mm): 450~ | Min machining dia (mm): 438 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS R3232P-620-070Height H (mm): 32 | Width B (mm): 32 | Length LF (mm): 170 | WF (mm): 54 | Cutting height HF (mm): 32 | Head length LH (mm): 25 | Machining dia DC (mm): 70~100 | Min machining dia (mm): 58 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS L3232P-620-070Height H (mm): 32 | Width B (mm): 32 | Length LF (mm): 170 | WF (mm): 54 | Cutting height HF (mm): 32 | Head length LH (mm): 25 | Machining dia DC (mm): 70~100 | Min machining dia (mm): 58 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS R3232P-620-100Height H (mm): 32 | Width B (mm): 32 | Length LF (mm): 170 | WF (mm): 54 | Cutting height HF (mm): 32 | Head length LH (mm): 25 | Machining dia DC (mm): 100~200 | Min machining dia (mm): 88 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS L3232P-620-100Height H (mm): 32 | Width B (mm): 32 | Length LF (mm): 170 | WF (mm): 54 | Cutting height HF (mm): 32 | Head length LH (mm): 25 | Machining dia DC (mm): 100~200 | Min machining dia (mm): 88 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS R3232P-620-180Height H (mm): 32 | Width B (mm): 32 | Length LF (mm): 170 | WF (mm): 54 | Cutting height HF (mm): 32 | Head length LH (mm): 25 | Machining dia DC (mm): 180~300 | Min machining dia (mm): 168 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS L3232P-620-180Height H (mm): 32 | Width B (mm): 32 | Length LF (mm): 170 | WF (mm): 54 | Cutting height HF (mm): 32 | Head length LH (mm): 25 | Machining dia DC (mm): 180~300 | Min machining dia (mm): 168 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS R3232P-620-280Height H (mm): 32 | Width B (mm): 32 | Length LF (mm): 170 | WF (mm): 54 | Cutting height HF (mm): 32 | Head length LH (mm): 25 | Machining dia DC (mm): 280~1000 | Min machining dia (mm): 268 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS L3232P-620-280Height H (mm): 32 | Width B (mm): 32 | Length LF (mm): 170 | WF (mm): 54 | Cutting height HF (mm): 32 | Head length LH (mm): 25 | Machining dia DC (mm): 280~1000 | Min machining dia (mm): 268 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS R3232P-620-450Height H (mm): 32 | Width B (mm): 32 | Length LF (mm): 170 | WF (mm): 54 | Cutting height HF (mm): 32 | Head length LH (mm): 25 | Machining dia DC (mm): 450~ | Min machining dia (mm): 438 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS L3232P-620-450Height H (mm): 32 | Width B (mm): 32 | Length LF (mm): 170 | WF (mm): 54 | Cutting height HF (mm): 32 | Head length LH (mm): 25 | Machining dia DC (mm): 450~ | Min machining dia (mm): 438 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS R2525M-820-070Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 47 | Cutting height HF (mm): 25 | Head length LH (mm): 30 | Machining dia DC (mm): 70~100 | Min machining dia (mm): 54 | Cutting width CW (mm): 8.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS L2525M-820-070Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 47 | Cutting height HF (mm): 25 | Head length LH (mm): 30 | Machining dia DC (mm): 70~100 | Min machining dia (mm): 54 | Cutting width CW (mm): 8.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS R2525M-820-100Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 47 | Cutting height HF (mm): 25 | Head length LH (mm): 30 | Machining dia DC (mm): 100~200 | Min machining dia (mm): 84 | Cutting width CW (mm): 8.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS L2525M-820-100Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 47 | Cutting height HF (mm): 25 | Head length LH (mm): 30 | Machining dia DC (mm): 100~200 | Min machining dia (mm): 84 | Cutting width CW (mm): 8.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS R2525M-820-180Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 47 | Cutting height HF (mm): 25 | Head length LH (mm): 30 | Machining dia DC (mm): 180~300 | Min machining dia (mm): 164 | Cutting width CW (mm): 8.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS L2525M-820-180Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 47 | Cutting height HF (mm): 25 | Head length LH (mm): 30 | Machining dia DC (mm): 180~300 | Min machining dia (mm): 164 | Cutting width CW (mm): 8.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS R2525M-820-280Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 47 | Cutting height HF (mm): 25 | Head length LH (mm): 30 | Machining dia DC (mm): 280~1000 | Min machining dia (mm): 264 | Cutting width CW (mm): 8.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS L2525M-820-280Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 47 | Cutting height HF (mm): 25 | Head length LH (mm): 30 | Machining dia DC (mm): 280~1000 | Min machining dia (mm): 264 | Cutting width CW (mm): 8.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS R2525M-820-450Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 47 | Cutting height HF (mm): 25 | Head length LH (mm): 30 | Machining dia DC (mm): 450~ | Min machining dia (mm): 434 | Cutting width CW (mm): 8.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS L2525M-820-450Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 47 | Cutting height HF (mm): 25 | Head length LH (mm): 30 | Machining dia DC (mm): 450~ | Min machining dia (mm): 434 | Cutting width CW (mm): 8.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS R3232P-820-070Height H (mm): 32 | Width B (mm): 32 | Length LF (mm): 170 | WF (mm): 54 | Cutting height HF (mm): 32 | Head length LH (mm): 30 | Machining dia DC (mm): 70~100 | Min machining dia (mm): 54 | Cutting width CW (mm): 8.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS L3232P-820-070Height H (mm): 32 | Width B (mm): 32 | Length LF (mm): 170 | WF (mm): 54 | Cutting height HF (mm): 32 | Head length LH (mm): 30 | Machining dia DC (mm): 70~100 | Min machining dia (mm): 54 | Cutting width CW (mm): 8.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS R3232P-820-100Height H (mm): 32 | Width B (mm): 32 | Length LF (mm): 170 | WF (mm): 54 | Cutting height HF (mm): 32 | Head length LH (mm): 30 | Machining dia DC (mm): 100~200 | Min machining dia (mm): 84 | Cutting width CW (mm): 8.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS L3232P-820-100Height H (mm): 32 | Width B (mm): 32 | Length LF (mm): 170 | WF (mm): 54 | Cutting height HF (mm): 32 | Head length LH (mm): 30 | Machining dia DC (mm): 100~200 | Min machining dia (mm): 84 | Cutting width CW (mm): 8.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS R3232P-820-180Height H (mm): 32 | Width B (mm): 32 | Length LF (mm): 170 | WF (mm): 54 | Cutting height HF (mm): 32 | Head length LH (mm): 30 | Machining dia DC (mm): 180~300 | Min machining dia (mm): 164 | Cutting width CW (mm): 8.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS L3232P-820-180Height H (mm): 32 | Width B (mm): 32 | Length LF (mm): 170 | WF (mm): 54 | Cutting height HF (mm): 32 | Head length LH (mm): 30 | Machining dia DC (mm): 180~300 | Min machining dia (mm): 164 | Cutting width CW (mm): 8.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS R3232P-820-280Height H (mm): 32 | Width B (mm): 32 | Length LF (mm): 170 | WF (mm): 54 | Cutting height HF (mm): 32 | Head length LH (mm): 30 | Machining dia DC (mm): 280~1000 | Min machining dia (mm): 264 | Cutting width CW (mm): 8.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS L3232P-820-280Height H (mm): 32 | Width B (mm): 32 | Length LF (mm): 170 | WF (mm): 54 | Cutting height HF (mm): 32 | Head length LH (mm): 30 | Machining dia DC (mm): 280~1000 | Min machining dia (mm): 264 | Cutting width CW (mm): 8.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS R3232P-820-450Height H (mm): 32 | Width B (mm): 32 | Length LF (mm): 170 | WF (mm): 54 | Cutting height HF (mm): 32 | Head length LH (mm): 30 | Machining dia DC (mm): 450~ | Min machining dia (mm): 434 | Cutting width CW (mm): 8.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
GNDFS L3232P-820-450Height H (mm): 32 | Width B (mm): 32 | Length LF (mm): 170 | WF (mm): 54 | Cutting height HF (mm): 32 | Head length LH (mm): 30 | Machining dia DC (mm): 450~ | Min machining dia (mm): 434 | Cutting width CW (mm): 8.0 | Max cutting depth CDX (mm): 20 | Stock: Made to order
