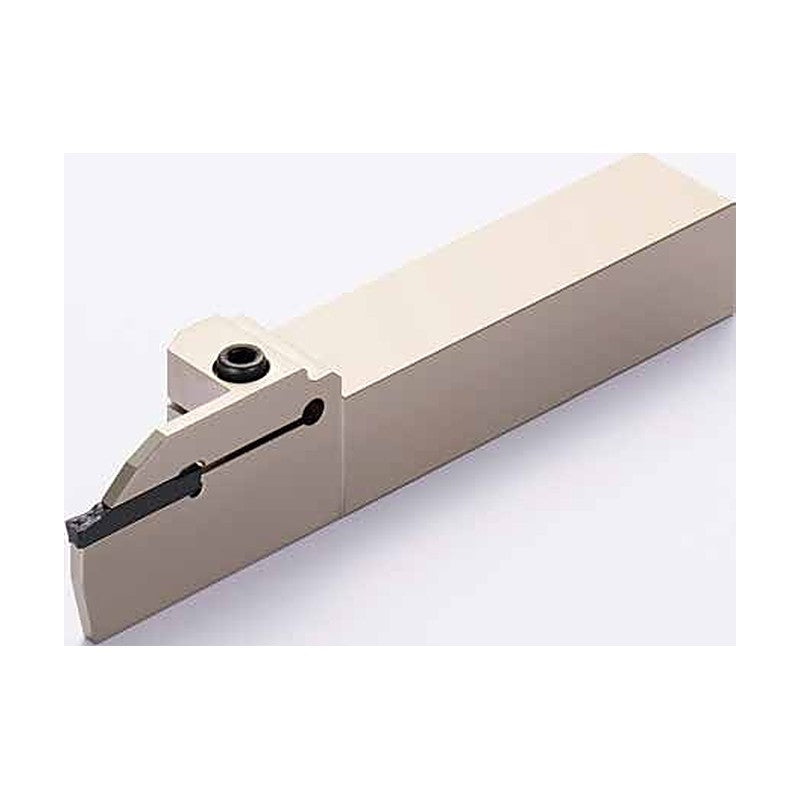

Sumitomo Electric Hardmetal GNDL Deep Grooving and Cut-off Holder

Sumitomo Electric Hardmetal GNDL Deep Grooving and Cut-off Holder

SEC grooving holder GNDL type for external deep grooving and cut-off with clamp-on insert.

Key features

  • Deep grooving up to 25 mm
  • Monoblock die-steel body reduces vibration
  • Uses GCM grooving inserts
GNDL R2020K-1.2516 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 38.0 | Cutting width CW (mm): 1.25 | Max cutting depth CDX (mm): 16 | Max cut-off dia (mm): 32 | Stock: Yes
GNDL L2020K-1.2516 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 38.0 | Cutting width CW (mm): 1.25 | Max cutting depth CDX (mm): 16 | Max cut-off dia (mm): 32 | Stock: Yes
GNDL R2020K-1.516 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 38.0 | Cutting width CW (mm): 1.50 | Max cutting depth CDX (mm): 16 | Max cut-off dia (mm): 32 | Stock: Yes
GNDL L2020K-1.516 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 38.0 | Cutting width CW (mm): 1.50 | Max cutting depth CDX (mm): 16 | Max cut-off dia (mm): 32 | Stock: Yes
GNDL R2020K-220 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 44.5 | Cutting width CW (mm): 2.00 | Max cutting depth CDX (mm): 20（18） | Max cut-off dia (mm): 40 | Stock: Yes
GNDL L2020K-220 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 44.5 | Cutting width CW (mm): 2.00 | Max cutting depth CDX (mm): 20（18） | Max cut-off dia (mm): 40 | Stock: Yes
GNDL R2020K-320 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 44.5 | Cutting width CW (mm): 3.00 | Max cutting depth CDX (mm): 20（18） | Max cut-off dia (mm): 40 | Stock: Yes
GNDL L2020K-320 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 44.5 | Cutting width CW (mm): 3.00 | Max cutting depth CDX (mm): 20（18） | Max cut-off dia (mm): 40 | Stock: Yes
GNDL R2020K-425 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 50.0 | Cutting width CW (mm): 4.00 | Max cutting depth CDX (mm): 25（23） | Max cut-off dia (mm): 50 | Stock: Yes
GNDL L2020K-425 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 50.0 | Cutting width CW (mm): 4.00 | Max cutting depth CDX (mm): 25（23） | Max cut-off dia (mm): 50 | Stock: Yes
GNDL R2020K-525 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 50.0 | Cutting width CW (mm): 5.00 | Max cutting depth CDX (mm): 25（23） | Max cut-off dia (mm): 50 | Stock: Yes
GNDL L2020K-525 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 50.0 | Cutting width CW (mm): 5.00 | Max cutting depth CDX (mm): 25（23） | Max cut-off dia (mm): 50 | Stock: Yes
GNDL R2020K-625 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 50.0 | Cutting width CW (mm): 6.00 | Max cutting depth CDX (mm): 25（23） | Max cut-off dia (mm): 50 | Stock: Yes
GNDL L2020K-625 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 50.0 | Cutting width CW (mm): 6.00 | Max cutting depth CDX (mm): 25（23） | Max cut-off dia (mm): 50 | Stock: Yes
GNDL R2525M-1.2516 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 40.0 | Cutting width CW (mm): 1.25 | Max cutting depth CDX (mm): 16 | Max cut-off dia (mm): 32 | Stock: Yes
GNDL L2525M-1.2516 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 40.0 | Cutting width CW (mm): 1.25 | Max cutting depth CDX (mm): 16 | Max cut-off dia (mm): 32 | Stock: Yes
GNDL R2525M-1.516 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 40.0 | Cutting width CW (mm): 1.50 | Max cutting depth CDX (mm): 16 | Max cut-off dia (mm): 32 | Stock: Yes
GNDL L2525M-1.516 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 40.0 | Cutting width CW (mm): 1.50 | Max cutting depth CDX (mm): 16 | Max cut-off dia (mm): 32 | Stock: Yes
GNDL R2525M-220 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 44.5 | Cutting width CW (mm): 2.00 | Max cutting depth CDX (mm): 20（18） | Max cut-off dia (mm): 40 | Stock: Yes
GNDL L2525M-220 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 44.5 | Cutting width CW (mm): 2.00 | Max cutting depth CDX (mm): 20（18） | Max cut-off dia (mm): 40 | Stock: Yes
GNDL R2525M-320 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 44.5 | Cutting width CW (mm): 3.00 | Max cutting depth CDX (mm): 20（18） | Max cut-off dia (mm): 40 | Stock: Yes
GNDL L2525M-320 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 44.5 | Cutting width CW (mm): 3.00 | Max cutting depth CDX (mm): 20（18） | Max cut-off dia (mm): 40 | Stock: Yes
GNDL R2525M-425 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 50.0 | Cutting width CW (mm): 4.00 | Max cutting depth CDX (mm): 25（23） | Max cut-off dia (mm): 50 | Stock: Yes
GNDL L2525M-425 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 50.0 | Cutting width CW (mm): 4.00 | Max cutting depth CDX (mm): 25（23） | Max cut-off dia (mm): 50 | Stock: Yes
GNDL R2525M-525 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 50.0 | Cutting width CW (mm): 5.00 | Max cutting depth CDX (mm): 25（23） | Max cut-off dia (mm): 50 | Stock: Yes
GNDL L2525M-525 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 50.0 | Cutting width CW (mm): 5.00 | Max cutting depth CDX (mm): 25（23） | Max cut-off dia (mm): 50 | Stock: Yes
GNDL R2525M-625 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 50.0 | Cutting width CW (mm): 6.00 | Max cutting depth CDX (mm): 25（23） | Max cut-off dia (mm): 50 | Stock: Yes
GNDL L2525M-625 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 50.0 | Cutting width CW (mm): 6.00 | Max cutting depth CDX (mm): 25（23） | Max cut-off dia (mm): 50 | Stock: Yes
GNDL R3225P-320 Height H (mm): 32 | Width B (mm): 25 | Length LF (mm): 170 | WF (mm): 25 | Cutting height HF (mm): 32 | Head length LH (mm): 44.5 | Cutting width CW (mm): 3.00 | Max cutting depth CDX (mm): 20（18） | Max cut-off dia (mm): 40 | Stock: Made to order
GNDL L3225P-320 Height H (mm): 32 | Width B (mm): 25 | Length LF (mm): 170 | WF (mm): 25 | Cutting height HF (mm): 32 | Head length LH (mm): 44.5 | Cutting width CW (mm): 3.00 | Max cutting depth CDX (mm): 20（18） | Max cut-off dia (mm): 40 | Stock: Made to order
GNDL R3225P-425 Height H (mm): 32 | Width B (mm): 25 | Length LF (mm): 170 | WF (mm): 25 | Cutting height HF (mm): 32 | Head length LH (mm): 50.0 | Cutting width CW (mm): 4.00 | Max cutting depth CDX (mm): 25（23） | Max cut-off dia (mm): 50 | Stock: Made to order
GNDL L3225P-425 Height H (mm): 32 | Width B (mm): 25 | Length LF (mm): 170 | WF (mm): 25 | Cutting height HF (mm): 32 | Head length LH (mm): 50.0 | Cutting width CW (mm): 4.00 | Max cutting depth CDX (mm): 25（23） | Max cut-off dia (mm): 50 | Stock: Made to order
GNDL R3225P-525 Height H (mm): 32 | Width B (mm): 25 | Length LF (mm): 170 | WF (mm): 25 | Cutting height HF (mm): 32 | Head length LH (mm): 50.0 | Cutting width CW (mm): 5.00 | Max cutting depth CDX (mm): 25（23） | Max cut-off dia (mm): 50 | Stock: Made to order
GNDL L3225P-525 Height H (mm): 32 | Width B (mm): 25 | Length LF (mm): 170 | WF (mm): 25 | Cutting height HF (mm): 32 | Head length LH (mm): 50.0 | Cutting width CW (mm): 5.00 | Max cutting depth CDX (mm): 25（23） | Max cut-off dia (mm): 50 | Stock: Made to order
GNDL R3225P-625 Height H (mm): 32 | Width B (mm): 25 | Length LF (mm): 170 | WF (mm): 25 | Cutting height HF (mm): 32 | Head length LH (mm): 50.0 | Cutting width CW (mm): 6.00 | Max cutting depth CDX (mm): 25（23） | Max cut-off dia (mm): 50 | Stock: Made to order
GNDL L3225P-625 Height H (mm): 32 | Width B (mm): 25 | Length LF (mm): 170 | WF (mm): 25 | Cutting height HF (mm): 32 | Head length LH (mm): 50.0 | Cutting width CW (mm): 6.00 | Max cutting depth CDX (mm): 25（23） | Max cut-off dia (mm): 50 | Stock: Made to order
GNDL R3225P-725 Height H (mm): 32 | Width B (mm): 25 | Length LF (mm): 170 | WF (mm): 25 | Cutting height HF (mm): 32 | Head length LH (mm): 50.0 | Cutting width CW (mm): 7.00 | Max cutting depth CDX (mm): 25（23） | Max cut-off dia (mm): 50 | Stock: Made to order
GNDL L3225P-725 Height H (mm): 32 | Width B (mm): 25 | Length LF (mm): 170 | WF (mm): 25 | Cutting height HF (mm): 32 | Head length LH (mm): 50.0 | Cutting width CW (mm): 7.00 | Max cutting depth CDX (mm): 25（23） | Max cut-off dia (mm): 50 | Stock: Made to order
GNDL R3225P-825 Height H (mm): 32 | Width B (mm): 25 | Length LF (mm): 170 | WF (mm): 25 | Cutting height HF (mm): 32 | Head length LH (mm): 50.0 | Cutting width CW (mm): 8.00 | Max cutting depth CDX (mm): 25（23） | Max cut-off dia (mm): 50 | Stock: Made to order
GNDL L3225P-825 Height H (mm): 32 | Width B (mm): 25 | Length LF (mm): 170 | WF (mm): 25 | Cutting height HF (mm): 32 | Head length LH (mm): 50.0 | Cutting width CW (mm): 8.00 | Max cutting depth CDX (mm): 25（23） | Max cut-off dia (mm): 50 | Stock: Made to order
GNDL R3232P-320 Height H (mm): 32 | Width B (mm): 32 | Length LF (mm): 170 | WF (mm): 32 | Cutting height HF (mm): 32 | Head length LH (mm): 44.5 | Cutting width CW (mm): 3.00 | Max cutting depth CDX (mm): 20（18） | Max cut-off dia (mm): 40 | Stock: Yes
GNDL L3232P-320 Height H (mm): 32 | Width B (mm): 32 | Length LF (mm): 170 | WF (mm): 32 | Cutting height HF (mm): 32 | Head length LH (mm): 44.5 | Cutting width CW (mm): 3.00 | Max cutting depth CDX (mm): 20（18） | Max cut-off dia (mm): 40 | Stock: Yes
GNDL R3232P-425 Height H (mm): 32 | Width B (mm): 32 | Length LF (mm): 170 | WF (mm): 32 | Cutting height HF (mm): 32 | Head length LH (mm): 50.0 | Cutting width CW (mm): 4.00 | Max cutting depth CDX (mm): 25（23） | Max cut-off dia (mm): 50 | Stock: Yes
GNDL L3232P-425 Height H (mm): 32 | Width B (mm): 32 | Length LF (mm): 170 | WF (mm): 32 | Cutting height HF (mm): 32 | Head length LH (mm): 50.0 | Cutting width CW (mm): 4.00 | Max cutting depth CDX (mm): 25（23） | Max cut-off dia (mm): 50 | Stock: Yes
GNDL R3232P-525 Height H (mm): 32 | Width B (mm): 32 | Length LF (mm): 170 | WF (mm): 32 | Cutting height HF (mm): 32 | Head length LH (mm): 50.0 | Cutting width CW (mm): 5.00 | Max cutting depth CDX (mm): 25（23） | Max cut-off dia (mm): 50 | Stock: Yes
GNDL L3232P-525 Height H (mm): 32 | Width B (mm): 32 | Length LF (mm): 170 | WF (mm): 32 | Cutting height HF (mm): 32 | Head length LH (mm): 50.0 | Cutting width CW (mm): 5.00 | Max cutting depth CDX (mm): 25（23） | Max cut-off dia (mm): 50 | Stock: Yes
GNDL R3232P-625 Height H (mm): 32 | Width B (mm): 32 | Length LF (mm): 170 | WF (mm): 32 | Cutting height HF (mm): 32 | Head length LH (mm): 50.0 | Cutting width CW (mm): 6.00 | Max cutting depth CDX (mm): 25（23） | Max cut-off dia (mm): 50 | Stock: Yes
GNDL L3232P-625 Height H (mm): 32 | Width B (mm): 32 | Length LF (mm): 170 | WF (mm): 32 | Cutting height HF (mm): 32 | Head length LH (mm): 50.0 | Cutting width CW (mm): 6.00 | Max cutting depth CDX (mm): 25（23） | Max cut-off dia (mm): 50 | Stock: Yes
GNDL R3232P-725 Height H (mm): 32 | Width B (mm): 32 | Length LF (mm): 170 | WF (mm): 32 | Cutting height HF (mm): 32 | Head length LH (mm): 50.0 | Cutting width CW (mm): 7.00 | Max cutting depth CDX (mm): 25（23） | Max cut-off dia (mm): 50 | Stock: Yes
GNDL L3232P-725 Height H (mm): 32 | Width B (mm): 32 | Length LF (mm): 170 | WF (mm): 32 | Cutting height HF (mm): 32 | Head length LH (mm): 50.0 | Cutting width CW (mm): 7.00 | Max cutting depth CDX (mm): 25（23） | Max cut-off dia (mm): 50 | Stock: Yes
GNDL R3232P-825 Height H (mm): 32 | Width B (mm): 32 | Length LF (mm): 170 | WF (mm): 32 | Cutting height HF (mm): 32 | Head length LH (mm): 50.0 | Cutting width CW (mm): 8.00 | Max cutting depth CDX (mm): 25（23） | Max cut-off dia (mm): 50 | Stock: Yes
GNDL L3232P-825 Height H (mm): 32 | Width B (mm): 32 | Length LF (mm): 170 | WF (mm): 32 | Cutting height HF (mm): 32 | Head length LH (mm): 50.0 | Cutting width CW (mm): 8.00 | Max cutting depth CDX (mm): 25（23） | Max cut-off dia (mm): 50 | Stock: Yes
Grooving HoldersSumitomo Electric Hardmetal
52 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal GNDL Deep Grooving and Cut-off Holder

Brand Sumitomo Electric Hardmetal·Grooving Holders

Available part numbers (52)

GNDL R2020K-1.2516, GNDL L2020K-1.2516, GNDL R2020K-1.516, GNDL L2020K-1.516, GNDL R2020K-220, GNDL L2020K-220, GNDL R2020K-320, GNDL L2020K-320, GNDL R2020K-425, GNDL L2020K-425 + 42 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GNDL R2020K-1.2516Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 38.0 | Cutting width CW (mm): 1.25 | Max cutting depth CDX (mm): 16 | Max cut-off dia (mm): 32 | Stock: Yes
GNDL L2020K-1.2516Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 38.0 | Cutting width CW (mm): 1.25 | Max cutting depth CDX (mm): 16 | Max cut-off dia (mm): 32 | Stock: Yes
GNDL R2020K-1.516Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 38.0 | Cutting width CW (mm): 1.50 | Max cutting depth CDX (mm): 16 | Max cut-off dia (mm): 32 | Stock: Yes
GNDL L2020K-1.516Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 38.0 | Cutting width CW (mm): 1.50 | Max cutting depth CDX (mm): 16 | Max cut-off dia (mm): 32 | Stock: Yes
GNDL R2020K-220Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 44.5 | Cutting width CW (mm): 2.00 | Max cutting depth CDX (mm): 20（18） | Max cut-off dia (mm): 40 | Stock: Yes
GNDL L2020K-220Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 44.5 | Cutting width CW (mm): 2.00 | Max cutting depth CDX (mm): 20（18） | Max cut-off dia (mm): 40 | Stock: Yes
GNDL R2020K-320Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 44.5 | Cutting width CW (mm): 3.00 | Max cutting depth CDX (mm): 20（18） | Max cut-off dia (mm): 40 | Stock: Yes
GNDL L2020K-320Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 44.5 | Cutting width CW (mm): 3.00 | Max cutting depth CDX (mm): 20（18） | Max cut-off dia (mm): 40 | Stock: Yes
GNDL R2020K-425Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 50.0 | Cutting width CW (mm): 4.00 | Max cutting depth CDX (mm): 25（23） | Max cut-off dia (mm): 50 | Stock: Yes
GNDL L2020K-425Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 50.0 | Cutting width CW (mm): 4.00 | Max cutting depth CDX (mm): 25（23） | Max cut-off dia (mm): 50 | Stock: Yes
GNDL R2020K-525Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 50.0 | Cutting width CW (mm): 5.00 | Max cutting depth CDX (mm): 25（23） | Max cut-off dia (mm): 50 | Stock: Yes
GNDL L2020K-525Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 50.0 | Cutting width CW (mm): 5.00 | Max cutting depth CDX (mm): 25（23） | Max cut-off dia (mm): 50 | Stock: Yes
GNDL R2020K-625Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 50.0 | Cutting width CW (mm): 6.00 | Max cutting depth CDX (mm): 25（23） | Max cut-off dia (mm): 50 | Stock: Yes
GNDL L2020K-625Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 50.0 | Cutting width CW (mm): 6.00 | Max cutting depth CDX (mm): 25（23） | Max cut-off dia (mm): 50 | Stock: Yes
GNDL R2525M-1.2516Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 40.0 | Cutting width CW (mm): 1.25 | Max cutting depth CDX (mm): 16 | Max cut-off dia (mm): 32 | Stock: Yes
GNDL L2525M-1.2516Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 40.0 | Cutting width CW (mm): 1.25 | Max cutting depth CDX (mm): 16 | Max cut-off dia (mm): 32 | Stock: Yes
GNDL R2525M-1.516Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 40.0 | Cutting width CW (mm): 1.50 | Max cutting depth CDX (mm): 16 | Max cut-off dia (mm): 32 | Stock: Yes
GNDL L2525M-1.516Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 40.0 | Cutting width CW (mm): 1.50 | Max cutting depth CDX (mm): 16 | Max cut-off dia (mm): 32 | Stock: Yes
GNDL R2525M-220Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 44.5 | Cutting width CW (mm): 2.00 | Max cutting depth CDX (mm): 20（18） | Max cut-off dia (mm): 40 | Stock: Yes
GNDL L2525M-220Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 44.5 | Cutting width CW (mm): 2.00 | Max cutting depth CDX (mm): 20（18） | Max cut-off dia (mm): 40 | Stock: Yes
GNDL R2525M-320Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 44.5 | Cutting width CW (mm): 3.00 | Max cutting depth CDX (mm): 20（18） | Max cut-off dia (mm): 40 | Stock: Yes
GNDL L2525M-320Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 44.5 | Cutting width CW (mm): 3.00 | Max cutting depth CDX (mm): 20（18） | Max cut-off dia (mm): 40 | Stock: Yes
GNDL R2525M-425Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 50.0 | Cutting width CW (mm): 4.00 | Max cutting depth CDX (mm): 25（23） | Max cut-off dia (mm): 50 | Stock: Yes
GNDL L2525M-425Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 50.0 | Cutting width CW (mm): 4.00 | Max cutting depth CDX (mm): 25（23） | Max cut-off dia (mm): 50 | Stock: Yes
GNDL R2525M-525Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 50.0 | Cutting width CW (mm): 5.00 | Max cutting depth CDX (mm): 25（23） | Max cut-off dia (mm): 50 | Stock: Yes
GNDL L2525M-525Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 50.0 | Cutting width CW (mm): 5.00 | Max cutting depth CDX (mm): 25（23） | Max cut-off dia (mm): 50 | Stock: Yes
GNDL R2525M-625Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 50.0 | Cutting width CW (mm): 6.00 | Max cutting depth CDX (mm): 25（23） | Max cut-off dia (mm): 50 | Stock: Yes
GNDL L2525M-625Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 50.0 | Cutting width CW (mm): 6.00 | Max cutting depth CDX (mm): 25（23） | Max cut-off dia (mm): 50 | Stock: Yes
GNDL R3225P-320Height H (mm): 32 | Width B (mm): 25 | Length LF (mm): 170 | WF (mm): 25 | Cutting height HF (mm): 32 | Head length LH (mm): 44.5 | Cutting width CW (mm): 3.00 | Max cutting depth CDX (mm): 20（18） | Max cut-off dia (mm): 40 | Stock: Made to order
GNDL L3225P-320Height H (mm): 32 | Width B (mm): 25 | Length LF (mm): 170 | WF (mm): 25 | Cutting height HF (mm): 32 | Head length LH (mm): 44.5 | Cutting width CW (mm): 3.00 | Max cutting depth CDX (mm): 20（18） | Max cut-off dia (mm): 40 | Stock: Made to order
GNDL R3225P-425Height H (mm): 32 | Width B (mm): 25 | Length LF (mm): 170 | WF (mm): 25 | Cutting height HF (mm): 32 | Head length LH (mm): 50.0 | Cutting width CW (mm): 4.00 | Max cutting depth CDX (mm): 25（23） | Max cut-off dia (mm): 50 | Stock: Made to order
GNDL L3225P-425Height H (mm): 32 | Width B (mm): 25 | Length LF (mm): 170 | WF (mm): 25 | Cutting height HF (mm): 32 | Head length LH (mm): 50.0 | Cutting width CW (mm): 4.00 | Max cutting depth CDX (mm): 25（23） | Max cut-off dia (mm): 50 | Stock: Made to order
GNDL R3225P-525Height H (mm): 32 | Width B (mm): 25 | Length LF (mm): 170 | WF (mm): 25 | Cutting height HF (mm): 32 | Head length LH (mm): 50.0 | Cutting width CW (mm): 5.00 | Max cutting depth CDX (mm): 25（23） | Max cut-off dia (mm): 50 | Stock: Made to order
GNDL L3225P-525Height H (mm): 32 | Width B (mm): 25 | Length LF (mm): 170 | WF (mm): 25 | Cutting height HF (mm): 32 | Head length LH (mm): 50.0 | Cutting width CW (mm): 5.00 | Max cutting depth CDX (mm): 25（23） | Max cut-off dia (mm): 50 | Stock: Made to order
GNDL R3225P-625Height H (mm): 32 | Width B (mm): 25 | Length LF (mm): 170 | WF (mm): 25 | Cutting height HF (mm): 32 | Head length LH (mm): 50.0 | Cutting width CW (mm): 6.00 | Max cutting depth CDX (mm): 25（23） | Max cut-off dia (mm): 50 | Stock: Made to order
GNDL L3225P-625Height H (mm): 32 | Width B (mm): 25 | Length LF (mm): 170 | WF (mm): 25 | Cutting height HF (mm): 32 | Head length LH (mm): 50.0 | Cutting width CW (mm): 6.00 | Max cutting depth CDX (mm): 25（23） | Max cut-off dia (mm): 50 | Stock: Made to order
GNDL R3225P-725Height H (mm): 32 | Width B (mm): 25 | Length LF (mm): 170 | WF (mm): 25 | Cutting height HF (mm): 32 | Head length LH (mm): 50.0 | Cutting width CW (mm): 7.00 | Max cutting depth CDX (mm): 25（23） | Max cut-off dia (mm): 50 | Stock: Made to order
GNDL L3225P-725Height H (mm): 32 | Width B (mm): 25 | Length LF (mm): 170 | WF (mm): 25 | Cutting height HF (mm): 32 | Head length LH (mm): 50.0 | Cutting width CW (mm): 7.00 | Max cutting depth CDX (mm): 25（23） | Max cut-off dia (mm): 50 | Stock: Made to order
GNDL R3225P-825Height H (mm): 32 | Width B (mm): 25 | Length LF (mm): 170 | WF (mm): 25 | Cutting height HF (mm): 32 | Head length LH (mm): 50.0 | Cutting width CW (mm): 8.00 | Max cutting depth CDX (mm): 25（23） | Max cut-off dia (mm): 50 | Stock: Made to order
GNDL L3225P-825Height H (mm): 32 | Width B (mm): 25 | Length LF (mm): 170 | WF (mm): 25 | Cutting height HF (mm): 32 | Head length LH (mm): 50.0 | Cutting width CW (mm): 8.00 | Max cutting depth CDX (mm): 25（23） | Max cut-off dia (mm): 50 | Stock: Made to order
GNDL R3232P-320Height H (mm): 32 | Width B (mm): 32 | Length LF (mm): 170 | WF (mm): 32 | Cutting height HF (mm): 32 | Head length LH (mm): 44.5 | Cutting width CW (mm): 3.00 | Max cutting depth CDX (mm): 20（18） | Max cut-off dia (mm): 40 | Stock: Yes
GNDL L3232P-320Height H (mm): 32 | Width B (mm): 32 | Length LF (mm): 170 | WF (mm): 32 | Cutting height HF (mm): 32 | Head length LH (mm): 44.5 | Cutting width CW (mm): 3.00 | Max cutting depth CDX (mm): 20（18） | Max cut-off dia (mm): 40 | Stock: Yes
GNDL R3232P-425Height H (mm): 32 | Width B (mm): 32 | Length LF (mm): 170 | WF (mm): 32 | Cutting height HF (mm): 32 | Head length LH (mm): 50.0 | Cutting width CW (mm): 4.00 | Max cutting depth CDX (mm): 25（23） | Max cut-off dia (mm): 50 | Stock: Yes
GNDL L3232P-425Height H (mm): 32 | Width B (mm): 32 | Length LF (mm): 170 | WF (mm): 32 | Cutting height HF (mm): 32 | Head length LH (mm): 50.0 | Cutting width CW (mm): 4.00 | Max cutting depth CDX (mm): 25（23） | Max cut-off dia (mm): 50 | Stock: Yes
GNDL R3232P-525Height H (mm): 32 | Width B (mm): 32 | Length LF (mm): 170 | WF (mm): 32 | Cutting height HF (mm): 32 | Head length LH (mm): 50.0 | Cutting width CW (mm): 5.00 | Max cutting depth CDX (mm): 25（23） | Max cut-off dia (mm): 50 | Stock: Yes
GNDL L3232P-525Height H (mm): 32 | Width B (mm): 32 | Length LF (mm): 170 | WF (mm): 32 | Cutting height HF (mm): 32 | Head length LH (mm): 50.0 | Cutting width CW (mm): 5.00 | Max cutting depth CDX (mm): 25（23） | Max cut-off dia (mm): 50 | Stock: Yes
GNDL R3232P-625Height H (mm): 32 | Width B (mm): 32 | Length LF (mm): 170 | WF (mm): 32 | Cutting height HF (mm): 32 | Head length LH (mm): 50.0 | Cutting width CW (mm): 6.00 | Max cutting depth CDX (mm): 25（23） | Max cut-off dia (mm): 50 | Stock: Yes
GNDL L3232P-625Height H (mm): 32 | Width B (mm): 32 | Length LF (mm): 170 | WF (mm): 32 | Cutting height HF (mm): 32 | Head length LH (mm): 50.0 | Cutting width CW (mm): 6.00 | Max cutting depth CDX (mm): 25（23） | Max cut-off dia (mm): 50 | Stock: Yes
GNDL R3232P-725Height H (mm): 32 | Width B (mm): 32 | Length LF (mm): 170 | WF (mm): 32 | Cutting height HF (mm): 32 | Head length LH (mm): 50.0 | Cutting width CW (mm): 7.00 | Max cutting depth CDX (mm): 25（23） | Max cut-off dia (mm): 50 | Stock: Yes
GNDL L3232P-725Height H (mm): 32 | Width B (mm): 32 | Length LF (mm): 170 | WF (mm): 32 | Cutting height HF (mm): 32 | Head length LH (mm): 50.0 | Cutting width CW (mm): 7.00 | Max cutting depth CDX (mm): 25（23） | Max cut-off dia (mm): 50 | Stock: Yes
GNDL R3232P-825Height H (mm): 32 | Width B (mm): 32 | Length LF (mm): 170 | WF (mm): 32 | Cutting height HF (mm): 32 | Head length LH (mm): 50.0 | Cutting width CW (mm): 8.00 | Max cutting depth CDX (mm): 25（23） | Max cut-off dia (mm): 50 | Stock: Yes
GNDL L3232P-825Height H (mm): 32 | Width B (mm): 32 | Length LF (mm): 170 | WF (mm): 32 | Cutting height HF (mm): 32 | Head length LH (mm): 50.0 | Cutting width CW (mm): 8.00 | Max cutting depth CDX (mm): 25（23） | Max cut-off dia (mm): 50 | Stock: Yes

Need a different model, or a part not listed here? Send us your parts list →
