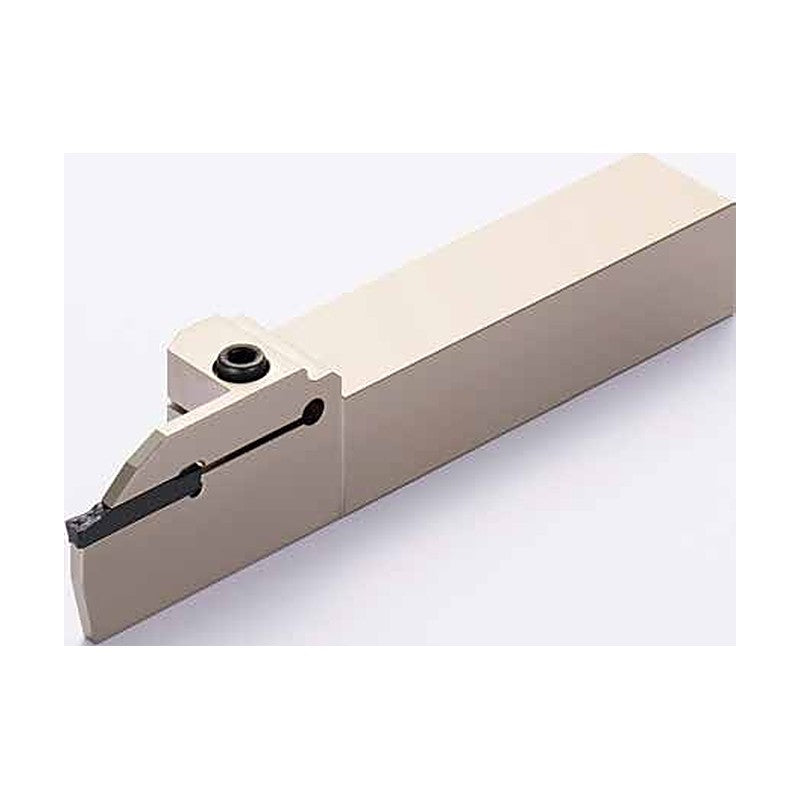

Sumitomo Electric Hardmetal GNDL-J Internal-Coolant Deep Grooving and Cut-off Holder

Sumitomo Electric Hardmetal GNDL-J Internal-Coolant Deep Grooving and Cut-off Holder

SEC grooving holder GNDL-J type with internal coolant for external deep grooving and cut-off.

Key features

  • Internal coolant supply
  • Uses GCM grooving inserts

Specifications

Length LF (mm) 125
GNDL R2020K-220J Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 44.5 | Cutting width CW (mm): 2.00 | Max cutting depth CDX (mm): 20(18) | Max cut-off dia (mm): 40 | Stock: Yes
GNDL L2020K-220J Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 44.5 | Cutting width CW (mm): 2.00 | Max cutting depth CDX (mm): 20(18) | Max cut-off dia (mm): 40 | Stock: Yes
GNDL R2020K-320J Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 44.5 | Cutting width CW (mm): 3.00 | Max cutting depth CDX (mm): 20(18) | Max cut-off dia (mm): 40 | Stock: Yes
GNDL L2020K-320J Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 44.5 | Cutting width CW (mm): 3.00 | Max cutting depth CDX (mm): 20(18) | Max cut-off dia (mm): 40 | Stock: Yes
GNDL R2020K-425J Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 50 | Cutting width CW (mm): 4.00 | Max cutting depth CDX (mm): 25(23) | Max cut-off dia (mm): 50 | Stock: Yes
GNDL L2020K-425J Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 50 | Cutting width CW (mm): 4.00 | Max cutting depth CDX (mm): 25(23) | Max cut-off dia (mm): 50 | Stock: Yes
GNDL R2020K-525J Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 50 | Cutting width CW (mm): 5.00 | Max cutting depth CDX (mm): 25(23) | Max cut-off dia (mm): 50 | Stock: Yes
GNDL L2020K-525J Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 50 | Cutting width CW (mm): 5.00 | Max cutting depth CDX (mm): 25(23) | Max cut-off dia (mm): 50 | Stock: Yes
GNDL R2020K-625J Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 50 | Cutting width CW (mm): 6.00 | Max cutting depth CDX (mm): 25(23) | Max cut-off dia (mm): 50 | Stock: Yes
GNDL L2020K-625J Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 50 | Cutting width CW (mm): 6.00 | Max cutting depth CDX (mm): 25(23) | Max cut-off dia (mm): 50 | Stock: Yes
GNDL R2525K-220J Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 125 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 44.5 | Cutting width CW (mm): 2.00 | Max cutting depth CDX (mm): 20(18) | Max cut-off dia (mm): 40 | Stock: Yes
GNDL L2525K-220J Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 125 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 44.5 | Cutting width CW (mm): 2.00 | Max cutting depth CDX (mm): 20(18) | Max cut-off dia (mm): 40 | Stock: Yes
GNDL R2525K-320J Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 125 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 44.5 | Cutting width CW (mm): 3.00 | Max cutting depth CDX (mm): 20(18) | Max cut-off dia (mm): 40 | Stock: Yes
GNDL L2525K-320J Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 125 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 44.5 | Cutting width CW (mm): 3.00 | Max cutting depth CDX (mm): 20(18) | Max cut-off dia (mm): 40 | Stock: Yes
GNDL R2525K-425J Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 125 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 50 | Cutting width CW (mm): 4.00 | Max cutting depth CDX (mm): 25(23) | Max cut-off dia (mm): 50 | Stock: Yes
GNDL L2525K-425J Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 125 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 50 | Cutting width CW (mm): 4.00 | Max cutting depth CDX (mm): 25(23) | Max cut-off dia (mm): 50 | Stock: Yes
GNDL R2525K-525J Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 125 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 50 | Cutting width CW (mm): 5.00 | Max cutting depth CDX (mm): 25(23) | Max cut-off dia (mm): 50 | Stock: Yes
GNDL L2525K-525J Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 125 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 50 | Cutting width CW (mm): 5.00 | Max cutting depth CDX (mm): 25(23) | Max cut-off dia (mm): 50 | Stock: Yes
GNDL R2525K-625J Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 125 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 50 | Cutting width CW (mm): 6.00 | Max cutting depth CDX (mm): 25(23) | Max cut-off dia (mm): 50 | Stock: Yes
GNDL L2525K-625J Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 125 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 50 | Cutting width CW (mm): 6.00 | Max cutting depth CDX (mm): 25(23) | Max cut-off dia (mm): 50 | Stock: Yes
Grooving HoldersSumitomo Electric Hardmetal
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal GNDL-J Internal-Coolant Deep Grooving and Cut-off Holder

Brand Sumitomo Electric Hardmetal·Grooving Holders

Available part numbers (20)

GNDL R2020K-220J, GNDL L2020K-220J, GNDL R2020K-320J, GNDL L2020K-320J, GNDL R2020K-425J, GNDL L2020K-425J, GNDL R2020K-525J, GNDL L2020K-525J, GNDL R2020K-625J, GNDL L2020K-625J + 10 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GNDL R2020K-220JHeight H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 44.5 | Cutting width CW (mm): 2.00 | Max cutting depth CDX (mm): 20(18) | Max cut-off dia (mm): 40 | Stock: Yes
GNDL L2020K-220JHeight H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 44.5 | Cutting width CW (mm): 2.00 | Max cutting depth CDX (mm): 20(18) | Max cut-off dia (mm): 40 | Stock: Yes
GNDL R2020K-320JHeight H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 44.5 | Cutting width CW (mm): 3.00 | Max cutting depth CDX (mm): 20(18) | Max cut-off dia (mm): 40 | Stock: Yes
GNDL L2020K-320JHeight H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 44.5 | Cutting width CW (mm): 3.00 | Max cutting depth CDX (mm): 20(18) | Max cut-off dia (mm): 40 | Stock: Yes
GNDL R2020K-425JHeight H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 50 | Cutting width CW (mm): 4.00 | Max cutting depth CDX (mm): 25(23) | Max cut-off dia (mm): 50 | Stock: Yes
GNDL L2020K-425JHeight H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 50 | Cutting width CW (mm): 4.00 | Max cutting depth CDX (mm): 25(23) | Max cut-off dia (mm): 50 | Stock: Yes
GNDL R2020K-525JHeight H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 50 | Cutting width CW (mm): 5.00 | Max cutting depth CDX (mm): 25(23) | Max cut-off dia (mm): 50 | Stock: Yes
GNDL L2020K-525JHeight H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 50 | Cutting width CW (mm): 5.00 | Max cutting depth CDX (mm): 25(23) | Max cut-off dia (mm): 50 | Stock: Yes
GNDL R2020K-625JHeight H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 50 | Cutting width CW (mm): 6.00 | Max cutting depth CDX (mm): 25(23) | Max cut-off dia (mm): 50 | Stock: Yes
GNDL L2020K-625JHeight H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 50 | Cutting width CW (mm): 6.00 | Max cutting depth CDX (mm): 25(23) | Max cut-off dia (mm): 50 | Stock: Yes
GNDL R2525K-220JHeight H (mm): 25 | Width B (mm): 25 | Length LF (mm): 125 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 44.5 | Cutting width CW (mm): 2.00 | Max cutting depth CDX (mm): 20(18) | Max cut-off dia (mm): 40 | Stock: Yes
GNDL L2525K-220JHeight H (mm): 25 | Width B (mm): 25 | Length LF (mm): 125 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 44.5 | Cutting width CW (mm): 2.00 | Max cutting depth CDX (mm): 20(18) | Max cut-off dia (mm): 40 | Stock: Yes
GNDL R2525K-320JHeight H (mm): 25 | Width B (mm): 25 | Length LF (mm): 125 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 44.5 | Cutting width CW (mm): 3.00 | Max cutting depth CDX (mm): 20(18) | Max cut-off dia (mm): 40 | Stock: Yes
GNDL L2525K-320JHeight H (mm): 25 | Width B (mm): 25 | Length LF (mm): 125 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 44.5 | Cutting width CW (mm): 3.00 | Max cutting depth CDX (mm): 20(18) | Max cut-off dia (mm): 40 | Stock: Yes
GNDL R2525K-425JHeight H (mm): 25 | Width B (mm): 25 | Length LF (mm): 125 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 50 | Cutting width CW (mm): 4.00 | Max cutting depth CDX (mm): 25(23) | Max cut-off dia (mm): 50 | Stock: Yes
GNDL L2525K-425JHeight H (mm): 25 | Width B (mm): 25 | Length LF (mm): 125 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 50 | Cutting width CW (mm): 4.00 | Max cutting depth CDX (mm): 25(23) | Max cut-off dia (mm): 50 | Stock: Yes
GNDL R2525K-525JHeight H (mm): 25 | Width B (mm): 25 | Length LF (mm): 125 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 50 | Cutting width CW (mm): 5.00 | Max cutting depth CDX (mm): 25(23) | Max cut-off dia (mm): 50 | Stock: Yes
GNDL L2525K-525JHeight H (mm): 25 | Width B (mm): 25 | Length LF (mm): 125 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 50 | Cutting width CW (mm): 5.00 | Max cutting depth CDX (mm): 25(23) | Max cut-off dia (mm): 50 | Stock: Yes
GNDL R2525K-625JHeight H (mm): 25 | Width B (mm): 25 | Length LF (mm): 125 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 50 | Cutting width CW (mm): 6.00 | Max cutting depth CDX (mm): 25(23) | Max cut-off dia (mm): 50 | Stock: Yes
GNDL L2525K-625JHeight H (mm): 25 | Width B (mm): 25 | Length LF (mm): 125 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 50 | Cutting width CW (mm): 6.00 | Max cutting depth CDX (mm): 25(23) | Max cut-off dia (mm): 50 | Stock: Yes
