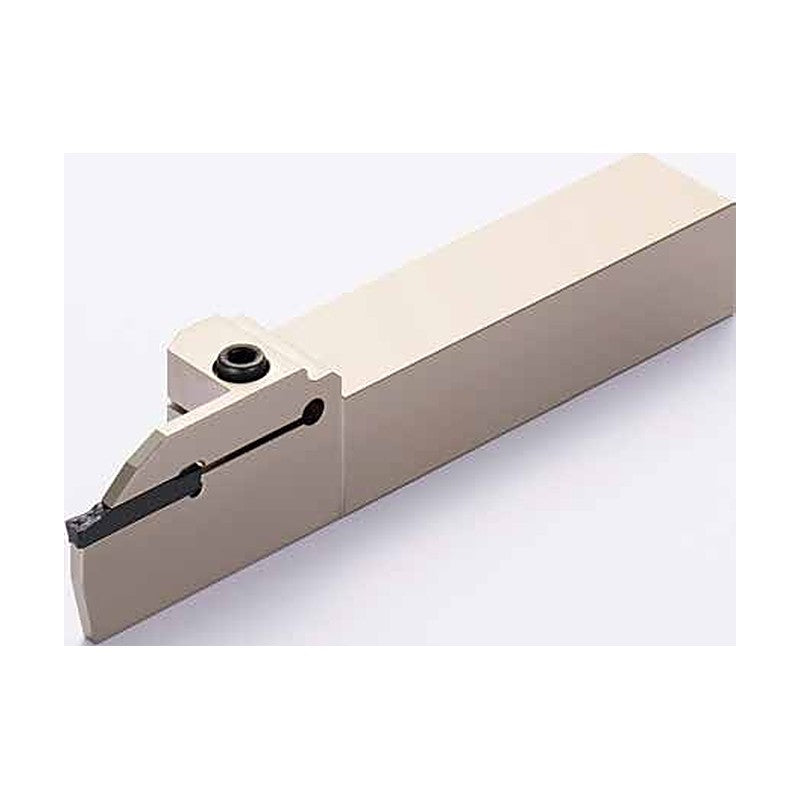

Sumitomo Electric Hardmetal GNDL Small-Lathe Grooving and Cut-off Holder

Sumitomo Electric Hardmetal GNDL Small-Lathe Grooving and Cut-off Holder

SEC grooving holder GNDL type for small automatic lathes, for external grooving and cut-off with clamp-on insert.

Key features

  • For Swiss-type / small lathes
  • Shank sizes 10x10 to 20x12 mm
  • Uses GCM grooving inserts

Specifications

Offset WF2 (mm) 0
Length LF (mm) 120
GNDL R1010JX-1.2510 Height H (mm): 10 | Width B (mm): 10 | Length LF (mm): 120 | WF (mm): (10) | Cutting height HF (mm): 10 | Step HBH (mm): 2.0 | Head length LH (mm): 18 | LH2 (mm): 18.3 | Offset WF2 (mm): 0 | Cutting width CW (mm): 1.25 | Max cutting depth CDX (mm): 10.0 | Max cut-off dia (mm): 20 | Stock: Yes
GNDL L1010JX-1.2510 Height H (mm): 10 | Width B (mm): 10 | Length LF (mm): 120 | WF (mm): (10) | Cutting height HF (mm): 10 | Step HBH (mm): 2.0 | Head length LH (mm): 18 | LH2 (mm): 18.3 | Offset WF2 (mm): 0 | Cutting width CW (mm): 1.25 | Max cutting depth CDX (mm): 10.0 | Max cut-off dia (mm): 20 | Stock: Yes
GNDL R1010JX-1.510 Height H (mm): 10 | Width B (mm): 10 | Length LF (mm): 120 | WF (mm): (10) | Cutting height HF (mm): 10 | Step HBH (mm): 2.0 | Head length LH (mm): 18 | LH2 (mm): 18.3 | Offset WF2 (mm): 0 | Cutting width CW (mm): 1.50 | Max cutting depth CDX (mm): 10.0 | Max cut-off dia (mm): 20 | Stock: Yes
GNDL L1010JX-1.510 Height H (mm): 10 | Width B (mm): 10 | Length LF (mm): 120 | WF (mm): (10) | Cutting height HF (mm): 10 | Step HBH (mm): 2.0 | Head length LH (mm): 18 | LH2 (mm): 18.3 | Offset WF2 (mm): 0 | Cutting width CW (mm): 1.50 | Max cutting depth CDX (mm): 10.0 | Max cut-off dia (mm): 20 | Stock: Yes
GNDL R1010JX-210 Height H (mm): 10 | Width B (mm): 10 | Length LF (mm): 120 | WF (mm): (10) | Cutting height HF (mm): 10 | Step HBH (mm): 2.0 | Head length LH (mm): 22 | LH2 (mm): 22.3 | Offset WF2 (mm): 0 | Cutting width CW (mm): 2.00 | Max cutting depth CDX (mm): 10.0 | Max cut-off dia (mm): 20 | Stock: Yes
GNDL L1010JX-210 Height H (mm): 10 | Width B (mm): 10 | Length LF (mm): 120 | WF (mm): (10) | Cutting height HF (mm): 10 | Step HBH (mm): 2.0 | Head length LH (mm): 22 | LH2 (mm): 22.3 | Offset WF2 (mm): 0 | Cutting width CW (mm): 2.00 | Max cutting depth CDX (mm): 10.0 | Max cut-off dia (mm): 20 | Stock: Yes
GNDL R1010JX-310 Height H (mm): 10 | Width B (mm): 10 | Length LF (mm): 120 | WF (mm): (10) | Cutting height HF (mm): 10 | Step HBH (mm): 2.0 | Head length LH (mm): 22 | LH2 (mm): 22.3 | Offset WF2 (mm): 0 | Cutting width CW (mm): 3.00 | Max cutting depth CDX (mm): 10.0 | Max cut-off dia (mm): 20 | Stock: Yes
GNDL L1010JX-310 Height H (mm): 10 | Width B (mm): 10 | Length LF (mm): 120 | WF (mm): (10) | Cutting height HF (mm): 10 | Step HBH (mm): 2.0 | Head length LH (mm): 22 | LH2 (mm): 22.3 | Offset WF2 (mm): 0 | Cutting width CW (mm): 3.00 | Max cutting depth CDX (mm): 10.0 | Max cut-off dia (mm): 20 | Stock: Yes
GNDL R1212JX-1.2512 Height H (mm): 12 | Width B (mm): 12 | Length LF (mm): 120 | WF (mm): (12) | Cutting height HF (mm): 12 | Step HBH (mm): 2.0 | Head length LH (mm): 19 | LH2 (mm): 19.3 | Offset WF2 (mm): 0 | Cutting width CW (mm): 1.25 | Max cutting depth CDX (mm): 12.0 | Max cut-off dia (mm): 24 | Stock: Yes
GNDL L1212JX-1.2512 Height H (mm): 12 | Width B (mm): 12 | Length LF (mm): 120 | WF (mm): (12) | Cutting height HF (mm): 12 | Step HBH (mm): 2.0 | Head length LH (mm): 19 | LH2 (mm): 19.3 | Offset WF2 (mm): 0 | Cutting width CW (mm): 1.25 | Max cutting depth CDX (mm): 12.0 | Max cut-off dia (mm): 24 | Stock: Yes
GNDL R1212JX-1.512 Height H (mm): 12 | Width B (mm): 12 | Length LF (mm): 120 | WF (mm): (12) | Cutting height HF (mm): 12 | Step HBH (mm): 2.0 | Head length LH (mm): 19 | LH2 (mm): 19.3 | Offset WF2 (mm): 0 | Cutting width CW (mm): 1.50 | Max cutting depth CDX (mm): 12.0 | Max cut-off dia (mm): 24 | Stock: Yes
GNDL L1212JX-1.512 Height H (mm): 12 | Width B (mm): 12 | Length LF (mm): 120 | WF (mm): (12) | Cutting height HF (mm): 12 | Step HBH (mm): 2.0 | Head length LH (mm): 19 | LH2 (mm): 19.3 | Offset WF2 (mm): 0 | Cutting width CW (mm): 1.50 | Max cutting depth CDX (mm): 12.0 | Max cut-off dia (mm): 24 | Stock: Yes
GNDL R1212JX-212.5 Height H (mm): 12 | Width B (mm): 12 | Length LF (mm): 120 | WF (mm): (12) | Cutting height HF (mm): 12 | Step HBH (mm): 2.0 | Head length LH (mm): 22 | LH2 (mm): 22.3 | Offset WF2 (mm): 0 | Cutting width CW (mm): 2.00 | Max cutting depth CDX (mm): 12.5 | Max cut-off dia (mm): 25 | Stock: Yes
GNDL L1212JX-212.5 Height H (mm): 12 | Width B (mm): 12 | Length LF (mm): 120 | WF (mm): (12) | Cutting height HF (mm): 12 | Step HBH (mm): 2.0 | Head length LH (mm): 22 | LH2 (mm): 22.3 | Offset WF2 (mm): 0 | Cutting width CW (mm): 2.00 | Max cutting depth CDX (mm): 12.5 | Max cut-off dia (mm): 25 | Stock: Yes
GNDL R1212JX-312.5 Height H (mm): 12 | Width B (mm): 12 | Length LF (mm): 120 | WF (mm): (12) | Cutting height HF (mm): 12 | Step HBH (mm): 2.0 | Head length LH (mm): 22 | LH2 (mm): 22.3 | Offset WF2 (mm): 0 | Cutting width CW (mm): 3.00 | Max cutting depth CDX (mm): 12.5 | Max cut-off dia (mm): 25 | Stock: Yes
GNDL L1212JX-312.5 Height H (mm): 12 | Width B (mm): 12 | Length LF (mm): 120 | WF (mm): (12) | Cutting height HF (mm): 12 | Step HBH (mm): 2.0 | Head length LH (mm): 22 | LH2 (mm): 22.3 | Offset WF2 (mm): 0 | Cutting width CW (mm): 3.00 | Max cutting depth CDX (mm): 12.5 | Max cut-off dia (mm): 25 | Stock: Yes
GNDL R1616JX-1.2512.5 Height H (mm): 16 | Width B (mm): 16 | Length LF (mm): 120 | WF (mm): (16) | Cutting height HF (mm): 16 | Head length LH (mm): 28 | Offset WF2 (mm): 0 | Cutting width CW (mm): 1.25 | Max cutting depth CDX (mm): 12.5 | Max cut-off dia (mm): 20 | Stock: Yes
GNDL L1616JX-1.2512.5 Height H (mm): 16 | Width B (mm): 16 | Length LF (mm): 120 | WF (mm): (16) | Cutting height HF (mm): 16 | Head length LH (mm): 28 | Offset WF2 (mm): 0 | Cutting width CW (mm): 1.25 | Max cutting depth CDX (mm): 12.5 | Max cut-off dia (mm): 20 | Stock: Yes
GNDL R1616JX-1.512.5 Height H (mm): 16 | Width B (mm): 16 | Length LF (mm): 120 | WF (mm): (16) | Cutting height HF (mm): 16 | Head length LH (mm): 28 | Offset WF2 (mm): 0 | Cutting width CW (mm): 1.50 | Max cutting depth CDX (mm): 12.5 | Max cut-off dia (mm): 25 | Stock: Yes
GNDL L1616JX-1.512.5 Height H (mm): 16 | Width B (mm): 16 | Length LF (mm): 120 | WF (mm): (16) | Cutting height HF (mm): 16 | Head length LH (mm): 28 | Offset WF2 (mm): 0 | Cutting width CW (mm): 1.50 | Max cutting depth CDX (mm): 12.5 | Max cut-off dia (mm): 25 | Stock: Yes
GNDL R1616JX-216 Height H (mm): 16 | Width B (mm): 16 | Length LF (mm): 120 | WF (mm): (16) | Cutting height HF (mm): 16 | Head length LH (mm): 32 | Offset WF2 (mm): 0 | Cutting width CW (mm): 2.00 | Max cutting depth CDX (mm): 16.0 | Max cut-off dia (mm): 32 | Stock: Yes
GNDL L1616JX-216 Height H (mm): 16 | Width B (mm): 16 | Length LF (mm): 120 | WF (mm): (16) | Cutting height HF (mm): 16 | Head length LH (mm): 32 | Offset WF2 (mm): 0 | Cutting width CW (mm): 2.00 | Max cutting depth CDX (mm): 16.0 | Max cut-off dia (mm): 32 | Stock: Yes
GNDL R1616JX-316 Height H (mm): 16 | Width B (mm): 16 | Length LF (mm): 120 | WF (mm): (16) | Cutting height HF (mm): 16 | Head length LH (mm): 32 | Offset WF2 (mm): 0 | Cutting width CW (mm): 3.00 | Max cutting depth CDX (mm): 16.0 | Max cut-off dia (mm): 32 | Stock: Yes
GNDL L1616JX-316 Height H (mm): 16 | Width B (mm): 16 | Length LF (mm): 120 | WF (mm): (16) | Cutting height HF (mm): 16 | Head length LH (mm): 32 | Offset WF2 (mm): 0 | Cutting width CW (mm): 3.00 | Max cutting depth CDX (mm): 16.0 | Max cut-off dia (mm): 32 | Stock: Yes
GNDL R2012JX-221 Height H (mm): 20 | Width B (mm): 12 | Length LF (mm): 120 | WF (mm): (12) | Cutting height HF (mm): 20 | Head length LH (mm): 30.5 | Offset WF2 (mm): 0 | Cutting width CW (mm): 2.00 | Max cutting depth CDX (mm): 21.0 | Max cut-off dia (mm): 42 | Stock: Yes
GNDL L2012JX-221 Height H (mm): 20 | Width B (mm): 12 | Length LF (mm): 120 | WF (mm): (12) | Cutting height HF (mm): 20 | Head length LH (mm): 30.5 | Offset WF2 (mm): 0 | Cutting width CW (mm): 2.00 | Max cutting depth CDX (mm): 21.0 | Max cut-off dia (mm): 42 | Stock: Yes
GNDL R2012JX-321 Height H (mm): 20 | Width B (mm): 12 | Length LF (mm): 120 | WF (mm): (12) | Cutting height HF (mm): 20 | Head length LH (mm): 30.5 | Offset WF2 (mm): 0 | Cutting width CW (mm): 3.00 | Max cutting depth CDX (mm): 21.0 | Max cut-off dia (mm): 42 | Stock: Yes
GNDL L2012JX-321 Height H (mm): 20 | Width B (mm): 12 | Length LF (mm): 120 | WF (mm): (12) | Cutting height HF (mm): 20 | Head length LH (mm): 30.5 | Offset WF2 (mm): 0 | Cutting width CW (mm): 3.00 | Max cutting depth CDX (mm): 21.0 | Max cut-off dia (mm): 42 | Stock: Yes
Grooving HoldersSumitomo Electric Hardmetal
28 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal GNDL Small-Lathe Grooving and Cut-off Holder

Brand Sumitomo Electric Hardmetal·Grooving Holders

Available part numbers (28)

GNDL R1010JX-1.2510, GNDL L1010JX-1.2510, GNDL R1010JX-1.510, GNDL L1010JX-1.510, GNDL R1010JX-210, GNDL L1010JX-210, GNDL R1010JX-310, GNDL L1010JX-310, GNDL R1212JX-1.2512, GNDL L1212JX-1.2512 + 18 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GNDL R1010JX-1.2510Height H (mm): 10 | Width B (mm): 10 | Length LF (mm): 120 | WF (mm): (10) | Cutting height HF (mm): 10 | Step HBH (mm): 2.0 | Head length LH (mm): 18 | LH2 (mm): 18.3 | Offset WF2 (mm): 0 | Cutting width CW (mm): 1.25 | Max cutting depth CDX (mm): 10.0 | Max cut-off dia (mm): 20 | Stock: Yes
GNDL L1010JX-1.2510Height H (mm): 10 | Width B (mm): 10 | Length LF (mm): 120 | WF (mm): (10) | Cutting height HF (mm): 10 | Step HBH (mm): 2.0 | Head length LH (mm): 18 | LH2 (mm): 18.3 | Offset WF2 (mm): 0 | Cutting width CW (mm): 1.25 | Max cutting depth CDX (mm): 10.0 | Max cut-off dia (mm): 20 | Stock: Yes
GNDL R1010JX-1.510Height H (mm): 10 | Width B (mm): 10 | Length LF (mm): 120 | WF (mm): (10) | Cutting height HF (mm): 10 | Step HBH (mm): 2.0 | Head length LH (mm): 18 | LH2 (mm): 18.3 | Offset WF2 (mm): 0 | Cutting width CW (mm): 1.50 | Max cutting depth CDX (mm): 10.0 | Max cut-off dia (mm): 20 | Stock: Yes
GNDL L1010JX-1.510Height H (mm): 10 | Width B (mm): 10 | Length LF (mm): 120 | WF (mm): (10) | Cutting height HF (mm): 10 | Step HBH (mm): 2.0 | Head length LH (mm): 18 | LH2 (mm): 18.3 | Offset WF2 (mm): 0 | Cutting width CW (mm): 1.50 | Max cutting depth CDX (mm): 10.0 | Max cut-off dia (mm): 20 | Stock: Yes
GNDL R1010JX-210Height H (mm): 10 | Width B (mm): 10 | Length LF (mm): 120 | WF (mm): (10) | Cutting height HF (mm): 10 | Step HBH (mm): 2.0 | Head length LH (mm): 22 | LH2 (mm): 22.3 | Offset WF2 (mm): 0 | Cutting width CW (mm): 2.00 | Max cutting depth CDX (mm): 10.0 | Max cut-off dia (mm): 20 | Stock: Yes
GNDL L1010JX-210Height H (mm): 10 | Width B (mm): 10 | Length LF (mm): 120 | WF (mm): (10) | Cutting height HF (mm): 10 | Step HBH (mm): 2.0 | Head length LH (mm): 22 | LH2 (mm): 22.3 | Offset WF2 (mm): 0 | Cutting width CW (mm): 2.00 | Max cutting depth CDX (mm): 10.0 | Max cut-off dia (mm): 20 | Stock: Yes
GNDL R1010JX-310Height H (mm): 10 | Width B (mm): 10 | Length LF (mm): 120 | WF (mm): (10) | Cutting height HF (mm): 10 | Step HBH (mm): 2.0 | Head length LH (mm): 22 | LH2 (mm): 22.3 | Offset WF2 (mm): 0 | Cutting width CW (mm): 3.00 | Max cutting depth CDX (mm): 10.0 | Max cut-off dia (mm): 20 | Stock: Yes
GNDL L1010JX-310Height H (mm): 10 | Width B (mm): 10 | Length LF (mm): 120 | WF (mm): (10) | Cutting height HF (mm): 10 | Step HBH (mm): 2.0 | Head length LH (mm): 22 | LH2 (mm): 22.3 | Offset WF2 (mm): 0 | Cutting width CW (mm): 3.00 | Max cutting depth CDX (mm): 10.0 | Max cut-off dia (mm): 20 | Stock: Yes
GNDL R1212JX-1.2512Height H (mm): 12 | Width B (mm): 12 | Length LF (mm): 120 | WF (mm): (12) | Cutting height HF (mm): 12 | Step HBH (mm): 2.0 | Head length LH (mm): 19 | LH2 (mm): 19.3 | Offset WF2 (mm): 0 | Cutting width CW (mm): 1.25 | Max cutting depth CDX (mm): 12.0 | Max cut-off dia (mm): 24 | Stock: Yes
GNDL L1212JX-1.2512Height H (mm): 12 | Width B (mm): 12 | Length LF (mm): 120 | WF (mm): (12) | Cutting height HF (mm): 12 | Step HBH (mm): 2.0 | Head length LH (mm): 19 | LH2 (mm): 19.3 | Offset WF2 (mm): 0 | Cutting width CW (mm): 1.25 | Max cutting depth CDX (mm): 12.0 | Max cut-off dia (mm): 24 | Stock: Yes
GNDL R1212JX-1.512Height H (mm): 12 | Width B (mm): 12 | Length LF (mm): 120 | WF (mm): (12) | Cutting height HF (mm): 12 | Step HBH (mm): 2.0 | Head length LH (mm): 19 | LH2 (mm): 19.3 | Offset WF2 (mm): 0 | Cutting width CW (mm): 1.50 | Max cutting depth CDX (mm): 12.0 | Max cut-off dia (mm): 24 | Stock: Yes
GNDL L1212JX-1.512Height H (mm): 12 | Width B (mm): 12 | Length LF (mm): 120 | WF (mm): (12) | Cutting height HF (mm): 12 | Step HBH (mm): 2.0 | Head length LH (mm): 19 | LH2 (mm): 19.3 | Offset WF2 (mm): 0 | Cutting width CW (mm): 1.50 | Max cutting depth CDX (mm): 12.0 | Max cut-off dia (mm): 24 | Stock: Yes
GNDL R1212JX-212.5Height H (mm): 12 | Width B (mm): 12 | Length LF (mm): 120 | WF (mm): (12) | Cutting height HF (mm): 12 | Step HBH (mm): 2.0 | Head length LH (mm): 22 | LH2 (mm): 22.3 | Offset WF2 (mm): 0 | Cutting width CW (mm): 2.00 | Max cutting depth CDX (mm): 12.5 | Max cut-off dia (mm): 25 | Stock: Yes
GNDL L1212JX-212.5Height H (mm): 12 | Width B (mm): 12 | Length LF (mm): 120 | WF (mm): (12) | Cutting height HF (mm): 12 | Step HBH (mm): 2.0 | Head length LH (mm): 22 | LH2 (mm): 22.3 | Offset WF2 (mm): 0 | Cutting width CW (mm): 2.00 | Max cutting depth CDX (mm): 12.5 | Max cut-off dia (mm): 25 | Stock: Yes
GNDL R1212JX-312.5Height H (mm): 12 | Width B (mm): 12 | Length LF (mm): 120 | WF (mm): (12) | Cutting height HF (mm): 12 | Step HBH (mm): 2.0 | Head length LH (mm): 22 | LH2 (mm): 22.3 | Offset WF2 (mm): 0 | Cutting width CW (mm): 3.00 | Max cutting depth CDX (mm): 12.5 | Max cut-off dia (mm): 25 | Stock: Yes
GNDL L1212JX-312.5Height H (mm): 12 | Width B (mm): 12 | Length LF (mm): 120 | WF (mm): (12) | Cutting height HF (mm): 12 | Step HBH (mm): 2.0 | Head length LH (mm): 22 | LH2 (mm): 22.3 | Offset WF2 (mm): 0 | Cutting width CW (mm): 3.00 | Max cutting depth CDX (mm): 12.5 | Max cut-off dia (mm): 25 | Stock: Yes
GNDL R1616JX-1.2512.5Height H (mm): 16 | Width B (mm): 16 | Length LF (mm): 120 | WF (mm): (16) | Cutting height HF (mm): 16 | Head length LH (mm): 28 | Offset WF2 (mm): 0 | Cutting width CW (mm): 1.25 | Max cutting depth CDX (mm): 12.5 | Max cut-off dia (mm): 20 | Stock: Yes
GNDL L1616JX-1.2512.5Height H (mm): 16 | Width B (mm): 16 | Length LF (mm): 120 | WF (mm): (16) | Cutting height HF (mm): 16 | Head length LH (mm): 28 | Offset WF2 (mm): 0 | Cutting width CW (mm): 1.25 | Max cutting depth CDX (mm): 12.5 | Max cut-off dia (mm): 20 | Stock: Yes
GNDL R1616JX-1.512.5Height H (mm): 16 | Width B (mm): 16 | Length LF (mm): 120 | WF (mm): (16) | Cutting height HF (mm): 16 | Head length LH (mm): 28 | Offset WF2 (mm): 0 | Cutting width CW (mm): 1.50 | Max cutting depth CDX (mm): 12.5 | Max cut-off dia (mm): 25 | Stock: Yes
GNDL L1616JX-1.512.5Height H (mm): 16 | Width B (mm): 16 | Length LF (mm): 120 | WF (mm): (16) | Cutting height HF (mm): 16 | Head length LH (mm): 28 | Offset WF2 (mm): 0 | Cutting width CW (mm): 1.50 | Max cutting depth CDX (mm): 12.5 | Max cut-off dia (mm): 25 | Stock: Yes
GNDL R1616JX-216Height H (mm): 16 | Width B (mm): 16 | Length LF (mm): 120 | WF (mm): (16) | Cutting height HF (mm): 16 | Head length LH (mm): 32 | Offset WF2 (mm): 0 | Cutting width CW (mm): 2.00 | Max cutting depth CDX (mm): 16.0 | Max cut-off dia (mm): 32 | Stock: Yes
GNDL L1616JX-216Height H (mm): 16 | Width B (mm): 16 | Length LF (mm): 120 | WF (mm): (16) | Cutting height HF (mm): 16 | Head length LH (mm): 32 | Offset WF2 (mm): 0 | Cutting width CW (mm): 2.00 | Max cutting depth CDX (mm): 16.0 | Max cut-off dia (mm): 32 | Stock: Yes
GNDL R1616JX-316Height H (mm): 16 | Width B (mm): 16 | Length LF (mm): 120 | WF (mm): (16) | Cutting height HF (mm): 16 | Head length LH (mm): 32 | Offset WF2 (mm): 0 | Cutting width CW (mm): 3.00 | Max cutting depth CDX (mm): 16.0 | Max cut-off dia (mm): 32 | Stock: Yes
GNDL L1616JX-316Height H (mm): 16 | Width B (mm): 16 | Length LF (mm): 120 | WF (mm): (16) | Cutting height HF (mm): 16 | Head length LH (mm): 32 | Offset WF2 (mm): 0 | Cutting width CW (mm): 3.00 | Max cutting depth CDX (mm): 16.0 | Max cut-off dia (mm): 32 | Stock: Yes
GNDL R2012JX-221Height H (mm): 20 | Width B (mm): 12 | Length LF (mm): 120 | WF (mm): (12) | Cutting height HF (mm): 20 | Head length LH (mm): 30.5 | Offset WF2 (mm): 0 | Cutting width CW (mm): 2.00 | Max cutting depth CDX (mm): 21.0 | Max cut-off dia (mm): 42 | Stock: Yes
GNDL L2012JX-221Height H (mm): 20 | Width B (mm): 12 | Length LF (mm): 120 | WF (mm): (12) | Cutting height HF (mm): 20 | Head length LH (mm): 30.5 | Offset WF2 (mm): 0 | Cutting width CW (mm): 2.00 | Max cutting depth CDX (mm): 21.0 | Max cut-off dia (mm): 42 | Stock: Yes
GNDL R2012JX-321Height H (mm): 20 | Width B (mm): 12 | Length LF (mm): 120 | WF (mm): (12) | Cutting height HF (mm): 20 | Head length LH (mm): 30.5 | Offset WF2 (mm): 0 | Cutting width CW (mm): 3.00 | Max cutting depth CDX (mm): 21.0 | Max cut-off dia (mm): 42 | Stock: Yes
GNDL L2012JX-321Height H (mm): 20 | Width B (mm): 12 | Length LF (mm): 120 | WF (mm): (12) | Cutting height HF (mm): 20 | Head length LH (mm): 30.5 | Offset WF2 (mm): 0 | Cutting width CW (mm): 3.00 | Max cutting depth CDX (mm): 21.0 | Max cut-off dia (mm): 42 | Stock: Yes
