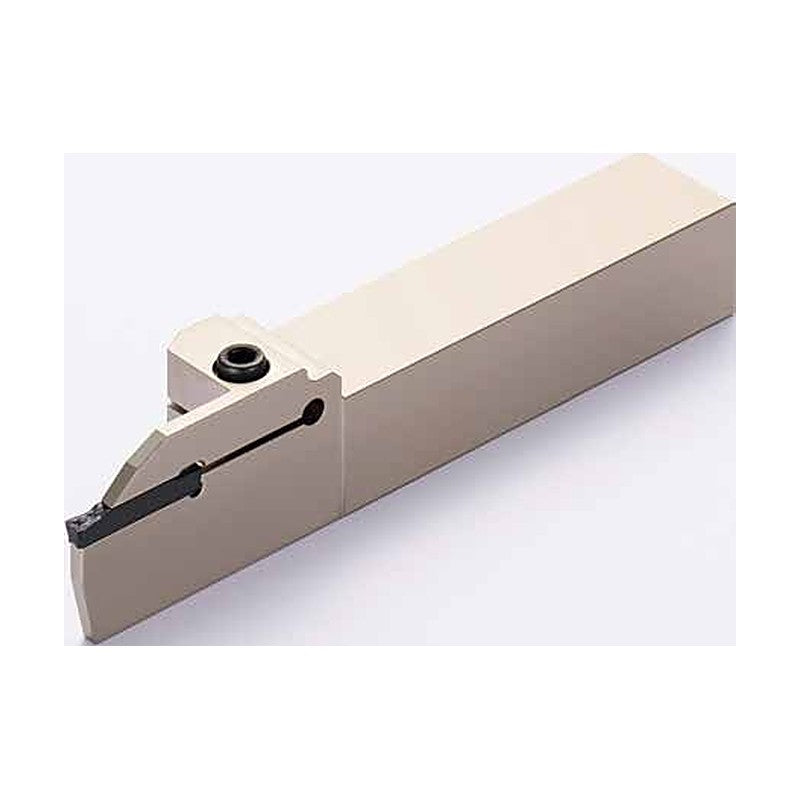

Sumitomo Electric Hardmetal GNDLS L-Type Grooving Holder

Sumitomo Electric Hardmetal GNDLS L-Type Grooving Holder

SEC grooving holder GNDLS type, the L-type (side-mounted) version of GNDL for external grooving.

Key features

  • L-type (horizontal) version of GNDL
  • Uses GCM grooving inserts

Specifications

Head length LH (mm) 25
GNDLS R2020K-216 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 38 | Cutting height HF (mm): 20 | Head length LH (mm): 25 | Cutting width CW (mm): 2.0 | Max cutting depth CDX (mm): 16 | Stock: Yes
GNDLS L2020K-216 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 38 | Cutting height HF (mm): 20 | Head length LH (mm): 25 | Cutting width CW (mm): 2.0 | Max cutting depth CDX (mm): 16 | Stock: Yes
GNDLS R2020K-316 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 38 | Cutting height HF (mm): 20 | Head length LH (mm): 25 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 16 | Stock: Yes
GNDLS L2020K-316 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 38 | Cutting height HF (mm): 20 | Head length LH (mm): 25 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 16 | Stock: Yes
GNDLS R2525M-218 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 45 | Cutting height HF (mm): 25 | Head length LH (mm): 25 | Cutting width CW (mm): 2.0 | Max cutting depth CDX (mm): 18 | Stock: Yes
GNDLS L2525M-218 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 45 | Cutting height HF (mm): 25 | Head length LH (mm): 25 | Cutting width CW (mm): 2.0 | Max cutting depth CDX (mm): 18 | Stock: Yes
GNDLS R2525M-318 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 45 | Cutting height HF (mm): 25 | Head length LH (mm): 25 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 18 | Stock: Yes
GNDLS L2525M-318 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 45 | Cutting height HF (mm): 25 | Head length LH (mm): 25 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 18 | Stock: Yes
GNDLS R2525M-423 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 50 | Cutting height HF (mm): 25 | Head length LH (mm): 25 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDLS L2525M-423 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 50 | Cutting height HF (mm): 25 | Head length LH (mm): 25 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDLS R2525M-523 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 50 | Cutting height HF (mm): 25 | Head length LH (mm): 25 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDLS L2525M-523 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 50 | Cutting height HF (mm): 25 | Head length LH (mm): 25 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDLS R2525M-623 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 50 | Cutting height HF (mm): 25 | Head length LH (mm): 25 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDLS L2525M-623 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 50 | Cutting height HF (mm): 25 | Head length LH (mm): 25 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
Grooving HoldersSumitomo Electric Hardmetal
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal GNDLS L-Type Grooving Holder

Brand Sumitomo Electric Hardmetal·Grooving Holders

Available part numbers (14)

GNDLS R2020K-216, GNDLS L2020K-216, GNDLS R2020K-316, GNDLS L2020K-316, GNDLS R2525M-218, GNDLS L2525M-218, GNDLS R2525M-318, GNDLS L2525M-318, GNDLS R2525M-423, GNDLS L2525M-423 + 4 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GNDLS R2020K-216Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 38 | Cutting height HF (mm): 20 | Head length LH (mm): 25 | Cutting width CW (mm): 2.0 | Max cutting depth CDX (mm): 16 | Stock: Yes
GNDLS L2020K-216Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 38 | Cutting height HF (mm): 20 | Head length LH (mm): 25 | Cutting width CW (mm): 2.0 | Max cutting depth CDX (mm): 16 | Stock: Yes
GNDLS R2020K-316Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 38 | Cutting height HF (mm): 20 | Head length LH (mm): 25 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 16 | Stock: Yes
GNDLS L2020K-316Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 38 | Cutting height HF (mm): 20 | Head length LH (mm): 25 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 16 | Stock: Yes
GNDLS R2525M-218Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 45 | Cutting height HF (mm): 25 | Head length LH (mm): 25 | Cutting width CW (mm): 2.0 | Max cutting depth CDX (mm): 18 | Stock: Yes
GNDLS L2525M-218Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 45 | Cutting height HF (mm): 25 | Head length LH (mm): 25 | Cutting width CW (mm): 2.0 | Max cutting depth CDX (mm): 18 | Stock: Yes
GNDLS R2525M-318Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 45 | Cutting height HF (mm): 25 | Head length LH (mm): 25 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 18 | Stock: Yes
GNDLS L2525M-318Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 45 | Cutting height HF (mm): 25 | Head length LH (mm): 25 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 18 | Stock: Yes
GNDLS R2525M-423Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 50 | Cutting height HF (mm): 25 | Head length LH (mm): 25 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDLS L2525M-423Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 50 | Cutting height HF (mm): 25 | Head length LH (mm): 25 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDLS R2525M-523Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 50 | Cutting height HF (mm): 25 | Head length LH (mm): 25 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDLS L2525M-523Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 50 | Cutting height HF (mm): 25 | Head length LH (mm): 25 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDLS R2525M-623Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 50 | Cutting height HF (mm): 25 | Head length LH (mm): 25 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 23 | Stock: Yes
GNDLS L2525M-623Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 50 | Cutting height HF (mm): 25 | Head length LH (mm): 25 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 23 | Stock: Yes

Need a different model, or a part not listed here? Send us your parts list →
