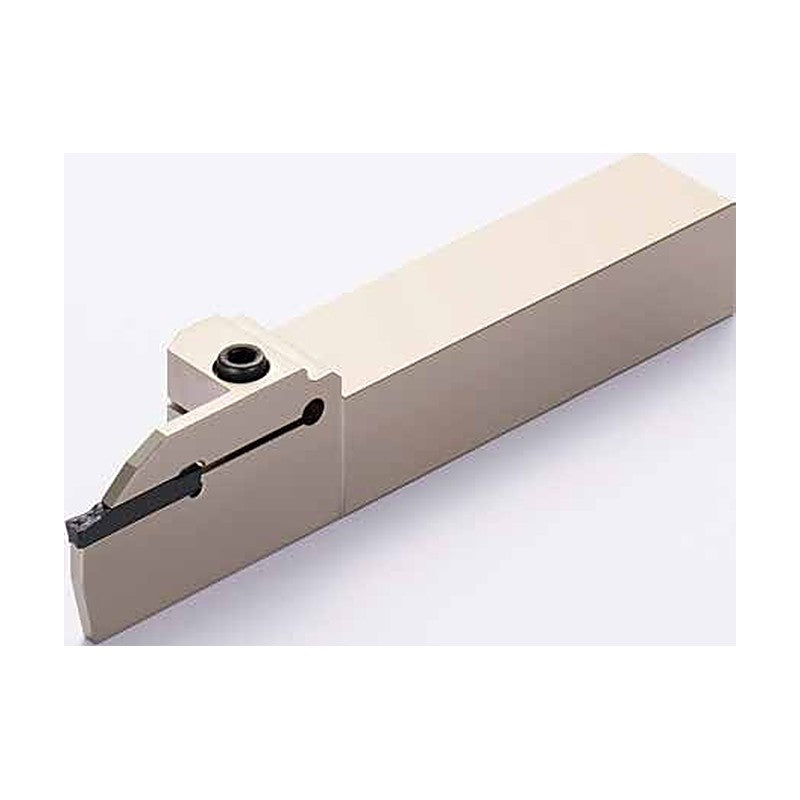

Sumitomo Electric Hardmetal GNDM-J Small-Lathe Internal-Coolant Grooving Holder

Sumitomo Electric Hardmetal GNDM-J Small-Lathe Internal-Coolant Grooving Holder

GNDM-J type small-lathe grooving holder with internal coolant supply for grooving, traversing and profiling.

Key features

  • Internal coolant directly to the cutting edge
  • For small automatic lathes
  • Uses GCM grooving inserts

Specifications

Offset WF2 (mm) 0
Length LF (mm) 120
GNDM R1616JX-212J Height H (mm): 16 | Width B (mm): 16 | Length LF (mm): 120 | WF (mm): (16) | Cutting height HF (mm): 16 | Head length LH (mm): 30.0 | Offset WF2 (mm): 0 | Cutting width CW (mm): 2.0 | Max cutting depth CDX (mm): 12.0 | Max cut-off dia (mm): 24 | Stock: Yes
GNDM L1616JX-212J Height H (mm): 16 | Width B (mm): 16 | Length LF (mm): 120 | WF (mm): (16) | Cutting height HF (mm): 16 | Head length LH (mm): 30.0 | Offset WF2 (mm): 0 | Cutting width CW (mm): 2.0 | Max cutting depth CDX (mm): 12.0 | Max cut-off dia (mm): 24 | Stock: Yes
GNDM R1616JX-312J Height H (mm): 16 | Width B (mm): 16 | Length LF (mm): 120 | WF (mm): (16) | Cutting height HF (mm): 16 | Head length LH (mm): 30.0 | Offset WF2 (mm): 0 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 12.0 | Max cut-off dia (mm): 24 | Stock: Yes
GNDM L1616JX-312J Height H (mm): 16 | Width B (mm): 16 | Length LF (mm): 120 | WF (mm): (16) | Cutting height HF (mm): 16 | Head length LH (mm): 30.0 | Offset WF2 (mm): 0 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 12.0 | Max cut-off dia (mm): 24 | Stock: Yes
GNDM R2012JX-217J Height H (mm): 20 | Width B (mm): 12 | Length LF (mm): 120 | WF (mm): (12) | Cutting height HF (mm): 20 | Head length LH (mm): 26.5 | Offset WF2 (mm): 0 | Cutting width CW (mm): 2.0 | Max cutting depth CDX (mm): 17.0 | Max cut-off dia (mm): 34 | Stock: Yes
GNDM L2012JX-217J Height H (mm): 20 | Width B (mm): 12 | Length LF (mm): 120 | WF (mm): (12) | Cutting height HF (mm): 20 | Head length LH (mm): 26.5 | Offset WF2 (mm): 0 | Cutting width CW (mm): 2.0 | Max cutting depth CDX (mm): 17.0 | Max cut-off dia (mm): 34 | Stock: Yes
GNDM R2012JX-317J Height H (mm): 20 | Width B (mm): 12 | Length LF (mm): 120 | WF (mm): (12) | Cutting height HF (mm): 20 | Head length LH (mm): 26.5 | Offset WF2 (mm): 0 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 17.0 | Max cut-off dia (mm): 34 | Stock: Yes
GNDM L2012JX-317J Height H (mm): 20 | Width B (mm): 12 | Length LF (mm): 120 | WF (mm): (12) | Cutting height HF (mm): 20 | Head length LH (mm): 26.5 | Offset WF2 (mm): 0 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 17.0 | Max cut-off dia (mm): 34 | Stock: Yes
Grooving HoldersSumitomo Electric Hardmetal
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal GNDM-J Small-Lathe Internal-Coolant Grooving Holder

Brand Sumitomo Electric Hardmetal·Grooving Holders

Available part numbers (8)

GNDM R1616JX-212J, GNDM L1616JX-212J, GNDM R1616JX-312J, GNDM L1616JX-312J, GNDM R2012JX-217J, GNDM L2012JX-217J, GNDM R2012JX-317J, GNDM L2012JX-317J

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GNDM R1616JX-212JHeight H (mm): 16 | Width B (mm): 16 | Length LF (mm): 120 | WF (mm): (16) | Cutting height HF (mm): 16 | Head length LH (mm): 30.0 | Offset WF2 (mm): 0 | Cutting width CW (mm): 2.0 | Max cutting depth CDX (mm): 12.0 | Max cut-off dia (mm): 24 | Stock: Yes
GNDM L1616JX-212JHeight H (mm): 16 | Width B (mm): 16 | Length LF (mm): 120 | WF (mm): (16) | Cutting height HF (mm): 16 | Head length LH (mm): 30.0 | Offset WF2 (mm): 0 | Cutting width CW (mm): 2.0 | Max cutting depth CDX (mm): 12.0 | Max cut-off dia (mm): 24 | Stock: Yes
GNDM R1616JX-312JHeight H (mm): 16 | Width B (mm): 16 | Length LF (mm): 120 | WF (mm): (16) | Cutting height HF (mm): 16 | Head length LH (mm): 30.0 | Offset WF2 (mm): 0 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 12.0 | Max cut-off dia (mm): 24 | Stock: Yes
GNDM L1616JX-312JHeight H (mm): 16 | Width B (mm): 16 | Length LF (mm): 120 | WF (mm): (16) | Cutting height HF (mm): 16 | Head length LH (mm): 30.0 | Offset WF2 (mm): 0 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 12.0 | Max cut-off dia (mm): 24 | Stock: Yes
GNDM R2012JX-217JHeight H (mm): 20 | Width B (mm): 12 | Length LF (mm): 120 | WF (mm): (12) | Cutting height HF (mm): 20 | Head length LH (mm): 26.5 | Offset WF2 (mm): 0 | Cutting width CW (mm): 2.0 | Max cutting depth CDX (mm): 17.0 | Max cut-off dia (mm): 34 | Stock: Yes
GNDM L2012JX-217JHeight H (mm): 20 | Width B (mm): 12 | Length LF (mm): 120 | WF (mm): (12) | Cutting height HF (mm): 20 | Head length LH (mm): 26.5 | Offset WF2 (mm): 0 | Cutting width CW (mm): 2.0 | Max cutting depth CDX (mm): 17.0 | Max cut-off dia (mm): 34 | Stock: Yes
GNDM R2012JX-317JHeight H (mm): 20 | Width B (mm): 12 | Length LF (mm): 120 | WF (mm): (12) | Cutting height HF (mm): 20 | Head length LH (mm): 26.5 | Offset WF2 (mm): 0 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 17.0 | Max cut-off dia (mm): 34 | Stock: Yes
GNDM L2012JX-317JHeight H (mm): 20 | Width B (mm): 12 | Length LF (mm): 120 | WF (mm): (12) | Cutting height HF (mm): 20 | Head length LH (mm): 26.5 | Offset WF2 (mm): 0 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 17.0 | Max cut-off dia (mm): 34 | Stock: Yes
