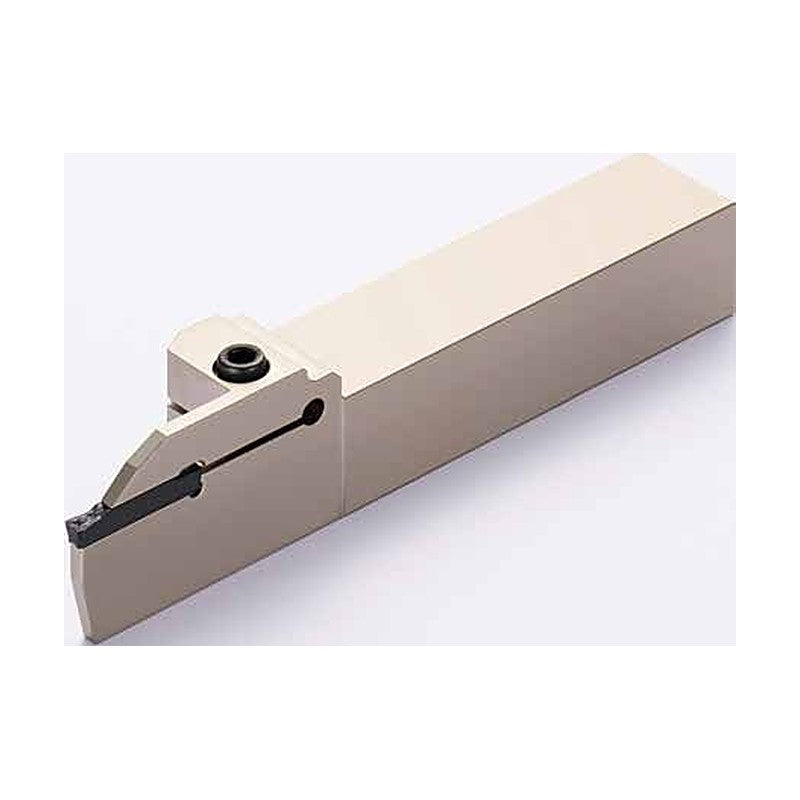

SEC grooving holder GNDM type for small automatic lathes, for external grooving, traversing and profiling with clamp-on insert.

Key features

  • For Swiss-type / small lathes
  • Grooving, side turning and profiling
  • Uses GCM grooving inserts

Specifications

Offset WF2 (mm) 0
Length LF (mm) 120
GNDM R1616JX-1.2508 Height H (mm): 16 | Width B (mm): 16 | Length LF (mm): 120 | WF (mm): (16) | Cutting height HF (mm): 16 | Head length LH (mm): 26 | Offset WF2 (mm): 0 | Cutting width CW (mm): 1.25 | Max cutting depth CDX (mm): 8.0 | Max cut-off dia (mm): 16 | Stock: Yes
GNDM L1616JX-1.2508 Height H (mm): 16 | Width B (mm): 16 | Length LF (mm): 120 | WF (mm): (16) | Cutting height HF (mm): 16 | Head length LH (mm): 26 | Offset WF2 (mm): 0 | Cutting width CW (mm): 1.25 | Max cutting depth CDX (mm): 8.0 | Max cut-off dia (mm): 16 | Stock: Yes
GNDM R1616JX-1.510 Height H (mm): 16 | Width B (mm): 16 | Length LF (mm): 120 | WF (mm): (16) | Cutting height HF (mm): 16 | Head length LH (mm): 26 | Offset WF2 (mm): 0 | Cutting width CW (mm): 1.50 | Max cutting depth CDX (mm): 10.0 | Max cut-off dia (mm): 20 | Stock: Yes
GNDM L1616JX-1.510 Height H (mm): 16 | Width B (mm): 16 | Length LF (mm): 120 | WF (mm): (16) | Cutting height HF (mm): 16 | Head length LH (mm): 26 | Offset WF2 (mm): 0 | Cutting width CW (mm): 1.50 | Max cutting depth CDX (mm): 10.0 | Max cut-off dia (mm): 20 | Stock: Yes
GNDM R1616JX-212 Height H (mm): 16 | Width B (mm): 16 | Length LF (mm): 120 | WF (mm): (16) | Cutting height HF (mm): 16 | Head length LH (mm): 30 | Offset WF2 (mm): 0 | Cutting width CW (mm): 2.00 | Max cutting depth CDX (mm): 12.0 | Max cut-off dia (mm): 24 | Stock: Yes
GNDM L1616JX-212 Height H (mm): 16 | Width B (mm): 16 | Length LF (mm): 120 | WF (mm): (16) | Cutting height HF (mm): 16 | Head length LH (mm): 30 | Offset WF2 (mm): 0 | Cutting width CW (mm): 2.00 | Max cutting depth CDX (mm): 12.0 | Max cut-off dia (mm): 24 | Stock: Yes
GNDM R1616JX-312 Height H (mm): 16 | Width B (mm): 16 | Length LF (mm): 120 | WF (mm): (16) | Cutting height HF (mm): 16 | Head length LH (mm): 30 | Offset WF2 (mm): 0 | Cutting width CW (mm): 3.00 | Max cutting depth CDX (mm): 12.0 | Max cut-off dia (mm): 24 | Stock: Yes
GNDM L1616JX-312 Height H (mm): 16 | Width B (mm): 16 | Length LF (mm): 120 | WF (mm): (16) | Cutting height HF (mm): 16 | Head length LH (mm): 30 | Offset WF2 (mm): 0 | Cutting width CW (mm): 3.00 | Max cutting depth CDX (mm): 12.0 | Max cut-off dia (mm): 24 | Stock: Yes
GNDM R2012JX-217 Height H (mm): 20 | Width B (mm): 12 | Length LF (mm): 120 | WF (mm): (12) | Cutting height HF (mm): 20 | Head length LH (mm): 26.5 | Offset WF2 (mm): 0 | Cutting width CW (mm): 2.00 | Max cutting depth CDX (mm): 17.0 | Max cut-off dia (mm): 34 | Stock: Yes
GNDM L2012JX-217 Height H (mm): 20 | Width B (mm): 12 | Length LF (mm): 120 | WF (mm): (12) | Cutting height HF (mm): 20 | Head length LH (mm): 26.5 | Offset WF2 (mm): 0 | Cutting width CW (mm): 2.00 | Max cutting depth CDX (mm): 17.0 | Max cut-off dia (mm): 34 | Stock: Yes
GNDM R2012JX-317 Height H (mm): 20 | Width B (mm): 12 | Length LF (mm): 120 | WF (mm): (12) | Cutting height HF (mm): 20 | Head length LH (mm): 26.5 | Offset WF2 (mm): 0 | Cutting width CW (mm): 3.00 | Max cutting depth CDX (mm): 17.0 | Max cut-off dia (mm): 34 | Stock: Yes
GNDM L2012JX-317 Height H (mm): 20 | Width B (mm): 12 | Length LF (mm): 120 | WF (mm): (12) | Cutting height HF (mm): 20 | Head length LH (mm): 26.5 | Offset WF2 (mm): 0 | Cutting width CW (mm): 3.00 | Max cutting depth CDX (mm): 17.0 | Max cut-off dia (mm): 34 | Stock: Yes
