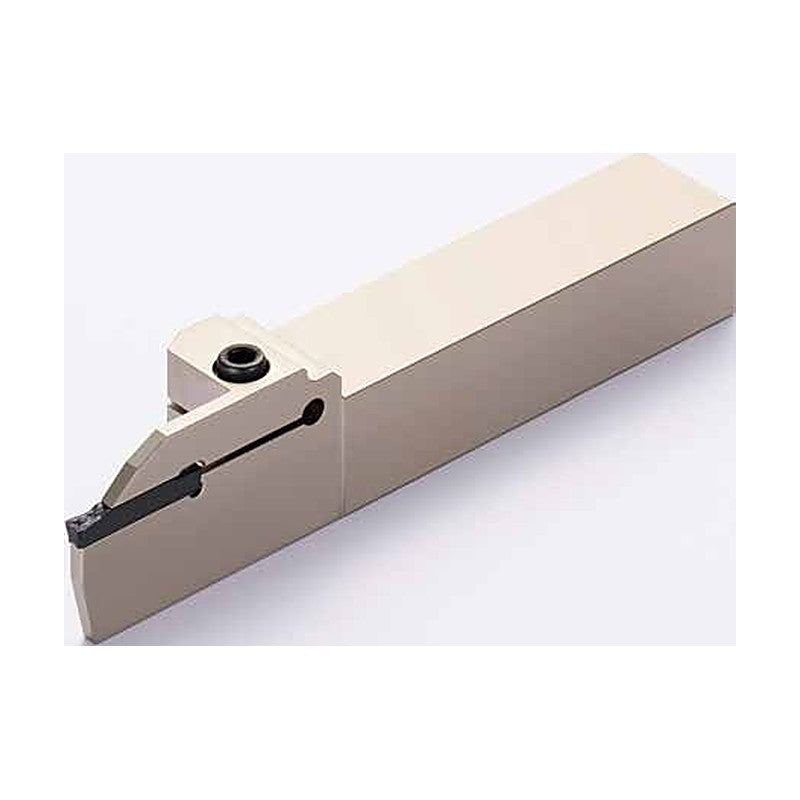

Sumitomo Electric Hardmetal GNDS Multi-Function Shallow Grooving Holder

Sumitomo Electric Hardmetal GNDS Multi-Function Shallow Grooving Holder

SEC grooving holder GNDS type for external multi-function shallow grooving, traversing and profiling.

Key features

  • Short overhang for efficient grooving and traversing
  • Clamp-on GCM inserts
GNDS R2020K-206 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 30 | Cutting width CW (mm): 2.0 | Max cutting depth CDX (mm): 6 | Max cut-off dia (mm): 12 | Stock: Yes
GNDS L2020K-206 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 30 | Cutting width CW (mm): 2.0 | Max cutting depth CDX (mm): 6 | Max cut-off dia (mm): 12 | Stock: Yes
GNDS R2020K-306 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 30 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 6 | Max cut-off dia (mm): 12 | Stock: Yes
GNDS L2020K-306 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 30 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 6 | Max cut-off dia (mm): 12 | Stock: Yes
GNDS R2020K-410 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 34 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 10 | Max cut-off dia (mm): 20 | Stock: Yes
GNDS L2020K-410 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 34 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 10 | Max cut-off dia (mm): 20 | Stock: Yes
GNDS R2020K-510 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 34 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 10 | Max cut-off dia (mm): 20 | Stock: Yes
GNDS L2020K-510 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 34 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 10 | Max cut-off dia (mm): 20 | Stock: Yes
GNDS R2020K-610 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 34 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 10 | Max cut-off dia (mm): 20 | Stock: Yes
GNDS L2020K-610 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 34 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 10 | Max cut-off dia (mm): 20 | Stock: Yes
GNDS R2525M-206 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 30 | Cutting width CW (mm): 2.0 | Max cutting depth CDX (mm): 6 | Max cut-off dia (mm): 12 | Stock: Yes
GNDS L2525M-206 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 30 | Cutting width CW (mm): 2.0 | Max cutting depth CDX (mm): 6 | Max cut-off dia (mm): 12 | Stock: Yes
GNDS R2525M-306 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 30 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 6 | Max cut-off dia (mm): 12 | Stock: Yes
GNDS L2525M-306 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 30 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 6 | Max cut-off dia (mm): 12 | Stock: Yes
GNDS R2525M-410 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 34 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 10 | Max cut-off dia (mm): 20 | Stock: Yes
GNDS L2525M-410 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 34 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 10 | Max cut-off dia (mm): 20 | Stock: Yes
GNDS R2525M-510 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 34 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 10 | Max cut-off dia (mm): 20 | Stock: Yes
GNDS L2525M-510 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 34 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 10 | Max cut-off dia (mm): 20 | Stock: Yes
GNDS R2525M-610 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 34 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 10 | Max cut-off dia (mm): 20 | Stock: Yes
GNDS L2525M-610 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 34 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 10 | Max cut-off dia (mm): 20 | Stock: Yes
Grooving HoldersSumitomo Electric Hardmetal
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal GNDS Multi-Function Shallow Grooving Holder

Brand Sumitomo Electric Hardmetal·Grooving Holders

Available part numbers (20)

GNDS R2020K-206, GNDS L2020K-206, GNDS R2020K-306, GNDS L2020K-306, GNDS R2020K-410, GNDS L2020K-410, GNDS R2020K-510, GNDS L2020K-510, GNDS R2020K-610, GNDS L2020K-610 + 10 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GNDS R2020K-206Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 30 | Cutting width CW (mm): 2.0 | Max cutting depth CDX (mm): 6 | Max cut-off dia (mm): 12 | Stock: Yes
GNDS L2020K-206Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 30 | Cutting width CW (mm): 2.0 | Max cutting depth CDX (mm): 6 | Max cut-off dia (mm): 12 | Stock: Yes
GNDS R2020K-306Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 30 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 6 | Max cut-off dia (mm): 12 | Stock: Yes
GNDS L2020K-306Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 30 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 6 | Max cut-off dia (mm): 12 | Stock: Yes
GNDS R2020K-410Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 34 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 10 | Max cut-off dia (mm): 20 | Stock: Yes
GNDS L2020K-410Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 34 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 10 | Max cut-off dia (mm): 20 | Stock: Yes
GNDS R2020K-510Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 34 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 10 | Max cut-off dia (mm): 20 | Stock: Yes
GNDS L2020K-510Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 34 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 10 | Max cut-off dia (mm): 20 | Stock: Yes
GNDS R2020K-610Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 34 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 10 | Max cut-off dia (mm): 20 | Stock: Yes
GNDS L2020K-610Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 34 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 10 | Max cut-off dia (mm): 20 | Stock: Yes
GNDS R2525M-206Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 30 | Cutting width CW (mm): 2.0 | Max cutting depth CDX (mm): 6 | Max cut-off dia (mm): 12 | Stock: Yes
GNDS L2525M-206Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 30 | Cutting width CW (mm): 2.0 | Max cutting depth CDX (mm): 6 | Max cut-off dia (mm): 12 | Stock: Yes
GNDS R2525M-306Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 30 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 6 | Max cut-off dia (mm): 12 | Stock: Yes
GNDS L2525M-306Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 30 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 6 | Max cut-off dia (mm): 12 | Stock: Yes
GNDS R2525M-410Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 34 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 10 | Max cut-off dia (mm): 20 | Stock: Yes
GNDS L2525M-410Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 34 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 10 | Max cut-off dia (mm): 20 | Stock: Yes
GNDS R2525M-510Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 34 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 10 | Max cut-off dia (mm): 20 | Stock: Yes
GNDS L2525M-510Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 34 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 10 | Max cut-off dia (mm): 20 | Stock: Yes
GNDS R2525M-610Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 34 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 10 | Max cut-off dia (mm): 20 | Stock: Yes
GNDS L2525M-610Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 34 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 10 | Max cut-off dia (mm): 20 | Stock: Yes
