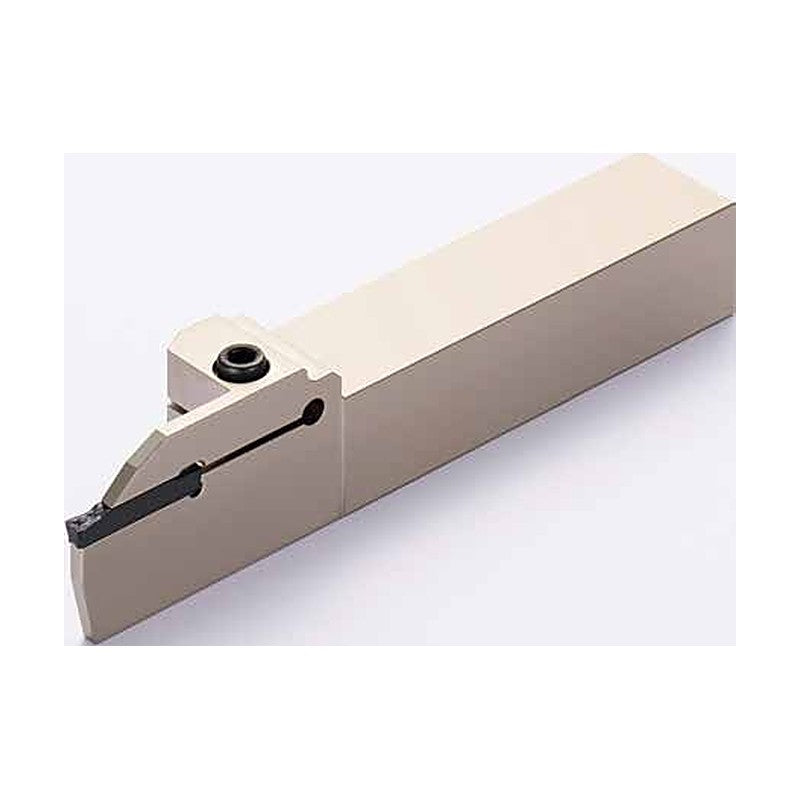

• Sumitomo Electric Hardmetal GNDXL Extra-Deep Grooving and Cut-off Holder
1 1

Sumitomo Electric Hardmetal GNDXL Extra-Deep Grooving and Cut-off Holder

Sumitomo Electric Hardmetal GNDXL Extra-Deep Grooving and Cut-off Holder

SEC grooving holder GNDXL type for external deep grooving and cut-off with groove depth up to 32 mm.

Key features

  • Maximum groove depth 32 mm
  • Uses dedicated GCM ...1 inserts
GNDXL R2020K-226 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 42.0 | Cutting width CW (mm): 2.0 | Max cutting depth CDX (mm): 26 | Max cut-off dia (mm): 52 | Stock: Made to order
GNDXL L2020K-226 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 42.0 | Cutting width CW (mm): 2.0 | Max cutting depth CDX (mm): 26 | Max cut-off dia (mm): 52 | Stock: Made to order
GNDXL R2020K-332 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 48.0 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 32 | Max cut-off dia (mm): 64 | Stock: Yes
GNDXL L2020K-332 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 48.0 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 32 | Max cut-off dia (mm): 64 | Stock: Yes
GNDXL R2020K-432 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 48.0 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 32 | Max cut-off dia (mm): 64 | Stock: Yes
GNDXL L2020K-432 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 48.0 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 32 | Max cut-off dia (mm): 64 | Stock: Yes
GNDXL R2020K-532 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 48.0 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 32 | Max cut-off dia (mm): 64 | Stock: Yes
GNDXL L2020K-532 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 48.0 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 32 | Max cut-off dia (mm): 64 | Stock: Yes
GNDXL R2020K-632 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 48.0 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 32 | Max cut-off dia (mm): 64 | Stock: Yes
GNDXL L2020K-632 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 48.0 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 32 | Max cut-off dia (mm): 64 | Stock: Yes
GNDXL R2525M-226 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 42.0 | Cutting width CW (mm): 2.0 | Max cutting depth CDX (mm): 26 | Max cut-off dia (mm): 52 | Stock: Made to order
GNDXL L2525M-226 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 42.0 | Cutting width CW (mm): 2.0 | Max cutting depth CDX (mm): 26 | Max cut-off dia (mm): 52 | Stock: Made to order
GNDXL R2525M-332 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 48.0 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 32 | Max cut-off dia (mm): 64 | Stock: Yes
GNDXL L2525M-332 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 48.0 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 32 | Max cut-off dia (mm): 64 | Stock: Yes
GNDXL R2525M-432 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 48.0 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 32 | Max cut-off dia (mm): 64 | Stock: Yes
GNDXL L2525M-432 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 48.0 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 32 | Max cut-off dia (mm): 64 | Stock: Yes
GNDXL R2525M-532 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 48.0 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 32 | Max cut-off dia (mm): 64 | Stock: Yes
GNDXL L2525M-532 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 48.0 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 32 | Max cut-off dia (mm): 64 | Stock: Yes
GNDXL R2525M-632 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 48.0 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 32 | Max cut-off dia (mm): 64 | Stock: Yes
GNDXL L2525M-632 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 48.0 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 32 | Max cut-off dia (mm): 64 | Stock: Yes
Grooving HoldersSumitomo Electric Hardmetal
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal GNDXL Extra-Deep Grooving and Cut-off Holder

Brand Sumitomo Electric Hardmetal·Grooving Holders

Available part numbers (20)

GNDXL R2020K-226, GNDXL L2020K-226, GNDXL R2020K-332, GNDXL L2020K-332, GNDXL R2020K-432, GNDXL L2020K-432, GNDXL R2020K-532, GNDXL L2020K-532, GNDXL R2020K-632, GNDXL L2020K-632 + 10 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GNDXL R2020K-226Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 42.0 | Cutting width CW (mm): 2.0 | Max cutting depth CDX (mm): 26 | Max cut-off dia (mm): 52 | Stock: Made to order
GNDXL L2020K-226Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 42.0 | Cutting width CW (mm): 2.0 | Max cutting depth CDX (mm): 26 | Max cut-off dia (mm): 52 | Stock: Made to order
GNDXL R2020K-332Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 48.0 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 32 | Max cut-off dia (mm): 64 | Stock: Yes
GNDXL L2020K-332Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 48.0 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 32 | Max cut-off dia (mm): 64 | Stock: Yes
GNDXL R2020K-432Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 48.0 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 32 | Max cut-off dia (mm): 64 | Stock: Yes
GNDXL L2020K-432Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 48.0 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 32 | Max cut-off dia (mm): 64 | Stock: Yes
GNDXL R2020K-532Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 48.0 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 32 | Max cut-off dia (mm): 64 | Stock: Yes
GNDXL L2020K-532Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 48.0 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 32 | Max cut-off dia (mm): 64 | Stock: Yes
GNDXL R2020K-632Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 48.0 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 32 | Max cut-off dia (mm): 64 | Stock: Yes
GNDXL L2020K-632Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 20 | Cutting height HF (mm): 20 | Head length LH (mm): 48.0 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 32 | Max cut-off dia (mm): 64 | Stock: Yes
GNDXL R2525M-226Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 42.0 | Cutting width CW (mm): 2.0 | Max cutting depth CDX (mm): 26 | Max cut-off dia (mm): 52 | Stock: Made to order
GNDXL L2525M-226Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 42.0 | Cutting width CW (mm): 2.0 | Max cutting depth CDX (mm): 26 | Max cut-off dia (mm): 52 | Stock: Made to order
GNDXL R2525M-332Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 48.0 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 32 | Max cut-off dia (mm): 64 | Stock: Yes
GNDXL L2525M-332Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 48.0 | Cutting width CW (mm): 3.0 | Max cutting depth CDX (mm): 32 | Max cut-off dia (mm): 64 | Stock: Yes
GNDXL R2525M-432Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 48.0 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 32 | Max cut-off dia (mm): 64 | Stock: Yes
GNDXL L2525M-432Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 48.0 | Cutting width CW (mm): 4.0 | Max cutting depth CDX (mm): 32 | Max cut-off dia (mm): 64 | Stock: Yes
GNDXL R2525M-532Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 48.0 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 32 | Max cut-off dia (mm): 64 | Stock: Yes
GNDXL L2525M-532Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 48.0 | Cutting width CW (mm): 5.0 | Max cutting depth CDX (mm): 32 | Max cut-off dia (mm): 64 | Stock: Yes
GNDXL R2525M-632Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 48.0 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 32 | Max cut-off dia (mm): 64 | Stock: Yes
GNDXL L2525M-632Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 25 | Cutting height HF (mm): 25 | Head length LH (mm): 48.0 | Cutting width CW (mm): 6.0 | Max cutting depth CDX (mm): 32 | Max cut-off dia (mm): 64 | Stock: Yes
