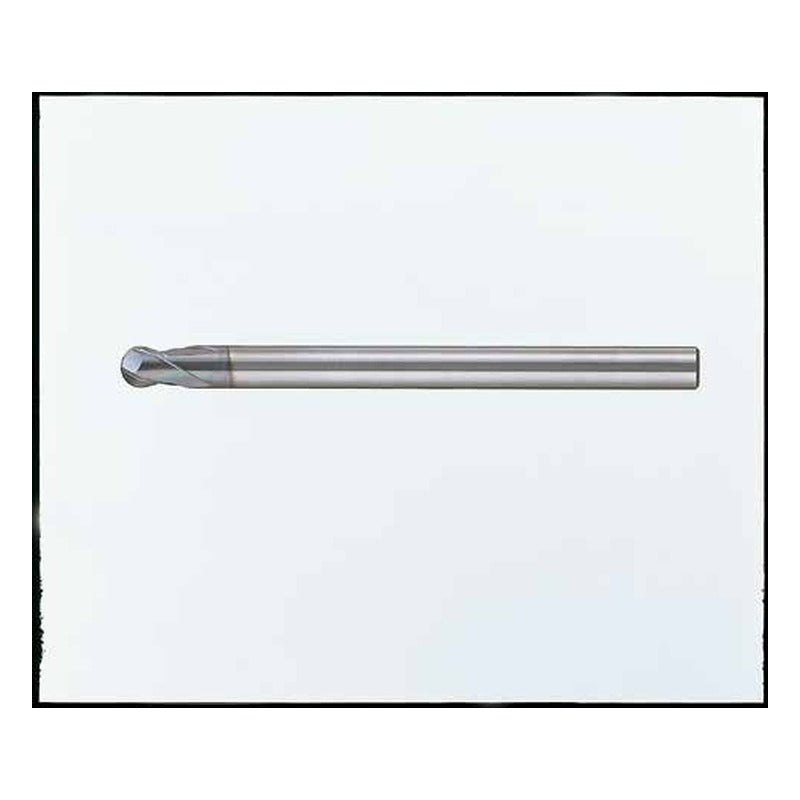

Sumitomo Electric Hardmetal GS MILL Hard 2-Flute Ball End Mill GSBH20000SF

Sumitomo Electric Hardmetal GS MILL Hard 2-Flute Ball End Mill GSBH20000SF

Solid carbide GS MILL Hard 2-flute ball end mill for precision finishing of hardened steels.

Key features

  • GS Hard coating (Al-Ti-Cr multilayer) with high oxidation resistance at 1,100 C
  • R accuracy +3 to -7 um for precision finishing of hardened materials

Specifications

Flutes 2
Grade ACF07D
Workpiece Carbon steel, Alloy steel, Pre-hardened steel, Tempered/die steel, Hardened steel 45-55HRC, Hardened steel 55-60HRC, Hardened steel 60-65HRC
GSBH20020SF DC (mm): 0.4 | RE (mm): 0.20 | APMX (mm): 0.4 | LU (mm): 0.6 | LF (mm): 50 | DMM (mm): 4 | Stock: Yes
GSBH20030SF DC (mm): 0.6 | RE (mm): 0.30 | APMX (mm): 0.6 | LU (mm): 0.9 | LF (mm): 50 | DMM (mm): 4 | Stock: Yes
GSBH20050SF DC (mm): 1.0 | RE (mm): 0.50 | APMX (mm): 1.0 | LU (mm): 1.5 | LF (mm): 50 | DMM (mm): 4 | Stock: Yes
GSBH20075SF DC (mm): 1.5 | RE (mm): 0.75 | APMX (mm): 1.5 | LU (mm): 2.3 | LF (mm): 50 | DMM (mm): 4 | Stock: Yes
GSBH20100SF DC (mm): 2.0 | RE (mm): 1.00 | APMX (mm): 2.0 | LU (mm): 3.0 | LF (mm): 60 | DMM (mm): 6 | Stock: Yes
GSBH20125SF DC (mm): 2.5 | RE (mm): 1.25 | APMX (mm): 2.5 | LU (mm): 3.8 | LF (mm): 60 | DMM (mm): 6 | Stock: Yes
GSBH20150SF DC (mm): 3.0 | RE (mm): 1.50 | APMX (mm): 3.0 | LU (mm): 4.5 | LF (mm): 60 | DMM (mm): 6 | Stock: Yes
GSBH20200SF DC (mm): 4.0 | RE (mm): 2.00 | APMX (mm): 4.0 | LU (mm): 6.0 | LF (mm): 70 | DMM (mm): 6 | Stock: Yes
GSBH20250SF DC (mm): 5.0 | RE (mm): 2.50 | APMX (mm): 5.0 | LU (mm): 7.5 | LF (mm): 80 | DMM (mm): 6 | Stock: Yes
GSBH20300SF DC (mm): 6.0 | RE (mm): 3.00 | APMX (mm): 6.0 | LF (mm): 80 | DMM (mm): 6 | Stock: Yes
GSBH20400SF DC (mm): 8.0 | RE (mm): 4.00 | APMX (mm): 8.0 | LF (mm): 90 | DMM (mm): 8 | Stock: Yes
GSBH20500SF DC (mm): 10.0 | RE (mm): 5.00 | APMX (mm): 10.0 | LF (mm): 100 | DMM (mm): 10 | Stock: Yes
GSBH20600SF DC (mm): 12.0 | RE (mm): 6.00 | APMX (mm): 12.0 | LF (mm): 110 | DMM (mm): 12 | Stock: Yes
Ball End MillsSumitomo Electric Hardmetal
13 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal GS MILL Hard 2-Flute Ball End Mill GSBH20000SF

Brand Sumitomo Electric Hardmetal·Ball End Mills

Available part numbers (13)

GSBH20020SF, GSBH20030SF, GSBH20050SF, GSBH20075SF, GSBH20100SF, GSBH20125SF, GSBH20150SF, GSBH20200SF, GSBH20250SF, GSBH20300SF + 3 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GSBH20020SFDC (mm): 0.4 | RE (mm): 0.20 | APMX (mm): 0.4 | LU (mm): 0.6 | LF (mm): 50 | DMM (mm): 4 | Stock: Yes
GSBH20030SFDC (mm): 0.6 | RE (mm): 0.30 | APMX (mm): 0.6 | LU (mm): 0.9 | LF (mm): 50 | DMM (mm): 4 | Stock: Yes
GSBH20050SFDC (mm): 1.0 | RE (mm): 0.50 | APMX (mm): 1.0 | LU (mm): 1.5 | LF (mm): 50 | DMM (mm): 4 | Stock: Yes
GSBH20075SFDC (mm): 1.5 | RE (mm): 0.75 | APMX (mm): 1.5 | LU (mm): 2.3 | LF (mm): 50 | DMM (mm): 4 | Stock: Yes
GSBH20100SFDC (mm): 2.0 | RE (mm): 1.00 | APMX (mm): 2.0 | LU (mm): 3.0 | LF (mm): 60 | DMM (mm): 6 | Stock: Yes
GSBH20125SFDC (mm): 2.5 | RE (mm): 1.25 | APMX (mm): 2.5 | LU (mm): 3.8 | LF (mm): 60 | DMM (mm): 6 | Stock: Yes
GSBH20150SFDC (mm): 3.0 | RE (mm): 1.50 | APMX (mm): 3.0 | LU (mm): 4.5 | LF (mm): 60 | DMM (mm): 6 | Stock: Yes
GSBH20200SFDC (mm): 4.0 | RE (mm): 2.00 | APMX (mm): 4.0 | LU (mm): 6.0 | LF (mm): 70 | DMM (mm): 6 | Stock: Yes
GSBH20250SFDC (mm): 5.0 | RE (mm): 2.50 | APMX (mm): 5.0 | LU (mm): 7.5 | LF (mm): 80 | DMM (mm): 6 | Stock: Yes
GSBH20300SFDC (mm): 6.0 | RE (mm): 3.00 | APMX (mm): 6.0 | LF (mm): 80 | DMM (mm): 6 | Stock: Yes
GSBH20400SFDC (mm): 8.0 | RE (mm): 4.00 | APMX (mm): 8.0 | LF (mm): 90 | DMM (mm): 8 | Stock: Yes
GSBH20500SFDC (mm): 10.0 | RE (mm): 5.00 | APMX (mm): 10.0 | LF (mm): 100 | DMM (mm): 10 | Stock: Yes
GSBH20600SFDC (mm): 12.0 | RE (mm): 6.00 | APMX (mm): 12.0 | LF (mm): 110 | DMM (mm): 12 | Stock: Yes
