• Sumitomo Electric Hardmetal GS MILL Hard 6-Flute Radius End Mill GSH6000SF-R
1 1

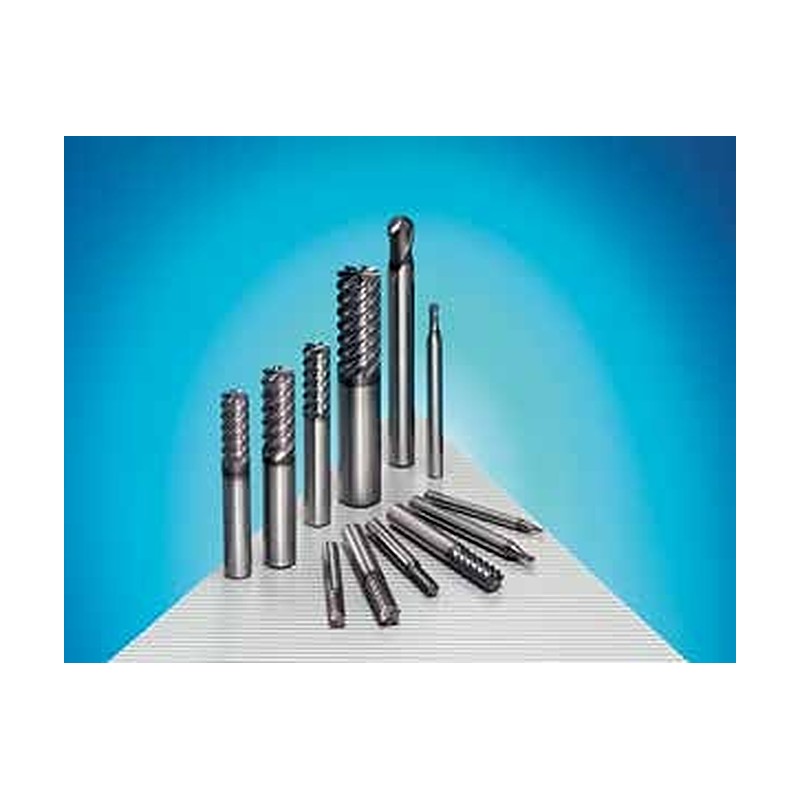

Sumitomo Electric Hardmetal GS MILL Hard 6-Flute Radius End Mill GSH6000SF-R

Sumitomo Electric Hardmetal GS MILL Hard 6-Flute Radius End Mill GSH6000SF-R

Solid carbide GS MILL Hard corner radius end mill for hardened steels.

Key features

  • GS Hard coating (Al-Ti-Cr multilayer) with high oxidation resistance at 1,100 C
  • New low-Co ultra-fine-grain carbide substrate
  • Radius type with improved fracture resistance for corner R machining

Specifications

Flutes 6
Grade ACF07C
Workpiece Carbon steel, Alloy steel, Pre-hardened steel, Tempered/die steel, Hardened steel 45-55HRC, Hardened steel 55-60HRC, Hardened steel 60-65HRC
GSH6060SF-R02 DC (mm): 6.0 | RE (mm): 0.2 | APMX (mm): 13.0 | LF (mm): 50 | DMM (mm): 6 | Stock: Yes
GSH6060SF-R05 DC (mm): 6.0 | RE (mm): 0.5 | APMX (mm): 13.0 | LF (mm): 50 | DMM (mm): 6 | Stock: Yes
GSH6060SF-R10 DC (mm): 6.0 | RE (mm): 1.0 | APMX (mm): 13.0 | LF (mm): 50 | DMM (mm): 6 | Stock: Yes
GSH6080SF-R02 DC (mm): 8.0 | RE (mm): 0.2 | APMX (mm): 19.0 | LF (mm): 60 | DMM (mm): 8 | Stock: Yes
GSH6080SF-R05 DC (mm): 8.0 | RE (mm): 0.5 | APMX (mm): 19.0 | LF (mm): 60 | DMM (mm): 8 | Stock: Yes
GSH6080SF-R10 DC (mm): 8.0 | RE (mm): 1.0 | APMX (mm): 19.0 | LF (mm): 60 | DMM (mm): 8 | Stock: Yes
GSH6100SF-R05 DC (mm): 10.0 | RE (mm): 0.5 | APMX (mm): 22.0 | LF (mm): 70 | DMM (mm): 10 | Stock: Yes
GSH6100SF-R10 DC (mm): 10.0 | RE (mm): 1.0 | APMX (mm): 22.0 | LF (mm): 70 | DMM (mm): 10 | Stock: Yes
GSH6100SF-R15 DC (mm): 10.0 | RE (mm): 1.5 | APMX (mm): 22.0 | LF (mm): 70 | DMM (mm): 10 | Stock: Yes
GSH6100SF-R20 DC (mm): 10.0 | RE (mm): 2.0 | APMX (mm): 22.0 | LF (mm): 70 | DMM (mm): 10 | Stock: Yes
GSH6120SF-R05 DC (mm): 12.0 | RE (mm): 0.5 | APMX (mm): 26.0 | LF (mm): 75 | DMM (mm): 12 | Stock: Yes
GSH6120SF-R10 DC (mm): 12.0 | RE (mm): 1.0 | APMX (mm): 26.0 | LF (mm): 75 | DMM (mm): 12 | Stock: Yes
GSH6120SF-R15 DC (mm): 12.0 | RE (mm): 1.5 | APMX (mm): 26.0 | LF (mm): 75 | DMM (mm): 12 | Stock: Yes
GSH6120SF-R20 DC (mm): 12.0 | RE (mm): 2.0 | APMX (mm): 26.0 | LF (mm): 75 | DMM (mm): 12 | Stock: Yes
End MillsSumitomo Electric Hardmetal
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal GS MILL Hard 6-Flute Radius End Mill GSH6000SF-R

Brand Sumitomo Electric Hardmetal·End Mills

Available part numbers (14)

GSH6060SF-R02, GSH6060SF-R05, GSH6060SF-R10, GSH6080SF-R02, GSH6080SF-R05, GSH6080SF-R10, GSH6100SF-R05, GSH6100SF-R10, GSH6100SF-R15, GSH6100SF-R20 + 4 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GSH6060SF-R02DC (mm): 6.0 | RE (mm): 0.2 | APMX (mm): 13.0 | LF (mm): 50 | DMM (mm): 6 | Stock: Yes
GSH6060SF-R05DC (mm): 6.0 | RE (mm): 0.5 | APMX (mm): 13.0 | LF (mm): 50 | DMM (mm): 6 | Stock: Yes
GSH6060SF-R10DC (mm): 6.0 | RE (mm): 1.0 | APMX (mm): 13.0 | LF (mm): 50 | DMM (mm): 6 | Stock: Yes
GSH6080SF-R02DC (mm): 8.0 | RE (mm): 0.2 | APMX (mm): 19.0 | LF (mm): 60 | DMM (mm): 8 | Stock: Yes
GSH6080SF-R05DC (mm): 8.0 | RE (mm): 0.5 | APMX (mm): 19.0 | LF (mm): 60 | DMM (mm): 8 | Stock: Yes
GSH6080SF-R10DC (mm): 8.0 | RE (mm): 1.0 | APMX (mm): 19.0 | LF (mm): 60 | DMM (mm): 8 | Stock: Yes
GSH6100SF-R05DC (mm): 10.0 | RE (mm): 0.5 | APMX (mm): 22.0 | LF (mm): 70 | DMM (mm): 10 | Stock: Yes
GSH6100SF-R10DC (mm): 10.0 | RE (mm): 1.0 | APMX (mm): 22.0 | LF (mm): 70 | DMM (mm): 10 | Stock: Yes
GSH6100SF-R15DC (mm): 10.0 | RE (mm): 1.5 | APMX (mm): 22.0 | LF (mm): 70 | DMM (mm): 10 | Stock: Yes
GSH6100SF-R20DC (mm): 10.0 | RE (mm): 2.0 | APMX (mm): 22.0 | LF (mm): 70 | DMM (mm): 10 | Stock: Yes
GSH6120SF-R05DC (mm): 12.0 | RE (mm): 0.5 | APMX (mm): 26.0 | LF (mm): 75 | DMM (mm): 12 | Stock: Yes
GSH6120SF-R10DC (mm): 12.0 | RE (mm): 1.0 | APMX (mm): 26.0 | LF (mm): 75 | DMM (mm): 12 | Stock: Yes
GSH6120SF-R15DC (mm): 12.0 | RE (mm): 1.5 | APMX (mm): 26.0 | LF (mm): 75 | DMM (mm): 12 | Stock: Yes
GSH6120SF-R20DC (mm): 12.0 | RE (mm): 2.0 | APMX (mm): 26.0 | LF (mm): 75 | DMM (mm): 12 | Stock: Yes
