Sumitomo Electric Hardmetal GS MILL Hard 6-Flute Square End Mill GSH6000SF

Sumitomo Electric Hardmetal GS MILL Hard 6-Flute Square End Mill GSH6000SF

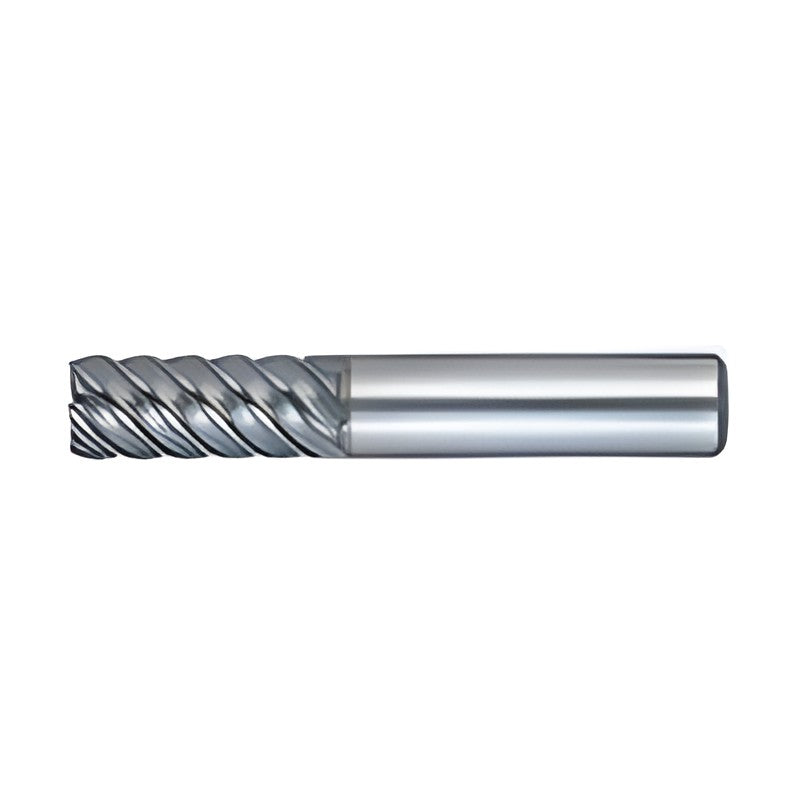

Solid carbide GS MILL Hard square end mill for high-speed machining of hardened steels.

Key features

  • GS Hard coating (Al-Ti-Cr multilayer) with high oxidation resistance at 1,100 C
  • New low-Co ultra-fine-grain carbide substrate
  • Proprietary cross-section for chip evacuation and tool rigidity

Specifications

Flutes 6
Grade ACF07C
Workpiece General steel, Carbon steel, Alloy steel, Pre-hardened steel, Tempered/die steel, Hardened steel 45-55HRC, Hardened steel 55-60HRC
GSH6030SF DC (mm): 3.0 | APMX (mm): 8.0 | LU (mm): 9.0 | LF (mm): 50 | DMM (mm): 6 | Stock: Yes
GSH6040SF DC (mm): 4.0 | APMX (mm): 11.0 | LU (mm): 12.0 | LF (mm): 50 | DMM (mm): 6 | Stock: Yes
GSH6050SF DC (mm): 5.0 | APMX (mm): 13.0 | LU (mm): 14.0 | LF (mm): 50 | DMM (mm): 6 | Stock: Yes
GSH6060SF DC (mm): 6.0 | APMX (mm): 13.0 | LF (mm): 50 | DMM (mm): 6 | Stock: Yes
GSH6080SF DC (mm): 8.0 | APMX (mm): 19.0 | LF (mm): 60 | DMM (mm): 8 | Stock: Yes
GSH6100SF DC (mm): 10.0 | APMX (mm): 22.0 | LF (mm): 70 | DMM (mm): 10 | Stock: Yes
GSH6120SF DC (mm): 12.0 | APMX (mm): 26.0 | LF (mm): 75 | DMM (mm): 12 | Stock: Yes
End MillsSumitomo Electric Hardmetal
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal GS MILL Hard 6-Flute Square End Mill GSH6000SF

Brand Sumitomo Electric Hardmetal·End Mills

Available part numbers (7)

GSH6030SF, GSH6040SF, GSH6050SF, GSH6060SF, GSH6080SF, GSH6100SF, GSH6120SF

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GSH6030SFDC (mm): 3.0 | APMX (mm): 8.0 | LU (mm): 9.0 | LF (mm): 50 | DMM (mm): 6 | Stock: Yes
GSH6040SFDC (mm): 4.0 | APMX (mm): 11.0 | LU (mm): 12.0 | LF (mm): 50 | DMM (mm): 6 | Stock: Yes
GSH6050SFDC (mm): 5.0 | APMX (mm): 13.0 | LU (mm): 14.0 | LF (mm): 50 | DMM (mm): 6 | Stock: Yes
GSH6060SFDC (mm): 6.0 | APMX (mm): 13.0 | LF (mm): 50 | DMM (mm): 6 | Stock: Yes
GSH6080SFDC (mm): 8.0 | APMX (mm): 19.0 | LF (mm): 60 | DMM (mm): 8 | Stock: Yes
GSH6100SFDC (mm): 10.0 | APMX (mm): 22.0 | LF (mm): 70 | DMM (mm): 10 | Stock: Yes
GSH6120SFDC (mm): 12.0 | APMX (mm): 26.0 | LF (mm): 75 | DMM (mm): 12 | Stock: Yes
