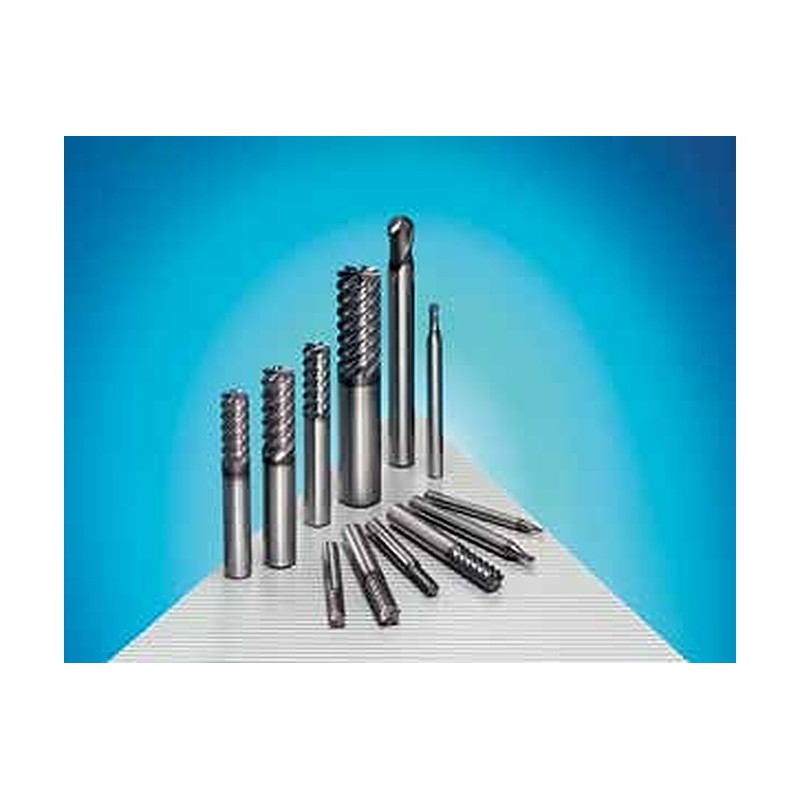

Sumitomo Electric Hardmetal GS MILL Hard 8-Flute Radius End Mill GSH8000SF-R

Sumitomo Electric Hardmetal GS MILL Hard 8-Flute Radius End Mill GSH8000SF-R

Solid carbide GS MILL Hard corner radius end mill for hardened steels.

Key features

  • GS Hard coating (Al-Ti-Cr multilayer) with high oxidation resistance at 1,100 C
  • New low-Co ultra-fine-grain carbide substrate
  • Radius type with improved fracture resistance for corner R machining

Specifications

Flutes 8
Grade ACF07C
Workpiece Carbon steel, Alloy steel, Pre-hardened steel, Tempered/die steel, Hardened steel 45-55HRC, Hardened steel 55-60HRC, Hardened steel 60-65HRC
GSH8160SF-R10 DC (mm): 16.0 | RE (mm): 1.0 | APMX (mm): 32.0 | LF (mm): 90 | DMM (mm): 16 | Stock: Yes
GSH8160SF-R15 DC (mm): 16.0 | RE (mm): 1.5 | APMX (mm): 32.0 | LF (mm): 90 | DMM (mm): 16 | Stock: Yes
GSH8160SF-R20 DC (mm): 16.0 | RE (mm): 2.0 | APMX (mm): 32.0 | LF (mm): 90 | DMM (mm): 16 | Stock: Yes
GSH8200SF-R10 DC (mm): 20.0 | RE (mm): 1.0 | APMX (mm): 38.0 | LF (mm): 100 | DMM (mm): 20 | Stock: Yes
GSH8200SF-R15 DC (mm): 20.0 | RE (mm): 1.5 | APMX (mm): 38.0 | LF (mm): 100 | DMM (mm): 20 | Stock: Yes
GSH8200SF-R20 DC (mm): 20.0 | RE (mm): 2.0 | APMX (mm): 38.0 | LF (mm): 100 | DMM (mm): 20 | Stock: Yes
End MillsSumitomo Electric Hardmetal
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal GS MILL Hard 8-Flute Radius End Mill GSH8000SF-R

Brand Sumitomo Electric Hardmetal·End Mills

Available part numbers (6)

GSH8160SF-R10, GSH8160SF-R15, GSH8160SF-R20, GSH8200SF-R10, GSH8200SF-R15, GSH8200SF-R20

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GSH8160SF-R10DC (mm): 16.0 | RE (mm): 1.0 | APMX (mm): 32.0 | LF (mm): 90 | DMM (mm): 16 | Stock: Yes
GSH8160SF-R15DC (mm): 16.0 | RE (mm): 1.5 | APMX (mm): 32.0 | LF (mm): 90 | DMM (mm): 16 | Stock: Yes
GSH8160SF-R20DC (mm): 16.0 | RE (mm): 2.0 | APMX (mm): 32.0 | LF (mm): 90 | DMM (mm): 16 | Stock: Yes
GSH8200SF-R10DC (mm): 20.0 | RE (mm): 1.0 | APMX (mm): 38.0 | LF (mm): 100 | DMM (mm): 20 | Stock: Yes
GSH8200SF-R15DC (mm): 20.0 | RE (mm): 1.5 | APMX (mm): 38.0 | LF (mm): 100 | DMM (mm): 20 | Stock: Yes
GSH8200SF-R20DC (mm): 20.0 | RE (mm): 2.0 | APMX (mm): 38.0 | LF (mm): 100 | DMM (mm): 20 | Stock: Yes
