• Sumitomo Electric Hardmetal GSX MILL 2-Flute Ball End Mill GSXB20000
1 1

Sumitomo Electric Hardmetal GSX MILL 2-Flute Ball End Mill GSXB20000

Sumitomo Electric Hardmetal GSX MILL 2-Flute Ball End Mill GSXB20000

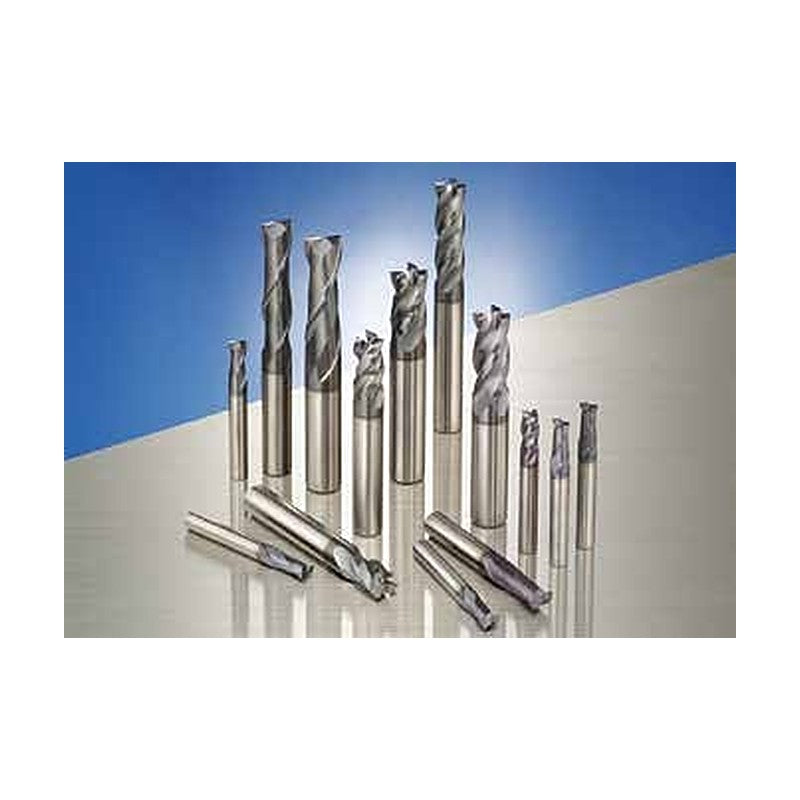

Solid carbide GSX MILL 2-flute ball end mill.

Key features

  • GSX coating with improved wear and heat resistance

Specifications

Flutes 2
Grade ACB20
Workpiece Carbon steel, Alloy steel, Pre-hardened steel, Tempered/die steel, Hardened steel 45-55HRC, Hardened steel 55-60HRC, Stainless steel, Ti alloy/heat-resistant alloy, Cast iron
GSXB20020 DC (mm): 0.4 | RE (mm): 0.20 | APMX (mm): 0.6 | LU (mm): 0.8 | LF (mm): 50 | DMM (mm): 4 | Stock: Yes
GSXB20030 DC (mm): 0.6 | RE (mm): 0.30 | APMX (mm): 0.9 | LU (mm): 1.2 | LF (mm): 50 | DMM (mm): 4 | Stock: Yes
GSXB20050 DC (mm): 1.0 | RE (mm): 0.50 | APMX (mm): 1.5 | LU (mm): 2.0 | LF (mm): 50 | DMM (mm): 4 | Stock: Yes
GSXB20075 DC (mm): 1.5 | RE (mm): 0.75 | APMX (mm): 2.5 | LU (mm): 3.0 | LF (mm): 50 | DMM (mm): 4 | Stock: Yes
GSXB20100 DC (mm): 2.0 | RE (mm): 1.00 | APMX (mm): 3.0 | LU (mm): 4.0 | LF (mm): 60 | DMM (mm): 6 | Stock: Yes
GSXB20125 DC (mm): 2.5 | RE (mm): 1.25 | APMX (mm): 4.0 | LU (mm): 5.0 | LF (mm): 60 | DMM (mm): 6 | Stock: Yes
GSXB20150 DC (mm): 3.0 | RE (mm): 1.50 | APMX (mm): 4.5 | LU (mm): 6.0 | LF (mm): 60 | DMM (mm): 6 | Stock: Yes
GSXB20200 DC (mm): 4.0 | RE (mm): 2.00 | APMX (mm): 6.0 | LU (mm): 8.0 | LF (mm): 70 | DMM (mm): 6 | Stock: Yes
GSXB20250 DC (mm): 5.0 | RE (mm): 2.50 | APMX (mm): 7.5 | LU (mm): 10.0 | LF (mm): 80 | DMM (mm): 6 | Stock: Yes
GSXB20300 DC (mm): 6.0 | RE (mm): 3.00 | APMX (mm): 9.0 | LF (mm): 80 | DMM (mm): 6 | Stock: Yes
GSXB20350 DC (mm): 7.0 | RE (mm): 3.50 | APMX (mm): 11.0 | LU (mm): 20.0 | LF (mm): 90 | DMM (mm): 8 | Stock: Yes
GSXB20400 DC (mm): 8.0 | RE (mm): 4.00 | APMX (mm): 12.0 | LF (mm): 90 | DMM (mm): 8 | Stock: Yes
GSXB20500 DC (mm): 10.0 | RE (mm): 5.00 | APMX (mm): 15.0 | LF (mm): 100 | DMM (mm): 10 | Stock: Yes
GSXB20600 DC (mm): 12.0 | RE (mm): 6.00 | APMX (mm): 18.0 | LF (mm): 110 | DMM (mm): 12 | Stock: Yes
GSXB20700 DC (mm): 14.0 | RE (mm): 7.00 | APMX (mm): 21.0 | LU (mm): 38.0 | LF (mm): 110 | DMM (mm): 16 | Stock: Yes
GSXB20800 DC (mm): 16.0 | RE (mm): 8.00 | APMX (mm): 24.0 | LF (mm): 140 | DMM (mm): 16 | Stock: Yes
GSXB20900 DC (mm): 18.0 | RE (mm): 9.00 | APMX (mm): 27.0 | LU (mm): 50.0 | LF (mm): 140 | DMM (mm): 20 | Stock: Yes
GSXB21000 DC (mm): 20.0 | RE (mm): 10.00 | APMX (mm): 30.0 | LF (mm): 160 | DMM (mm): 20 | Stock: Yes
Ball End MillsSumitomo Electric Hardmetal
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal GSX MILL 2-Flute Ball End Mill GSXB20000

Brand Sumitomo Electric Hardmetal·Ball End Mills

Available part numbers (18)

GSXB20020, GSXB20030, GSXB20050, GSXB20075, GSXB20100, GSXB20125, GSXB20150, GSXB20200, GSXB20250, GSXB20300 + 8 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GSXB20020DC (mm): 0.4 | RE (mm): 0.20 | APMX (mm): 0.6 | LU (mm): 0.8 | LF (mm): 50 | DMM (mm): 4 | Stock: Yes
GSXB20030DC (mm): 0.6 | RE (mm): 0.30 | APMX (mm): 0.9 | LU (mm): 1.2 | LF (mm): 50 | DMM (mm): 4 | Stock: Yes
GSXB20050DC (mm): 1.0 | RE (mm): 0.50 | APMX (mm): 1.5 | LU (mm): 2.0 | LF (mm): 50 | DMM (mm): 4 | Stock: Yes
GSXB20075DC (mm): 1.5 | RE (mm): 0.75 | APMX (mm): 2.5 | LU (mm): 3.0 | LF (mm): 50 | DMM (mm): 4 | Stock: Yes
GSXB20100DC (mm): 2.0 | RE (mm): 1.00 | APMX (mm): 3.0 | LU (mm): 4.0 | LF (mm): 60 | DMM (mm): 6 | Stock: Yes
GSXB20125DC (mm): 2.5 | RE (mm): 1.25 | APMX (mm): 4.0 | LU (mm): 5.0 | LF (mm): 60 | DMM (mm): 6 | Stock: Yes
GSXB20150DC (mm): 3.0 | RE (mm): 1.50 | APMX (mm): 4.5 | LU (mm): 6.0 | LF (mm): 60 | DMM (mm): 6 | Stock: Yes
GSXB20200DC (mm): 4.0 | RE (mm): 2.00 | APMX (mm): 6.0 | LU (mm): 8.0 | LF (mm): 70 | DMM (mm): 6 | Stock: Yes
GSXB20250DC (mm): 5.0 | RE (mm): 2.50 | APMX (mm): 7.5 | LU (mm): 10.0 | LF (mm): 80 | DMM (mm): 6 | Stock: Yes
GSXB20300DC (mm): 6.0 | RE (mm): 3.00 | APMX (mm): 9.0 | LF (mm): 80 | DMM (mm): 6 | Stock: Yes
GSXB20350DC (mm): 7.0 | RE (mm): 3.50 | APMX (mm): 11.0 | LU (mm): 20.0 | LF (mm): 90 | DMM (mm): 8 | Stock: Yes
GSXB20400DC (mm): 8.0 | RE (mm): 4.00 | APMX (mm): 12.0 | LF (mm): 90 | DMM (mm): 8 | Stock: Yes
GSXB20500DC (mm): 10.0 | RE (mm): 5.00 | APMX (mm): 15.0 | LF (mm): 100 | DMM (mm): 10 | Stock: Yes
GSXB20600DC (mm): 12.0 | RE (mm): 6.00 | APMX (mm): 18.0 | LF (mm): 110 | DMM (mm): 12 | Stock: Yes
GSXB20700DC (mm): 14.0 | RE (mm): 7.00 | APMX (mm): 21.0 | LU (mm): 38.0 | LF (mm): 110 | DMM (mm): 16 | Stock: Yes
GSXB20800DC (mm): 16.0 | RE (mm): 8.00 | APMX (mm): 24.0 | LF (mm): 140 | DMM (mm): 16 | Stock: Yes
GSXB20900DC (mm): 18.0 | RE (mm): 9.00 | APMX (mm): 27.0 | LU (mm): 50.0 | LF (mm): 140 | DMM (mm): 20 | Stock: Yes
GSXB21000DC (mm): 20.0 | RE (mm): 10.00 | APMX (mm): 30.0 | LF (mm): 160 | DMM (mm): 20 | Stock: Yes
