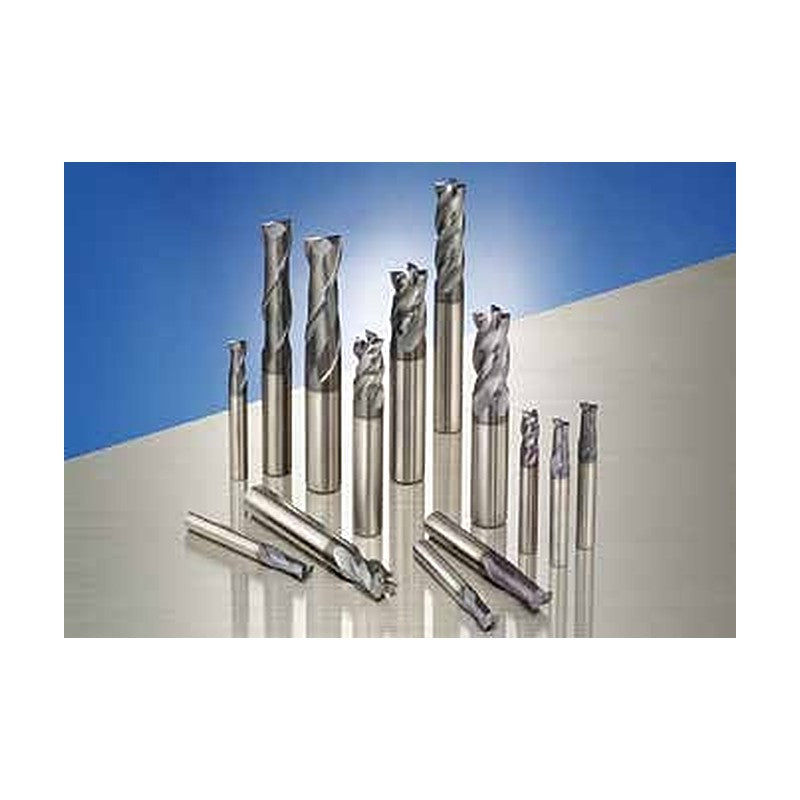

Sumitomo Electric Hardmetal GSX MILL 2-Flute Sharp Corner End Mill GSX20000S-2D

Sumitomo Electric Hardmetal GSX MILL 2-Flute Sharp Corner End Mill GSX20000S-2D

Solid carbide GSX MILL square end mill for general-purpose machining of steels, cast iron, stainless steel and heat-resistant alloys.

Key features

  • GSX coating with improved wear and heat resistance
  • Fine-grain carbide substrate with high transverse rupture strength
  • Large rake angle and proprietary flute form for cutting performance and chip evacuation
  • S type: sharp corner, emphasis on cutting performance

Specifications

Flutes 2
Grade ACF20
Workpiece Carbon steel, Alloy steel, Pre-hardened steel, Tempered/die steel, Hardened steel 45-55HRC, Hardened steel 55-60HRC, Stainless steel, Ti alloy/heat-resistant alloy, Cast iron
GSX20030S-2D DC (mm): 0.3 | APMX (mm): 0.6 | LU (mm): 1.0 | LF (mm): 40 | DMM (mm): 4 | Stock: Yes
GSX20040S-2D DC (mm): 0.4 | APMX (mm): 0.8 | LU (mm): 1.2 | LF (mm): 40 | DMM (mm): 4 | Stock: Yes
GSX20050S-2D DC (mm): 0.5 | APMX (mm): 1.3 | LU (mm): 1.7 | LF (mm): 40 | DMM (mm): 4 | Stock: Yes
GSX20060S-2D DC (mm): 0.6 | APMX (mm): 1.3 | LU (mm): 1.8 | LF (mm): 40 | DMM (mm): 4 | Stock: Yes
GSX20070S-2D DC (mm): 0.7 | APMX (mm): 1.4 | LU (mm): 1.9 | LF (mm): 40 | DMM (mm): 4 | Stock: Yes
GSX20080S-2D DC (mm): 0.8 | APMX (mm): 1.6 | LU (mm): 2.1 | LF (mm): 40 | DMM (mm): 4 | Stock: Yes
GSX20090S-2D DC (mm): 0.9 | APMX (mm): 1.8 | LU (mm): 2.3 | LF (mm): 40 | DMM (mm): 4 | Stock: Yes
GSX20100S-2D DC (mm): 1.0 | APMX (mm): 2.5 | LU (mm): 3.5 | LF (mm): 40 | DMM (mm): 4 | Stock: Yes
GSX20110S-2D DC (mm): 1.1 | APMX (mm): 2.5 | LU (mm): 3.5 | LF (mm): 40 | DMM (mm): 4 | Stock: Yes
GSX20120S-2D DC (mm): 1.2 | APMX (mm): 2.5 | LU (mm): 3.5 | LF (mm): 40 | DMM (mm): 4 | Stock: Yes
GSX20130S-2D DC (mm): 1.3 | APMX (mm): 2.6 | LU (mm): 3.6 | LF (mm): 40 | DMM (mm): 4 | Stock: Yes
GSX20140S-2D DC (mm): 1.4 | APMX (mm): 2.8 | LU (mm): 3.8 | LF (mm): 40 | DMM (mm): 4 | Stock: Yes
GSX20150S-2D DC (mm): 1.5 | APMX (mm): 3.8 | LU (mm): 4.8 | LF (mm): 40 | DMM (mm): 4 | Stock: Yes
GSX20150S-2D-S3 DC (mm): 1.5 | APMX (mm): 3.8 | LU (mm): 4.8 | LF (mm): 38 | DMM (mm): 3 | Stock: Yes
GSX20160S-2D DC (mm): 1.6 | APMX (mm): 3.8 | LU (mm): 4.8 | LF (mm): 40 | DMM (mm): 4 | Stock: Yes
GSX20170S-2D DC (mm): 1.7 | APMX (mm): 3.8 | LU (mm): 4.8 | LF (mm): 40 | DMM (mm): 4 | Stock: Yes
GSX20180S-2D DC (mm): 1.8 | APMX (mm): 3.8 | LU (mm): 4.8 | LF (mm): 40 | DMM (mm): 4 | Stock: Yes
GSX20190S-2D DC (mm): 1.9 | APMX (mm): 3.8 | LU (mm): 4.8 | LF (mm): 40 | DMM (mm): 4 | Stock: Yes
GSX20200S-2D DC (mm): 2.0 | APMX (mm): 5.0 | LU (mm): 6.0 | LF (mm): 40 | DMM (mm): 4 | Stock: Yes
GSX20200S-2D-S3 DC (mm): 2.0 | APMX (mm): 5.0 | LU (mm): 6.0 | LF (mm): 38 | DMM (mm): 3 | Stock: Yes
GSX20210S-2D DC (mm): 2.1 | APMX (mm): 6.0 | LU (mm): 7.0 | LF (mm): 40 | DMM (mm): 4 | Stock: Yes
GSX20220S-2D DC (mm): 2.2 | APMX (mm): 6.0 | LU (mm): 7.0 | LF (mm): 40 | DMM (mm): 4 | Stock: Yes
GSX20230S-2D DC (mm): 2.3 | APMX (mm): 6.0 | LU (mm): 7.0 | LF (mm): 40 | DMM (mm): 4 | Stock: Yes
GSX20240S-2D DC (mm): 2.4 | APMX (mm): 6.0 | LU (mm): 7.0 | LF (mm): 40 | DMM (mm): 4 | Stock: Yes
GSX20250S-2D DC (mm): 2.5 | APMX (mm): 6.3 | LU (mm): 7.3 | LF (mm): 40 | DMM (mm): 4 | Stock: Yes
GSX20260S-2D DC (mm): 2.6 | APMX (mm): 7.0 | LU (mm): 8.0 | LF (mm): 40 | DMM (mm): 4 | Stock: Yes
GSX20270S-2D DC (mm): 2.7 | APMX (mm): 7.0 | LU (mm): 8.0 | LF (mm): 40 | DMM (mm): 4 | Stock: Yes
GSX20280S-2D DC (mm): 2.8 | APMX (mm): 7.0 | LU (mm): 8.0 | LF (mm): 40 | DMM (mm): 4 | Stock: Yes
GSX20290S-2D DC (mm): 2.9 | APMX (mm): 7.0 | LU (mm): 8.0 | LF (mm): 40 | DMM (mm): 4 | Stock: Yes
GSX20300S-2D DC (mm): 3.0 | APMX (mm): 7.5 | LU (mm): 9.0 | LF (mm): 45 | DMM (mm): 6 | Stock: Yes
GSX20300S-2D-S3 DC (mm): 3.0 | APMX (mm): 7.5 | LF (mm): 38 | DMM (mm): 3 | Stock: Yes
GSX20310S-2D DC (mm): 3.1 | APMX (mm): 7.5 | LU (mm): 9.0 | LF (mm): 45 | DMM (mm): 6 | Stock: Yes
GSX20320S-2D DC (mm): 3.2 | APMX (mm): 7.5 | LU (mm): 9.0 | LF (mm): 45 | DMM (mm): 6 | Stock: Yes
GSX20330S-2D DC (mm): 3.3 | APMX (mm): 7.5 | LU (mm): 9.0 | LF (mm): 45 | DMM (mm): 6 | Stock: Yes
GSX20340S-2D DC (mm): 3.4 | APMX (mm): 7.5 | LU (mm): 9.0 | LF (mm): 45 | DMM (mm): 6 | Stock: Yes
GSX20350S-2D DC (mm): 3.5 | APMX (mm): 8.8 | LU (mm): 10.3 | LF (mm): 45 | DMM (mm): 6 | Stock: Yes
GSX20360S-2D DC (mm): 3.6 | APMX (mm): 8.8 | LU (mm): 10.3 | LF (mm): 45 | DMM (mm): 6 | Stock: Yes
GSX20370S-2D DC (mm): 3.7 | APMX (mm): 8.8 | LU (mm): 10.3 | LF (mm): 45 | DMM (mm): 6 | Stock: Yes
GSX20380S-2D DC (mm): 3.8 | APMX (mm): 8.8 | LU (mm): 10.3 | LF (mm): 45 | DMM (mm): 6 | Stock: Yes
GSX20390S-2D DC (mm): 3.9 | APMX (mm): 8.8 | LU (mm): 10.3 | LF (mm): 45 | DMM (mm): 6 | Stock: Yes
GSX20400S-2D DC (mm): 4.0 | APMX (mm): 11.0 | LU (mm): 14.0 | LF (mm): 45 | DMM (mm): 6 | Stock: Yes
GSX20400S-2D-S4 DC (mm): 4.0 | APMX (mm): 11.0 | LF (mm): 45 | DMM (mm): 4 | Stock: Yes
GSX20410S-2D DC (mm): 4.1 | APMX (mm): 11.0 | LU (mm): 14.0 | LF (mm): 45 | DMM (mm): 6 | Stock: Yes
GSX20420S-2D DC (mm): 4.2 | APMX (mm): 11.0 | LU (mm): 14.0 | LF (mm): 45 | DMM (mm): 6 | Stock: Yes
GSX20430S-2D DC (mm): 4.3 | APMX (mm): 11.0 | LU (mm): 14.0 | LF (mm): 45 | DMM (mm): 6 | Stock: Yes
GSX20440S-2D DC (mm): 4.4 | APMX (mm): 11.0 | LU (mm): 14.0 | LF (mm): 45 | DMM (mm): 6 | Stock: Yes
GSX20450S-2D DC (mm): 4.5 | APMX (mm): 11.3 | LU (mm): 12.8 | LF (mm): 50 | DMM (mm): 6 | Stock: Yes
GSX20460S-2D DC (mm): 4.6 | APMX (mm): 11.3 | LU (mm): 12.8 | LF (mm): 50 | DMM (mm): 6 | Stock: Yes
GSX20470S-2D DC (mm): 4.7 | APMX (mm): 11.3 | LU (mm): 12.8 | LF (mm): 50 | DMM (mm): 6 | Stock: Yes
GSX20480S-2D DC (mm): 4.8 | APMX (mm): 11.3 | LU (mm): 12.8 | LF (mm): 50 | DMM (mm): 6 | Stock: Yes
GSX20490S-2D DC (mm): 4.9 | APMX (mm): 11.3 | LU (mm): 12.8 | LF (mm): 50 | DMM (mm): 6 | Stock: Yes
GSX20500S-2D DC (mm): 5.0 | APMX (mm): 13.0 | LU (mm): 19.6 | LF (mm): 50 | DMM (mm): 6 | Stock: Yes
GSX20510S-2D DC (mm): 5.1 | APMX (mm): 13.0 | LU (mm): 19.6 | LF (mm): 50 | DMM (mm): 6 | Stock: Yes
GSX20520S-2D DC (mm): 5.2 | APMX (mm): 13.0 | LU (mm): 19.6 | LF (mm): 50 | DMM (mm): 6 | Stock: Yes
GSX20530S-2D DC (mm): 5.3 | APMX (mm): 13.0 | LU (mm): 19.6 | LF (mm): 50 | DMM (mm): 6 | Stock: Yes
GSX20540S-2D DC (mm): 5.4 | APMX (mm): 13.0 | LU (mm): 19.6 | LF (mm): 50 | DMM (mm): 6 | Stock: Yes
GSX20550S-2D DC (mm): 5.5 | APMX (mm): 13.0 | LU (mm): 19.6 | LF (mm): 50 | DMM (mm): 6 | Stock: Yes
GSX20560S-2D DC (mm): 5.6 | APMX (mm): 13.0 | LU (mm): 19.6 | LF (mm): 50 | DMM (mm): 6 | Stock: Yes
GSX20570S-2D DC (mm): 5.7 | APMX (mm): 13.0 | LU (mm): 19.6 | LF (mm): 50 | DMM (mm): 6 | Stock: Yes
GSX20580S-2D DC (mm): 5.8 | APMX (mm): 13.0 | LU (mm): 19.6 | LF (mm): 50 | DMM (mm): 6 | Stock: Yes
GSX20590S-2D DC (mm): 5.9 | APMX (mm): 13.0 | LU (mm): 19.6 | LF (mm): 50 | DMM (mm): 6 | Stock: Yes
GSX20600S-2D DC (mm): 6.0 | APMX (mm): 13.0 | LF (mm): 50 | DMM (mm): 6 | Stock: Yes
GSX20610S-2D DC (mm): 6.1 | APMX (mm): 13.0 | LU (mm): 19.6 | LF (mm): 50 | DMM (mm): 8 | Stock: Yes
GSX20620S-2D DC (mm): 6.2 | APMX (mm): 13.0 | LU (mm): 19.6 | LF (mm): 50 | DMM (mm): 8 | Stock: Yes
GSX20630S-2D DC (mm): 6.3 | APMX (mm): 13.0 | LU (mm): 19.6 | LF (mm): 50 | DMM (mm): 8 | Stock: Yes
GSX20640S-2D DC (mm): 6.4 | APMX (mm): 13.0 | LU (mm): 19.6 | LF (mm): 50 | DMM (mm): 8 | Stock: Yes
GSX20650S-2D DC (mm): 6.5 | APMX (mm): 13.0 | LU (mm): 19.6 | LF (mm): 60 | DMM (mm): 8 | Stock: Yes
GSX20660S-2D DC (mm): 6.6 | APMX (mm): 13.2 | LU (mm): 19.8 | LF (mm): 60 | DMM (mm): 8 | Stock: Yes
GSX20670S-2D DC (mm): 6.7 | APMX (mm): 13.4 | LU (mm): 20.0 | LF (mm): 60 | DMM (mm): 8 | Stock: Yes
GSX20680S-2D DC (mm): 6.8 | APMX (mm): 13.6 | LU (mm): 20.2 | LF (mm): 60 | DMM (mm): 8 | Stock: Yes
GSX20690S-2D DC (mm): 6.9 | APMX (mm): 13.8 | LU (mm): 20.4 | LF (mm): 60 | DMM (mm): 8 | Stock: Yes
GSX20700S-2D DC (mm): 7.0 | APMX (mm): 16.0 | LU (mm): 21.1 | LF (mm): 60 | DMM (mm): 8 | Stock: Yes
GSX20710S-2D DC (mm): 7.1 | APMX (mm): 16.0 | LU (mm): 21.1 | LF (mm): 60 | DMM (mm): 8 | Stock: Yes
GSX20720S-2D DC (mm): 7.2 | APMX (mm): 16.0 | LU (mm): 21.1 | LF (mm): 60 | DMM (mm): 8 | Stock: Yes
GSX20730S-2D DC (mm): 7.3 | APMX (mm): 16.0 | LU (mm): 21.1 | LF (mm): 60 | DMM (mm): 8 | Stock: Yes
GSX20740S-2D DC (mm): 7.4 | APMX (mm): 16.0 | LU (mm): 21.1 | LF (mm): 60 | DMM (mm): 8 | Stock: Yes
GSX20750S-2D DC (mm): 7.5 | APMX (mm): 16.0 | LU (mm): 21.1 | LF (mm): 60 | DMM (mm): 8 | Stock: Yes
GSX20760S-2D DC (mm): 7.6 | APMX (mm): 16.0 | LU (mm): 21.1 | LF (mm): 60 | DMM (mm): 8 | Stock: Yes
GSX20770S-2D DC (mm): 7.7 | APMX (mm): 16.0 | LU (mm): 21.1 | LF (mm): 60 | DMM (mm): 8 | Stock: Yes
GSX20780S-2D DC (mm): 7.8 | APMX (mm): 16.0 | LU (mm): 21.1 | LF (mm): 60 | DMM (mm): 8 | Stock: Yes
GSX20790S-2D DC (mm): 7.9 | APMX (mm): 16.0 | LU (mm): 21.1 | LF (mm): 60 | DMM (mm): 8 | Stock: Yes
GSX20800S-2D DC (mm): 8.0 | APMX (mm): 19.0 | LF (mm): 60 | DMM (mm): 8 | Stock: Yes
GSX20810S-2D DC (mm): 8.1 | APMX (mm): 19.0 | LU (mm): 24.1 | LF (mm): 60 | DMM (mm): 10 | Stock: Yes
GSX20820S-2D DC (mm): 8.2 | APMX (mm): 19.0 | LU (mm): 24.1 | LF (mm): 60 | DMM (mm): 10 | Stock: Yes
GSX20830S-2D DC (mm): 8.3 | APMX (mm): 19.0 | LU (mm): 24.1 | LF (mm): 60 | DMM (mm): 10 | Stock: Yes
GSX20840S-2D DC (mm): 8.4 | APMX (mm): 19.0 | LU (mm): 24.1 | LF (mm): 60 | DMM (mm): 10 | Stock: Yes
GSX20850S-2D DC (mm): 8.5 | APMX (mm): 19.0 | LU (mm): 24.1 | LF (mm): 70 | DMM (mm): 10 | Stock: Yes
GSX20860S-2D DC (mm): 8.6 | APMX (mm): 19.0 | LU (mm): 24.1 | LF (mm): 70 | DMM (mm): 10 | Stock: Yes
GSX20870S-2D DC (mm): 8.7 | APMX (mm): 19.0 | LU (mm): 24.1 | LF (mm): 70 | DMM (mm): 10 | Stock: Yes
GSX20880S-2D DC (mm): 8.8 | APMX (mm): 19.0 | LU (mm): 24.1 | LF (mm): 70 | DMM (mm): 10 | Stock: Yes
GSX20890S-2D DC (mm): 8.9 | APMX (mm): 19.0 | LU (mm): 24.1 | LF (mm): 70 | DMM (mm): 10 | Stock: Yes
GSX20900S-2D DC (mm): 9.0 | APMX (mm): 19.0 | LU (mm): 24.1 | LF (mm): 70 | DMM (mm): 10 | Stock: Yes
GSX20910S-2D DC (mm): 9.1 | APMX (mm): 19.0 | LU (mm): 24.1 | LF (mm): 70 | DMM (mm): 10 | Stock: Yes
GSX20920S-2D DC (mm): 9.2 | APMX (mm): 19.0 | LU (mm): 24.1 | LF (mm): 70 | DMM (mm): 10 | Stock: Yes
GSX20930S-2D DC (mm): 9.3 | APMX (mm): 19.0 | LU (mm): 24.1 | LF (mm): 70 | DMM (mm): 10 | Stock: Yes
GSX20940S-2D DC (mm): 9.4 | APMX (mm): 19.0 | LU (mm): 24.1 | LF (mm): 70 | DMM (mm): 10 | Stock: Yes
GSX20950S-2D DC (mm): 9.5 | APMX (mm): 20.0 | LU (mm): 25.1 | LF (mm): 70 | DMM (mm): 10 | Stock: Yes
GSX20960S-2D DC (mm): 9.6 | APMX (mm): 20.0 | LU (mm): 25.1 | LF (mm): 70 | DMM (mm): 10 | Stock: Yes
GSX20970S-2D DC (mm): 9.7 | APMX (mm): 20.0 | LU (mm): 25.1 | LF (mm): 70 | DMM (mm): 10 | Stock: Yes
GSX20980S-2D DC (mm): 9.8 | APMX (mm): 20.0 | LU (mm): 25.1 | LF (mm): 70 | DMM (mm): 10 | Stock: Yes
GSX20990S-2D DC (mm): 9.9 | APMX (mm): 20.0 | LU (mm): 25.1 | LF (mm): 70 | DMM (mm): 10 | Stock: Yes
GSX21000S-2D DC (mm): 10.0 | APMX (mm): 22.0 | LF (mm): 70 | DMM (mm): 10 | Stock: Yes
GSX21050S-2D DC (mm): 10.5 | APMX (mm): 22.0 | LU (mm): 24.5 | LF (mm): 75 | DMM (mm): 12 | Stock: Yes
GSX21100S-2D DC (mm): 11.0 | APMX (mm): 22.0 | LU (mm): 24.5 | LF (mm): 75 | DMM (mm): 12 | Stock: Yes
GSX21150S-2D DC (mm): 11.5 | APMX (mm): 23.0 | LU (mm): 25.5 | LF (mm): 75 | DMM (mm): 12 | Stock: Yes
GSX21200S-2D DC (mm): 12.0 | APMX (mm): 26.0 | LF (mm): 75 | DMM (mm): 12 | Stock: Yes
GSX21250S-2D DC (mm): 12.5 | APMX (mm): 26.0 | LU (mm): 29.5 | LF (mm): 75 | DMM (mm): 16 | Stock: Yes
GSX21300S-2D DC (mm): 13.0 | APMX (mm): 26.0 | LU (mm): 29.5 | LF (mm): 90 | DMM (mm): 16 | Stock: Yes
GSX21400S-2D DC (mm): 14.0 | APMX (mm): 28.0 | LU (mm): 31.5 | LF (mm): 90 | DMM (mm): 16 | Stock: Yes
GSX21500S-2D DC (mm): 15.0 | APMX (mm): 30.0 | LU (mm): 33.5 | LF (mm): 90 | DMM (mm): 16 | Stock: Yes
GSX21600S-2D DC (mm): 16.0 | APMX (mm): 32.0 | LF (mm): 90 | DMM (mm): 16 | Stock: Yes
GSX21700S-2D DC (mm): 17.0 | APMX (mm): 35.0 | LU (mm): 39.5 | LF (mm): 100 | DMM (mm): 20 | Stock: Yes
GSX21800S-2D DC (mm): 18.0 | APMX (mm): 40.0 | LU (mm): 44.5 | LF (mm): 100 | DMM (mm): 20 | Stock: Yes
GSX21900S-2D DC (mm): 19.0 | APMX (mm): 40.0 | LU (mm): 44.5 | LF (mm): 100 | DMM (mm): 20 | Stock: Yes
GSX22000S-2D DC (mm): 20.0 | APMX (mm): 40.0 | LF (mm): 100 | DMM (mm): 20 | Stock: Yes
GSX22100S-2D DC (mm): 21.0 | APMX (mm): 42.0 | LU (mm): 47.0 | LF (mm): 110 | DMM (mm): 25 | Stock: Yes
GSX22200S-2D DC (mm): 22.0 | APMX (mm): 44.0 | LU (mm): 49.0 | LF (mm): 110 | DMM (mm): 25 | Stock: Yes
GSX22300S-2D DC (mm): 23.0 | APMX (mm): 46.0 | LU (mm): 51.0 | LF (mm): 120 | DMM (mm): 25 | Stock: Yes
GSX22400S-2D DC (mm): 24.0 | APMX (mm): 48.0 | LU (mm): 53.0 | LF (mm): 120 | DMM (mm): 25 | Stock: Yes
GSX22500S-2D DC (mm): 25.0 | APMX (mm): 50.0 | LF (mm): 120 | DMM (mm): 25 | Stock: Yes
