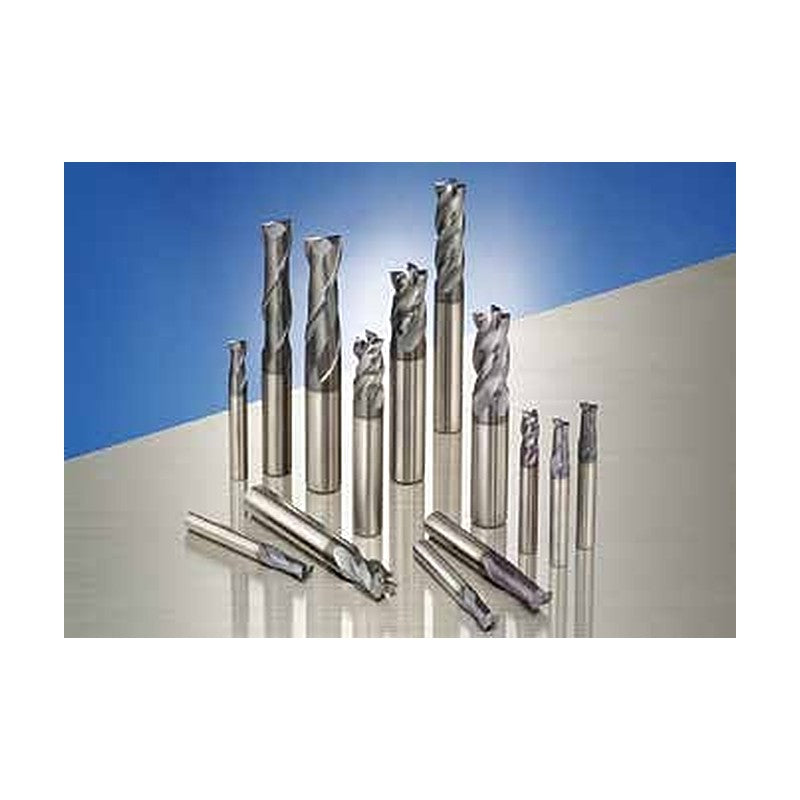

Sumitomo Electric Hardmetal GSX MILL 3-Flute Slot End Mill GSXSLT30000C-1.5D

Sumitomo Electric Hardmetal GSX MILL 3-Flute Slot End Mill GSXSLT30000C-1.5D

Solid carbide GSX MILL 3-flute slot end mill for slotting, side milling and drilling.

Key features

  • GSX coating with improved wear and heat resistance
  • Fine-grain carbide substrate with high transverse rupture strength
  • Multi-function slotting type; recommended up to 50HRC

Specifications

Flutes 3
Grade ACF20
Workpiece General steel, Carbon steel, Alloy steel, Pre-hardened steel, Tempered/die steel, Hardened steel 45-55HRC, Stainless steel, Ti alloy/heat-resistant alloy, Cast iron
GSXSLT30100C-1.5D DC (mm): 1.0 | APMX (mm): 1.5 | LU (mm): 2.5 | LF (mm): 40 | DMM (mm): 4 | Stock: Yes
GSXSLT30150C-1.5D DC (mm): 1.5 | APMX (mm): 2.3 | LU (mm): 3.3 | LF (mm): 40 | DMM (mm): 4 | Stock: Yes
GSXSLT30200C-1.5D DC (mm): 2.0 | APMX (mm): 3.0 | LU (mm): 4.0 | LF (mm): 40 | DMM (mm): 4 | Stock: Yes
GSXSLT30250C-1.5D DC (mm): 2.5 | APMX (mm): 3.8 | LU (mm): 4.8 | LF (mm): 40 | DMM (mm): 4 | Stock: Yes
GSXSLT30300C-1.5D DC (mm): 3.0 | APMX (mm): 4.5 | LU (mm): 6.0 | LF (mm): 45 | DMM (mm): 6 | Stock: Yes
GSXSLT30400C-1.5D DC (mm): 4.0 | APMX (mm): 6.0 | LU (mm): 7.5 | LF (mm): 45 | DMM (mm): 6 | Stock: Yes
GSXSLT30500C-1.5D DC (mm): 5.0 | APMX (mm): 7.5 | LU (mm): 9.5 | LF (mm): 50 | DMM (mm): 6 | Stock: Yes
GSXSLT30600C-1.5D DC (mm): 6.0 | APMX (mm): 9.0 | LF (mm): 50 | DMM (mm): 6 | Stock: Yes
GSXSLT30700C-1.5D DC (mm): 7.0 | APMX (mm): 11.0 | LU (mm): 13.0 | LF (mm): 60 | DMM (mm): 8 | Stock: Yes
GSXSLT30800C-1.5D DC (mm): 8.0 | APMX (mm): 12.0 | LF (mm): 60 | DMM (mm): 8 | Stock: Yes
GSXSLT30900C-1.5D DC (mm): 9.0 | APMX (mm): 14.0 | LU (mm): 16.0 | LF (mm): 70 | DMM (mm): 10 | Stock: Yes
GSXSLT31000C-1.5D DC (mm): 10.0 | APMX (mm): 15.0 | LF (mm): 70 | DMM (mm): 10 | Stock: Yes
GSXSLT31200C-1.5D DC (mm): 12.0 | APMX (mm): 18.0 | LF (mm): 75 | DMM (mm): 12 | Stock: Yes
End MillsSumitomo Electric Hardmetal
13 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal GSX MILL 3-Flute Slot End Mill GSXSLT30000C-1.5D

Brand Sumitomo Electric Hardmetal·End Mills

Available part numbers (13)

GSXSLT30100C-1.5D, GSXSLT30150C-1.5D, GSXSLT30200C-1.5D, GSXSLT30250C-1.5D, GSXSLT30300C-1.5D, GSXSLT30400C-1.5D, GSXSLT30500C-1.5D, GSXSLT30600C-1.5D, GSXSLT30700C-1.5D, GSXSLT30800C-1.5D + 3 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GSXSLT30100C-1.5DDC (mm): 1.0 | APMX (mm): 1.5 | LU (mm): 2.5 | LF (mm): 40 | DMM (mm): 4 | Stock: Yes
GSXSLT30150C-1.5DDC (mm): 1.5 | APMX (mm): 2.3 | LU (mm): 3.3 | LF (mm): 40 | DMM (mm): 4 | Stock: Yes
GSXSLT30200C-1.5DDC (mm): 2.0 | APMX (mm): 3.0 | LU (mm): 4.0 | LF (mm): 40 | DMM (mm): 4 | Stock: Yes
GSXSLT30250C-1.5DDC (mm): 2.5 | APMX (mm): 3.8 | LU (mm): 4.8 | LF (mm): 40 | DMM (mm): 4 | Stock: Yes
GSXSLT30300C-1.5DDC (mm): 3.0 | APMX (mm): 4.5 | LU (mm): 6.0 | LF (mm): 45 | DMM (mm): 6 | Stock: Yes
GSXSLT30400C-1.5DDC (mm): 4.0 | APMX (mm): 6.0 | LU (mm): 7.5 | LF (mm): 45 | DMM (mm): 6 | Stock: Yes
GSXSLT30500C-1.5DDC (mm): 5.0 | APMX (mm): 7.5 | LU (mm): 9.5 | LF (mm): 50 | DMM (mm): 6 | Stock: Yes
GSXSLT30600C-1.5DDC (mm): 6.0 | APMX (mm): 9.0 | LF (mm): 50 | DMM (mm): 6 | Stock: Yes
GSXSLT30700C-1.5DDC (mm): 7.0 | APMX (mm): 11.0 | LU (mm): 13.0 | LF (mm): 60 | DMM (mm): 8 | Stock: Yes
GSXSLT30800C-1.5DDC (mm): 8.0 | APMX (mm): 12.0 | LF (mm): 60 | DMM (mm): 8 | Stock: Yes
GSXSLT30900C-1.5DDC (mm): 9.0 | APMX (mm): 14.0 | LU (mm): 16.0 | LF (mm): 70 | DMM (mm): 10 | Stock: Yes
GSXSLT31000C-1.5DDC (mm): 10.0 | APMX (mm): 15.0 | LF (mm): 70 | DMM (mm): 10 | Stock: Yes
GSXSLT31200C-1.5DDC (mm): 12.0 | APMX (mm): 18.0 | LF (mm): 75 | DMM (mm): 12 | Stock: Yes
