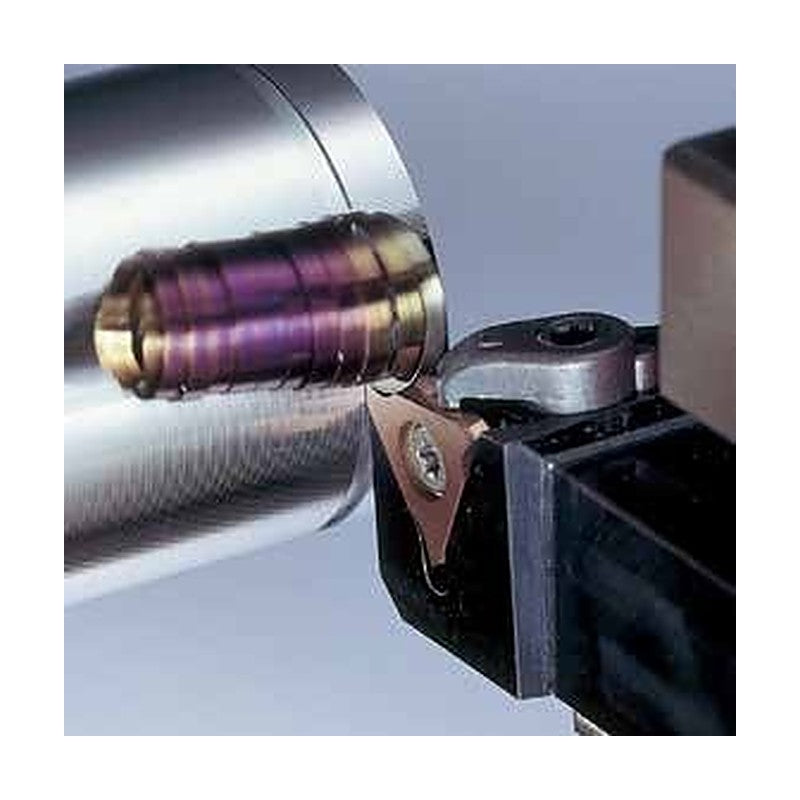

Sumitomo Electric Hardmetal GWCI Internal Shallow Grooving Bar

Sumitomo Electric Hardmetal GWCI Internal Shallow Grooving Bar

SEC grooving bar GWCI type for internal shallow grooving with screw-on clamping, from a minimum bore of 35 mm.

Key features

  • Shares inserts with the GWC type
  • Screw-on clamping
  • Minimum machining diameter 35 mm
GWCI R325 Shank dia DCON (mm): 25 | Height H (mm): 23 | Length LF (mm): 220 | WF (mm): 17.5 | Cutting height HF (mm): 11.5 | Min machining dia DMIN (mm): 35 | Rake angle GAMF: 14° | Cutting width CW (mm): 0.33~2.80 | Max groove depth (mm): 0.5~2.0 | Stock: Yes
GWCI L325 Shank dia DCON (mm): 25 | Height H (mm): 23 | Length LF (mm): 220 | WF (mm): 17.5 | Cutting height HF (mm): 11.5 | Min machining dia DMIN (mm): 35 | Rake angle GAMF: 14° | Cutting width CW (mm): 0.33~2.80 | Max groove depth (mm): 0.5~2.0 | Stock: Yes
GWCI R432 Shank dia DCON (mm): 32 | Height H (mm): 30 | Length LF (mm): 250 | WF (mm): 23.0 | Cutting height HF (mm): 15.0 | Min machining dia DMIN (mm): 40 | Rake angle GAMF: 16° | Cutting width CW (mm): 1.25~4.80 | Max groove depth (mm): 1.7~2.5 | Stock: Yes
GWCI L432 Shank dia DCON (mm): 32 | Height H (mm): 30 | Length LF (mm): 250 | WF (mm): 23.0 | Cutting height HF (mm): 15.0 | Min machining dia DMIN (mm): 40 | Rake angle GAMF: 16° | Cutting width CW (mm): 1.25~4.80 | Max groove depth (mm): 1.7~2.5 | Stock: Yes
Grooving HoldersSumitomo Electric Hardmetal
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal GWCI Internal Shallow Grooving Bar

Brand Sumitomo Electric Hardmetal·Grooving Holders

Available part numbers (4)

GWCI R325, GWCI L325, GWCI R432, GWCI L432

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GWCI R325Shank dia DCON (mm): 25 | Height H (mm): 23 | Length LF (mm): 220 | WF (mm): 17.5 | Cutting height HF (mm): 11.5 | Min machining dia DMIN (mm): 35 | Rake angle GAMF: 14° | Cutting width CW (mm): 0.33~2.80 | Max groove depth (mm): 0.5~2.0 | Stock: Yes
GWCI L325Shank dia DCON (mm): 25 | Height H (mm): 23 | Length LF (mm): 220 | WF (mm): 17.5 | Cutting height HF (mm): 11.5 | Min machining dia DMIN (mm): 35 | Rake angle GAMF: 14° | Cutting width CW (mm): 0.33~2.80 | Max groove depth (mm): 0.5~2.0 | Stock: Yes
GWCI R432Shank dia DCON (mm): 32 | Height H (mm): 30 | Length LF (mm): 250 | WF (mm): 23.0 | Cutting height HF (mm): 15.0 | Min machining dia DMIN (mm): 40 | Rake angle GAMF: 16° | Cutting width CW (mm): 1.25~4.80 | Max groove depth (mm): 1.7~2.5 | Stock: Yes
GWCI L432Shank dia DCON (mm): 32 | Height H (mm): 30 | Length LF (mm): 250 | WF (mm): 23.0 | Cutting height HF (mm): 15.0 | Min machining dia DMIN (mm): 40 | Rake angle GAMF: 16° | Cutting width CW (mm): 1.25~4.80 | Max groove depth (mm): 1.7~2.5 | Stock: Yes
