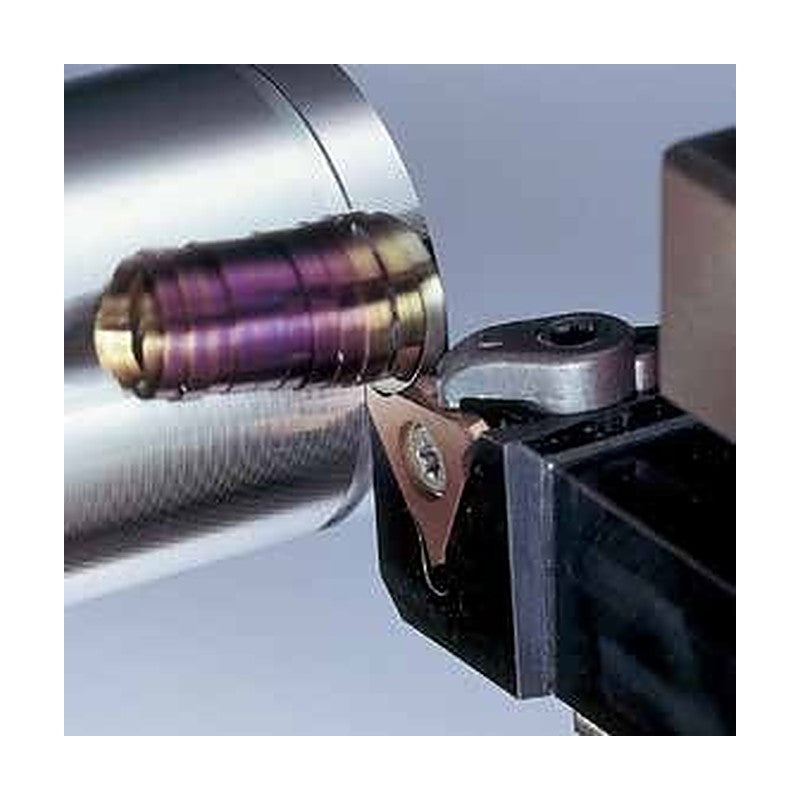

Sumitomo Electric Hardmetal GWCS L-Type External Shallow Grooving Holder

Sumitomo Electric Hardmetal GWCS L-Type External Shallow Grooving Holder

SEC grooving holder GWCS type, the L-type (side-mounted) version of GWC for external shallow grooving with double clamp.

Key features

  • L-type (horizontal) version of the GWC type
  • Double clamp design
  • Uses the same TGA inserts as GWC
GWCS R2020-3 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 25 | Cutting height HF (mm): 20 | Cutting width CW (mm): 0.33~2.80 | Max groove depth (mm): 0.8~2.5 | Stock: Yes
GWCS L2020-3 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 25 | Cutting height HF (mm): 20 | Cutting width CW (mm): 0.33~2.80 | Max groove depth (mm): 0.8~2.5 | Stock: Yes
GWCS R2525-3 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 30 | Cutting height HF (mm): 25 | Cutting width CW (mm): 0.33~2.80 | Max groove depth (mm): 0.8~2.5 | Stock: Yes
GWCS L2525-3 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 30 | Cutting height HF (mm): 25 | Cutting width CW (mm): 0.33~2.80 | Max groove depth (mm): 0.8~2.5 | Stock: Yes
GWCS R2020-15 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 27 | Cutting height HF (mm): 20 | Cutting width CW (mm): 1.00~1.45 | Max groove depth (mm): 2.0 | Stock: Yes
GWCS L2020-15 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 27 | Cutting height HF (mm): 20 | Cutting width CW (mm): 1.00~1.45 | Max groove depth (mm): 2.0 | Stock: Yes
GWCS R2020-25 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 27 | Cutting height HF (mm): 20 | Cutting width CW (mm): 1.50~2.30 | Max groove depth (mm): 3.5 | Stock: Yes
GWCS L2020-25 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 27 | Cutting height HF (mm): 20 | Cutting width CW (mm): 1.50~2.30 | Max groove depth (mm): 3.5 | Stock: Yes
GWCS R2020-35 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 27 | Cutting height HF (mm): 20 | Cutting width CW (mm): 2.50~4.80 | Max groove depth (mm): 5.0 | Stock: Yes
GWCS L2020-35 Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 27 | Cutting height HF (mm): 20 | Cutting width CW (mm): 2.50~4.80 | Max groove depth (mm): 5.0 | Stock: Yes
GWCS R2525-15 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 32 | Cutting height HF (mm): 25 | Cutting width CW (mm): 1.00~1.45 | Max groove depth (mm): 2.0 | Stock: Yes
GWCS L2525-15 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 32 | Cutting height HF (mm): 25 | Cutting width CW (mm): 1.00~1.45 | Max groove depth (mm): 2.0 | Stock: Yes
GWCS R2525-25 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 32 | Cutting height HF (mm): 25 | Cutting width CW (mm): 1.50~2.30 | Max groove depth (mm): 3.5 | Stock: Yes
GWCS L2525-25 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 32 | Cutting height HF (mm): 25 | Cutting width CW (mm): 1.50~2.30 | Max groove depth (mm): 3.5 | Stock: Yes
GWCS R2525-35 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 32 | Cutting height HF (mm): 25 | Cutting width CW (mm): 2.50~4.80 | Max groove depth (mm): 5.0 | Stock: Yes
GWCS L2525-35 Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 32 | Cutting height HF (mm): 25 | Cutting width CW (mm): 2.50~4.80 | Max groove depth (mm): 5.0 | Stock: Yes
Grooving HoldersSumitomo Electric Hardmetal
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal GWCS L-Type External Shallow Grooving Holder

Brand Sumitomo Electric Hardmetal·Grooving Holders

Available part numbers (16)

GWCS R2020-3, GWCS L2020-3, GWCS R2525-3, GWCS L2525-3, GWCS R2020-15, GWCS L2020-15, GWCS R2020-25, GWCS L2020-25, GWCS R2020-35, GWCS L2020-35 + 6 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GWCS R2020-3Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 25 | Cutting height HF (mm): 20 | Cutting width CW (mm): 0.33~2.80 | Max groove depth (mm): 0.8~2.5 | Stock: Yes
GWCS L2020-3Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 25 | Cutting height HF (mm): 20 | Cutting width CW (mm): 0.33~2.80 | Max groove depth (mm): 0.8~2.5 | Stock: Yes
GWCS R2525-3Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 30 | Cutting height HF (mm): 25 | Cutting width CW (mm): 0.33~2.80 | Max groove depth (mm): 0.8~2.5 | Stock: Yes
GWCS L2525-3Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 30 | Cutting height HF (mm): 25 | Cutting width CW (mm): 0.33~2.80 | Max groove depth (mm): 0.8~2.5 | Stock: Yes
GWCS R2020-15Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 27 | Cutting height HF (mm): 20 | Cutting width CW (mm): 1.00~1.45 | Max groove depth (mm): 2.0 | Stock: Yes
GWCS L2020-15Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 27 | Cutting height HF (mm): 20 | Cutting width CW (mm): 1.00~1.45 | Max groove depth (mm): 2.0 | Stock: Yes
GWCS R2020-25Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 27 | Cutting height HF (mm): 20 | Cutting width CW (mm): 1.50~2.30 | Max groove depth (mm): 3.5 | Stock: Yes
GWCS L2020-25Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 27 | Cutting height HF (mm): 20 | Cutting width CW (mm): 1.50~2.30 | Max groove depth (mm): 3.5 | Stock: Yes
GWCS R2020-35Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 27 | Cutting height HF (mm): 20 | Cutting width CW (mm): 2.50~4.80 | Max groove depth (mm): 5.0 | Stock: Yes
GWCS L2020-35Height H (mm): 20 | Width B (mm): 20 | Length LF (mm): 125 | WF (mm): 27 | Cutting height HF (mm): 20 | Cutting width CW (mm): 2.50~4.80 | Max groove depth (mm): 5.0 | Stock: Yes
GWCS R2525-15Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 32 | Cutting height HF (mm): 25 | Cutting width CW (mm): 1.00~1.45 | Max groove depth (mm): 2.0 | Stock: Yes
GWCS L2525-15Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 32 | Cutting height HF (mm): 25 | Cutting width CW (mm): 1.00~1.45 | Max groove depth (mm): 2.0 | Stock: Yes
GWCS R2525-25Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 32 | Cutting height HF (mm): 25 | Cutting width CW (mm): 1.50~2.30 | Max groove depth (mm): 3.5 | Stock: Yes
GWCS L2525-25Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 32 | Cutting height HF (mm): 25 | Cutting width CW (mm): 1.50~2.30 | Max groove depth (mm): 3.5 | Stock: Yes
GWCS R2525-35Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 32 | Cutting height HF (mm): 25 | Cutting width CW (mm): 2.50~4.80 | Max groove depth (mm): 5.0 | Stock: Yes
GWCS L2525-35Height H (mm): 25 | Width B (mm): 25 | Length LF (mm): 150 | WF (mm): 32 | Cutting height HF (mm): 25 | Cutting width CW (mm): 2.50~4.80 | Max groove depth (mm): 5.0 | Stock: Yes
