• Sumitomo Electric Hardmetal GXM Grooving Insert for GNDIS Bars
1 1

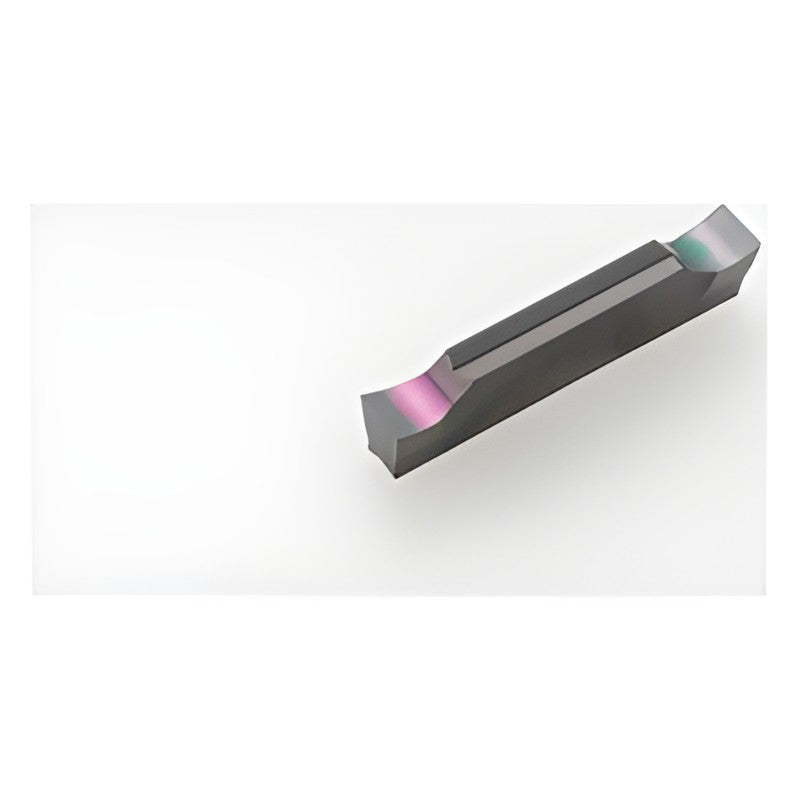

Sumitomo Electric Hardmetal GXM Grooving Insert for GNDIS Bars

Sumitomo Electric Hardmetal GXM Grooving Insert for GNDIS Bars

GXM grooving insert with ML and GF chip breakers for GNDIS internal grooving bars.

Key features

  • Dedicated to GNDIS type
  • ML and GF chip breakers

Specifications

Thickness S (mm) 3.1
Length L (mm) 11.1
GXM N2002S-ML AC5015S Cutting width CW (mm): 2.0 | Corner radius RE (mm): 0.2 | Length L (mm): 11.1 | Thickness S (mm): 3.1 | Grade: AC5015S | Stock: Yes
GXM N2002S-ML AC5025S Cutting width CW (mm): 2.0 | Corner radius RE (mm): 0.2 | Length L (mm): 11.1 | Thickness S (mm): 3.1 | Grade: AC5025S | Stock: Yes
GXM N2002S-ML AC520U Cutting width CW (mm): 2.0 | Corner radius RE (mm): 0.2 | Length L (mm): 11.1 | Thickness S (mm): 3.1 | Grade: AC520U | Stock: Yes
GXM N2002S-ML AC1030U Cutting width CW (mm): 2.0 | Corner radius RE (mm): 0.2 | Length L (mm): 11.1 | Thickness S (mm): 3.1 | Grade: AC1030U | Stock: Yes
GXM N3002S-ML AC5015S Cutting width CW (mm): 3.0 | Corner radius RE (mm): 0.2 | Length L (mm): 11.1 | Thickness S (mm): 3.1 | Grade: AC5015S | Stock: Yes
GXM N3002S-ML AC5025S Cutting width CW (mm): 3.0 | Corner radius RE (mm): 0.2 | Length L (mm): 11.1 | Thickness S (mm): 3.1 | Grade: AC5025S | Stock: Yes
GXM N3002S-ML AC520U Cutting width CW (mm): 3.0 | Corner radius RE (mm): 0.2 | Length L (mm): 11.1 | Thickness S (mm): 3.1 | Grade: AC520U | Stock: Yes
GXM N3002S-ML AC1030U Cutting width CW (mm): 3.0 | Corner radius RE (mm): 0.2 | Length L (mm): 11.1 | Thickness S (mm): 3.1 | Grade: AC1030U | Stock: Yes
GXM N150005S-GF AC1030U Cutting width CW (mm): 1.5 | Corner radius RE (mm): 0.05 | Length L (mm): 11.1 | Thickness S (mm): 3.1 | Grade: AC1030U | Stock: Yes
GXM N2002S-GF AC5015S Cutting width CW (mm): 2.0 | Corner radius RE (mm): 0.2 | Length L (mm): 11.1 | Thickness S (mm): 3.1 | Grade: AC5015S | Stock: Yes
GXM N2002S-GF AC5025S Cutting width CW (mm): 2.0 | Corner radius RE (mm): 0.2 | Length L (mm): 11.1 | Thickness S (mm): 3.1 | Grade: AC5025S | Stock: Yes
GXM N2002S-GF AC520U Cutting width CW (mm): 2.0 | Corner radius RE (mm): 0.2 | Length L (mm): 11.1 | Thickness S (mm): 3.1 | Grade: AC520U | Stock: Yes
GXM N2002S-GF AC1030U Cutting width CW (mm): 2.0 | Corner radius RE (mm): 0.2 | Length L (mm): 11.1 | Thickness S (mm): 3.1 | Grade: AC1030U | Stock: Yes
GXM N3002S-GF AC5015S Cutting width CW (mm): 3.0 | Corner radius RE (mm): 0.2 | Length L (mm): 11.1 | Thickness S (mm): 3.1 | Grade: AC5015S | Stock: Yes
GXM N3002S-GF AC5025S Cutting width CW (mm): 3.0 | Corner radius RE (mm): 0.2 | Length L (mm): 11.1 | Thickness S (mm): 3.1 | Grade: AC5025S | Stock: Yes
GXM N3002S-GF AC520U Cutting width CW (mm): 3.0 | Corner radius RE (mm): 0.2 | Length L (mm): 11.1 | Thickness S (mm): 3.1 | Grade: AC520U | Stock: Yes
GXM N3002S-GF AC1030U Cutting width CW (mm): 3.0 | Corner radius RE (mm): 0.2 | Length L (mm): 11.1 | Thickness S (mm): 3.1 | Grade: AC1030U | Stock: Yes
Grooving InsertsSumitomo Electric Hardmetal
17 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal GXM Grooving Insert for GNDIS Bars

Brand Sumitomo Electric Hardmetal·Grooving Inserts

Available part numbers (17)

GXM N2002S-ML AC5015S, GXM N2002S-ML AC5025S, GXM N2002S-ML AC520U, GXM N2002S-ML AC1030U, GXM N3002S-ML AC5015S, GXM N3002S-ML AC5025S, GXM N3002S-ML AC520U, GXM N3002S-ML AC1030U, GXM N150005S-GF AC1030U, GXM N2002S-GF AC5015S + 7 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GXM N2002S-ML AC5015SCutting width CW (mm): 2.0 | Corner radius RE (mm): 0.2 | Length L (mm): 11.1 | Thickness S (mm): 3.1 | Grade: AC5015S | Stock: Yes
GXM N2002S-ML AC5025SCutting width CW (mm): 2.0 | Corner radius RE (mm): 0.2 | Length L (mm): 11.1 | Thickness S (mm): 3.1 | Grade: AC5025S | Stock: Yes
GXM N2002S-ML AC520UCutting width CW (mm): 2.0 | Corner radius RE (mm): 0.2 | Length L (mm): 11.1 | Thickness S (mm): 3.1 | Grade: AC520U | Stock: Yes
GXM N2002S-ML AC1030UCutting width CW (mm): 2.0 | Corner radius RE (mm): 0.2 | Length L (mm): 11.1 | Thickness S (mm): 3.1 | Grade: AC1030U | Stock: Yes
GXM N3002S-ML AC5015SCutting width CW (mm): 3.0 | Corner radius RE (mm): 0.2 | Length L (mm): 11.1 | Thickness S (mm): 3.1 | Grade: AC5015S | Stock: Yes
GXM N3002S-ML AC5025SCutting width CW (mm): 3.0 | Corner radius RE (mm): 0.2 | Length L (mm): 11.1 | Thickness S (mm): 3.1 | Grade: AC5025S | Stock: Yes
GXM N3002S-ML AC520UCutting width CW (mm): 3.0 | Corner radius RE (mm): 0.2 | Length L (mm): 11.1 | Thickness S (mm): 3.1 | Grade: AC520U | Stock: Yes
GXM N3002S-ML AC1030UCutting width CW (mm): 3.0 | Corner radius RE (mm): 0.2 | Length L (mm): 11.1 | Thickness S (mm): 3.1 | Grade: AC1030U | Stock: Yes
GXM N150005S-GF AC1030UCutting width CW (mm): 1.5 | Corner radius RE (mm): 0.05 | Length L (mm): 11.1 | Thickness S (mm): 3.1 | Grade: AC1030U | Stock: Yes
GXM N2002S-GF AC5015SCutting width CW (mm): 2.0 | Corner radius RE (mm): 0.2 | Length L (mm): 11.1 | Thickness S (mm): 3.1 | Grade: AC5015S | Stock: Yes
GXM N2002S-GF AC5025SCutting width CW (mm): 2.0 | Corner radius RE (mm): 0.2 | Length L (mm): 11.1 | Thickness S (mm): 3.1 | Grade: AC5025S | Stock: Yes
GXM N2002S-GF AC520UCutting width CW (mm): 2.0 | Corner radius RE (mm): 0.2 | Length L (mm): 11.1 | Thickness S (mm): 3.1 | Grade: AC520U | Stock: Yes
GXM N2002S-GF AC1030UCutting width CW (mm): 2.0 | Corner radius RE (mm): 0.2 | Length L (mm): 11.1 | Thickness S (mm): 3.1 | Grade: AC1030U | Stock: Yes
GXM N3002S-GF AC5015SCutting width CW (mm): 3.0 | Corner radius RE (mm): 0.2 | Length L (mm): 11.1 | Thickness S (mm): 3.1 | Grade: AC5015S | Stock: Yes
GXM N3002S-GF AC5025SCutting width CW (mm): 3.0 | Corner radius RE (mm): 0.2 | Length L (mm): 11.1 | Thickness S (mm): 3.1 | Grade: AC5025S | Stock: Yes
GXM N3002S-GF AC520UCutting width CW (mm): 3.0 | Corner radius RE (mm): 0.2 | Length L (mm): 11.1 | Thickness S (mm): 3.1 | Grade: AC520U | Stock: Yes
GXM N3002S-GF AC1030UCutting width CW (mm): 3.0 | Corner radius RE (mm): 0.2 | Length L (mm): 11.1 | Thickness S (mm): 3.1 | Grade: AC1030U | Stock: Yes
