• Sumitomo Electric Hardmetal HF HFFH 12000RS/R Aluminium Alloy Cutter with Oil Holes
1 1

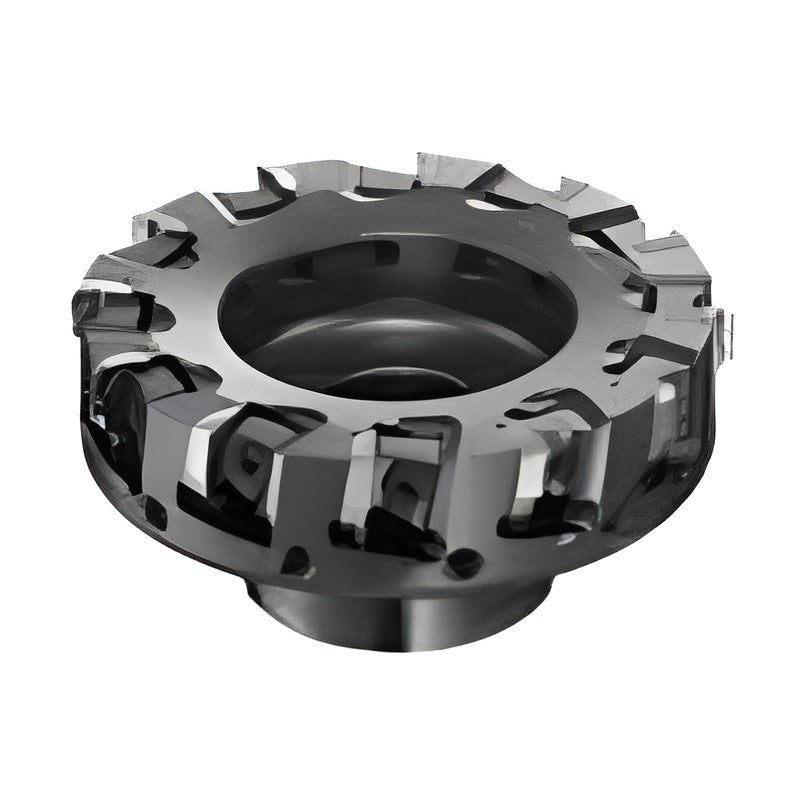

Sumitomo Electric Hardmetal HF HFFH 12000RS/R Aluminium Alloy Cutter with Oil Holes

Sumitomo Electric Hardmetal HF HFFH 12000RS/R Aluminium Alloy Cutter with Oil Holes

High-efficiency cutter for aluminium alloys with a proprietary blade shape for burr-free machining and a fine-pitch (3 teeth per inch) design.

Key features

  • Burr-free machining with proprietary blade shape
  • Fine pitch: 3 teeth per inch
  • For aluminium alloys and other non-ferrous metals only
  • Internal coolant
HFFH12080RS-22 Cutting dia DC (mm): 80 | Max cutting dia DCX (mm): 82 | Boss dia DCSFMS (mm): 50 | Overall length LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 10 | Weight (kg): 1.0 | Stock: Yes
HFFH12080RS-27 Cutting dia DC (mm): 80 | Max cutting dia DCX (mm): 82 | Boss dia DCSFMS (mm): 55 | Overall length LF (mm): 50 | Bore dia DCB (mm): 27 | Keyway width KWW (mm): 12.4 | Keyway depth KDP (mm): 7 | Counterbore depth CBDP (mm): 22 | Bolt dia D1 (mm): 20 | Bolt dia D2 (mm): 14 | Teeth: 10 | Weight (kg): 1.2 | Stock: Yes
HFFH12100RS-32 Cutting dia DC (mm): 100 | Max cutting dia DCX (mm): 102 | Boss dia DCSFMS (mm): 70 | Overall length LF (mm): 50 | Bore dia DCB (mm): 32 | Keyway width KWW (mm): 14.4 | Keyway depth KDP (mm): 8 | Counterbore depth CBDP (mm): 32 | Bolt dia D1 (mm): 54 | Teeth: 12 | Weight (kg): 1.7 | Stock: Yes
HFFH12125RS-32 Cutting dia DC (mm): 125 | Max cutting dia DCX (mm): 127 | Boss dia DCSFMS (mm): 70 | Overall length LF (mm): 50 | Bore dia DCB (mm): 32 | Keyway width KWW (mm): 14.4 | Keyway depth KDP (mm): 8 | Counterbore depth CBDP (mm): 32 | Bolt dia D1 (mm): 84 | Teeth: 15 | Weight (kg): 2.2 | Stock: Yes
HFFH12125RS-40 Cutting dia DC (mm): 125 | Max cutting dia DCX (mm): 127 | Boss dia DCSFMS (mm): 90 | Overall length LF (mm): 63 | Bore dia DCB (mm): 40 | Keyway width KWW (mm): 16.4 | Keyway depth KDP (mm): 9 | Counterbore depth CBDP (mm): 35 | Bolt dia D1 (mm): 84 | Teeth: 15 | Weight (kg): 2.8 | Stock: Yes
HFFH12080R-25.4 Cutting dia DC (mm): 80 | Max cutting dia DCX (mm): 82 | Boss dia DCSFMS (mm): 50 | Overall length LF (mm): 50 | Bore dia DCB (mm): 25.4 | Keyway width KWW (mm): 9.5 | Keyway depth KDP (mm): 6 | Counterbore depth CBDP (mm): 30 | Bolt dia D1 (mm): 35 | Teeth: 10 | Weight (kg): 1.0 | Stock: Yes
HFFH12100R-25.4 Cutting dia DC (mm): 100 | Max cutting dia DCX (mm): 102 | Boss dia DCSFMS (mm): 50 | Overall length LF (mm): 50 | Bore dia DCB (mm): 25.4 | Keyway width KWW (mm): 9.5 | Keyway depth KDP (mm): 6 | Counterbore depth CBDP (mm): 30 | Bolt dia D1 (mm): 54 | Teeth: 12 | Weight (kg): 1.5 | Stock: Yes
HFFH12100R-31.75 Cutting dia DC (mm): 100 | Max cutting dia DCX (mm): 102 | Boss dia DCSFMS (mm): 70 | Overall length LF (mm): 50 | Bore dia DCB (mm): 31.75 | Keyway width KWW (mm): 12.7 | Keyway depth KDP (mm): 8 | Counterbore depth CBDP (mm): 32 | Bolt dia D1 (mm): 54 | Teeth: 12 | Weight (kg): 1.7 | Stock: Yes
HFFH12125R-25.4 Cutting dia DC (mm): 125 | Max cutting dia DCX (mm): 127 | Boss dia DCSFMS (mm): 50 | Overall length LF (mm): 50 | Bore dia DCB (mm): 25.4 | Keyway width KWW (mm): 9.5 | Keyway depth KDP (mm): 6 | Counterbore depth CBDP (mm): 30 | Bolt dia D1 (mm): 84 | Teeth: 15 | Weight (kg): 2.0 | Stock: Yes
HFFH12125R-31.75 Cutting dia DC (mm): 125 | Max cutting dia DCX (mm): 127 | Boss dia DCSFMS (mm): 70 | Overall length LF (mm): 50 | Bore dia DCB (mm): 31.75 | Keyway width KWW (mm): 12.7 | Keyway depth KDP (mm): 8 | Counterbore depth CBDP (mm): 32 | Bolt dia D1 (mm): 84 | Teeth: 15 | Weight (kg): 2.2 | Stock: Yes
HFFH12125R-38.1 Cutting dia DC (mm): 125 | Max cutting dia DCX (mm): 127 | Boss dia DCSFMS (mm): 80 | Overall length LF (mm): 63 | Bore dia DCB (mm): 38.1 | Keyway width KWW (mm): 15.9 | Keyway depth KDP (mm): 10 | Counterbore depth CBDP (mm): 36 | Bolt dia D1 (mm): 84 | Teeth: 15 | Weight (kg): 2.5 | Stock: Yes
Milling CuttersSumitomo Electric Hardmetal
11 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal HF HFFH 12000RS/R Aluminium Alloy Cutter with Oil Holes

Brand Sumitomo Electric Hardmetal·Milling Cutters

Available part numbers (11)

HFFH12080RS-22, HFFH12080RS-27, HFFH12100RS-32, HFFH12125RS-32, HFFH12125RS-40, HFFH12080R-25.4, HFFH12100R-25.4, HFFH12100R-31.75, HFFH12125R-25.4, HFFH12125R-31.75 + 1 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HFFH12080RS-22Cutting dia DC (mm): 80 | Max cutting dia DCX (mm): 82 | Boss dia DCSFMS (mm): 50 | Overall length LF (mm): 40 | Bore dia DCB (mm): 22 | Keyway width KWW (mm): 10.4 | Keyway depth KDP (mm): 6.3 | Counterbore depth CBDP (mm): 20 | Bolt dia D1 (mm): 18 | Bolt dia D2 (mm): 11 | Teeth: 10 | Weight (kg): 1.0 | Stock: Yes
HFFH12080RS-27Cutting dia DC (mm): 80 | Max cutting dia DCX (mm): 82 | Boss dia DCSFMS (mm): 55 | Overall length LF (mm): 50 | Bore dia DCB (mm): 27 | Keyway width KWW (mm): 12.4 | Keyway depth KDP (mm): 7 | Counterbore depth CBDP (mm): 22 | Bolt dia D1 (mm): 20 | Bolt dia D2 (mm): 14 | Teeth: 10 | Weight (kg): 1.2 | Stock: Yes
HFFH12100RS-32Cutting dia DC (mm): 100 | Max cutting dia DCX (mm): 102 | Boss dia DCSFMS (mm): 70 | Overall length LF (mm): 50 | Bore dia DCB (mm): 32 | Keyway width KWW (mm): 14.4 | Keyway depth KDP (mm): 8 | Counterbore depth CBDP (mm): 32 | Bolt dia D1 (mm): 54 | Teeth: 12 | Weight (kg): 1.7 | Stock: Yes
HFFH12125RS-32Cutting dia DC (mm): 125 | Max cutting dia DCX (mm): 127 | Boss dia DCSFMS (mm): 70 | Overall length LF (mm): 50 | Bore dia DCB (mm): 32 | Keyway width KWW (mm): 14.4 | Keyway depth KDP (mm): 8 | Counterbore depth CBDP (mm): 32 | Bolt dia D1 (mm): 84 | Teeth: 15 | Weight (kg): 2.2 | Stock: Yes
HFFH12125RS-40Cutting dia DC (mm): 125 | Max cutting dia DCX (mm): 127 | Boss dia DCSFMS (mm): 90 | Overall length LF (mm): 63 | Bore dia DCB (mm): 40 | Keyway width KWW (mm): 16.4 | Keyway depth KDP (mm): 9 | Counterbore depth CBDP (mm): 35 | Bolt dia D1 (mm): 84 | Teeth: 15 | Weight (kg): 2.8 | Stock: Yes
HFFH12080R-25.4Cutting dia DC (mm): 80 | Max cutting dia DCX (mm): 82 | Boss dia DCSFMS (mm): 50 | Overall length LF (mm): 50 | Bore dia DCB (mm): 25.4 | Keyway width KWW (mm): 9.5 | Keyway depth KDP (mm): 6 | Counterbore depth CBDP (mm): 30 | Bolt dia D1 (mm): 35 | Teeth: 10 | Weight (kg): 1.0 | Stock: Yes
HFFH12100R-25.4Cutting dia DC (mm): 100 | Max cutting dia DCX (mm): 102 | Boss dia DCSFMS (mm): 50 | Overall length LF (mm): 50 | Bore dia DCB (mm): 25.4 | Keyway width KWW (mm): 9.5 | Keyway depth KDP (mm): 6 | Counterbore depth CBDP (mm): 30 | Bolt dia D1 (mm): 54 | Teeth: 12 | Weight (kg): 1.5 | Stock: Yes
HFFH12100R-31.75Cutting dia DC (mm): 100 | Max cutting dia DCX (mm): 102 | Boss dia DCSFMS (mm): 70 | Overall length LF (mm): 50 | Bore dia DCB (mm): 31.75 | Keyway width KWW (mm): 12.7 | Keyway depth KDP (mm): 8 | Counterbore depth CBDP (mm): 32 | Bolt dia D1 (mm): 54 | Teeth: 12 | Weight (kg): 1.7 | Stock: Yes
HFFH12125R-25.4Cutting dia DC (mm): 125 | Max cutting dia DCX (mm): 127 | Boss dia DCSFMS (mm): 50 | Overall length LF (mm): 50 | Bore dia DCB (mm): 25.4 | Keyway width KWW (mm): 9.5 | Keyway depth KDP (mm): 6 | Counterbore depth CBDP (mm): 30 | Bolt dia D1 (mm): 84 | Teeth: 15 | Weight (kg): 2.0 | Stock: Yes
HFFH12125R-31.75Cutting dia DC (mm): 125 | Max cutting dia DCX (mm): 127 | Boss dia DCSFMS (mm): 70 | Overall length LF (mm): 50 | Bore dia DCB (mm): 31.75 | Keyway width KWW (mm): 12.7 | Keyway depth KDP (mm): 8 | Counterbore depth CBDP (mm): 32 | Bolt dia D1 (mm): 84 | Teeth: 15 | Weight (kg): 2.2 | Stock: Yes
HFFH12125R-38.1Cutting dia DC (mm): 125 | Max cutting dia DCX (mm): 127 | Boss dia DCSFMS (mm): 80 | Overall length LF (mm): 63 | Bore dia DCB (mm): 38.1 | Keyway width KWW (mm): 15.9 | Keyway depth KDP (mm): 10 | Counterbore depth CBDP (mm): 36 | Bolt dia D1 (mm): 84 | Teeth: 15 | Weight (kg): 2.5 | Stock: Yes
