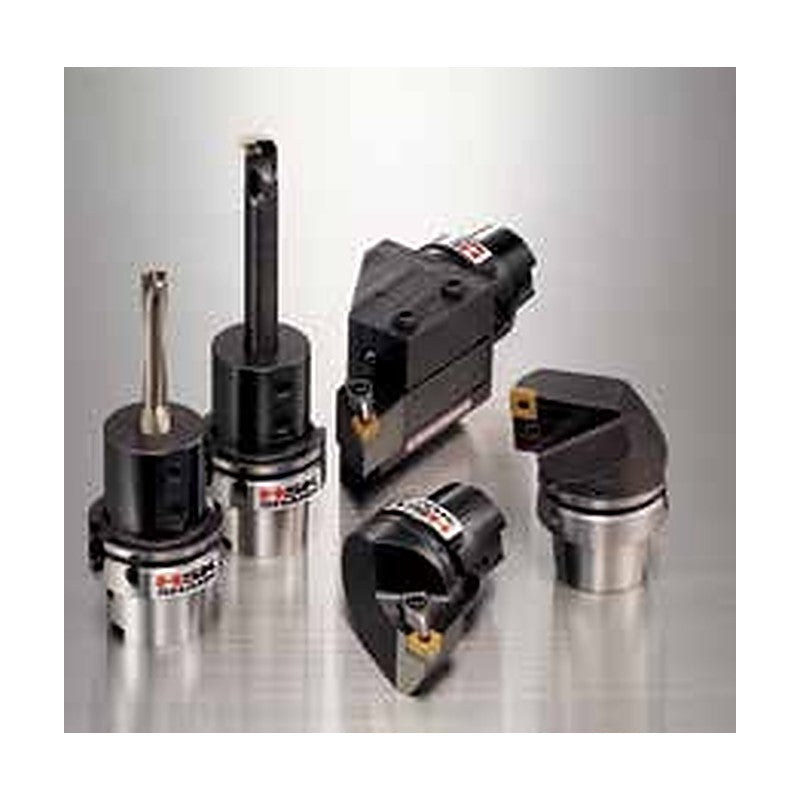

Sumitomo Electric Hardmetal HSK-T63 GWC Grooving Holder (ICTM)

Sumitomo Electric Hardmetal HSK-T63 GWC Grooving Holder (ICTM)

HSK-T63 (ICTM standard) grooving holder for TGA inserts with double clamp, for turn-mill machines.

Key features

  • ICTM standard, ISO 12164-3
  • Compatible with HSK-A spindles
  • Uses TGA inserts

Specifications

Length LF (mm) 65
WF (mm) 45
HSK63TH-GWC R-DX412 Length LF (mm): 65 | WF (mm): 45 | Cutting width CW (mm): 1.25~1.45 | Former designation: H63A-WH-GWC R-DX412 | Stock: Made to order
HSK63TH-GWC R-DX415 Length LF (mm): 65 | WF (mm): 45 | Cutting width CW (mm): 1.50~2.30 | Former designation: H63A-WH-GWC R-DX415 | Stock: Made to order
HSK63TH-GWC R-DX425 Length LF (mm): 65 | WF (mm): 45 | Cutting width CW (mm): 2.50~4.80 | Former designation: H63A-WH-GWC R-DX425 | Stock: Made to order
Grooving HoldersSumitomo Electric Hardmetal
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal HSK-T63 GWC Grooving Holder (ICTM)

Brand Sumitomo Electric Hardmetal·Grooving Holders

Available part numbers (3)

HSK63TH-GWC R-DX412, HSK63TH-GWC R-DX415, HSK63TH-GWC R-DX425

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HSK63TH-GWC R-DX412Length LF (mm): 65 | WF (mm): 45 | Cutting width CW (mm): 1.25~1.45 | Former designation: H63A-WH-GWC R-DX412 | Stock: Made to order
HSK63TH-GWC R-DX415Length LF (mm): 65 | WF (mm): 45 | Cutting width CW (mm): 1.50~2.30 | Former designation: H63A-WH-GWC R-DX415 | Stock: Made to order
HSK63TH-GWC R-DX425Length LF (mm): 65 | WF (mm): 45 | Cutting width CW (mm): 2.50~4.80 | Former designation: H63A-WH-GWC R-DX425 | Stock: Made to order
