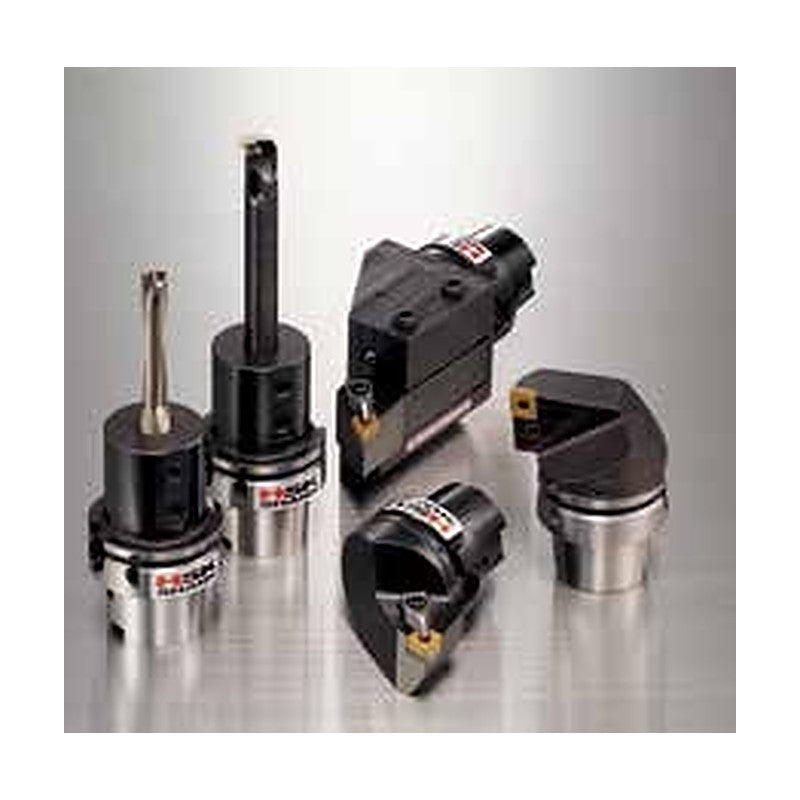

Sumitomo Electric Hardmetal HSK-T63 Shank Adapter and Boring Bar Sleeve (ICTM)

HSK-T63 (ICTM standard) adapter for square-shank tools and sleeves for round-shank boring bars.

Key features

ICTM standard, ISO 12164-3
Square shank 25x25 and boring bar diameters 8-40 mm

HSK63TH-S2525 R-105		Length LF (mm): 150 \| Length LF2 (mm): 105 \| LSCX (mm): 70 \| WF (mm): 45 \| Former designation: H63A-WH-S2525 R-105 \| Stock: Made to order
HSK63TH-C08-65		Shank dia DCB (mm): 8 \| Body dia BD (mm): 28 \| Length LF2 (mm): 65 \| Screw CRKS: M8 \| Former designation: H63A-WH-C08-65 \| Stock: Made to order
HSK63TH-C10-70		Shank dia DCB (mm): 10 \| Body dia BD (mm): 35 \| Length LF2 (mm): 70 \| Screw CRKS: M8 \| Former designation: H63A-WH-C10-70 \| Stock: Made to order
HSK63TH-C12-70		Shank dia DCB (mm): 12 \| Body dia BD (mm): 42 \| Length LF2 (mm): 70 \| Screw CRKS: M8 \| Former designation: H63A-WH-C12-70 \| Stock: Made to order
HSK63TH-C16-75		Shank dia DCB (mm): 16 \| Body dia BD (mm): 48 \| Length LF2 (mm): 75 \| Screw CRKS: M10 \| Former designation: H63A-WH-C16-75 \| Stock: Made to order
HSK63TH-C20-75		Shank dia DCB (mm): 20 \| Body dia BD (mm): 52 \| Length LF2 (mm): 75 \| Screw CRKS: M10 \| Former designation: H63A-WH-C20-75 \| Stock: Made to order
HSK63TH-C25-83		Shank dia DCB (mm): 25 \| Body dia BD (mm): 62 \| Length LF2 (mm): 83 \| Screw CRKS: M12 \| Former designation: H63A-WH-C25-83 \| Stock: Made to order
HSK63TH-C32-87		Shank dia DCB (mm): 32 \| Body dia BD (mm): 62 \| Length LF2 (mm): 87 \| Screw CRKS: M12 \| Former designation: H63A-WH-C32-87 \| Stock: Made to order
HSK63TH-C40-97		Shank dia DCB (mm): 40 \| Body dia BD (mm): 65 \| Length LF2 (mm): 97 \| Screw CRKS: M16 \| Former designation: H63A-WH-C40-97 \| Stock: Made to order

Tool Holder AdaptersSumitomo Electric Hardmetal

9 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal HSK-T63 Shank Adapter and Boring Bar Sleeve (ICTM)

Brand Sumitomo Electric Hardmetal·Tool Holder Adapters

Available part numbers (9)

HSK63TH-S2525 R-105, HSK63TH-C08-65, HSK63TH-C10-70, HSK63TH-C12-70, HSK63TH-C16-75, HSK63TH-C20-75, HSK63TH-C25-83, HSK63TH-C32-87, HSK63TH-C40-97

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

	Product code	Spec
	HSK63TH-S2525 R-105	Length LF (mm): 150 \| Length LF2 (mm): 105 \| LSCX (mm): 70 \| WF (mm): 45 \| Former designation: H63A-WH-S2525 R-105 \| Stock: Made to order
	HSK63TH-C08-65	Shank dia DCB (mm): 8 \| Body dia BD (mm): 28 \| Length LF2 (mm): 65 \| Screw CRKS: M8 \| Former designation: H63A-WH-C08-65 \| Stock: Made to order
	HSK63TH-C10-70	Shank dia DCB (mm): 10 \| Body dia BD (mm): 35 \| Length LF2 (mm): 70 \| Screw CRKS: M8 \| Former designation: H63A-WH-C10-70 \| Stock: Made to order
	HSK63TH-C12-70	Shank dia DCB (mm): 12 \| Body dia BD (mm): 42 \| Length LF2 (mm): 70 \| Screw CRKS: M8 \| Former designation: H63A-WH-C12-70 \| Stock: Made to order
	HSK63TH-C16-75	Shank dia DCB (mm): 16 \| Body dia BD (mm): 48 \| Length LF2 (mm): 75 \| Screw CRKS: M10 \| Former designation: H63A-WH-C16-75 \| Stock: Made to order
	HSK63TH-C20-75	Shank dia DCB (mm): 20 \| Body dia BD (mm): 52 \| Length LF2 (mm): 75 \| Screw CRKS: M10 \| Former designation: H63A-WH-C20-75 \| Stock: Made to order
	HSK63TH-C25-83	Shank dia DCB (mm): 25 \| Body dia BD (mm): 62 \| Length LF2 (mm): 83 \| Screw CRKS: M12 \| Former designation: H63A-WH-C25-83 \| Stock: Made to order
	HSK63TH-C32-87	Shank dia DCB (mm): 32 \| Body dia BD (mm): 62 \| Length LF2 (mm): 87 \| Screw CRKS: M12 \| Former designation: H63A-WH-C32-87 \| Stock: Made to order
	HSK63TH-C40-97	Shank dia DCB (mm): 40 \| Body dia BD (mm): 65 \| Length LF2 (mm): 97 \| Screw CRKS: M16 \| Former designation: H63A-WH-C40-97 \| Stock: Made to order
