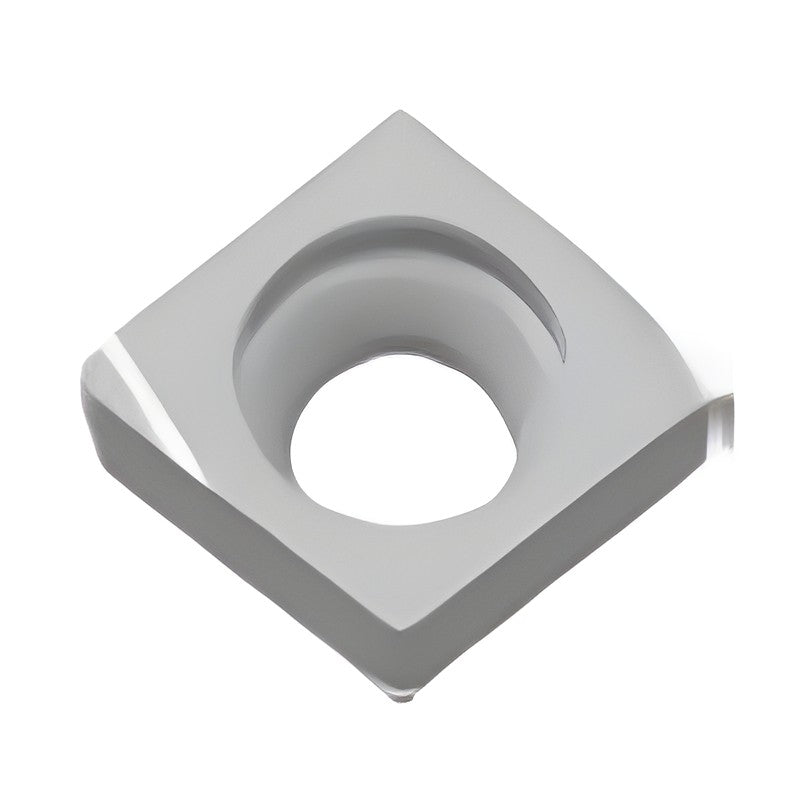

Sumitomo Electric Hardmetal IGETALLOY CCET Positive Turning Insert, FY Chipbreaker

Sumitomo Electric Hardmetal IGETALLOY CCET Positive Turning Insert, FY Chipbreaker

80° rhombic positive turning insert (countersunk hole, single-sided chipbreaker), ISO type CCET with the FY chipbreaker, offered in coated carbide and cermet grades.

Key features

  • Corner radius range: 0.03–0.4 mm
  • Stocked grades: AC1030U, ACZ150, T1000A, T1500A, AC530U

Specifications

Product line IGETALLOY
Insert shape 80° rhombic
Clearance angle 7°
Hole / chipbreaker Countersunk hole, single-sided chipbreaker
Chipbreaker FY
CCET03X1003R-FY AC1030U IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.03 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Right | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCET03X1003R-FY ACZ150 IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.03 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Right | Grade: ACZ150 | Grade material: Coated carbide | Stock: Yes
CCET03X1003R-FY T1000A IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.03 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Right | Grade: T1000A | Grade material: Cermet | Stock: Yes
CCET03X1003R-FY T1500A IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.03 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Right | Grade: T1500A | Grade material: Cermet | Stock: Yes
CCET03X1003L-FY AC1030U IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.03 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Left | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCET03X1003L-FY AC530U IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.03 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Left | Grade: AC530U | Grade material: Coated carbide | Stock: Yes
CCET03X1003L-FY ACZ150 IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.03 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Left | Grade: ACZ150 | Grade material: Coated carbide | Stock: Yes
CCET03X1003L-FY T1000A IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.03 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Left | Grade: T1000A | Grade material: Cermet | Stock: Yes
CCET03X1003L-FY T1500A IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.03 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Left | Grade: T1500A | Grade material: Cermet | Stock: Yes
CCET03X101R-FY AC1030U IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.1 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Right | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCET03X101R-FY ACZ150 IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.1 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Right | Grade: ACZ150 | Grade material: Coated carbide | Stock: Yes
CCET03X101R-FY T1000A IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.1 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Right | Grade: T1000A | Grade material: Cermet | Stock: Yes
CCET03X101R-FY T1500A IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.1 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Right | Grade: T1500A | Grade material: Cermet | Stock: Yes
CCET03X101L-FY AC1030U IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.1 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Left | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCET03X101L-FY AC530U IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.1 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Left | Grade: AC530U | Grade material: Coated carbide | Stock: Yes
CCET03X101L-FY ACZ150 IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.1 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Left | Grade: ACZ150 | Grade material: Coated carbide | Stock: Yes
CCET03X101L-FY T1000A IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.1 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Left | Grade: T1000A | Grade material: Cermet | Stock: Yes
CCET03X101L-FY T1500A IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.1 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Left | Grade: T1500A | Grade material: Cermet | Stock: Yes
CCET03X102R-FY AC1030U IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.2 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Right | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCET03X102R-FY ACZ150 IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.2 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Right | Grade: ACZ150 | Grade material: Coated carbide | Stock: Yes
CCET03X102R-FY T1000A IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.2 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Right | Grade: T1000A | Grade material: Cermet | Stock: Yes
CCET03X102R-FY T1500A IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.2 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Right | Grade: T1500A | Grade material: Cermet | Stock: Yes
CCET03X102L-FY AC1030U IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.2 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Left | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCET03X102L-FY AC530U IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.2 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Left | Grade: AC530U | Grade material: Coated carbide | Stock: Yes
CCET03X102L-FY ACZ150 IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.2 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Left | Grade: ACZ150 | Grade material: Coated carbide | Stock: Yes
CCET03X102L-FY T1000A IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.2 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Left | Grade: T1000A | Grade material: Cermet | Stock: Yes
CCET03X102L-FY T1500A IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.2 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Left | Grade: T1500A | Grade material: Cermet | Stock: Yes
CCET03X104R-FY AC1030U IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.4 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Right | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCET03X104R-FY ACZ150 IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.4 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Right | Grade: ACZ150 | Grade material: Coated carbide | Stock: Yes
CCET03X104R-FY T1000A IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.4 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Right | Grade: T1000A | Grade material: Cermet | Stock: Yes
CCET03X104R-FY T1500A IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.4 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Right | Grade: T1500A | Grade material: Cermet | Stock: Yes
CCET03X104L-FY AC1030U IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.4 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Left | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCET03X104L-FY AC530U IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.4 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Left | Grade: AC530U | Grade material: Coated carbide | Stock: Yes
CCET03X104L-FY ACZ150 IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.4 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Left | Grade: ACZ150 | Grade material: Coated carbide | Stock: Yes
CCET03X104L-FY T1000A IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.4 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Left | Grade: T1000A | Grade material: Cermet | Stock: Yes
CCET03X104L-FY T1500A IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.4 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Left | Grade: T1500A | Grade material: Cermet | Stock: Yes
CCET04X1003R-FY AC1030U IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.03 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Right | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCET04X1003R-FY ACZ150 IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.03 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Right | Grade: ACZ150 | Grade material: Coated carbide | Stock: Yes
CCET04X1003R-FY T1000A IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.03 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Right | Grade: T1000A | Grade material: Cermet | Stock: Yes
CCET04X1003R-FY T1500A IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.03 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Right | Grade: T1500A | Grade material: Cermet | Stock: Yes
CCET04X1003L-FY AC1030U IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.03 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Left | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCET04X1003L-FY AC530U IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.03 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Left | Grade: AC530U | Grade material: Coated carbide | Stock: Yes
CCET04X1003L-FY ACZ150 IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.03 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Left | Grade: ACZ150 | Grade material: Coated carbide | Stock: Yes
CCET04X1003L-FY T1000A IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.03 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Left | Grade: T1000A | Grade material: Cermet | Stock: Yes
CCET04X1003L-FY T1500A IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.03 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Left | Grade: T1500A | Grade material: Cermet | Stock: Yes
CCET04X101R-FY AC1030U IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.1 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Right | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCET04X101R-FY ACZ150 IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.1 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Right | Grade: ACZ150 | Grade material: Coated carbide | Stock: Yes
CCET04X101R-FY T1000A IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.1 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Right | Grade: T1000A | Grade material: Cermet | Stock: Yes
CCET04X101R-FY T1500A IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.1 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Right | Grade: T1500A | Grade material: Cermet | Stock: Yes
CCET04X101L-FY AC1030U IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.1 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Left | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCET04X101L-FY AC530U IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.1 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Left | Grade: AC530U | Grade material: Coated carbide | Stock: Yes
CCET04X101L-FY ACZ150 IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.1 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Left | Grade: ACZ150 | Grade material: Coated carbide | Stock: Yes
CCET04X101L-FY T1000A IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.1 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Left | Grade: T1000A | Grade material: Cermet | Stock: Yes
CCET04X101L-FY T1500A IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.1 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Left | Grade: T1500A | Grade material: Cermet | Stock: Yes
CCET04X102R-FY AC1030U IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.2 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Right | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCET04X102R-FY ACZ150 IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.2 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Right | Grade: ACZ150 | Grade material: Coated carbide | Stock: Yes
CCET04X102R-FY T1000A IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.2 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Right | Grade: T1000A | Grade material: Cermet | Stock: Yes
CCET04X102R-FY T1500A IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.2 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Right | Grade: T1500A | Grade material: Cermet | Stock: Yes
CCET04X102L-FY AC1030U IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.2 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Left | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCET04X102L-FY AC530U IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.2 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Left | Grade: AC530U | Grade material: Coated carbide | Stock: Yes
CCET04X102L-FY ACZ150 IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.2 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Left | Grade: ACZ150 | Grade material: Coated carbide | Stock: Yes
CCET04X102L-FY T1000A IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.2 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Left | Grade: T1000A | Grade material: Cermet | Stock: Yes
CCET04X102L-FY T1500A IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.2 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Left | Grade: T1500A | Grade material: Cermet | Stock: Yes
CCET04X104R-FY AC1030U IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.4 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Right | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCET04X104R-FY ACZ150 IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.4 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Right | Grade: ACZ150 | Grade material: Coated carbide | Stock: Yes
CCET04X104R-FY T1000A IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.4 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Right | Grade: T1000A | Grade material: Cermet | Stock: Yes
CCET04X104R-FY T1500A IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.4 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Right | Grade: T1500A | Grade material: Cermet | Stock: Yes
CCET04X104L-FY AC1030U IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.4 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Left | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCET04X104L-FY AC530U IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.4 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Left | Grade: AC530U | Grade material: Coated carbide | Stock: Yes
CCET04X104L-FY ACZ150 IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.4 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Left | Grade: ACZ150 | Grade material: Coated carbide | Stock: Yes
CCET04X104L-FY T1000A IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.4 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Left | Grade: T1000A | Grade material: Cermet | Stock: Yes
CCET04X104L-FY T1500A IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.4 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Left | Grade: T1500A | Grade material: Cermet | Stock: Yes
CCET0602003R-FY AC1030U IC (mm): 6.35 | S (mm): 2.38 | RE (mm): 0.03 | L (mm): 6.4 | D1 (mm): 2.8 | Hand: Right | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCET0602003R-FY ACZ150 IC (mm): 6.35 | S (mm): 2.38 | RE (mm): 0.03 | L (mm): 6.4 | D1 (mm): 2.8 | Hand: Right | Grade: ACZ150 | Grade material: Coated carbide | Stock: Yes
CCET0602003L-FY AC1030U IC (mm): 6.35 | S (mm): 2.38 | RE (mm): 0.03 | L (mm): 6.4 | D1 (mm): 2.8 | Hand: Left | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCET0602003L-FY ACZ150 IC (mm): 6.35 | S (mm): 2.38 | RE (mm): 0.03 | L (mm): 6.4 | D1 (mm): 2.8 | Hand: Left | Grade: ACZ150 | Grade material: Coated carbide | Stock: Yes
CCET060201R-FY AC1030U IC (mm): 6.35 | S (mm): 2.38 | RE (mm): 0.1 | L (mm): 6.4 | D1 (mm): 2.8 | Hand: Right | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCET060201R-FY ACZ150 IC (mm): 6.35 | S (mm): 2.38 | RE (mm): 0.1 | L (mm): 6.4 | D1 (mm): 2.8 | Hand: Right | Grade: ACZ150 | Grade material: Coated carbide | Stock: Yes
CCET060201R-FY T1000A IC (mm): 6.35 | S (mm): 2.38 | RE (mm): 0.1 | L (mm): 6.4 | D1 (mm): 2.8 | Hand: Right | Grade: T1000A | Grade material: Cermet | Stock: Yes
CCET060201R-FY T1500A IC (mm): 6.35 | S (mm): 2.38 | RE (mm): 0.1 | L (mm): 6.4 | D1 (mm): 2.8 | Hand: Right | Grade: T1500A | Grade material: Cermet | Stock: Yes
CCET060201L-FY AC1030U IC (mm): 6.35 | S (mm): 2.38 | RE (mm): 0.1 | L (mm): 6.4 | D1 (mm): 2.8 | Hand: Left | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCET060201L-FY ACZ150 IC (mm): 6.35 | S (mm): 2.38 | RE (mm): 0.1 | L (mm): 6.4 | D1 (mm): 2.8 | Hand: Left | Grade: ACZ150 | Grade material: Coated carbide | Stock: Yes
CCET060201L-FY T1000A IC (mm): 6.35 | S (mm): 2.38 | RE (mm): 0.1 | L (mm): 6.4 | D1 (mm): 2.8 | Hand: Left | Grade: T1000A | Grade material: Cermet | Stock: Yes
CCET060201L-FY T1500A IC (mm): 6.35 | S (mm): 2.38 | RE (mm): 0.1 | L (mm): 6.4 | D1 (mm): 2.8 | Hand: Left | Grade: T1500A | Grade material: Cermet | Stock: Yes
CCET060202R-FY AC1030U IC (mm): 6.35 | S (mm): 2.38 | RE (mm): 0.2 | L (mm): 6.4 | D1 (mm): 2.8 | Hand: Right | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCET060202R-FY ACZ150 IC (mm): 6.35 | S (mm): 2.38 | RE (mm): 0.2 | L (mm): 6.4 | D1 (mm): 2.8 | Hand: Right | Grade: ACZ150 | Grade material: Coated carbide | Stock: Yes
CCET060202R-FY T1000A IC (mm): 6.35 | S (mm): 2.38 | RE (mm): 0.2 | L (mm): 6.4 | D1 (mm): 2.8 | Hand: Right | Grade: T1000A | Grade material: Cermet | Stock: Yes
CCET060202R-FY T1500A IC (mm): 6.35 | S (mm): 2.38 | RE (mm): 0.2 | L (mm): 6.4 | D1 (mm): 2.8 | Hand: Right | Grade: T1500A | Grade material: Cermet | Stock: Yes
CCET060202L-FY AC1030U IC (mm): 6.35 | S (mm): 2.38 | RE (mm): 0.2 | L (mm): 6.4 | D1 (mm): 2.8 | Hand: Left | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCET060202L-FY ACZ150 IC (mm): 6.35 | S (mm): 2.38 | RE (mm): 0.2 | L (mm): 6.4 | D1 (mm): 2.8 | Hand: Left | Grade: ACZ150 | Grade material: Coated carbide | Stock: Yes
CCET060202L-FY T1000A IC (mm): 6.35 | S (mm): 2.38 | RE (mm): 0.2 | L (mm): 6.4 | D1 (mm): 2.8 | Hand: Left | Grade: T1000A | Grade material: Cermet | Stock: Yes
CCET060202L-FY T1500A IC (mm): 6.35 | S (mm): 2.38 | RE (mm): 0.2 | L (mm): 6.4 | D1 (mm): 2.8 | Hand: Left | Grade: T1500A | Grade material: Cermet | Stock: Yes
CCET060204R-FY AC1030U IC (mm): 6.35 | S (mm): 2.38 | RE (mm): 0.4 | L (mm): 6.4 | D1 (mm): 2.8 | Hand: Right | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCET060204R-FY ACZ150 IC (mm): 6.35 | S (mm): 2.38 | RE (mm): 0.4 | L (mm): 6.4 | D1 (mm): 2.8 | Hand: Right | Grade: ACZ150 | Grade material: Coated carbide | Stock: Yes
CCET060204L-FY AC1030U IC (mm): 6.35 | S (mm): 2.38 | RE (mm): 0.4 | L (mm): 6.4 | D1 (mm): 2.8 | Hand: Left | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCET060204L-FY ACZ150 IC (mm): 6.35 | S (mm): 2.38 | RE (mm): 0.4 | L (mm): 6.4 | D1 (mm): 2.8 | Hand: Left | Grade: ACZ150 | Grade material: Coated carbide | Stock: Yes
CCET09T3003R-FY AC1030U IC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.03 | L (mm): 9.7 | D1 (mm): 4.4 | Hand: Right | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCET09T3003R-FY ACZ150 IC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.03 | L (mm): 9.7 | D1 (mm): 4.4 | Hand: Right | Grade: ACZ150 | Grade material: Coated carbide | Stock: Yes
CCET09T3003L-FY AC1030U IC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.03 | L (mm): 9.7 | D1 (mm): 4.4 | Hand: Left | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCET09T3003L-FY ACZ150 IC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.03 | L (mm): 9.7 | D1 (mm): 4.4 | Hand: Left | Grade: ACZ150 | Grade material: Coated carbide | Stock: Yes
CCET09T301R-FY AC1030U IC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.1 | L (mm): 9.7 | D1 (mm): 4.4 | Hand: Right | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCET09T301R-FY ACZ150 IC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.1 | L (mm): 9.7 | D1 (mm): 4.4 | Hand: Right | Grade: ACZ150 | Grade material: Coated carbide | Stock: Yes
CCET09T301R-FY T1000A IC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.1 | L (mm): 9.7 | D1 (mm): 4.4 | Hand: Right | Grade: T1000A | Grade material: Cermet | Stock: Yes
CCET09T301R-FY T1500A IC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.1 | L (mm): 9.7 | D1 (mm): 4.4 | Hand: Right | Grade: T1500A | Grade material: Cermet | Stock: Yes
CCET09T301L-FY AC1030U IC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.1 | L (mm): 9.7 | D1 (mm): 4.4 | Hand: Left | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCET09T301L-FY ACZ150 IC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.1 | L (mm): 9.7 | D1 (mm): 4.4 | Hand: Left | Grade: ACZ150 | Grade material: Coated carbide | Stock: Yes
CCET09T301L-FY T1000A IC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.1 | L (mm): 9.7 | D1 (mm): 4.4 | Hand: Left | Grade: T1000A | Grade material: Cermet | Stock: Yes
CCET09T301L-FY T1500A IC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.1 | L (mm): 9.7 | D1 (mm): 4.4 | Hand: Left | Grade: T1500A | Grade material: Cermet | Stock: Yes
CCET09T302R-FY AC1030U IC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.2 | L (mm): 9.7 | D1 (mm): 4.4 | Hand: Right | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCET09T302R-FY ACZ150 IC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.2 | L (mm): 9.7 | D1 (mm): 4.4 | Hand: Right | Grade: ACZ150 | Grade material: Coated carbide | Stock: Yes
CCET09T302R-FY T1000A IC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.2 | L (mm): 9.7 | D1 (mm): 4.4 | Hand: Right | Grade: T1000A | Grade material: Cermet | Stock: Yes
CCET09T302R-FY T1500A IC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.2 | L (mm): 9.7 | D1 (mm): 4.4 | Hand: Right | Grade: T1500A | Grade material: Cermet | Stock: Yes
CCET09T302L-FY AC1030U IC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.2 | L (mm): 9.7 | D1 (mm): 4.4 | Hand: Left | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCET09T302L-FY ACZ150 IC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.2 | L (mm): 9.7 | D1 (mm): 4.4 | Hand: Left | Grade: ACZ150 | Grade material: Coated carbide | Stock: Yes
CCET09T302L-FY T1000A IC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.2 | L (mm): 9.7 | D1 (mm): 4.4 | Hand: Left | Grade: T1000A | Grade material: Cermet | Stock: Yes
CCET09T302L-FY T1500A IC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.2 | L (mm): 9.7 | D1 (mm): 4.4 | Hand: Left | Grade: T1500A | Grade material: Cermet | Stock: Yes
CCET09T304R-FY AC1030U IC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.4 | L (mm): 9.7 | D1 (mm): 4.4 | Hand: Right | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCET09T304R-FY ACZ150 IC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.4 | L (mm): 9.7 | D1 (mm): 4.4 | Hand: Right | Grade: ACZ150 | Grade material: Coated carbide | Stock: Yes
CCET09T304L-FY AC1030U IC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.4 | L (mm): 9.7 | D1 (mm): 4.4 | Hand: Left | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCET09T304L-FY ACZ150 IC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.4 | L (mm): 9.7 | D1 (mm): 4.4 | Hand: Left | Grade: ACZ150 | Grade material: Coated carbide | Stock: Yes
Turning InsertsSumitomo Electric Hardmetal
120 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sumitomo Electric Hardmetal IGETALLOY CCET Positive Turning Insert, FY Chipbreaker

Brand Sumitomo Electric Hardmetal·Turning Inserts

Available part numbers (120)

CCET03X1003R-FY AC1030U, CCET03X1003R-FY ACZ150, CCET03X1003R-FY T1000A, CCET03X1003R-FY T1500A, CCET03X1003L-FY AC1030U, CCET03X1003L-FY AC530U, CCET03X1003L-FY ACZ150, CCET03X1003L-FY T1000A, CCET03X1003L-FY T1500A, CCET03X101R-FY AC1030U + 110 more — see full table ↓

How to order

Send the Sumitomo Electric Hardmetal part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CCET03X1003R-FY AC1030UIC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.03 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Right | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCET03X1003R-FY ACZ150IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.03 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Right | Grade: ACZ150 | Grade material: Coated carbide | Stock: Yes
CCET03X1003R-FY T1000AIC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.03 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Right | Grade: T1000A | Grade material: Cermet | Stock: Yes
CCET03X1003R-FY T1500AIC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.03 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Right | Grade: T1500A | Grade material: Cermet | Stock: Yes
CCET03X1003L-FY AC1030UIC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.03 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Left | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCET03X1003L-FY AC530UIC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.03 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Left | Grade: AC530U | Grade material: Coated carbide | Stock: Yes
CCET03X1003L-FY ACZ150IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.03 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Left | Grade: ACZ150 | Grade material: Coated carbide | Stock: Yes
CCET03X1003L-FY T1000AIC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.03 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Left | Grade: T1000A | Grade material: Cermet | Stock: Yes
CCET03X1003L-FY T1500AIC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.03 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Left | Grade: T1500A | Grade material: Cermet | Stock: Yes
CCET03X101R-FY AC1030UIC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.1 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Right | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCET03X101R-FY ACZ150IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.1 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Right | Grade: ACZ150 | Grade material: Coated carbide | Stock: Yes
CCET03X101R-FY T1000AIC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.1 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Right | Grade: T1000A | Grade material: Cermet | Stock: Yes
CCET03X101R-FY T1500AIC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.1 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Right | Grade: T1500A | Grade material: Cermet | Stock: Yes
CCET03X101L-FY AC1030UIC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.1 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Left | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCET03X101L-FY AC530UIC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.1 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Left | Grade: AC530U | Grade material: Coated carbide | Stock: Yes
CCET03X101L-FY ACZ150IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.1 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Left | Grade: ACZ150 | Grade material: Coated carbide | Stock: Yes
CCET03X101L-FY T1000AIC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.1 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Left | Grade: T1000A | Grade material: Cermet | Stock: Yes
CCET03X101L-FY T1500AIC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.1 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Left | Grade: T1500A | Grade material: Cermet | Stock: Yes
CCET03X102R-FY AC1030UIC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.2 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Right | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCET03X102R-FY ACZ150IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.2 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Right | Grade: ACZ150 | Grade material: Coated carbide | Stock: Yes
CCET03X102R-FY T1000AIC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.2 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Right | Grade: T1000A | Grade material: Cermet | Stock: Yes
CCET03X102R-FY T1500AIC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.2 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Right | Grade: T1500A | Grade material: Cermet | Stock: Yes
CCET03X102L-FY AC1030UIC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.2 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Left | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCET03X102L-FY AC530UIC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.2 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Left | Grade: AC530U | Grade material: Coated carbide | Stock: Yes
CCET03X102L-FY ACZ150IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.2 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Left | Grade: ACZ150 | Grade material: Coated carbide | Stock: Yes
CCET03X102L-FY T1000AIC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.2 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Left | Grade: T1000A | Grade material: Cermet | Stock: Yes
CCET03X102L-FY T1500AIC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.2 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Left | Grade: T1500A | Grade material: Cermet | Stock: Yes
CCET03X104R-FY AC1030UIC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.4 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Right | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCET03X104R-FY ACZ150IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.4 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Right | Grade: ACZ150 | Grade material: Coated carbide | Stock: Yes
CCET03X104R-FY T1000AIC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.4 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Right | Grade: T1000A | Grade material: Cermet | Stock: Yes
CCET03X104R-FY T1500AIC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.4 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Right | Grade: T1500A | Grade material: Cermet | Stock: Yes
CCET03X104L-FY AC1030UIC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.4 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Left | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCET03X104L-FY AC530UIC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.4 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Left | Grade: AC530U | Grade material: Coated carbide | Stock: Yes
CCET03X104L-FY ACZ150IC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.4 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Left | Grade: ACZ150 | Grade material: Coated carbide | Stock: Yes
CCET03X104L-FY T1000AIC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.4 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Left | Grade: T1000A | Grade material: Cermet | Stock: Yes
CCET03X104L-FY T1500AIC (mm): 3.5 | S (mm): 1.4 | RE (mm): 0.4 | L (mm): 3.55 | D1 (mm): 1.9 | Hand: Left | Grade: T1500A | Grade material: Cermet | Stock: Yes
CCET04X1003R-FY AC1030UIC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.03 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Right | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCET04X1003R-FY ACZ150IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.03 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Right | Grade: ACZ150 | Grade material: Coated carbide | Stock: Yes
CCET04X1003R-FY T1000AIC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.03 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Right | Grade: T1000A | Grade material: Cermet | Stock: Yes
CCET04X1003R-FY T1500AIC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.03 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Right | Grade: T1500A | Grade material: Cermet | Stock: Yes
CCET04X1003L-FY AC1030UIC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.03 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Left | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCET04X1003L-FY AC530UIC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.03 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Left | Grade: AC530U | Grade material: Coated carbide | Stock: Yes
CCET04X1003L-FY ACZ150IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.03 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Left | Grade: ACZ150 | Grade material: Coated carbide | Stock: Yes
CCET04X1003L-FY T1000AIC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.03 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Left | Grade: T1000A | Grade material: Cermet | Stock: Yes
CCET04X1003L-FY T1500AIC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.03 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Left | Grade: T1500A | Grade material: Cermet | Stock: Yes
CCET04X101R-FY AC1030UIC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.1 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Right | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCET04X101R-FY ACZ150IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.1 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Right | Grade: ACZ150 | Grade material: Coated carbide | Stock: Yes
CCET04X101R-FY T1000AIC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.1 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Right | Grade: T1000A | Grade material: Cermet | Stock: Yes
CCET04X101R-FY T1500AIC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.1 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Right | Grade: T1500A | Grade material: Cermet | Stock: Yes
CCET04X101L-FY AC1030UIC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.1 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Left | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCET04X101L-FY AC530UIC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.1 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Left | Grade: AC530U | Grade material: Coated carbide | Stock: Yes
CCET04X101L-FY ACZ150IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.1 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Left | Grade: ACZ150 | Grade material: Coated carbide | Stock: Yes
CCET04X101L-FY T1000AIC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.1 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Left | Grade: T1000A | Grade material: Cermet | Stock: Yes
CCET04X101L-FY T1500AIC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.1 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Left | Grade: T1500A | Grade material: Cermet | Stock: Yes
CCET04X102R-FY AC1030UIC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.2 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Right | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCET04X102R-FY ACZ150IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.2 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Right | Grade: ACZ150 | Grade material: Coated carbide | Stock: Yes
CCET04X102R-FY T1000AIC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.2 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Right | Grade: T1000A | Grade material: Cermet | Stock: Yes
CCET04X102R-FY T1500AIC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.2 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Right | Grade: T1500A | Grade material: Cermet | Stock: Yes
CCET04X102L-FY AC1030UIC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.2 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Left | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCET04X102L-FY AC530UIC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.2 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Left | Grade: AC530U | Grade material: Coated carbide | Stock: Yes
CCET04X102L-FY ACZ150IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.2 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Left | Grade: ACZ150 | Grade material: Coated carbide | Stock: Yes
CCET04X102L-FY T1000AIC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.2 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Left | Grade: T1000A | Grade material: Cermet | Stock: Yes
CCET04X102L-FY T1500AIC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.2 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Left | Grade: T1500A | Grade material: Cermet | Stock: Yes
CCET04X104R-FY AC1030UIC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.4 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Right | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCET04X104R-FY ACZ150IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.4 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Right | Grade: ACZ150 | Grade material: Coated carbide | Stock: Yes
CCET04X104R-FY T1000AIC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.4 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Right | Grade: T1000A | Grade material: Cermet | Stock: Yes
CCET04X104R-FY T1500AIC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.4 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Right | Grade: T1500A | Grade material: Cermet | Stock: Yes
CCET04X104L-FY AC1030UIC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.4 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Left | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCET04X104L-FY AC530UIC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.4 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Left | Grade: AC530U | Grade material: Coated carbide | Stock: Yes
CCET04X104L-FY ACZ150IC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.4 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Left | Grade: ACZ150 | Grade material: Coated carbide | Stock: Yes
CCET04X104L-FY T1000AIC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.4 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Left | Grade: T1000A | Grade material: Cermet | Stock: Yes
CCET04X104L-FY T1500AIC (mm): 4.3 | S (mm): 1.8 | RE (mm): 0.4 | L (mm): 4.37 | D1 (mm): 2.3 | Hand: Left | Grade: T1500A | Grade material: Cermet | Stock: Yes
CCET0602003R-FY AC1030UIC (mm): 6.35 | S (mm): 2.38 | RE (mm): 0.03 | L (mm): 6.4 | D1 (mm): 2.8 | Hand: Right | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCET0602003R-FY ACZ150IC (mm): 6.35 | S (mm): 2.38 | RE (mm): 0.03 | L (mm): 6.4 | D1 (mm): 2.8 | Hand: Right | Grade: ACZ150 | Grade material: Coated carbide | Stock: Yes
CCET0602003L-FY AC1030UIC (mm): 6.35 | S (mm): 2.38 | RE (mm): 0.03 | L (mm): 6.4 | D1 (mm): 2.8 | Hand: Left | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCET0602003L-FY ACZ150IC (mm): 6.35 | S (mm): 2.38 | RE (mm): 0.03 | L (mm): 6.4 | D1 (mm): 2.8 | Hand: Left | Grade: ACZ150 | Grade material: Coated carbide | Stock: Yes
CCET060201R-FY AC1030UIC (mm): 6.35 | S (mm): 2.38 | RE (mm): 0.1 | L (mm): 6.4 | D1 (mm): 2.8 | Hand: Right | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCET060201R-FY ACZ150IC (mm): 6.35 | S (mm): 2.38 | RE (mm): 0.1 | L (mm): 6.4 | D1 (mm): 2.8 | Hand: Right | Grade: ACZ150 | Grade material: Coated carbide | Stock: Yes
CCET060201R-FY T1000AIC (mm): 6.35 | S (mm): 2.38 | RE (mm): 0.1 | L (mm): 6.4 | D1 (mm): 2.8 | Hand: Right | Grade: T1000A | Grade material: Cermet | Stock: Yes
CCET060201R-FY T1500AIC (mm): 6.35 | S (mm): 2.38 | RE (mm): 0.1 | L (mm): 6.4 | D1 (mm): 2.8 | Hand: Right | Grade: T1500A | Grade material: Cermet | Stock: Yes
CCET060201L-FY AC1030UIC (mm): 6.35 | S (mm): 2.38 | RE (mm): 0.1 | L (mm): 6.4 | D1 (mm): 2.8 | Hand: Left | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCET060201L-FY ACZ150IC (mm): 6.35 | S (mm): 2.38 | RE (mm): 0.1 | L (mm): 6.4 | D1 (mm): 2.8 | Hand: Left | Grade: ACZ150 | Grade material: Coated carbide | Stock: Yes
CCET060201L-FY T1000AIC (mm): 6.35 | S (mm): 2.38 | RE (mm): 0.1 | L (mm): 6.4 | D1 (mm): 2.8 | Hand: Left | Grade: T1000A | Grade material: Cermet | Stock: Yes
CCET060201L-FY T1500AIC (mm): 6.35 | S (mm): 2.38 | RE (mm): 0.1 | L (mm): 6.4 | D1 (mm): 2.8 | Hand: Left | Grade: T1500A | Grade material: Cermet | Stock: Yes
CCET060202R-FY AC1030UIC (mm): 6.35 | S (mm): 2.38 | RE (mm): 0.2 | L (mm): 6.4 | D1 (mm): 2.8 | Hand: Right | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCET060202R-FY ACZ150IC (mm): 6.35 | S (mm): 2.38 | RE (mm): 0.2 | L (mm): 6.4 | D1 (mm): 2.8 | Hand: Right | Grade: ACZ150 | Grade material: Coated carbide | Stock: Yes
CCET060202R-FY T1000AIC (mm): 6.35 | S (mm): 2.38 | RE (mm): 0.2 | L (mm): 6.4 | D1 (mm): 2.8 | Hand: Right | Grade: T1000A | Grade material: Cermet | Stock: Yes
CCET060202R-FY T1500AIC (mm): 6.35 | S (mm): 2.38 | RE (mm): 0.2 | L (mm): 6.4 | D1 (mm): 2.8 | Hand: Right | Grade: T1500A | Grade material: Cermet | Stock: Yes
CCET060202L-FY AC1030UIC (mm): 6.35 | S (mm): 2.38 | RE (mm): 0.2 | L (mm): 6.4 | D1 (mm): 2.8 | Hand: Left | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCET060202L-FY ACZ150IC (mm): 6.35 | S (mm): 2.38 | RE (mm): 0.2 | L (mm): 6.4 | D1 (mm): 2.8 | Hand: Left | Grade: ACZ150 | Grade material: Coated carbide | Stock: Yes
CCET060202L-FY T1000AIC (mm): 6.35 | S (mm): 2.38 | RE (mm): 0.2 | L (mm): 6.4 | D1 (mm): 2.8 | Hand: Left | Grade: T1000A | Grade material: Cermet | Stock: Yes
CCET060202L-FY T1500AIC (mm): 6.35 | S (mm): 2.38 | RE (mm): 0.2 | L (mm): 6.4 | D1 (mm): 2.8 | Hand: Left | Grade: T1500A | Grade material: Cermet | Stock: Yes
CCET060204R-FY AC1030UIC (mm): 6.35 | S (mm): 2.38 | RE (mm): 0.4 | L (mm): 6.4 | D1 (mm): 2.8 | Hand: Right | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCET060204R-FY ACZ150IC (mm): 6.35 | S (mm): 2.38 | RE (mm): 0.4 | L (mm): 6.4 | D1 (mm): 2.8 | Hand: Right | Grade: ACZ150 | Grade material: Coated carbide | Stock: Yes
CCET060204L-FY AC1030UIC (mm): 6.35 | S (mm): 2.38 | RE (mm): 0.4 | L (mm): 6.4 | D1 (mm): 2.8 | Hand: Left | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCET060204L-FY ACZ150IC (mm): 6.35 | S (mm): 2.38 | RE (mm): 0.4 | L (mm): 6.4 | D1 (mm): 2.8 | Hand: Left | Grade: ACZ150 | Grade material: Coated carbide | Stock: Yes
CCET09T3003R-FY AC1030UIC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.03 | L (mm): 9.7 | D1 (mm): 4.4 | Hand: Right | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCET09T3003R-FY ACZ150IC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.03 | L (mm): 9.7 | D1 (mm): 4.4 | Hand: Right | Grade: ACZ150 | Grade material: Coated carbide | Stock: Yes
CCET09T3003L-FY AC1030UIC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.03 | L (mm): 9.7 | D1 (mm): 4.4 | Hand: Left | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCET09T3003L-FY ACZ150IC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.03 | L (mm): 9.7 | D1 (mm): 4.4 | Hand: Left | Grade: ACZ150 | Grade material: Coated carbide | Stock: Yes
CCET09T301R-FY AC1030UIC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.1 | L (mm): 9.7 | D1 (mm): 4.4 | Hand: Right | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCET09T301R-FY ACZ150IC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.1 | L (mm): 9.7 | D1 (mm): 4.4 | Hand: Right | Grade: ACZ150 | Grade material: Coated carbide | Stock: Yes
CCET09T301R-FY T1000AIC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.1 | L (mm): 9.7 | D1 (mm): 4.4 | Hand: Right | Grade: T1000A | Grade material: Cermet | Stock: Yes
CCET09T301R-FY T1500AIC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.1 | L (mm): 9.7 | D1 (mm): 4.4 | Hand: Right | Grade: T1500A | Grade material: Cermet | Stock: Yes
CCET09T301L-FY AC1030UIC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.1 | L (mm): 9.7 | D1 (mm): 4.4 | Hand: Left | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCET09T301L-FY ACZ150IC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.1 | L (mm): 9.7 | D1 (mm): 4.4 | Hand: Left | Grade: ACZ150 | Grade material: Coated carbide | Stock: Yes
CCET09T301L-FY T1000AIC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.1 | L (mm): 9.7 | D1 (mm): 4.4 | Hand: Left | Grade: T1000A | Grade material: Cermet | Stock: Yes
CCET09T301L-FY T1500AIC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.1 | L (mm): 9.7 | D1 (mm): 4.4 | Hand: Left | Grade: T1500A | Grade material: Cermet | Stock: Yes
CCET09T302R-FY AC1030UIC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.2 | L (mm): 9.7 | D1 (mm): 4.4 | Hand: Right | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCET09T302R-FY ACZ150IC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.2 | L (mm): 9.7 | D1 (mm): 4.4 | Hand: Right | Grade: ACZ150 | Grade material: Coated carbide | Stock: Yes
CCET09T302R-FY T1000AIC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.2 | L (mm): 9.7 | D1 (mm): 4.4 | Hand: Right | Grade: T1000A | Grade material: Cermet | Stock: Yes
CCET09T302R-FY T1500AIC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.2 | L (mm): 9.7 | D1 (mm): 4.4 | Hand: Right | Grade: T1500A | Grade material: Cermet | Stock: Yes
CCET09T302L-FY AC1030UIC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.2 | L (mm): 9.7 | D1 (mm): 4.4 | Hand: Left | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCET09T302L-FY ACZ150IC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.2 | L (mm): 9.7 | D1 (mm): 4.4 | Hand: Left | Grade: ACZ150 | Grade material: Coated carbide | Stock: Yes
CCET09T302L-FY T1000AIC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.2 | L (mm): 9.7 | D1 (mm): 4.4 | Hand: Left | Grade: T1000A | Grade material: Cermet | Stock: Yes
CCET09T302L-FY T1500AIC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.2 | L (mm): 9.7 | D1 (mm): 4.4 | Hand: Left | Grade: T1500A | Grade material: Cermet | Stock: Yes
CCET09T304R-FY AC1030UIC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.4 | L (mm): 9.7 | D1 (mm): 4.4 | Hand: Right | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCET09T304R-FY ACZ150IC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.4 | L (mm): 9.7 | D1 (mm): 4.4 | Hand: Right | Grade: ACZ150 | Grade material: Coated carbide | Stock: Yes
CCET09T304L-FY AC1030UIC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.4 | L (mm): 9.7 | D1 (mm): 4.4 | Hand: Left | Grade: AC1030U | Grade material: Coated carbide | Stock: Yes
CCET09T304L-FY ACZ150IC (mm): 9.525 | S (mm): 3.97 | RE (mm): 0.4 | L (mm): 9.7 | D1 (mm): 4.4 | Hand: Left | Grade: ACZ150 | Grade material: Coated carbide | Stock: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Cutting Tools →
